Home >> Chevrolet >> 2002 >> Chevy Express G2500, Van Passenger Extended, 6.5 F >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery >> Repair Instructions >> Battery Negative Cable Disconnect/Connect Procedure >> Removal Procedure

Removal Procedure

  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Remove the battery ground (negative) cable and bolt from the battery.

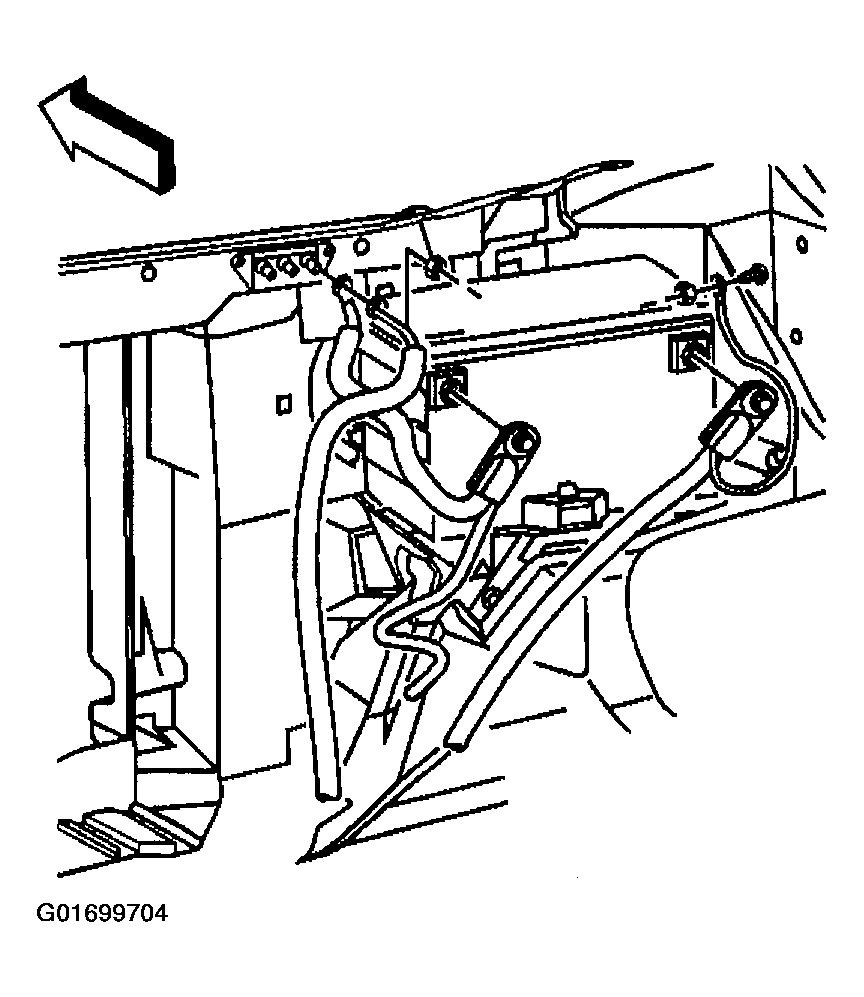

    Fig 1: Removing Battery Ground (Negative) Cable From Battery
    G01699704Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery ground (negative) cable and bolt from the battery for auxiliary battery.

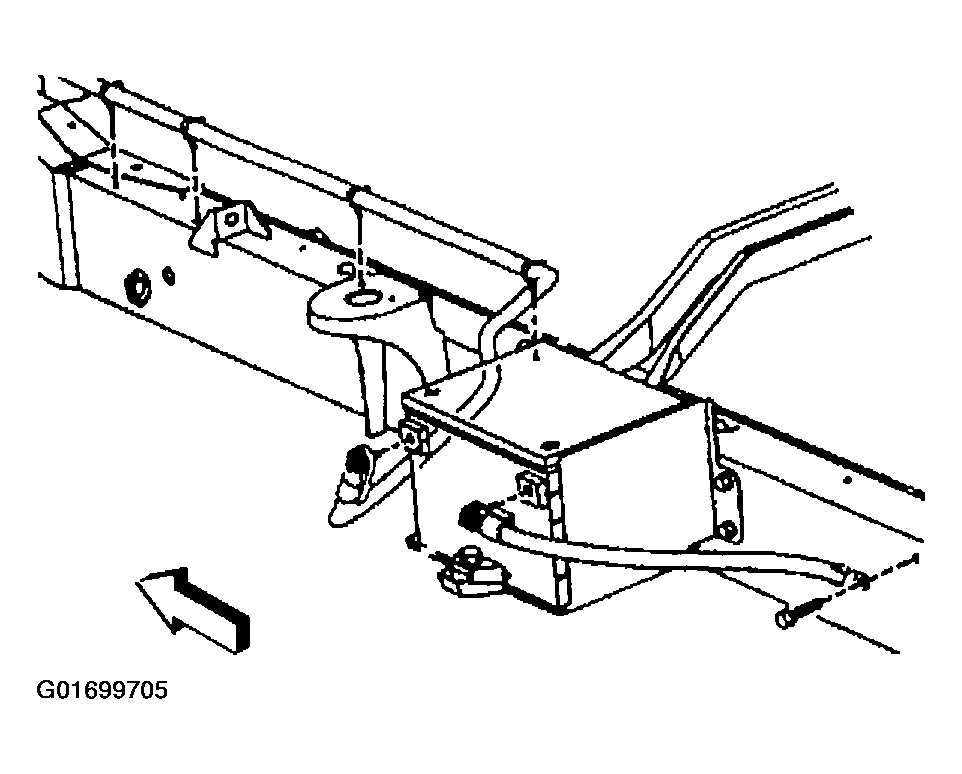

    Fig 2: Removing Battery Ground (Negative) Cable From Auxiliary Battery
    G01699705Courtesy of GENERAL MOTORS CORP.
