Installation Procedure

  1. Install the inside door handle bezel to the vehicle.
  2. Align the inside door handle bezel to the front door trim plate.
  3. Press the inside door handle bezel in order to engage the retaining tab.

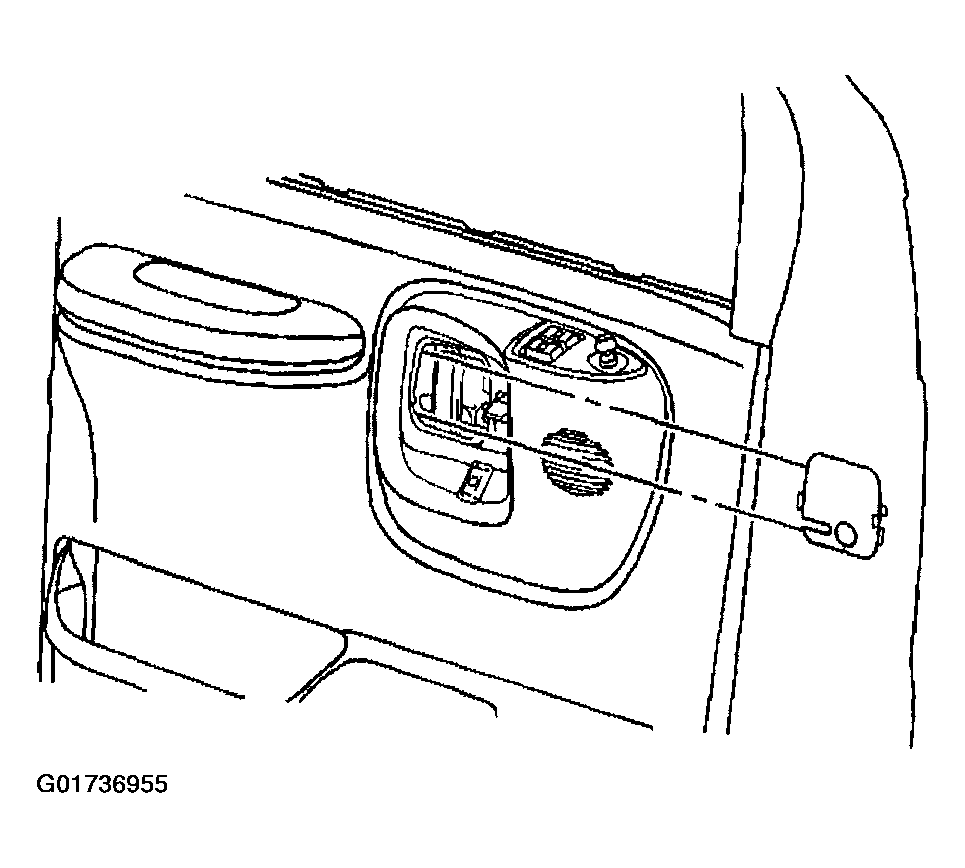

Fig 1: Installing Inside Door Handle Bezel
G01736955Courtesy of GENERAL MOTORS CORP.
