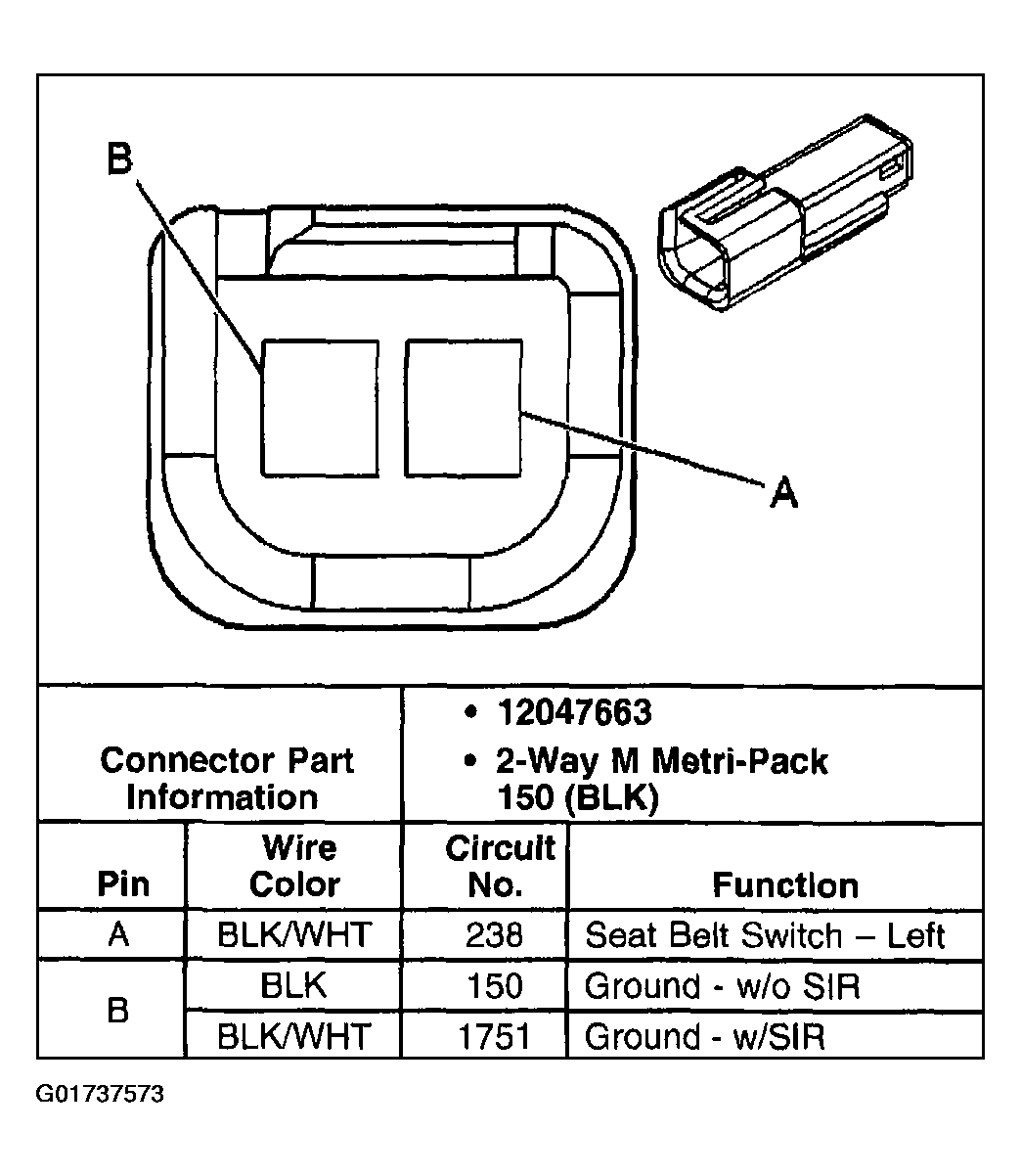

Home >> Chevrolet >> 2002 >> Chevy Express G2500, Van Passenger Extended, 5.7 R, L31/KL6 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Component Locator >> Seat Belt Connector End Views
