Removal Procedure

  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT .
  2. Remove the drive belt.
  3. Remove the power steering pump pulley using the J 25034-C  .

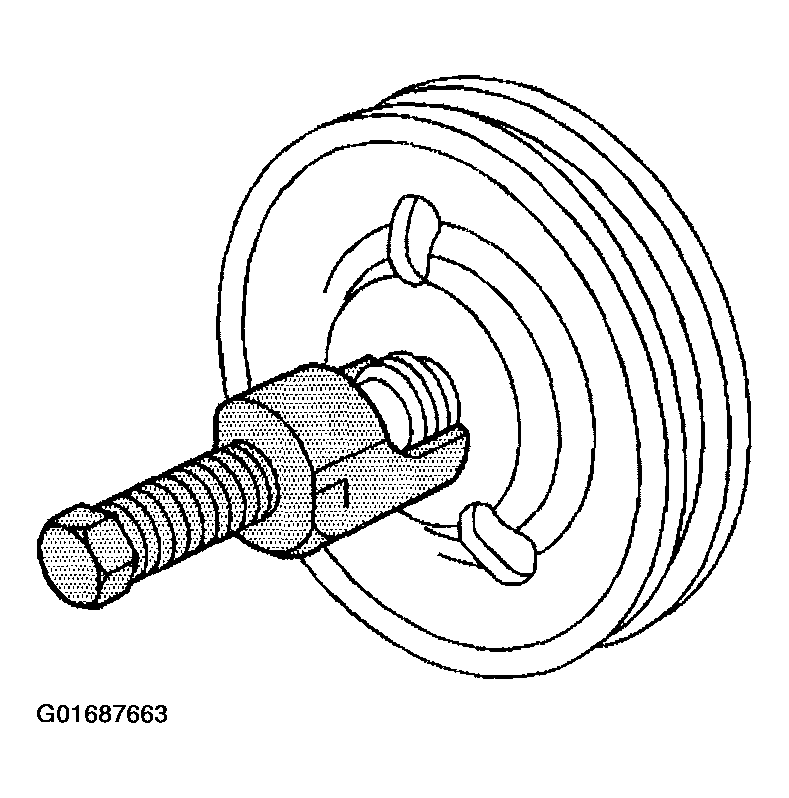

    Fig 1: Removing Power Steering Pulley Using J 25034-C
    G01687663Courtesy of GENERAL MOTORS CORP.
