Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .
COMPONENT LOCATIONS

Application Location
Diesel Models
Accelerator Pedal Position Module Mounted To Accelerator Pedal
Cruise Control Switches On Multifunction Lever
Powertrain Control Module Above Interior Engine Cover
TCC/Brake Switch On Brake Pedal Bracket
8.1L Models
Cruise Control Switches On Multifunction Lever
Powertrain Control Module Above Interior Engine Cover
Throttle Actuator Control Module Under Cowl, Near Windshield Wiper Motor
TCC/Brake Switch On Brake Pedal Bracket
Except Diesel & 8.1L Models
Cruise Control Switches On Multifunction Lever
Cruise Control Module Under Cowl, Near Windshield Wiper Motor
Powertrain Control Module Left Side Of Engine Compartment, Next To Relay Center
TCC/Brake Switch On Brake Pedal Bracket

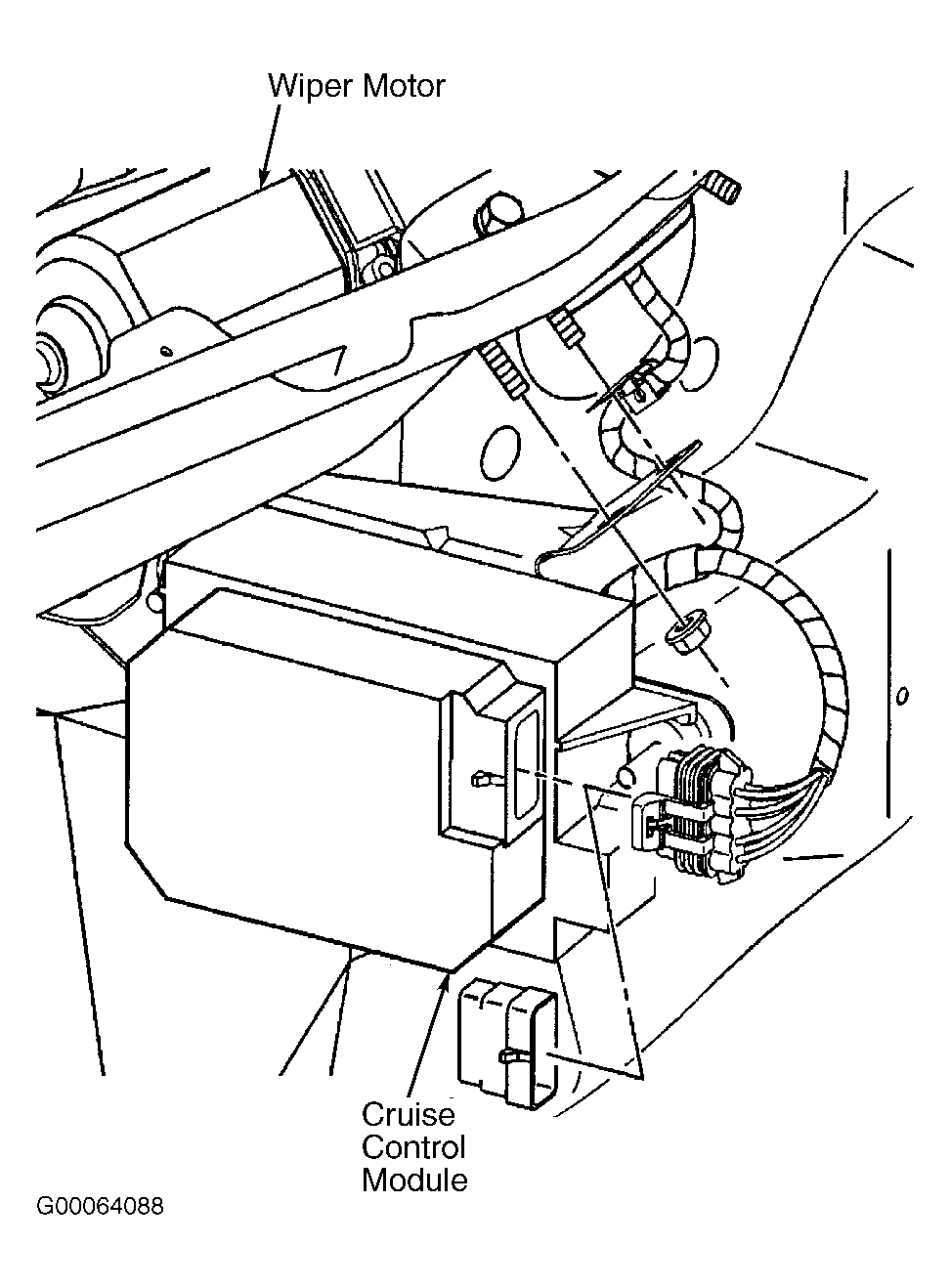

Fig 1: Identifying Cruise Control Module Location
G00064088Courtesy of GENERAL MOTORS CORP.

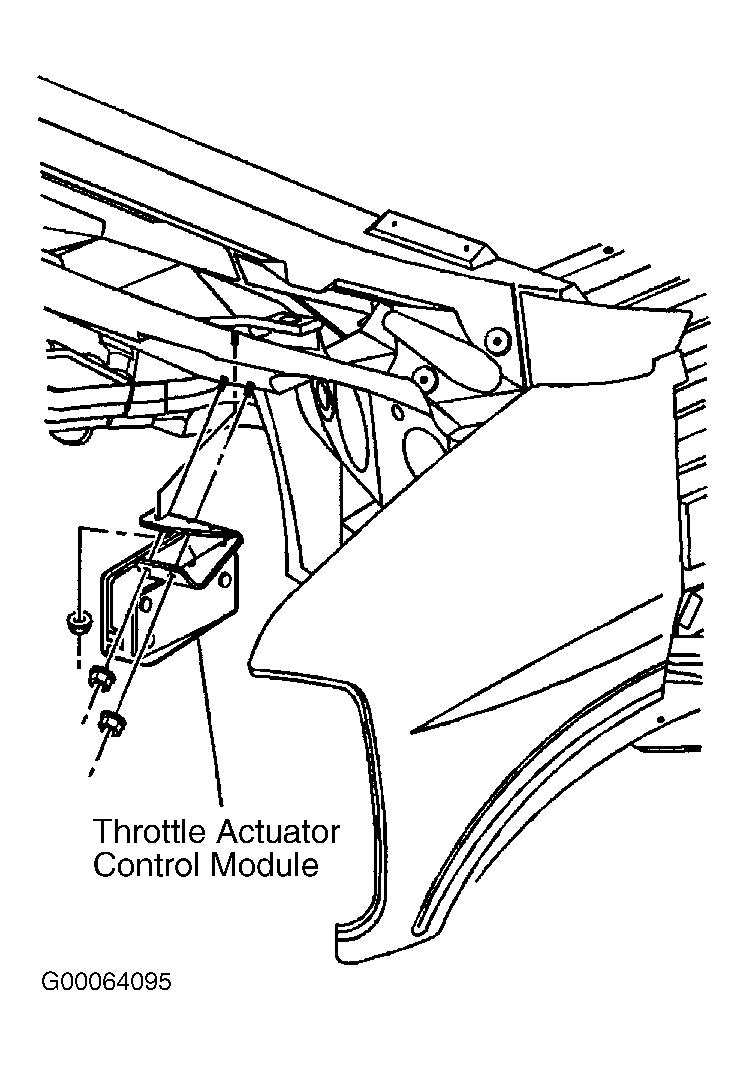

Fig 2: Identifying Throttle Actuator Control Module Location
G00064095Courtesy of GENERAL MOTORS CORP.

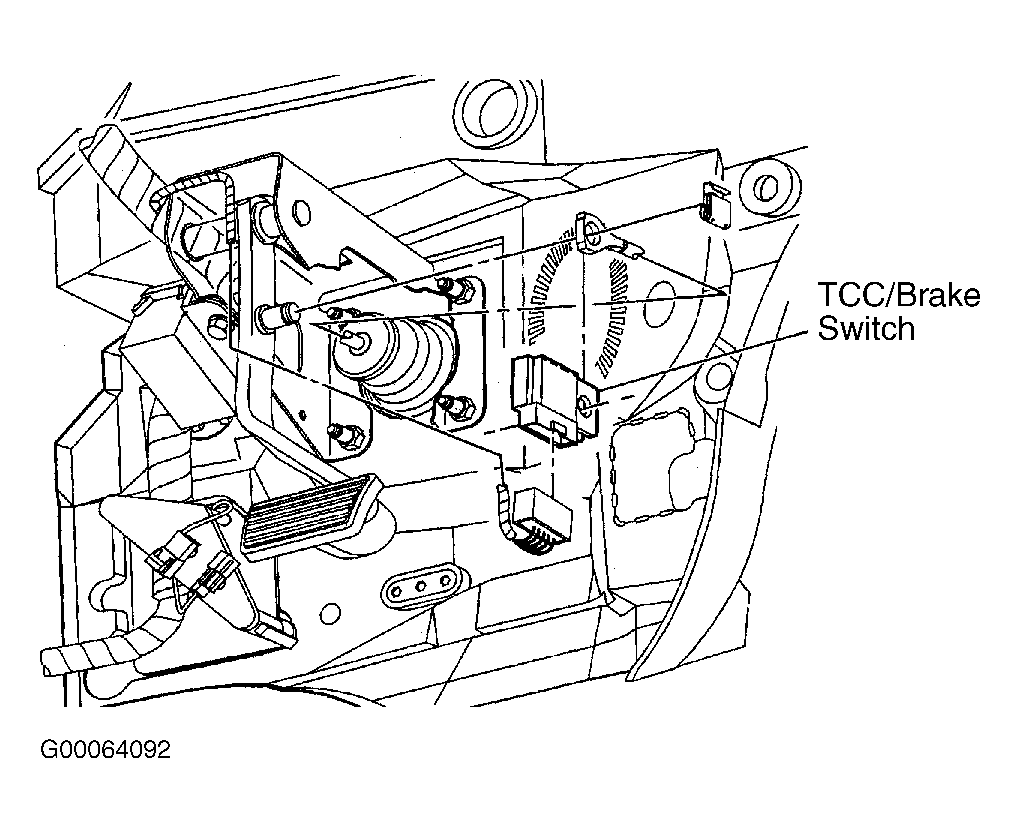

Fig 3: Identifying TCC/Brake Switch Location
G00064092Courtesy of GENERAL MOTORS CORP.
