Power Steering Pump Specifications

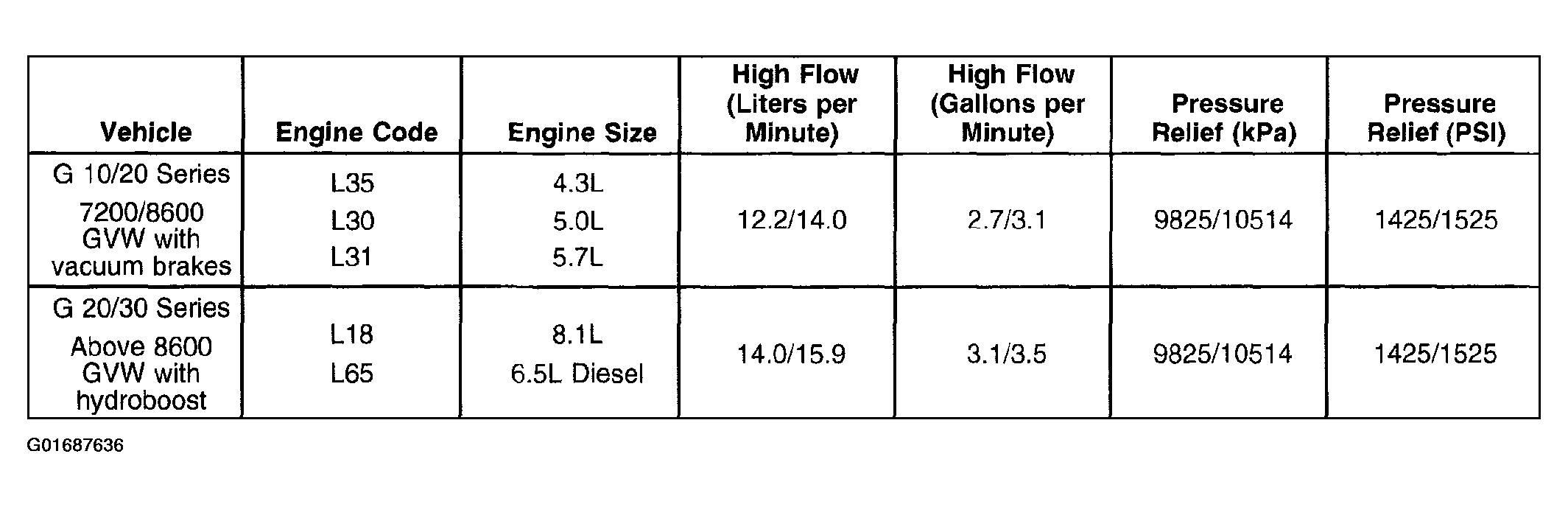

Fig 1: Power Steering Pump Specifications

G01687636

Courtesy of GENERAL MOTORS CORP.
