Power Steering Pump Disassembled View

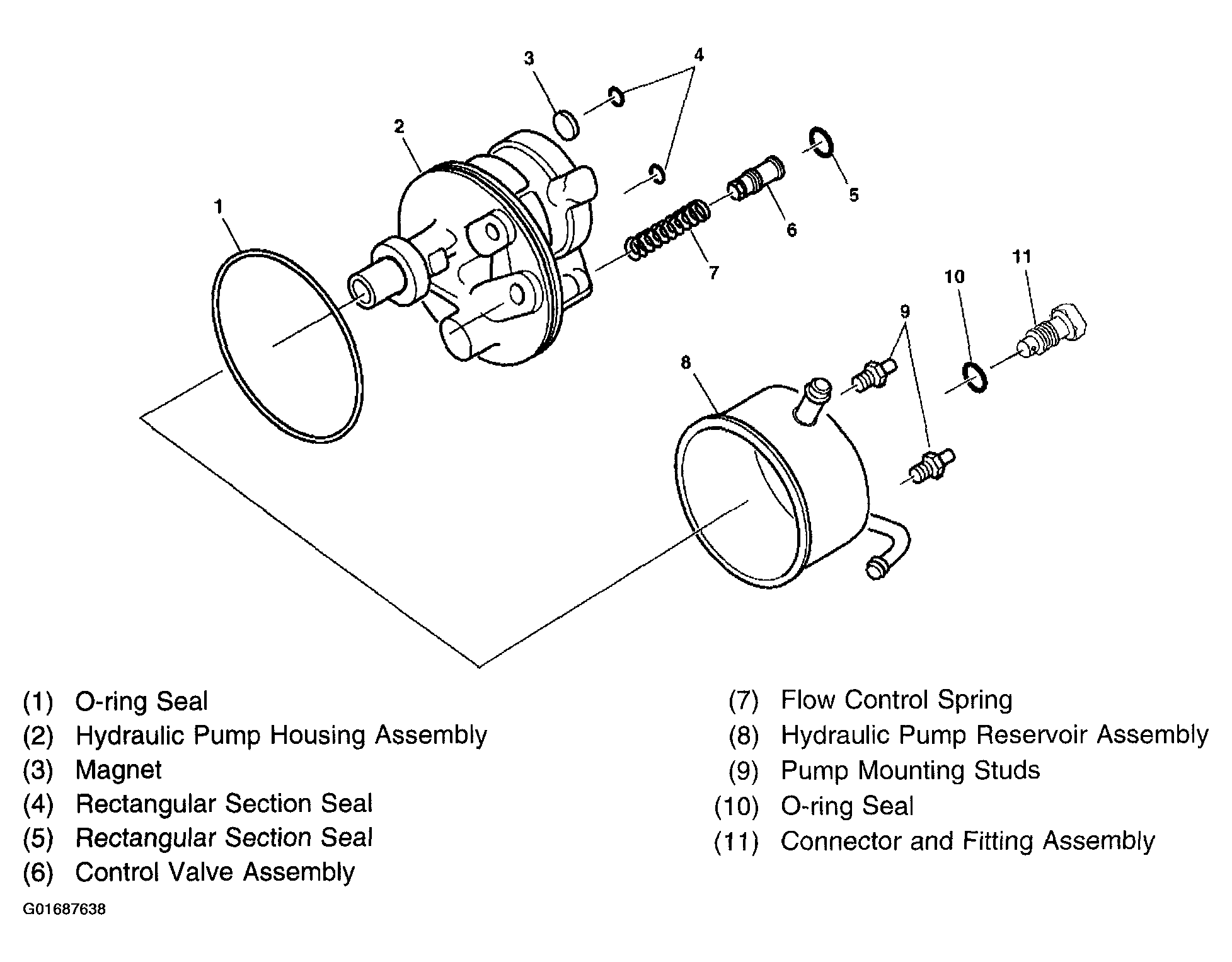

Fig 1: Power Steering Pump

G01687638

Courtesy of GENERAL MOTORS CORP.
