Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
In-Line Fuse (Left) In left body harness, under left side of dash.
In-Line Fuse (Right) In left body harness, under left side of dash.
In-Line Fuse (Underhood) Near underhood fuse/relay center.
I/P Fuse Block On left lower kick panel.
I/P Relay Block Under left side of dash.
Rear Fuse Block On left "B" pillar.

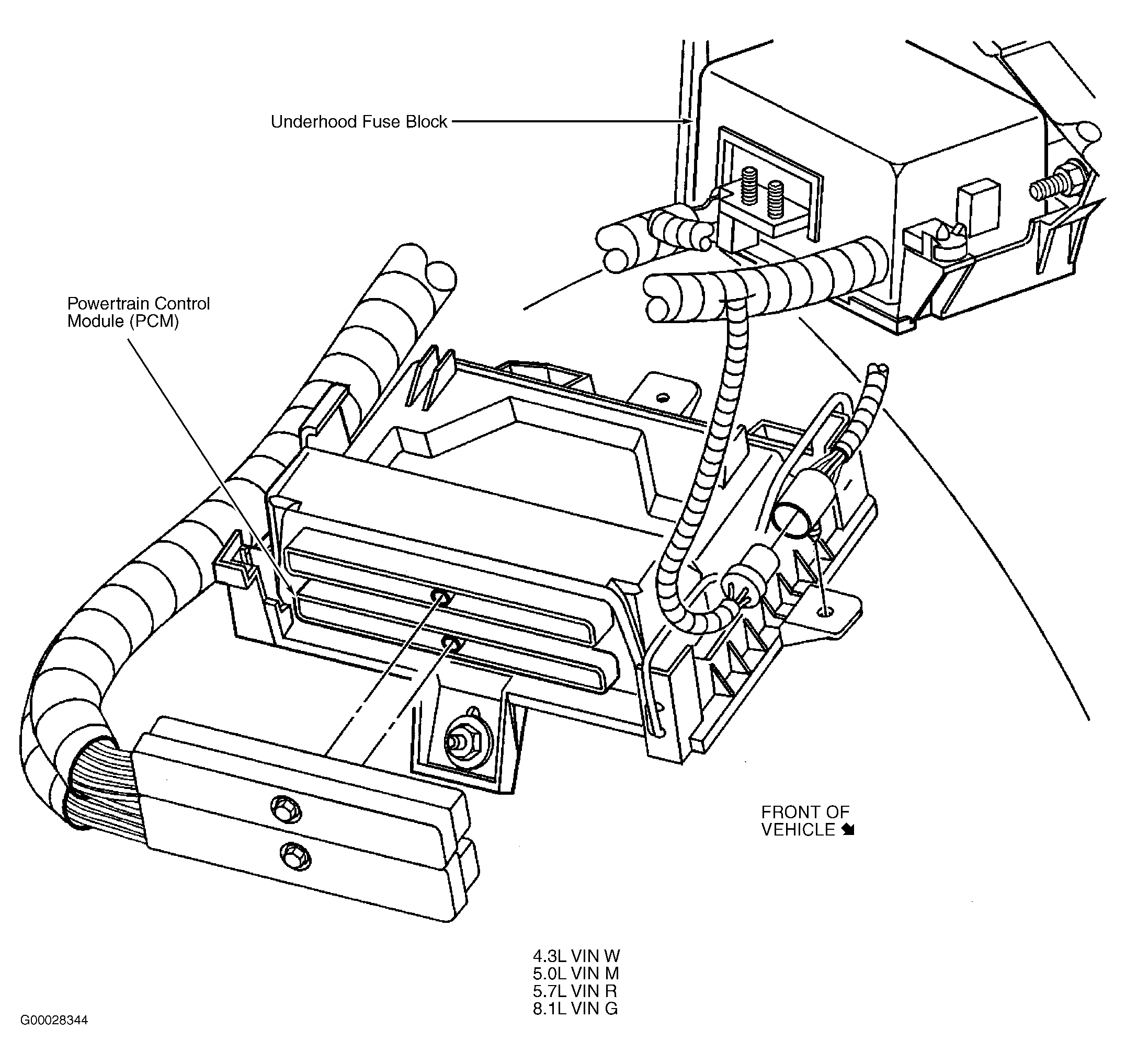

Underhood Fuse Block (4.3L VIN W) On left side of engine compartment. See Figure .
Underhood Fuse Block (5.0L VIN M) On left side of engine compartment. See Figure .
Underhood Fuse Block (5.7L VIN R) On left side of engine compartment. See Figure .
Underhood Fuse Block (6.5L VIN F) On left side of engine compartment.
Underhood Fuse Block (8.1L VIN G) On left side of engine compartment. See Figure .
Underhood Junction Block On right front side of engine compartment, next to radiator.
