ABS Connector End Views

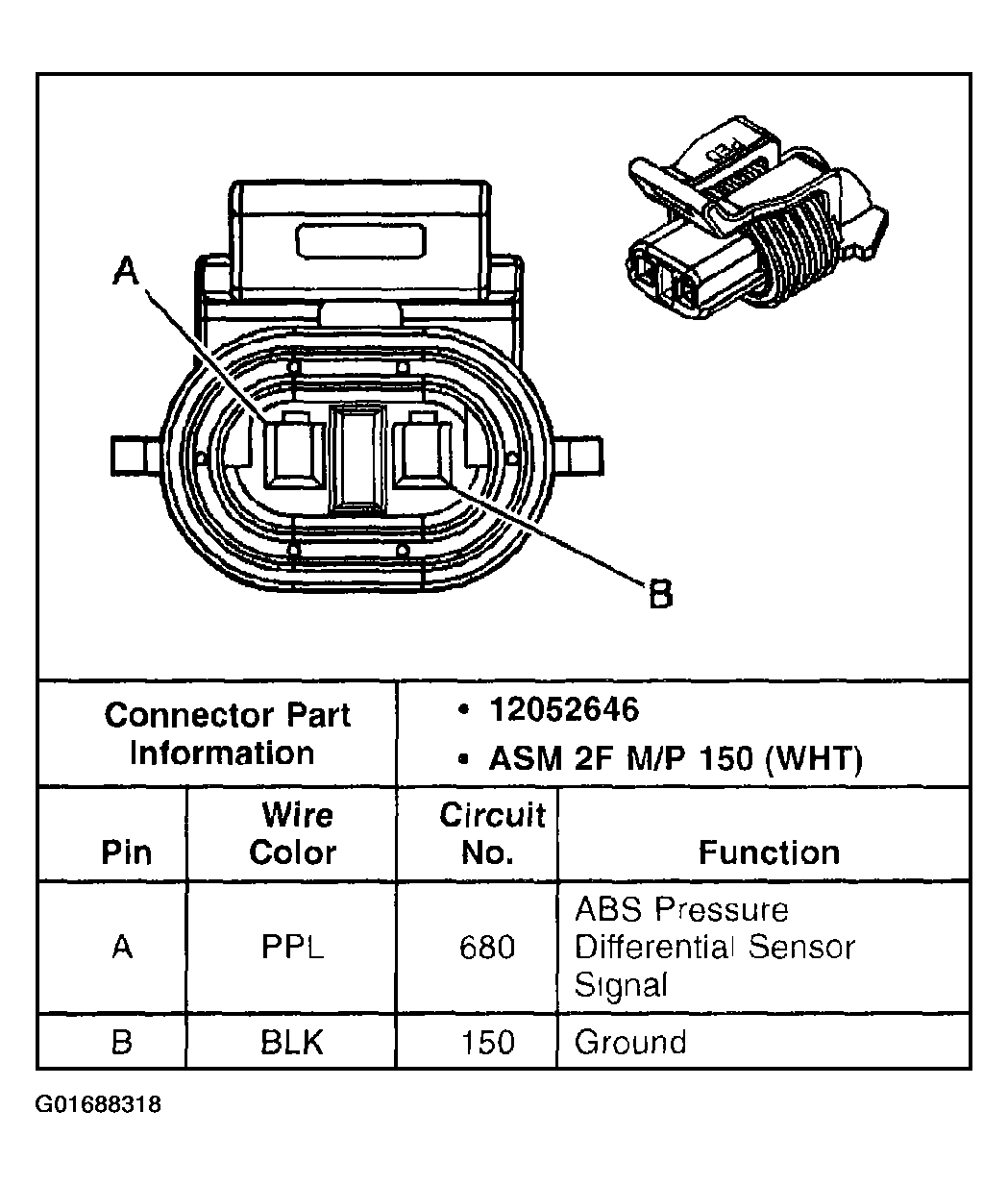

Fig 1: Brake Pressure Differential Switch

G01688318

Courtesy of GENERAL MOTORS CORP.

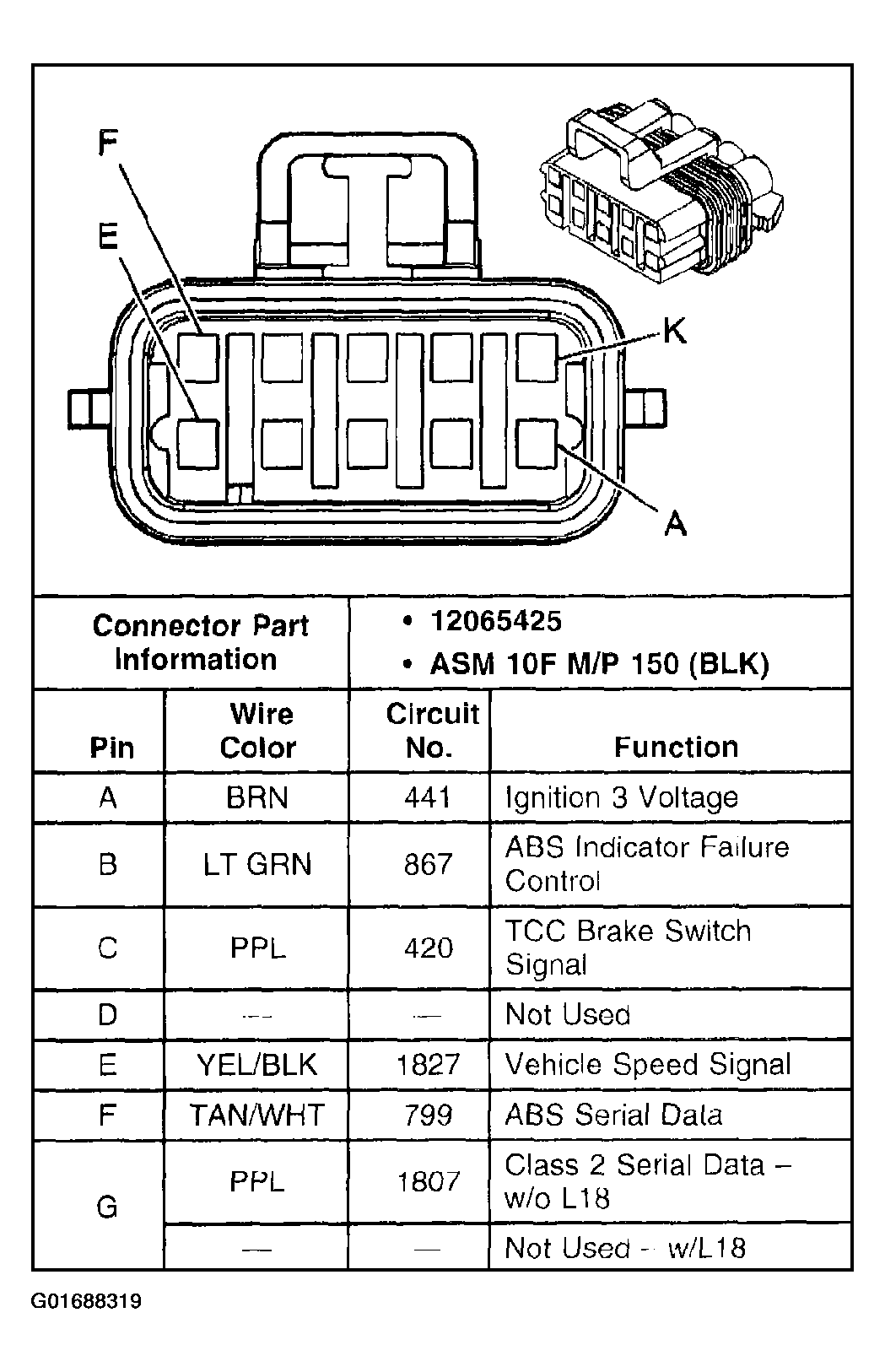

Fig 2: EBCM, Connector C1 (1 Of 2)

G01688319

Courtesy of GENERAL MOTORS CORP.

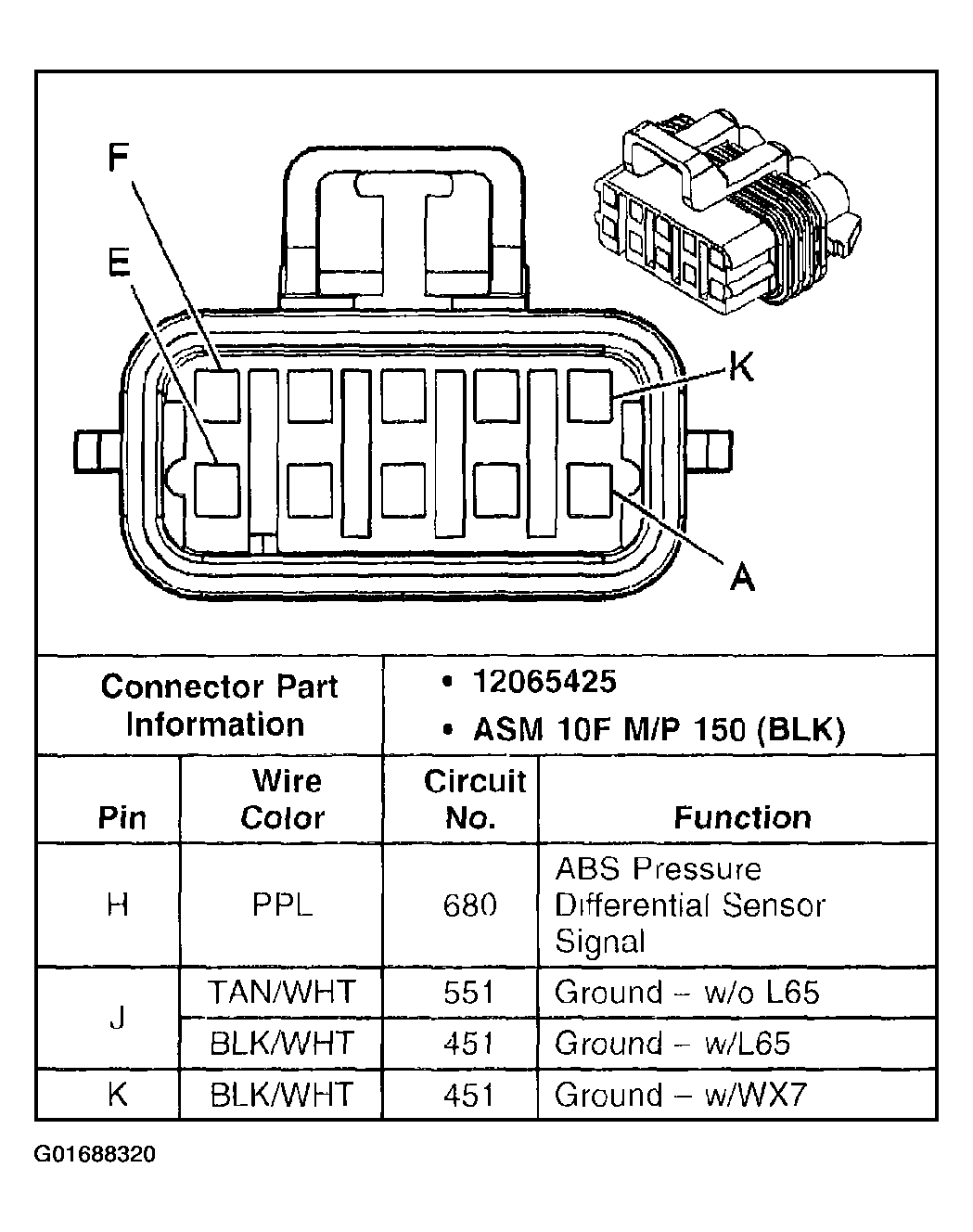

Fig 3: EBCM, Connector C1 (2 Of 2)

G01688320

Courtesy of GENERAL MOTORS CORP.

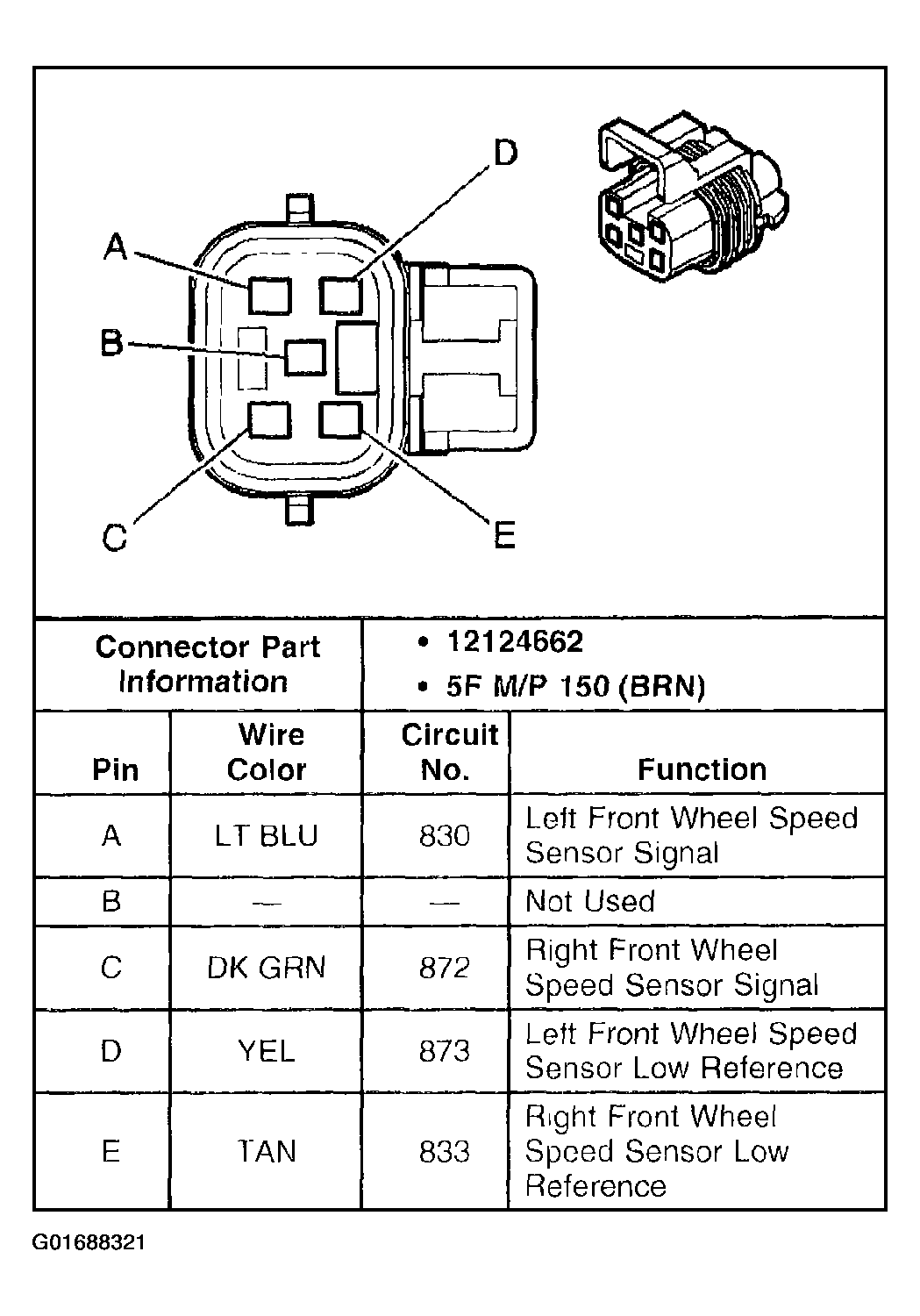

Fig 4: EBCM, Connector C2

G01688321

Courtesy of GENERAL MOTORS CORP.

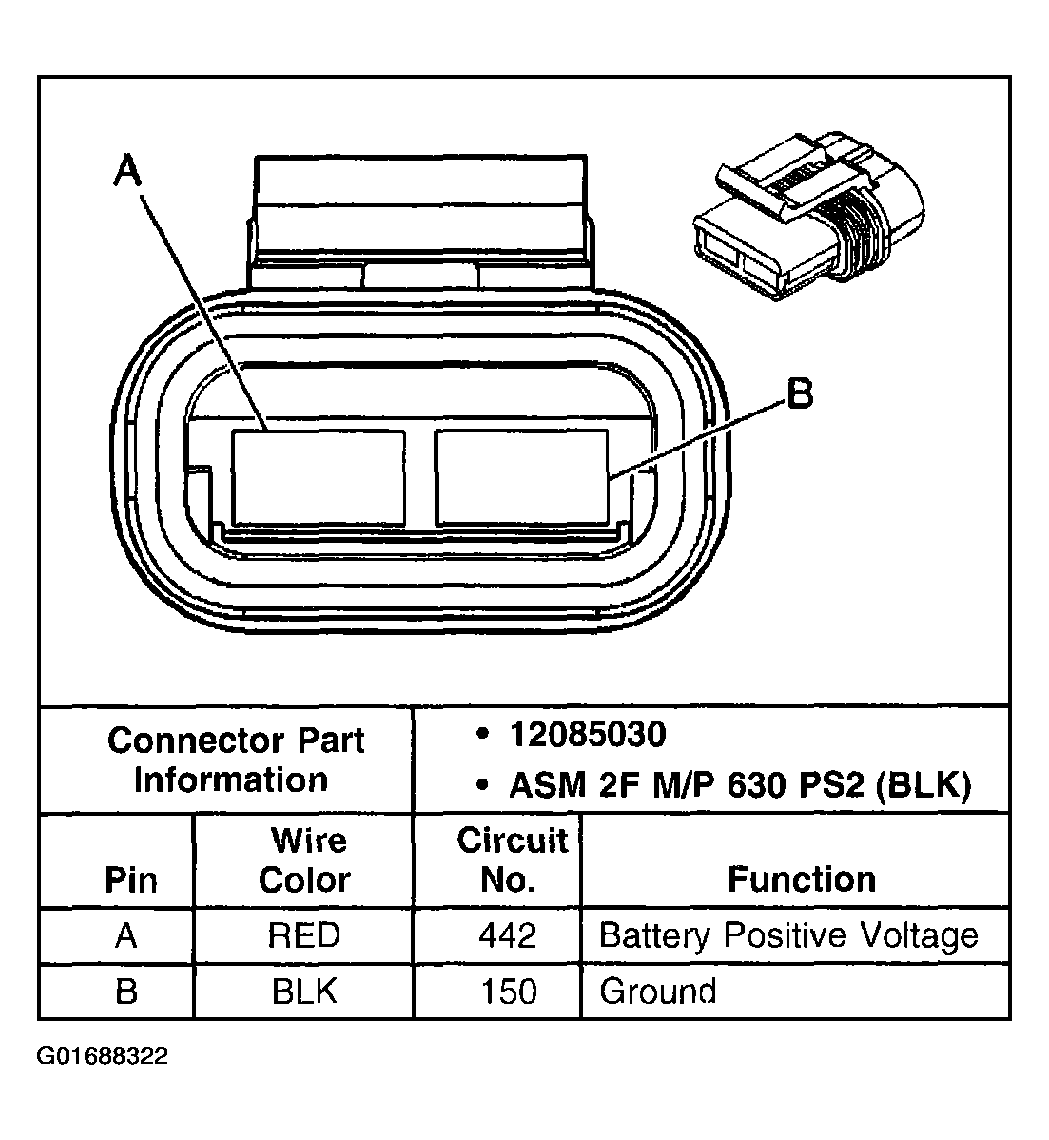

Fig 5: EBCM, Connector C3

G01688322

Courtesy of GENERAL MOTORS CORP.

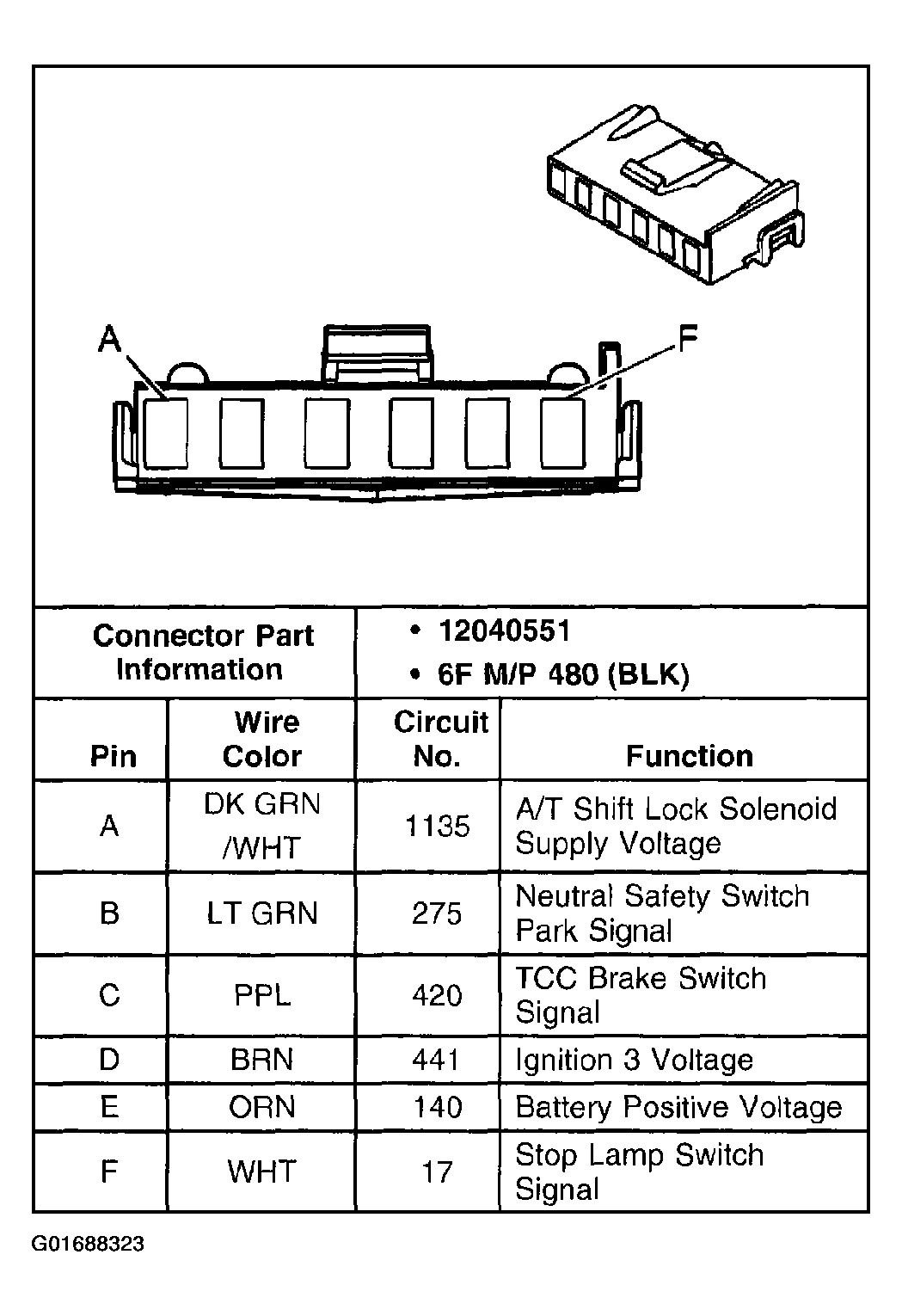

Fig 6: TCC/Brake Switch

G01688323

Courtesy of GENERAL MOTORS CORP.

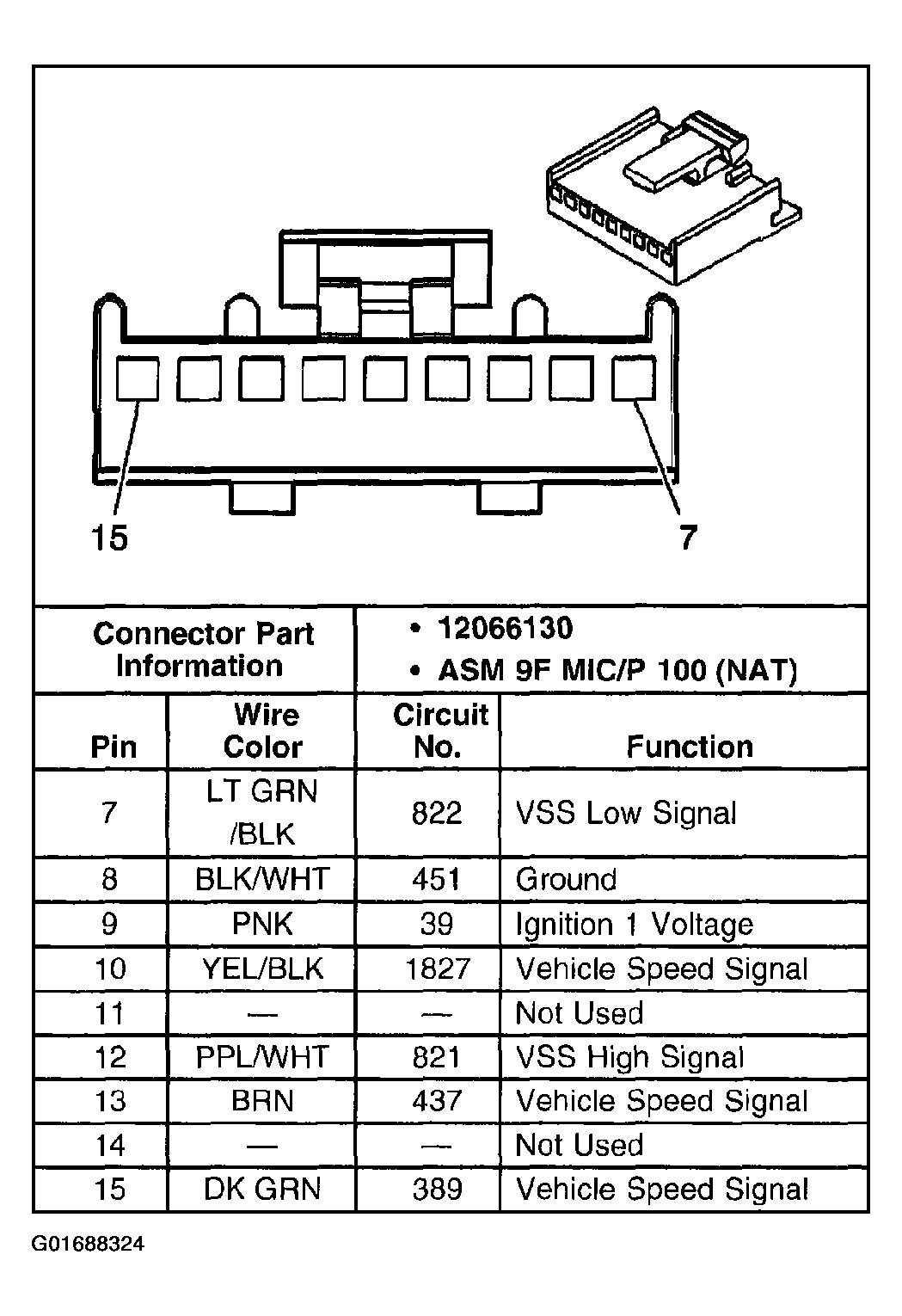

Fig 7: Vehicle Speed Sensor (VSS) Buffer

G01688324

Courtesy of GENERAL MOTORS CORP.

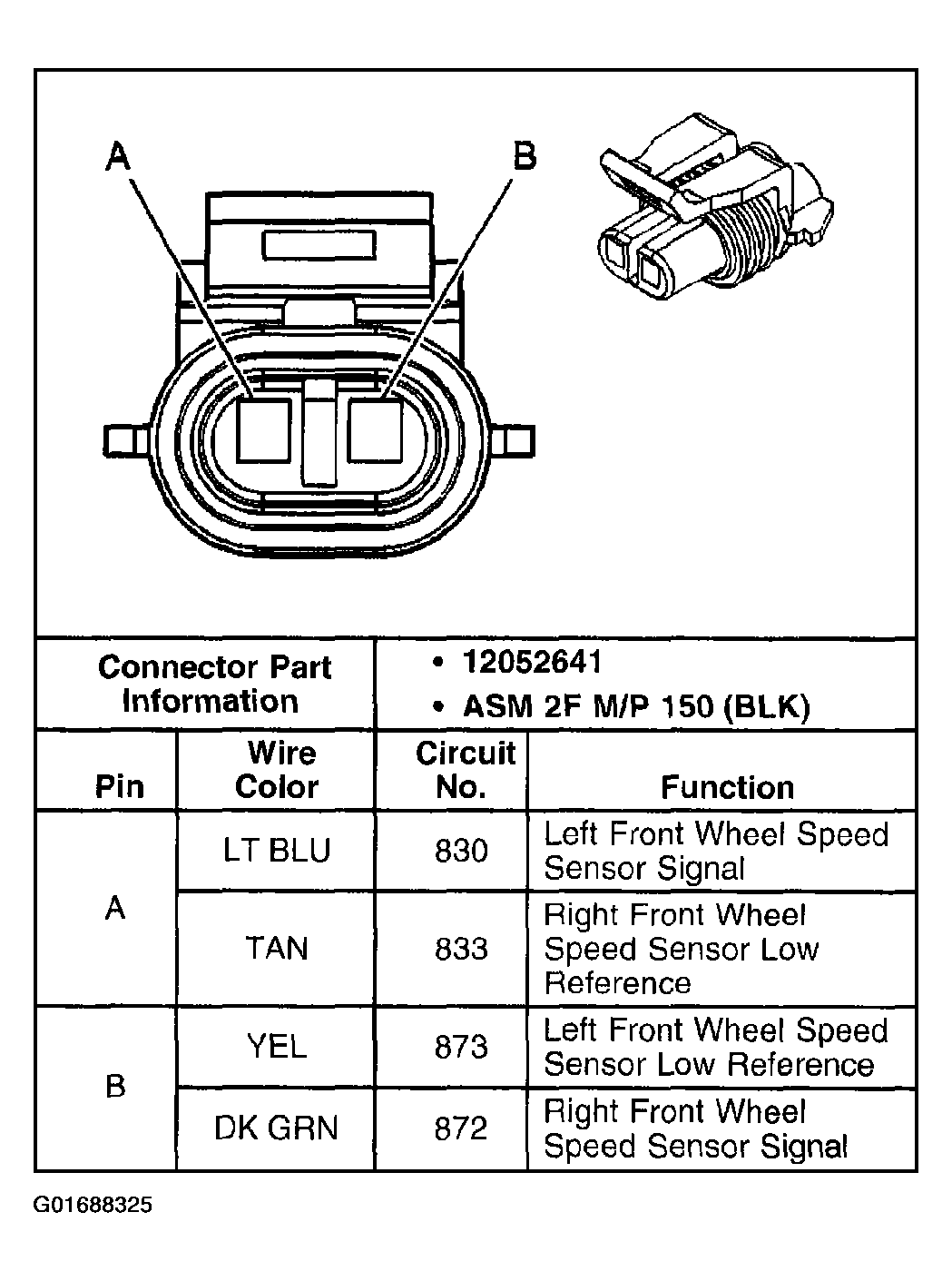

Fig 8: Wheel Speed Sensor

G01688325

Courtesy of GENERAL MOTORS CORP.
