Power Door Systems Component Views

Fig 1: Identifying Door Latch, Front Component View

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Door Lock Control Wiring, Sliding Door Component View

Courtesy of GENERAL MOTORS CORP.

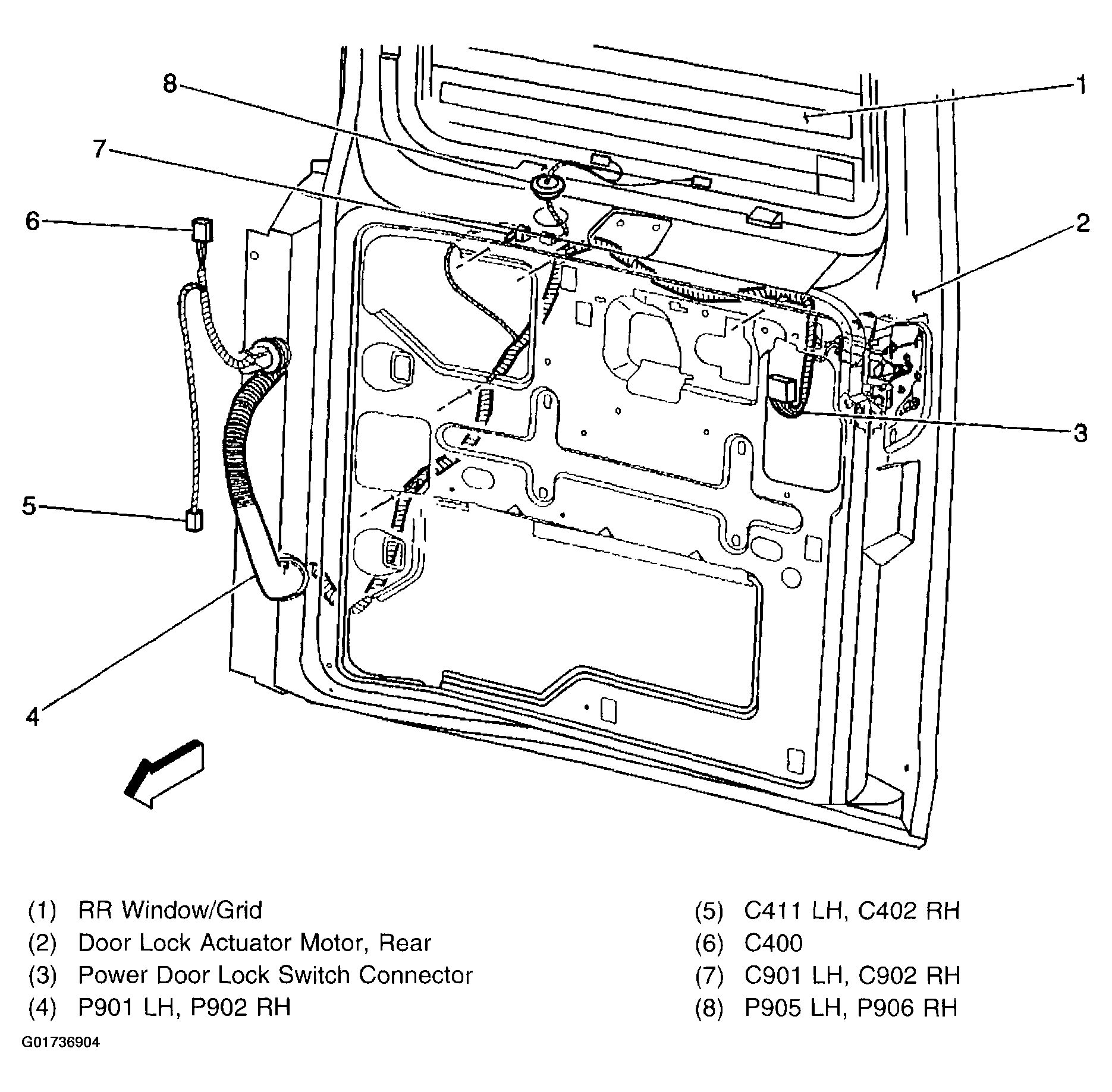

Fig 3: Identifying Door Latch, Rear Component View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Rear Defogger Details - Stationary Window Component View

Courtesy of GENERAL MOTORS CORP.

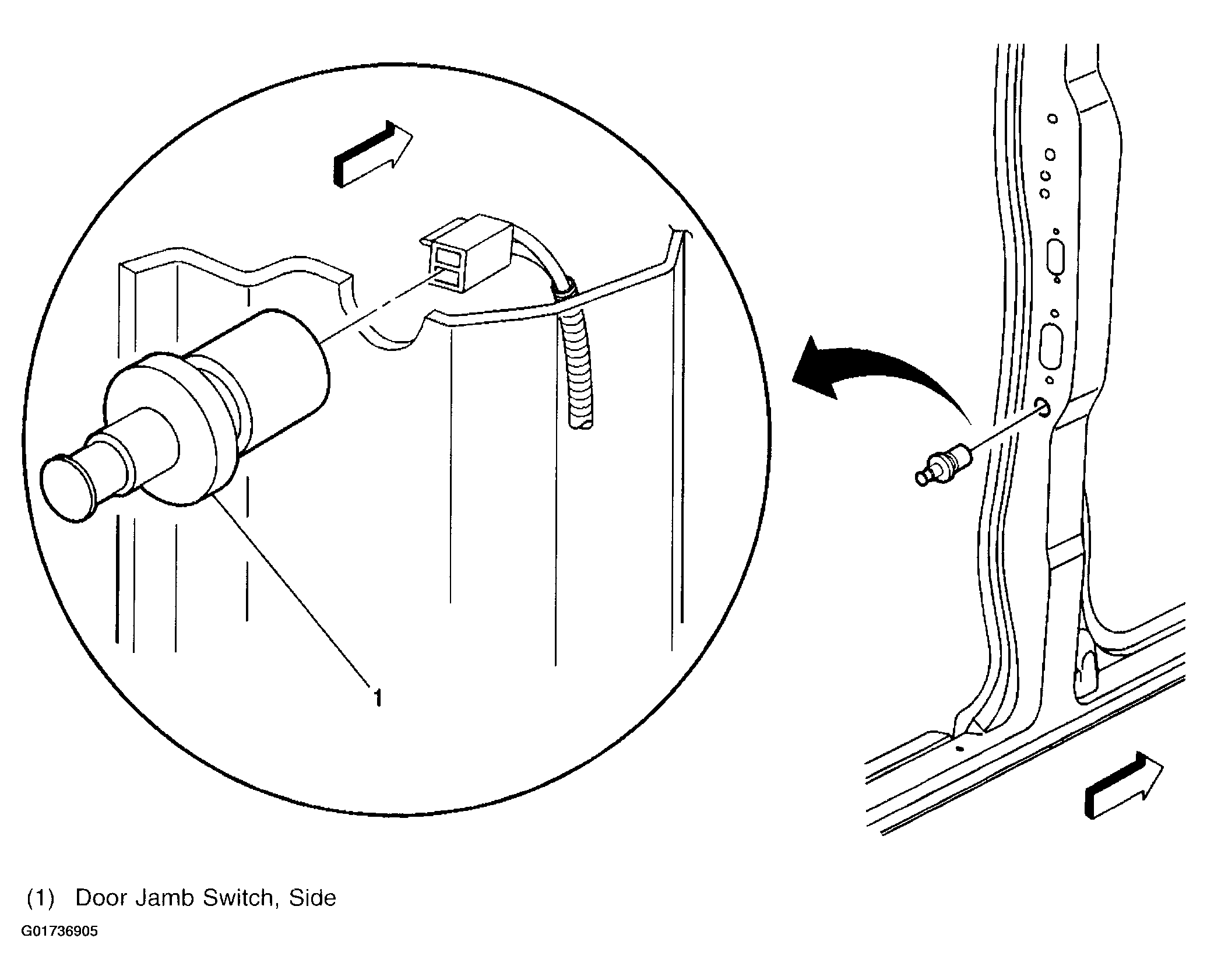

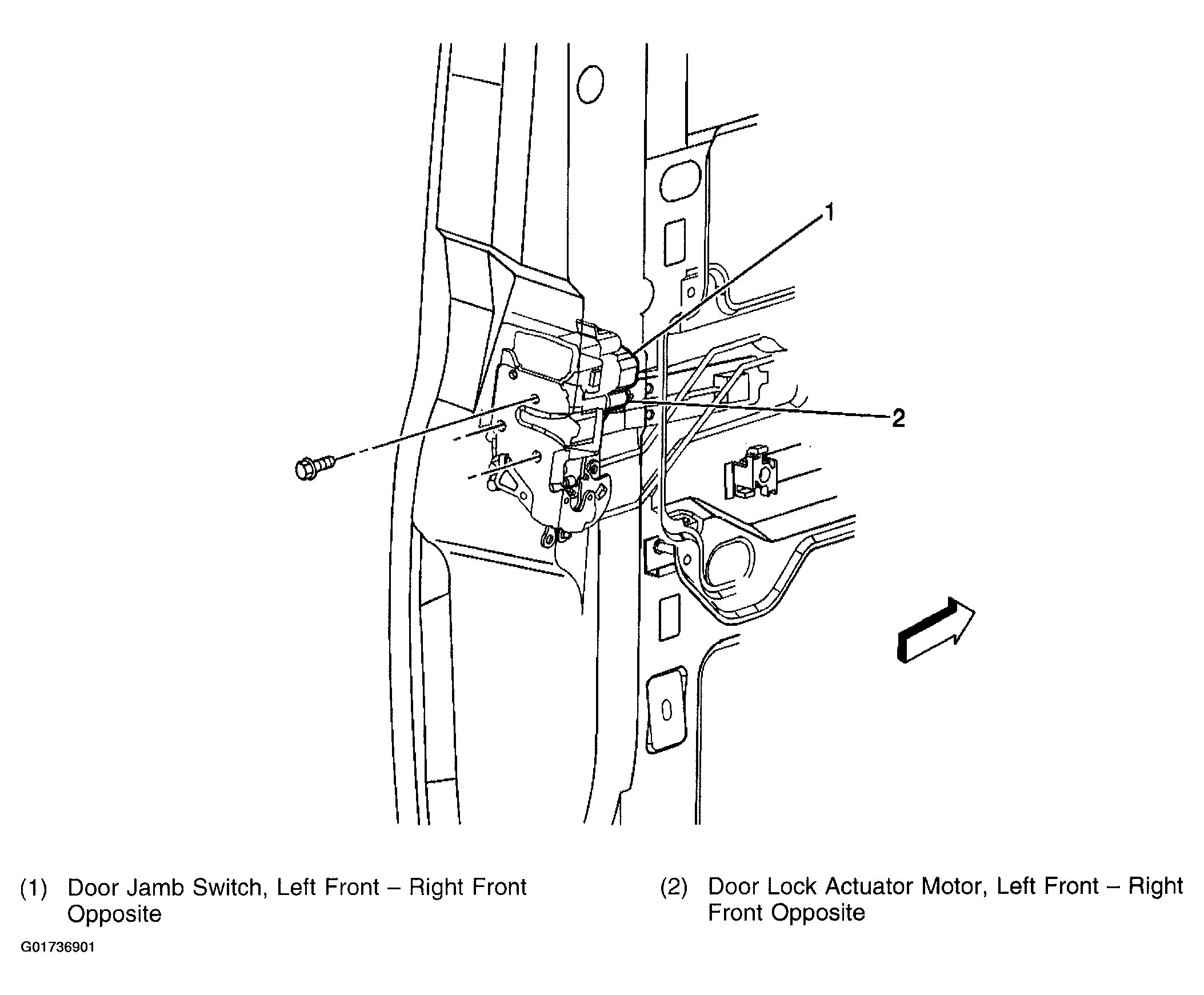

Fig 5: Identifying Door Jamb Switch, Side Component View

Courtesy of GENERAL MOTORS CORP.

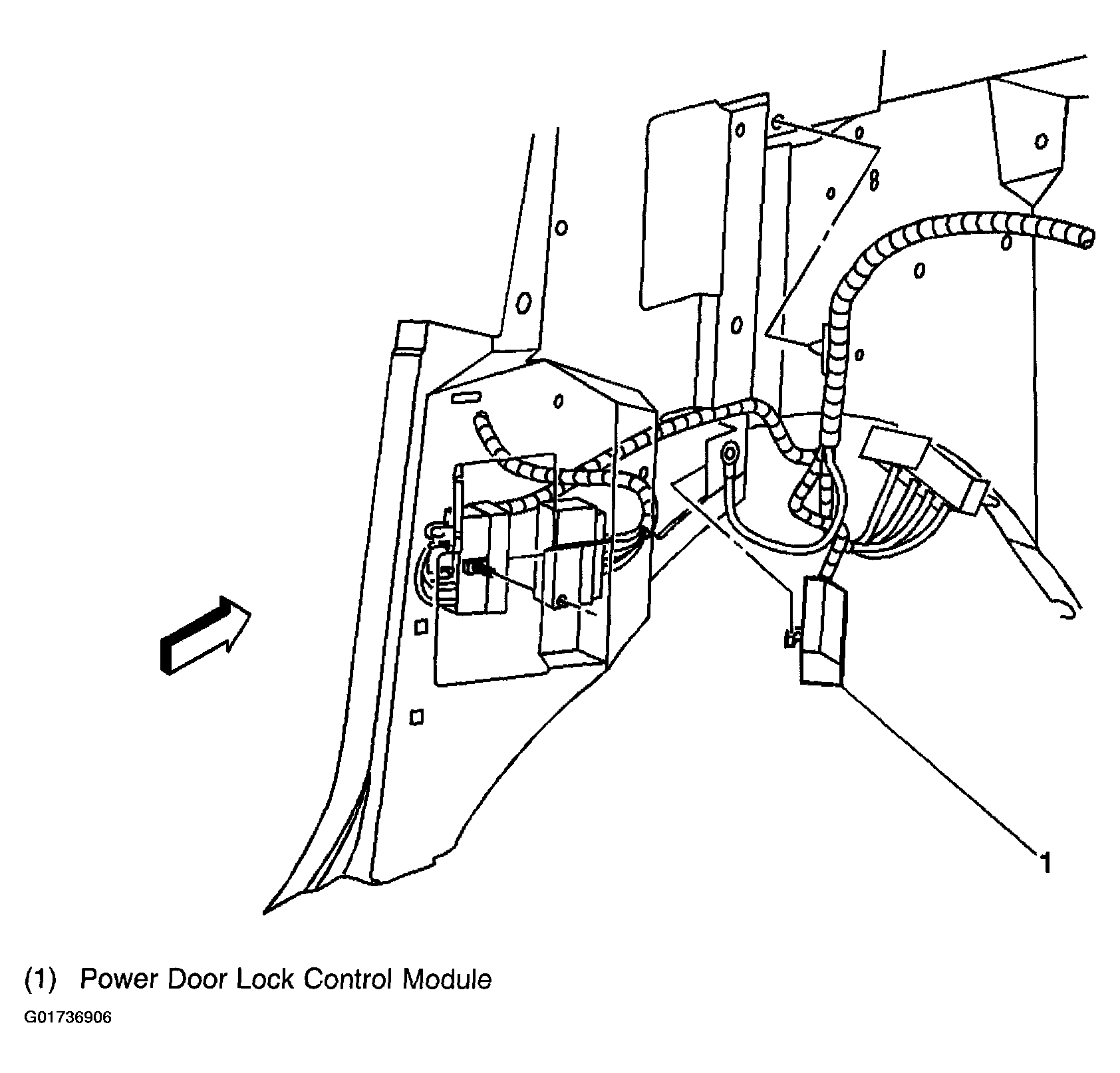

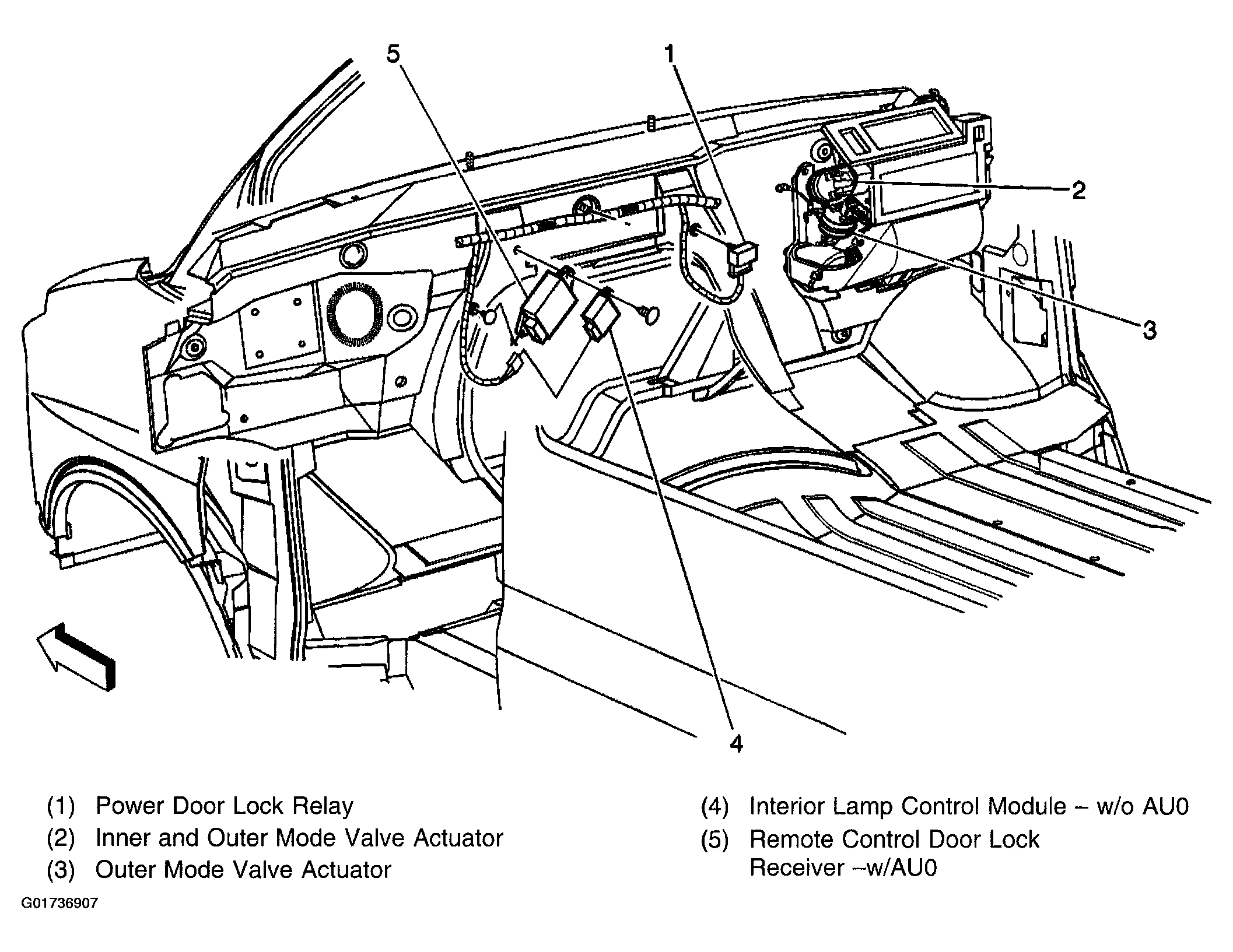

Fig 6: Identifying Power Door Lock Control Module Component View

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Power Door Lock Components View

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Front Side Door Wiring, Left Component View

Courtesy of GENERAL MOTORS CORP.

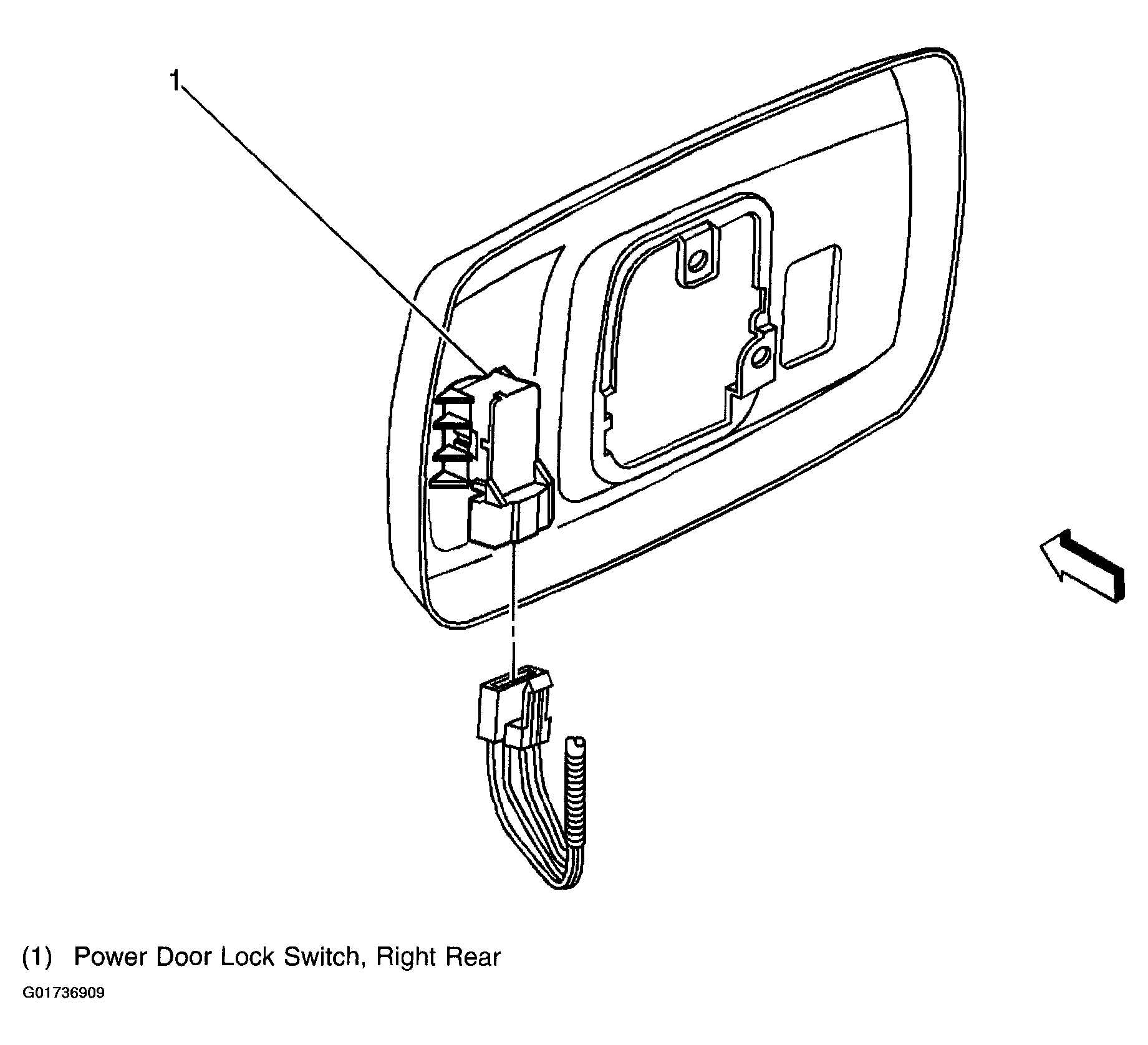

Fig 9: Identifying Power Door Lock Switch, RR Component View

Courtesy of GENERAL MOTORS CORP.

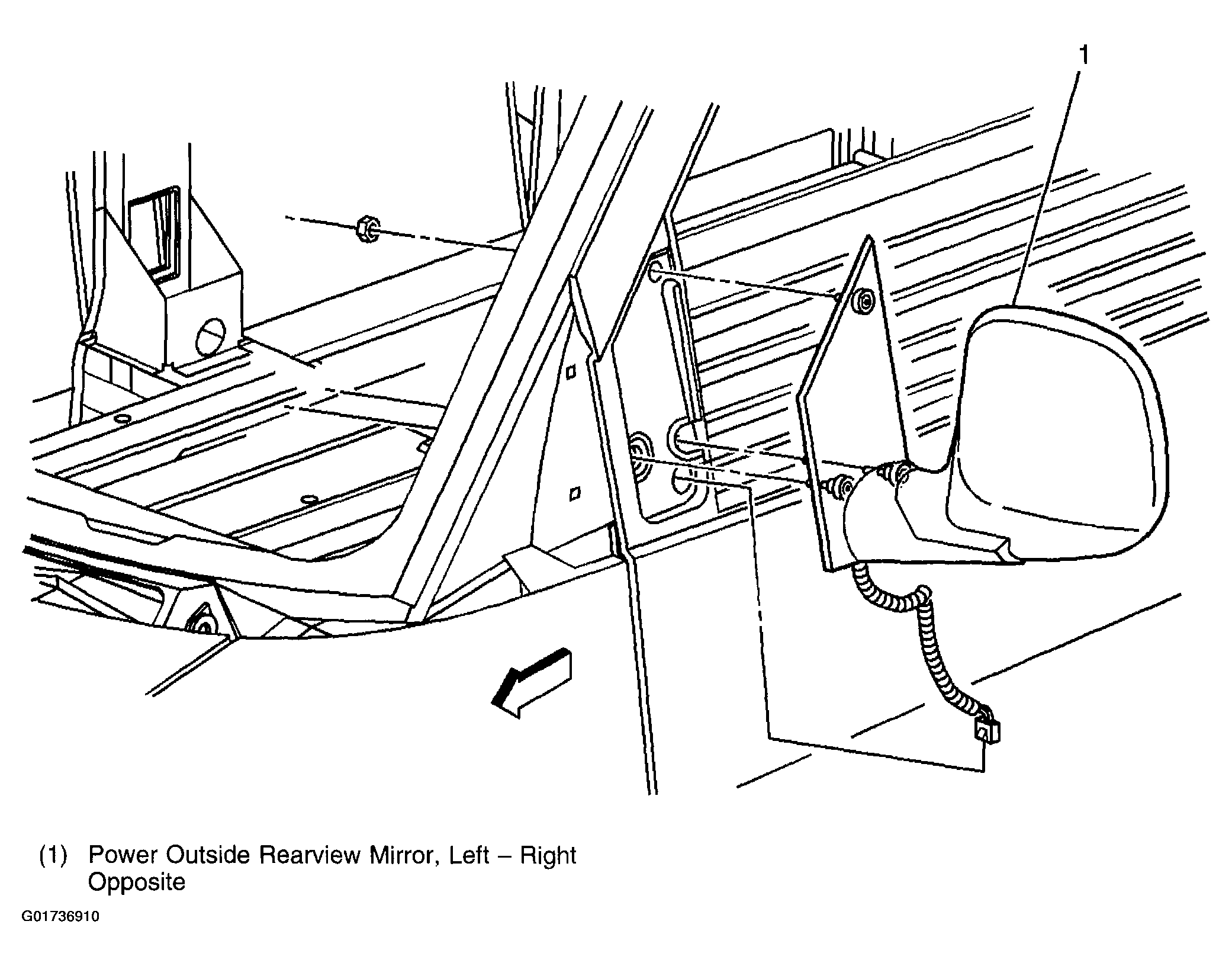

Fig 10: Identifying Power Outside Rearview Mirror Component View

Courtesy of GENERAL MOTORS CORP.

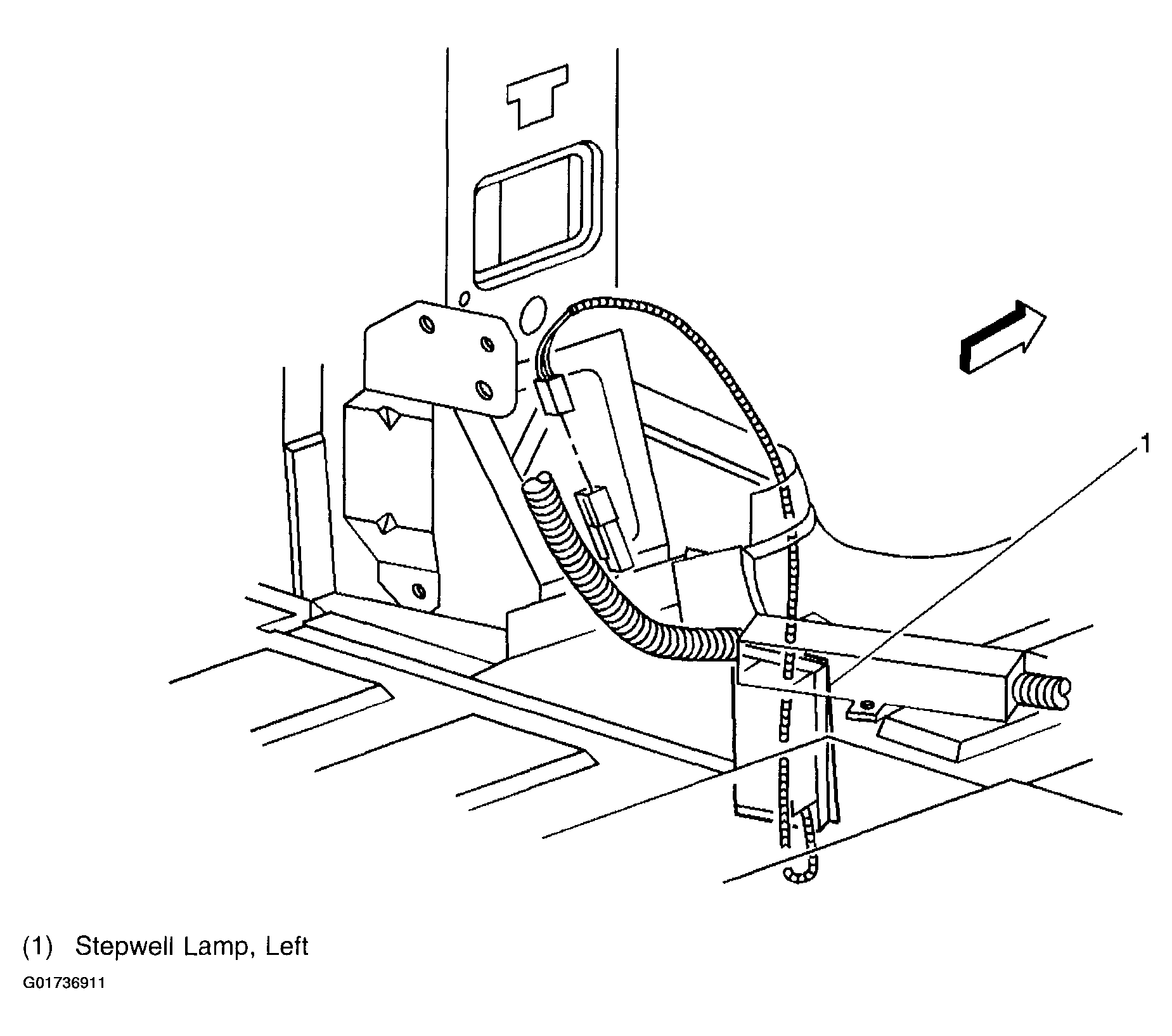

Fig 11: Identifying Stepwell Lamp, Left Component View

Courtesy of GENERAL MOTORS CORP.

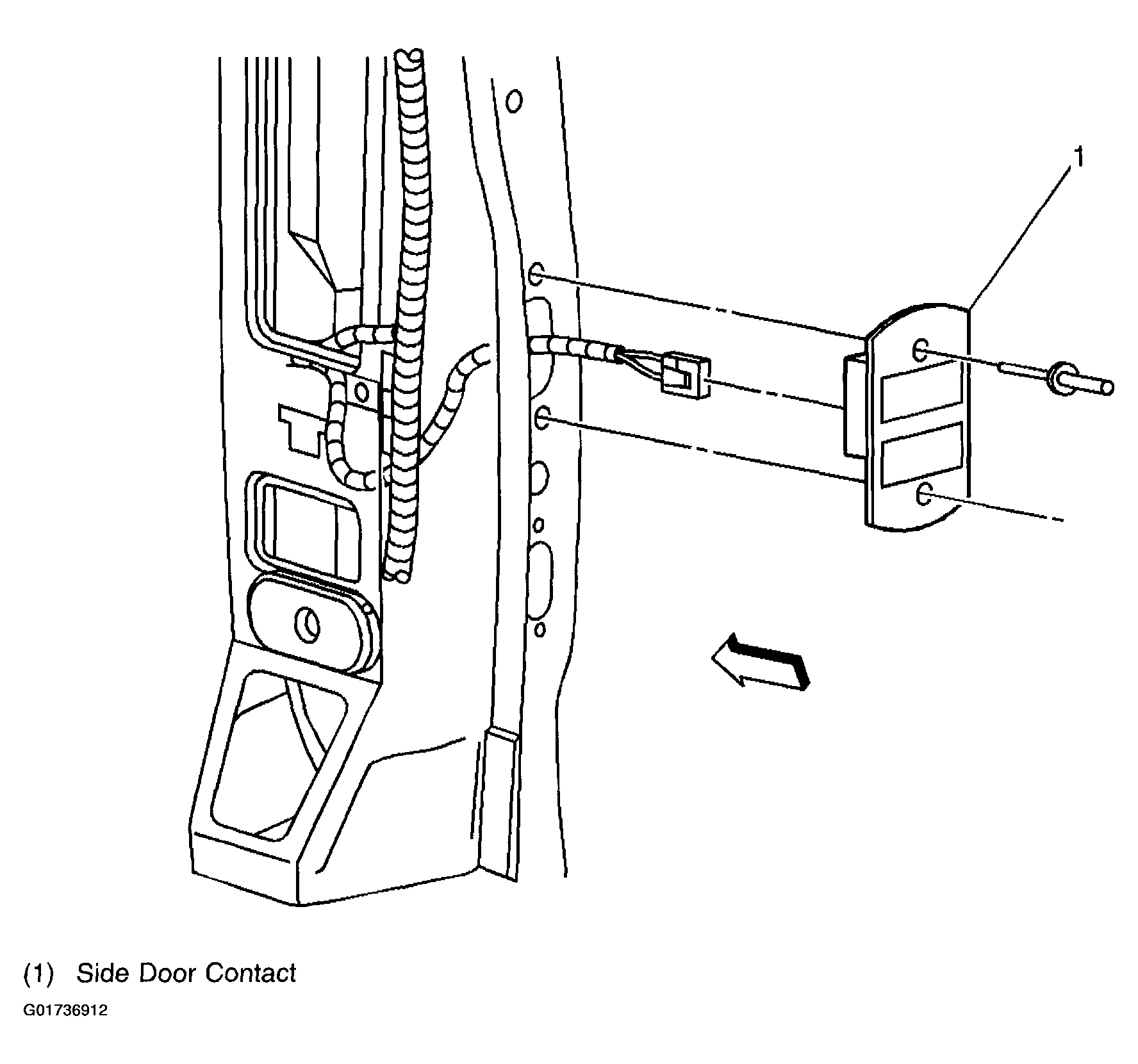

Fig 12: Identifying Side Door Contact Component View

Courtesy of GENERAL MOTORS CORP.

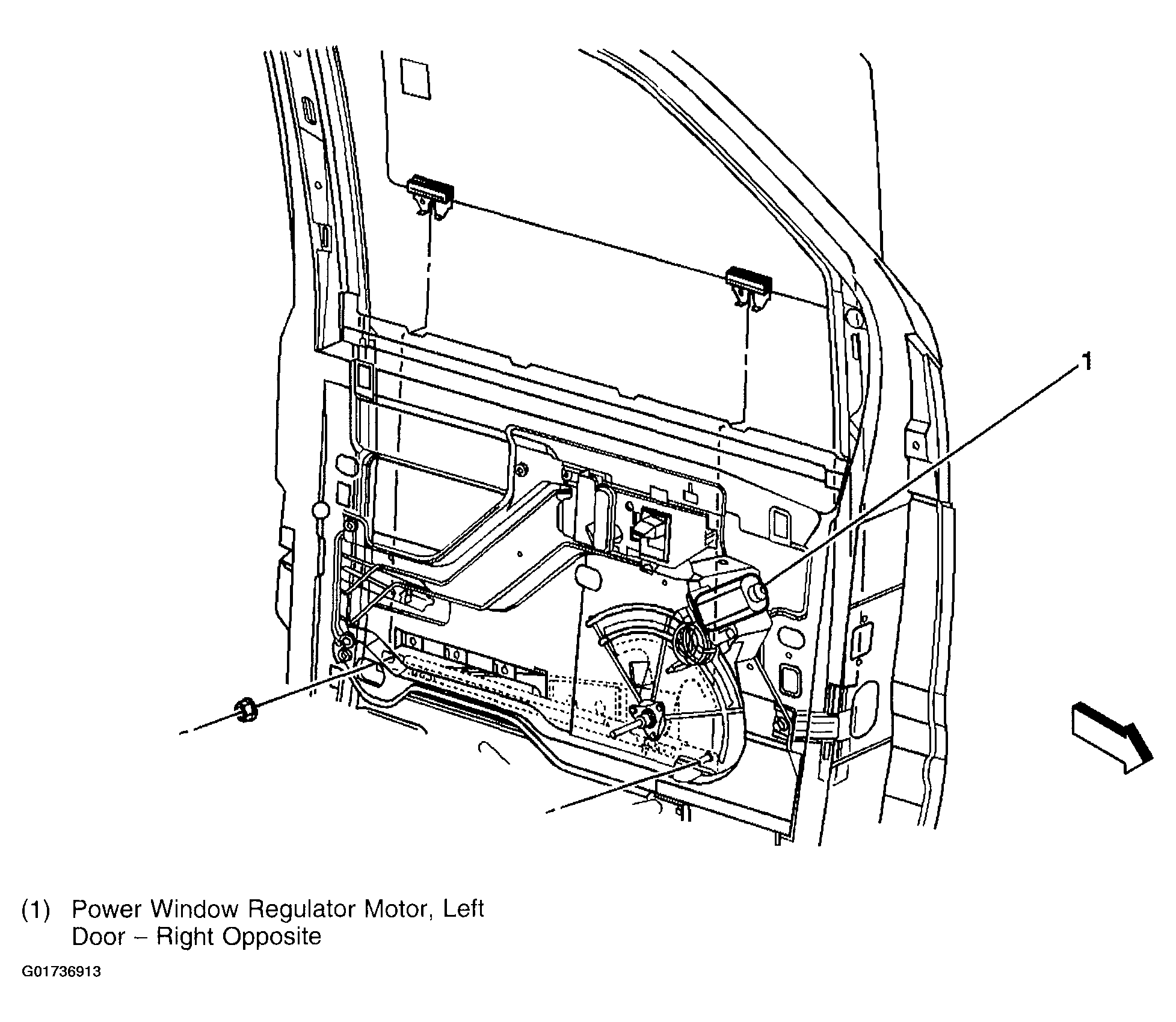

Fig 13: Identifying Power Window Regulator Motor Component View

Courtesy of GENERAL MOTORS CORP.

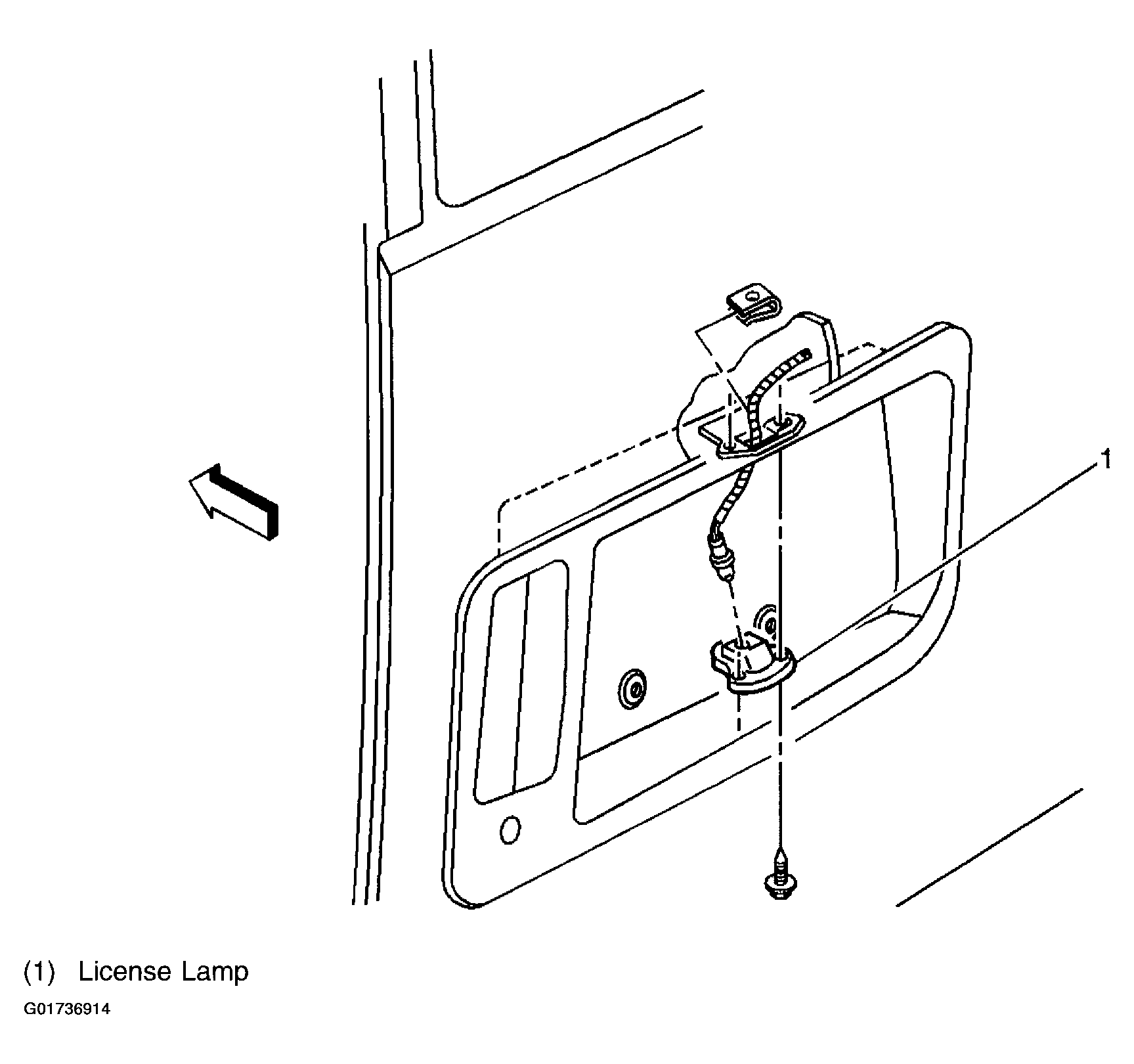

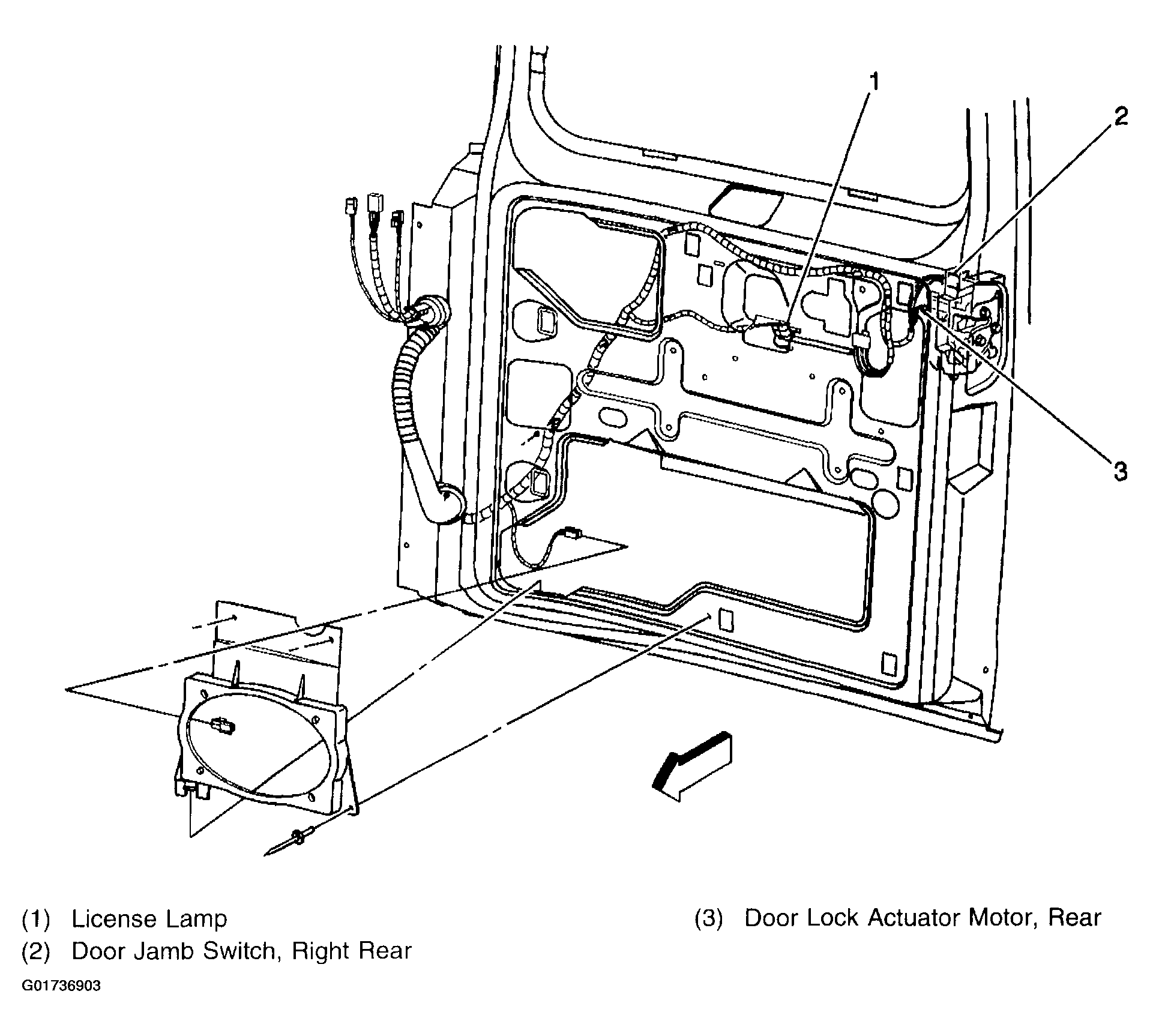

Fig 14: Identifying License Lamp Component View

Courtesy of GENERAL MOTORS CORP.
