Removal Procedure

  1. Remove the front grille from the vehicle. Refer to GRILLE REPLACEMENT .
  2. Disconnect the electrical connector from the air temperature sensor.
  3. Remove the push pin retainer (1) from the air temperature sensor bracket (2).

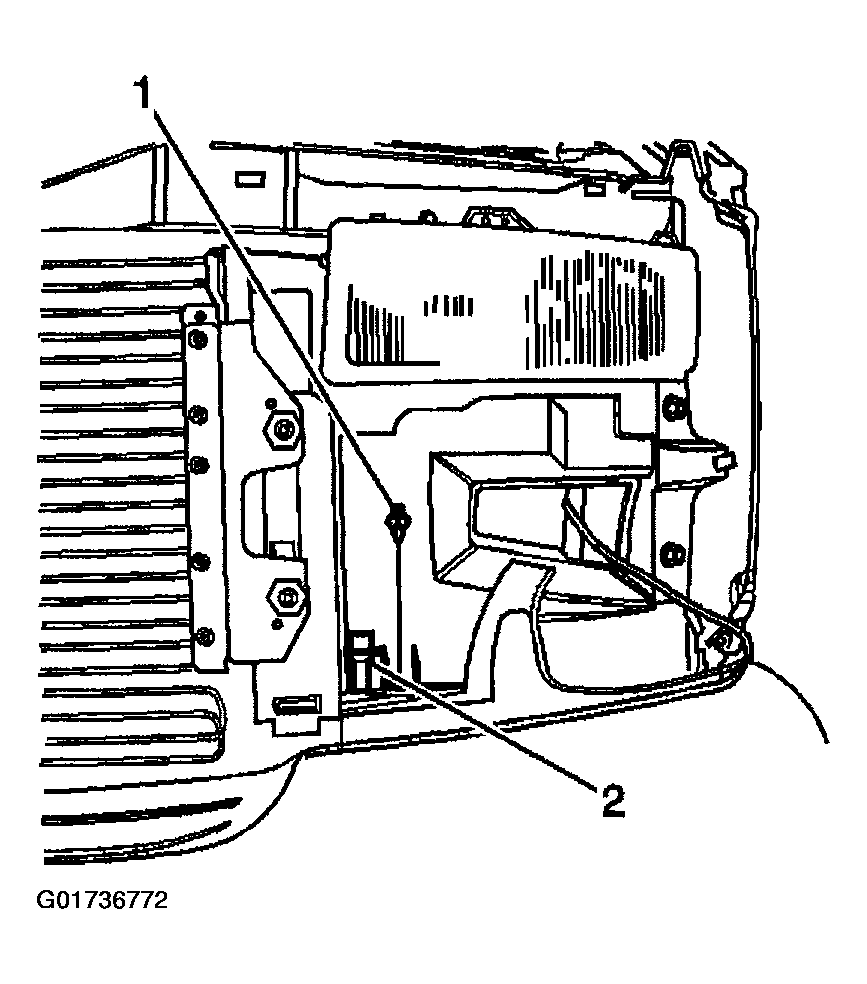

Fig 1: Removing Push Pin Retainer From Air Temperature Sensor Bracket
G01736772Courtesy of GENERAL MOTORS CORP.
