Component Locations

Fig 1: Locating CMP Sensor

Courtesy of GENERAL MOTORS CORP.

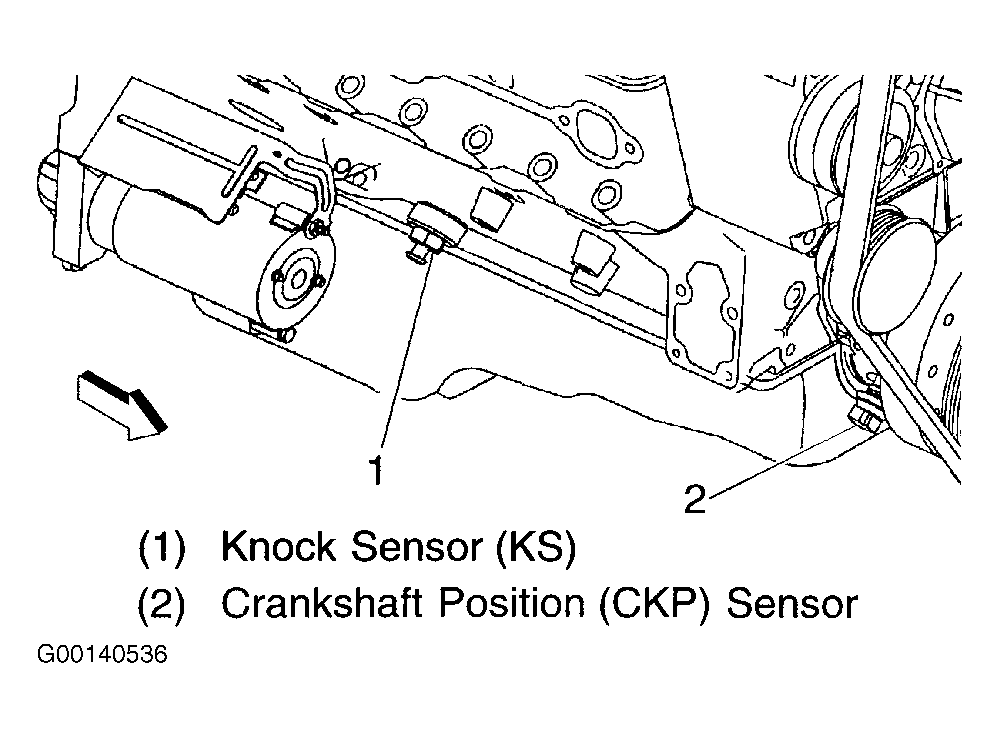

Fig 2: Locating CKP & Knock Sensors

Courtesy of GENERAL MOTORS CORP.

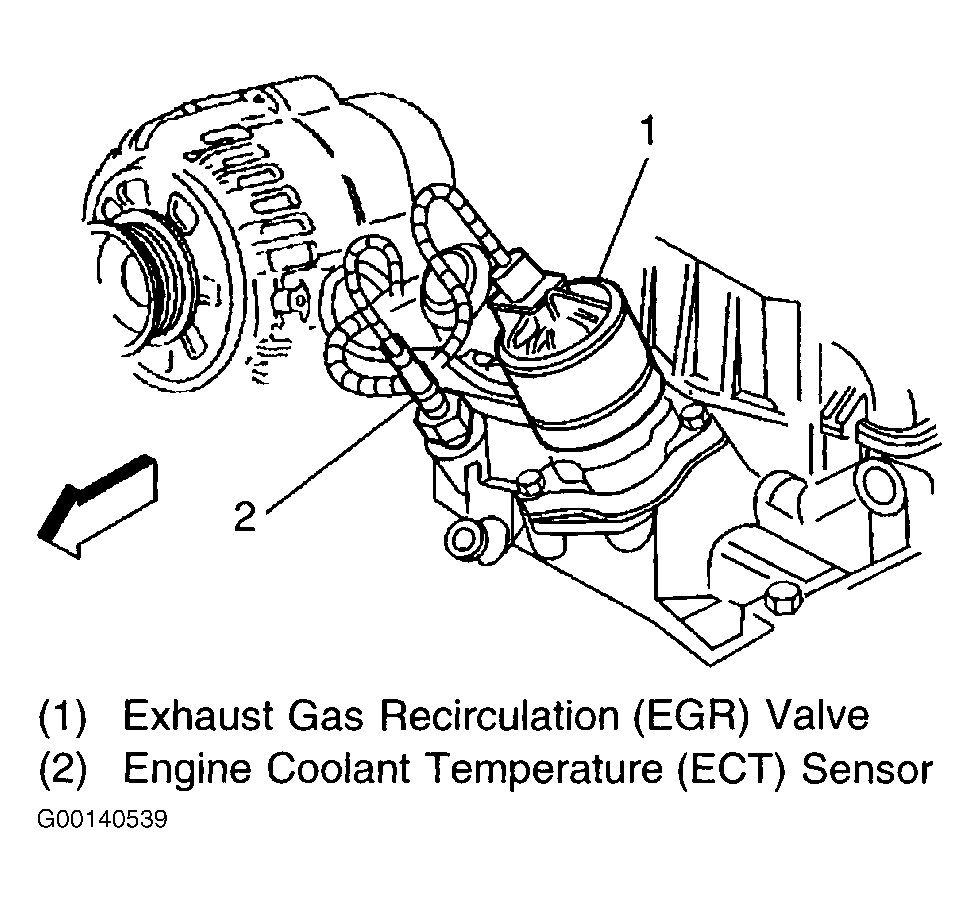

Fig 3: Locating ECT Sensor & EGR Valve

Courtesy of GENERAL MOTORS CORP.

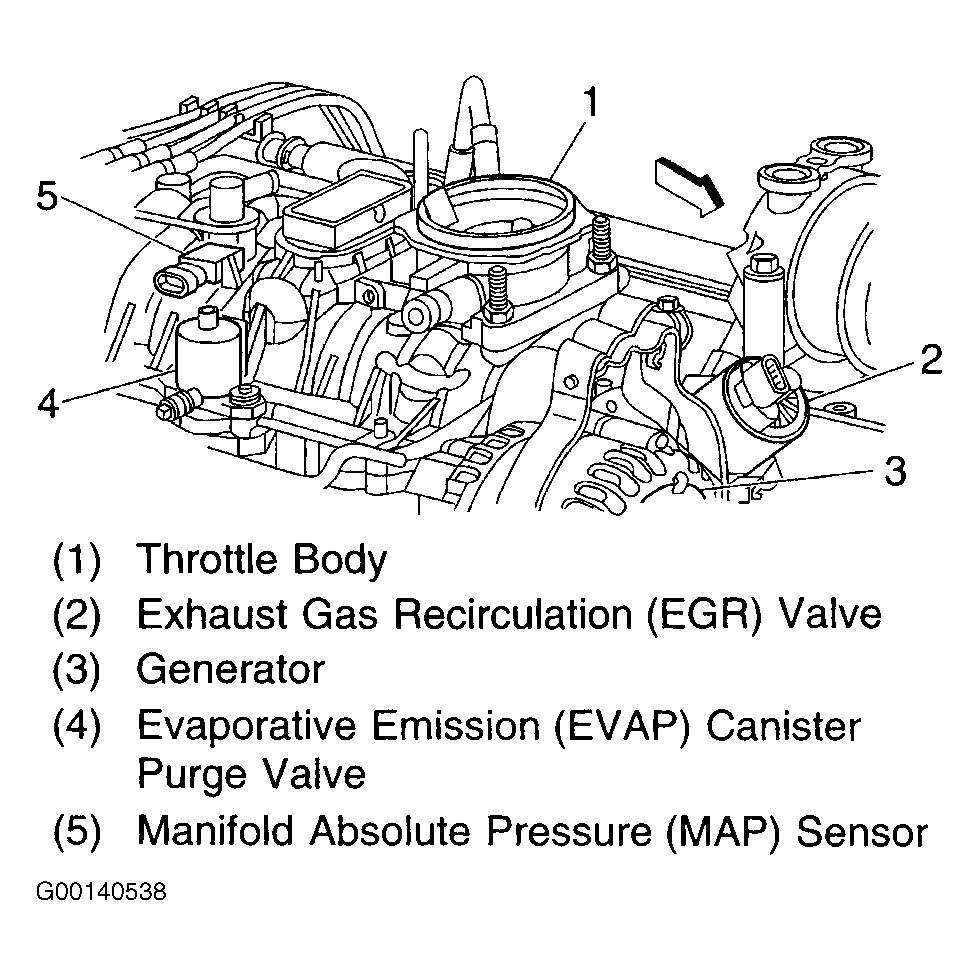

Fig 4: Locating EGR Valve, EVAP Purge Solenoid & Map Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating EVAP Purge Solenoid, Ignition Coil & Ignition Control Module

Courtesy of GENERAL MOTORS CORP.

Fig 6: Locating EVAP System Components

Courtesy of GENERAL MOTORS CORP.

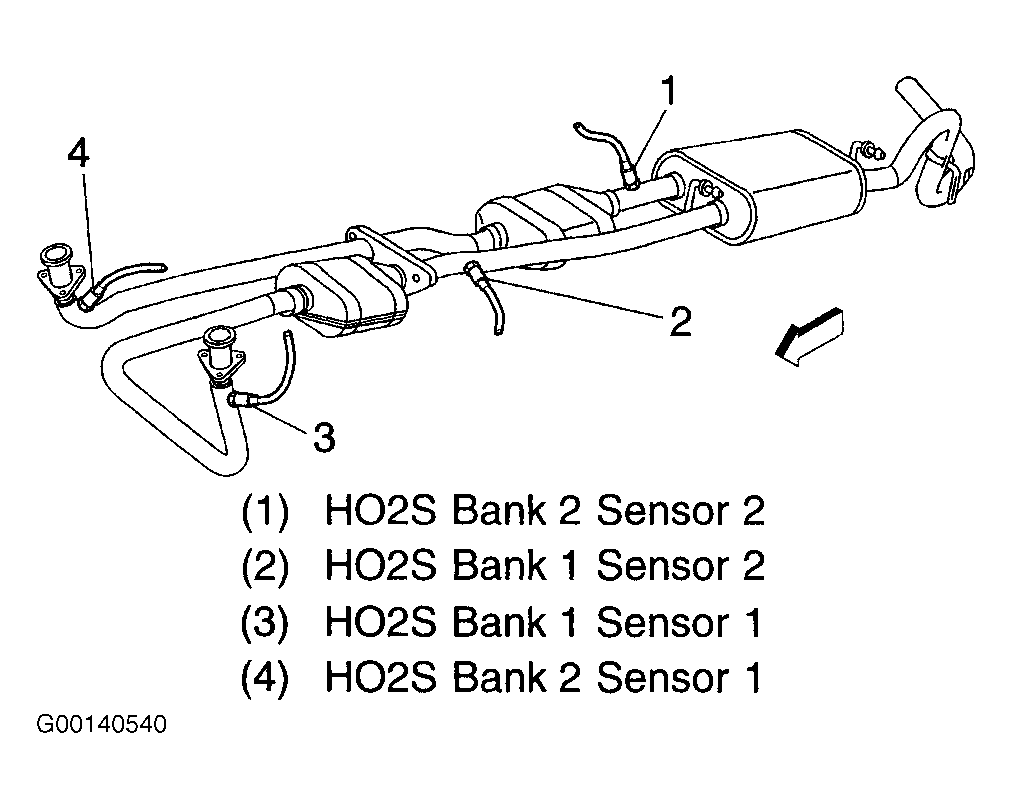

Fig 7: Locating Heated Oxygen Sensors (Light Duty)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Locating Heated Oxygen Sensors (Heavy Duty)

Courtesy of GENERAL MOTORS CORP.

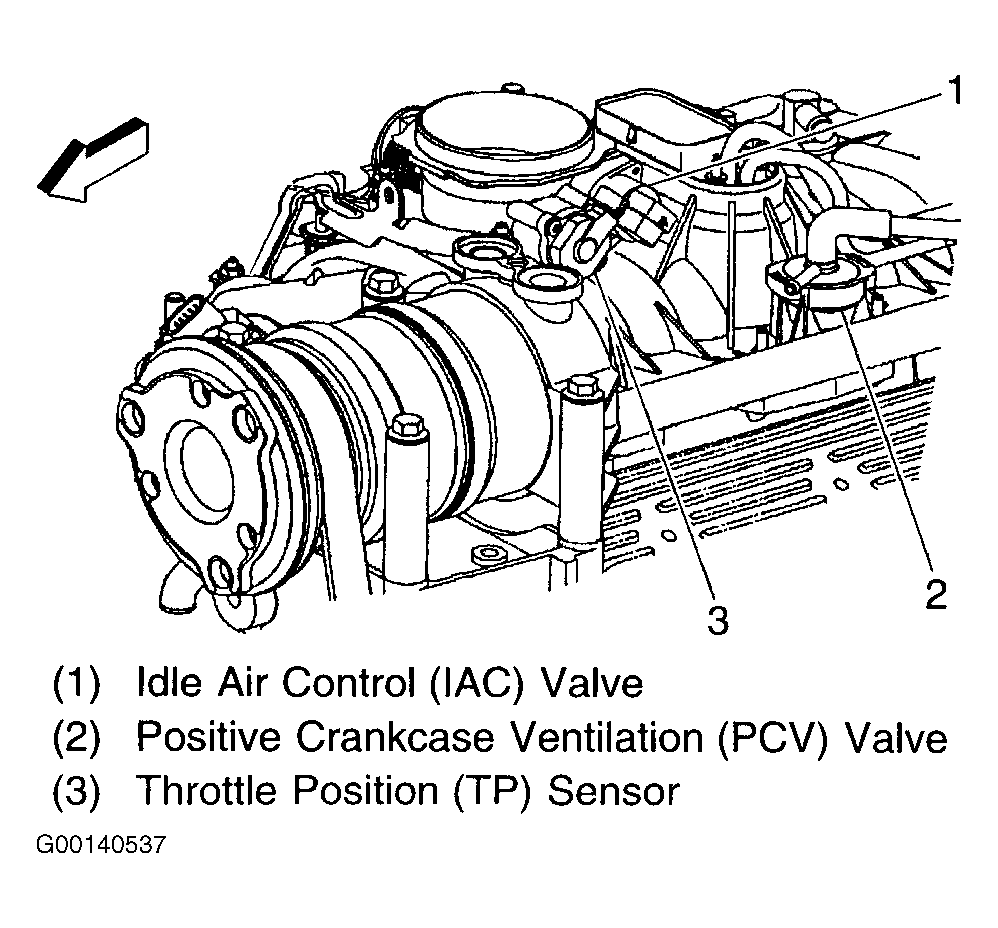

Fig 9: Locating IAC Valve & Throttle Position Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating IAT & MAF Sensors

Courtesy of GENERAL MOTORS CORP.
