Removal Procedure

  1. Position the rear seat back to remove the child comfort guide from the rear seat back.
  2. Release the push pin retainer (2) from the rear seat back.
  3. Remove the child comfort guide (3) from the rear seat back (1).

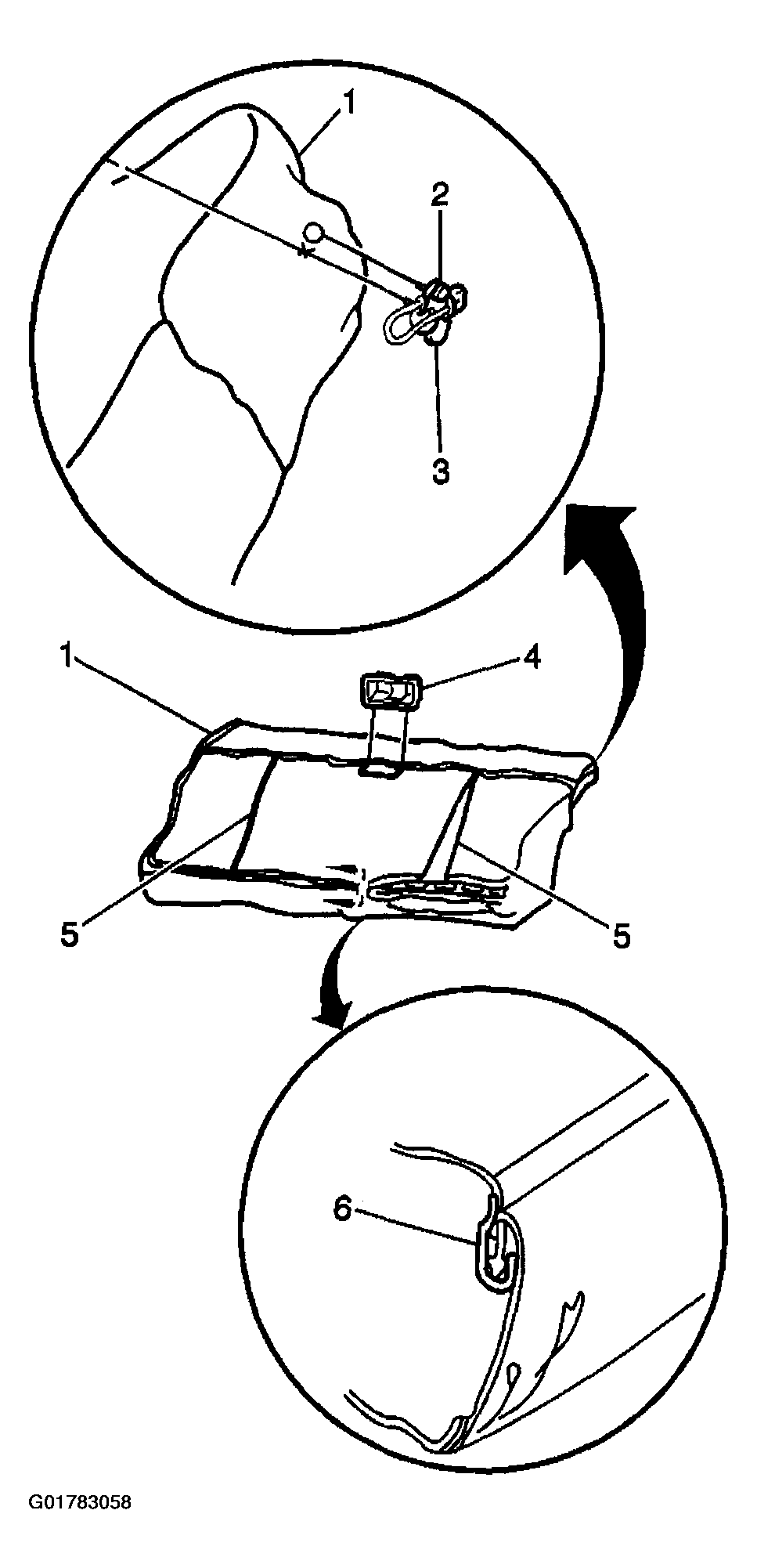

    Fig 1: Child Shoulder Belt Guide Rerouter
    G01783058Courtesy of GENERAL MOTORS CORP.
