Disassembled Views

WARNING: This page is about a different variant/trim than selected.

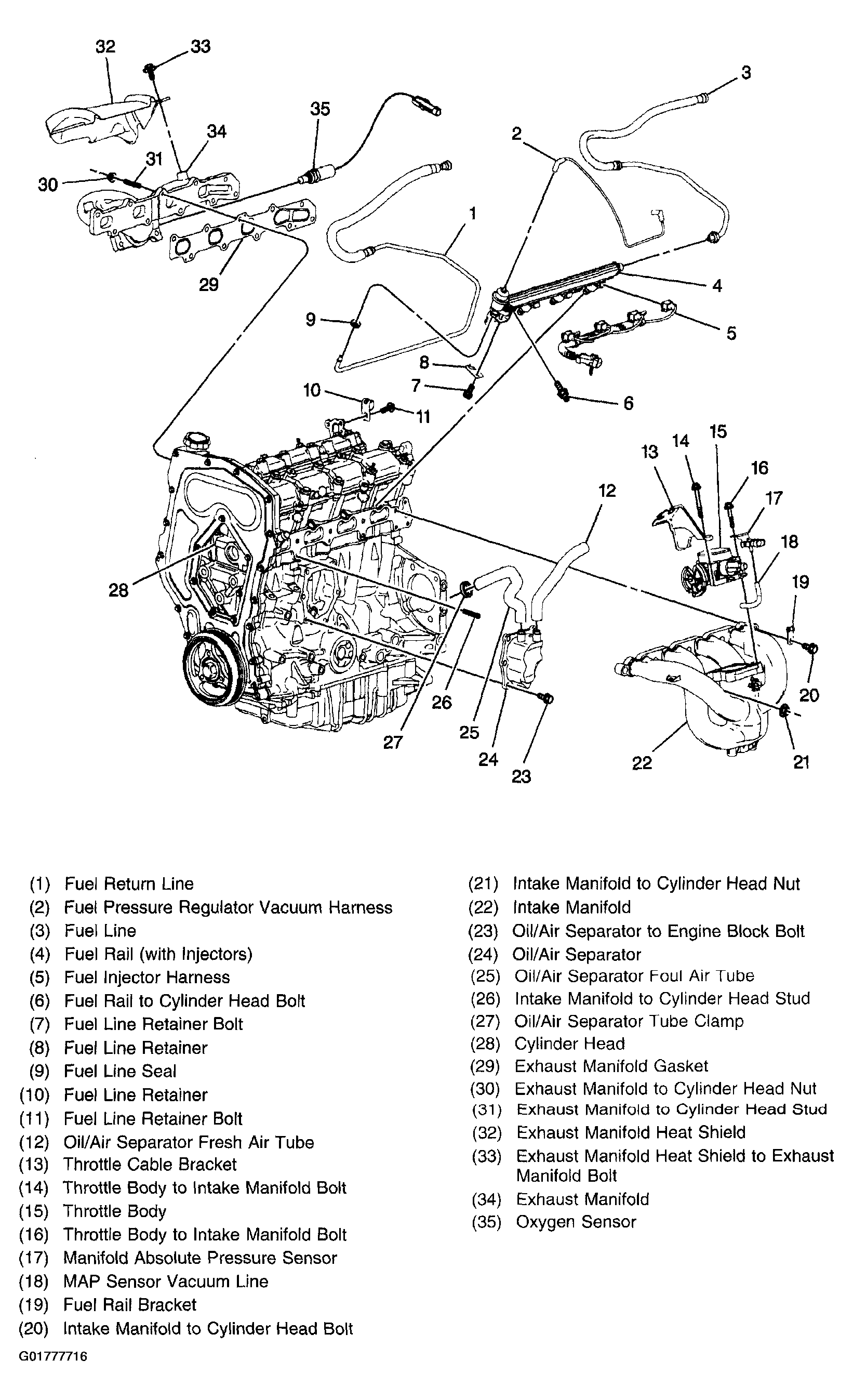

Fig 1: Locating Intake & Exhaust Manifold Components

Courtesy of GENERAL MOTORS CORP.

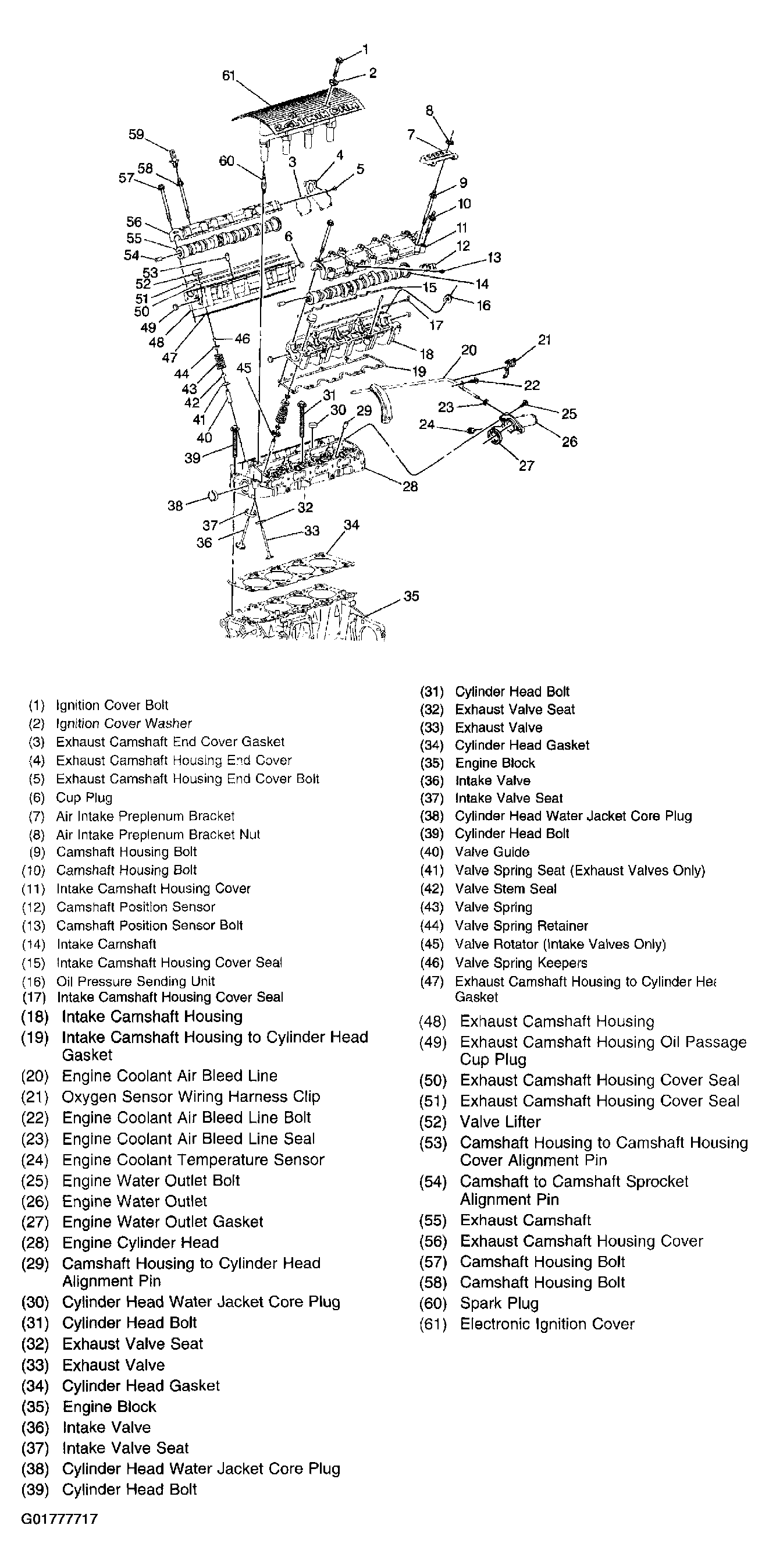

Fig 2: Locating Cylinder Head & Components

Courtesy of GENERAL MOTORS CORP.

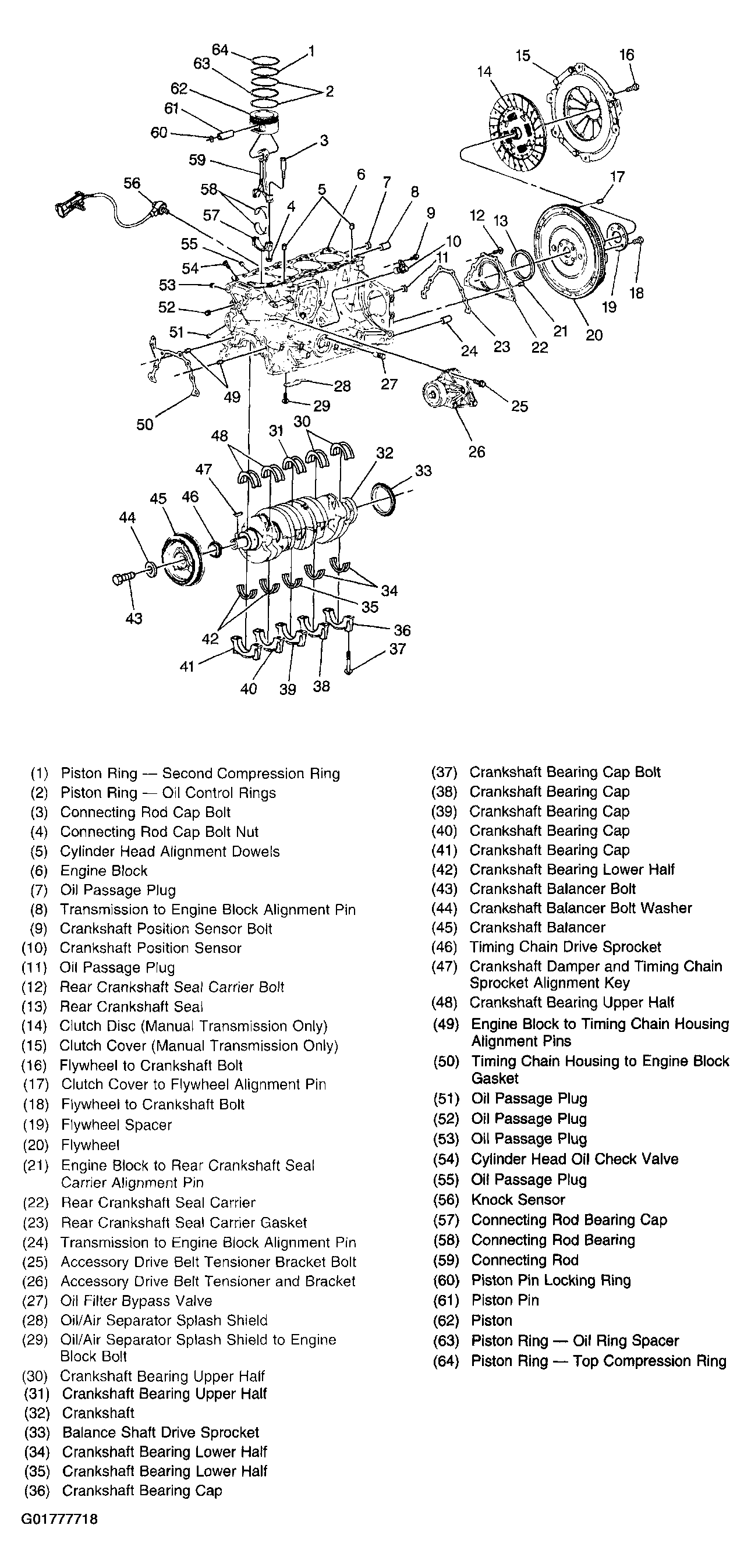

Fig 3: Locating Cylinder Block & Components

Courtesy of GENERAL MOTORS CORP.

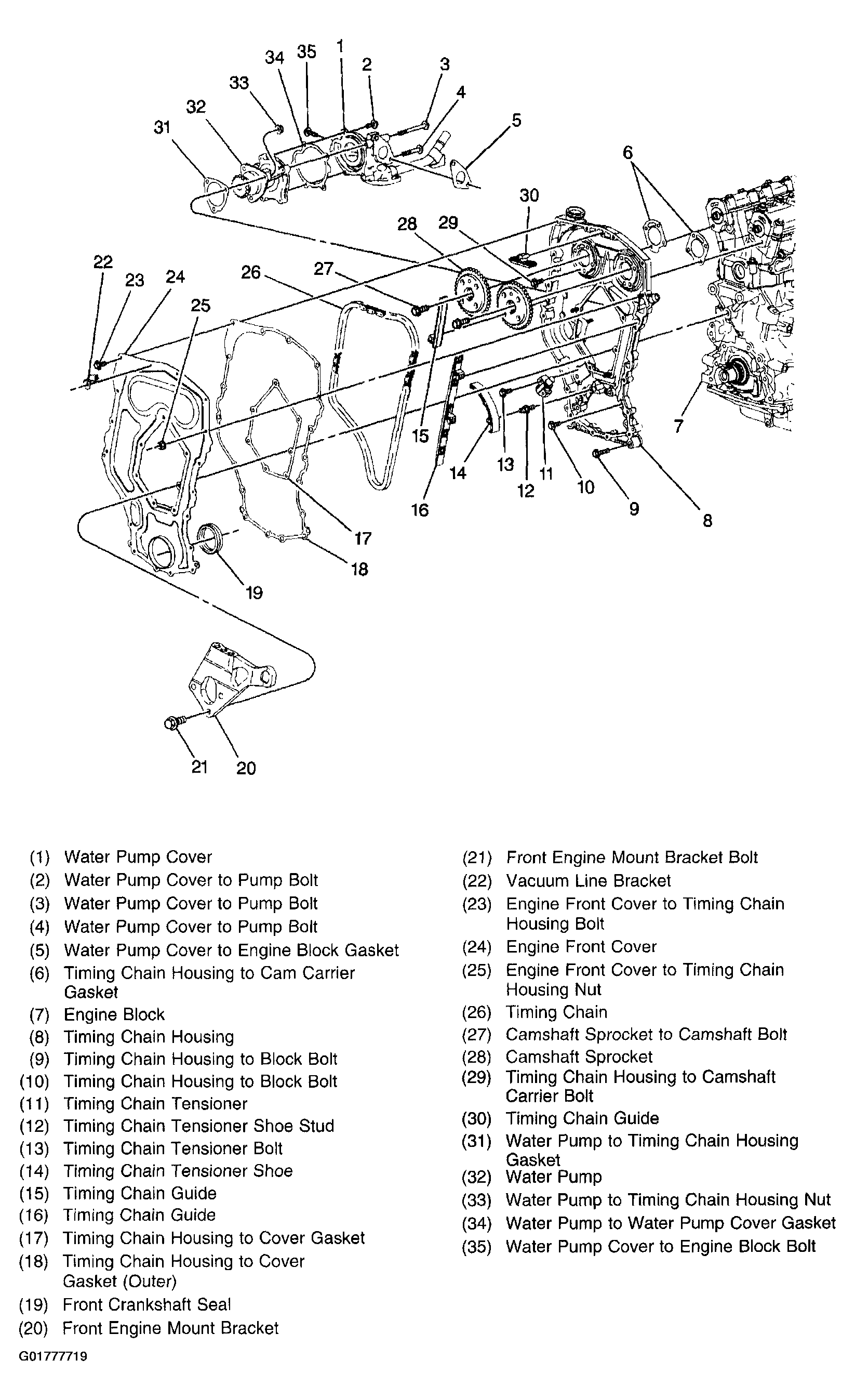

Fig 4: Locating Timing Chain & Housing Components

Courtesy of GENERAL MOTORS CORP.

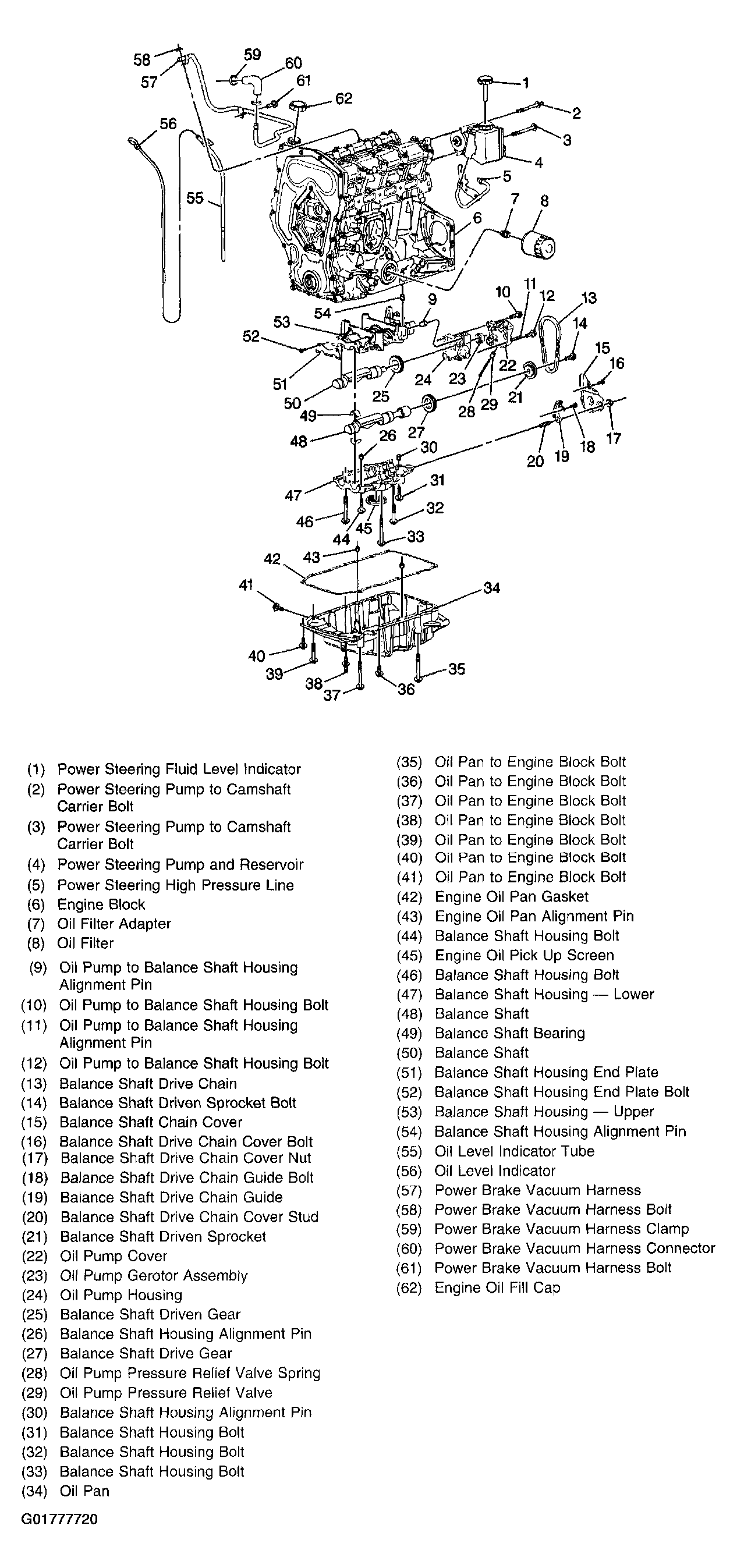

Fig 5: Locating Oil Pan & Balance Shaft Components

Courtesy of GENERAL MOTORS CORP.
