Removal Procedure

Important:  A service muffler will be needed when replacing the intermediate pipe on an originally equipped, welded system.

1. Raise the vehicle.
2. Support the three-way catalytic converter.
3. Cut the intermediate pipe (1) at the muffler (2).

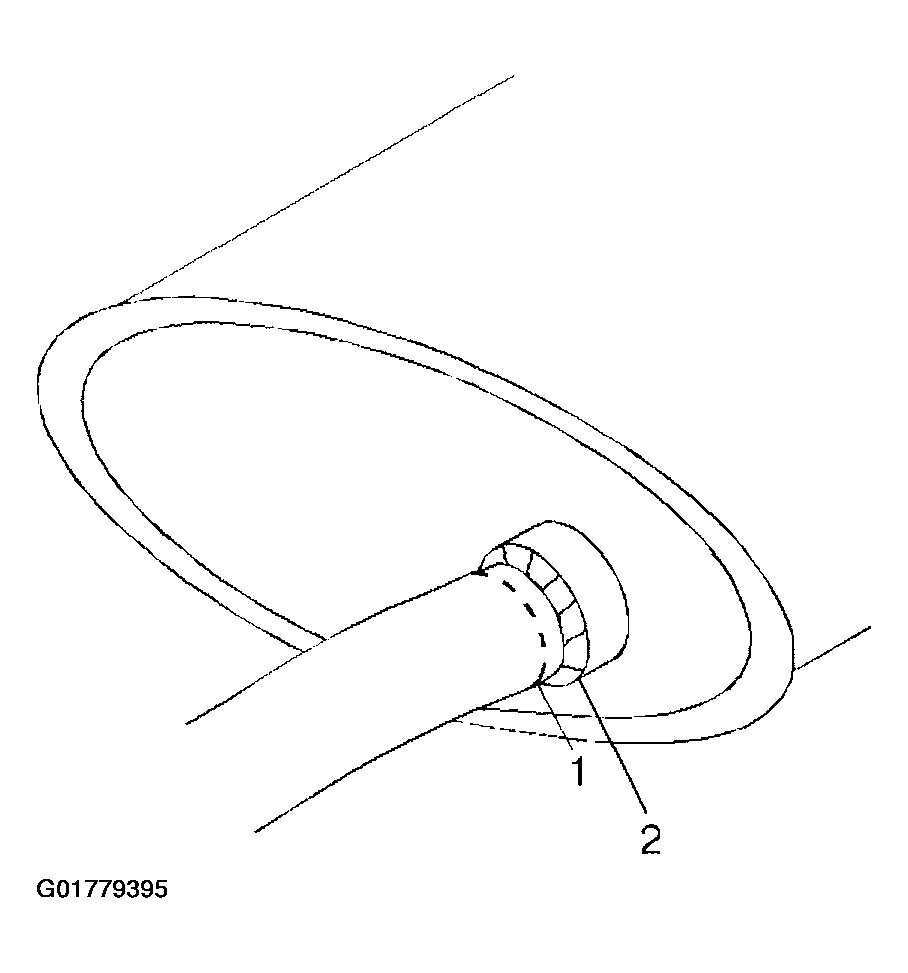

   Fig 1: Intermediate Pipe

   Courtesy of GENERAL MOTORS CORP.
4. Remove the intermediate pipe bolts at catalytic converter.

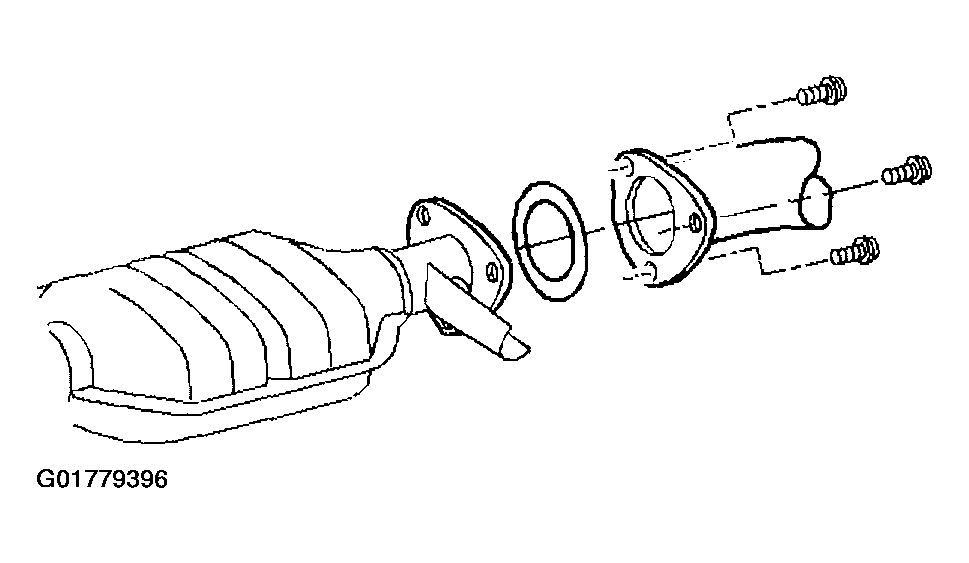

   Fig 2: Catalytic Converter

   Courtesy of GENERAL MOTORS CORP.
5. Remove the intermediate pipe from the hanger.
6. Remove the intermediate pipe.

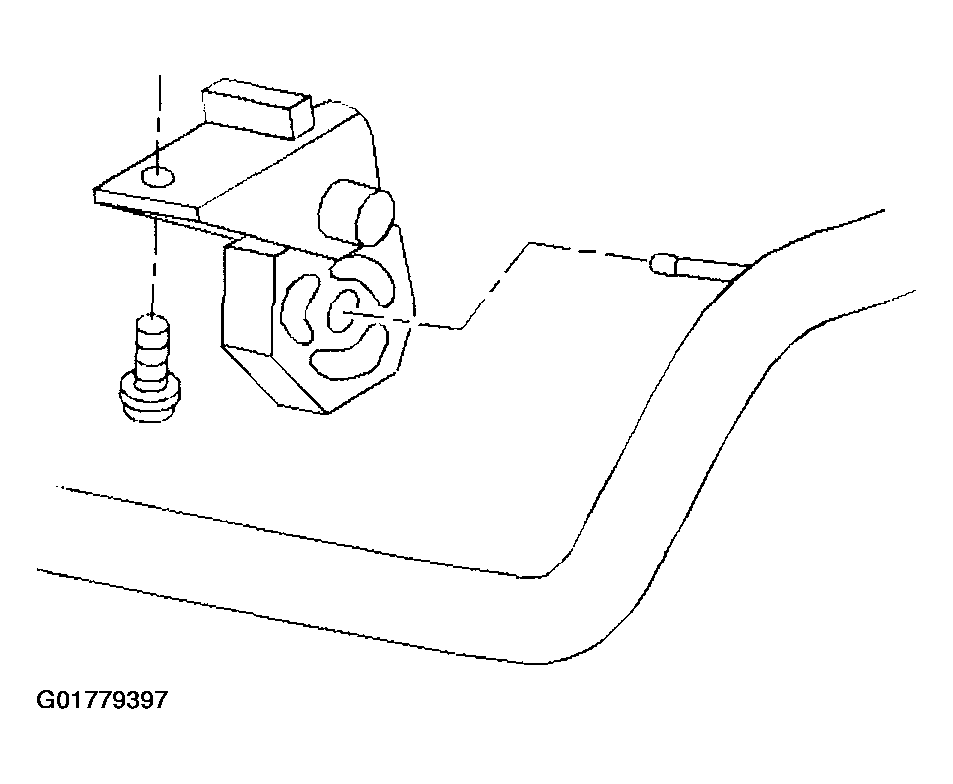

   Fig 3: Intermediate Pipe Hanger

   Courtesy of GENERAL MOTORS CORP.
7. Remove the three-way catalytic converter seals.
8. Clean the flange surface.
