Horns Connector End Views

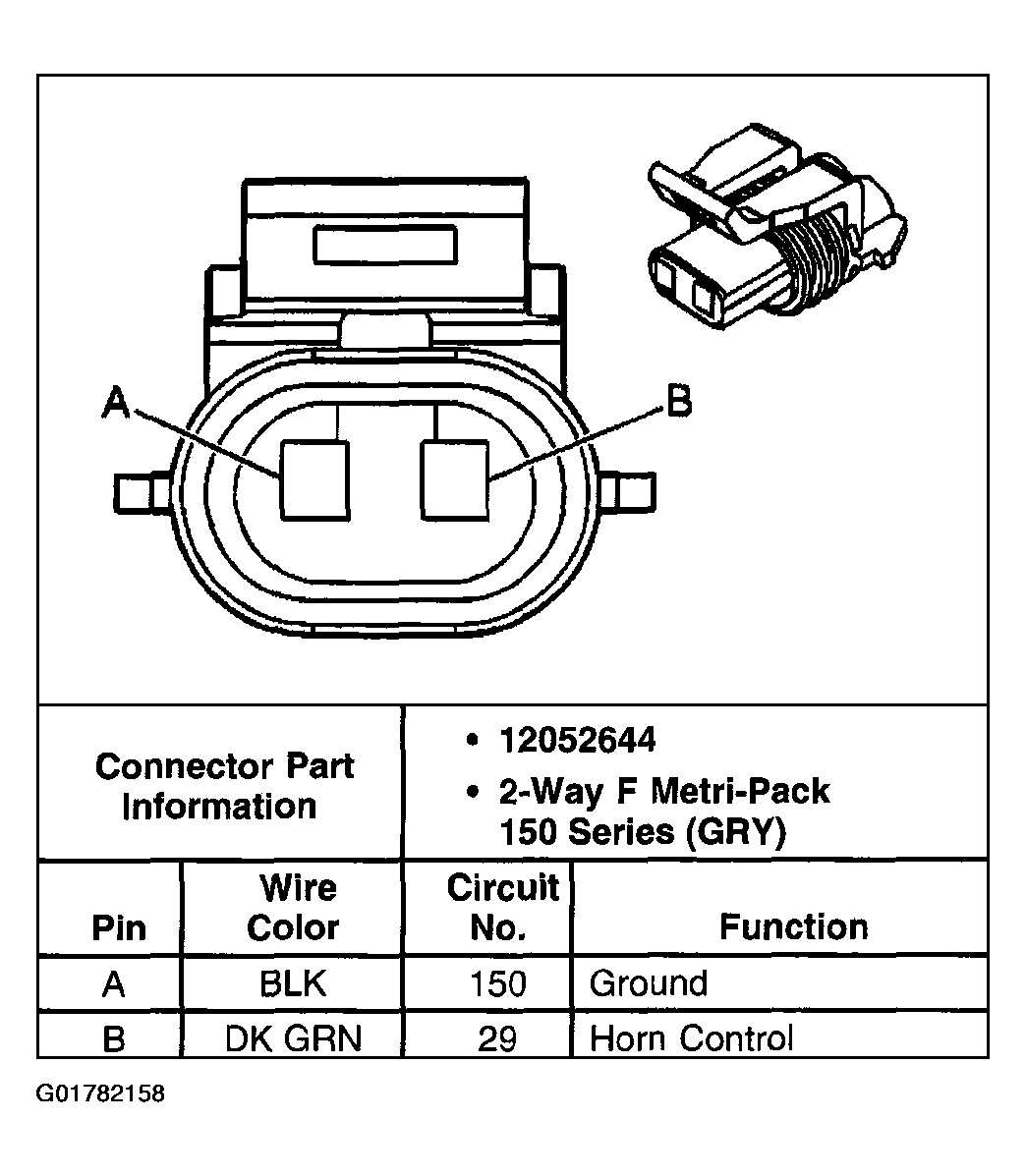

Fig 1: Identifying Horn Terminals

G01782158

Courtesy of GENERAL MOTORS CORP.

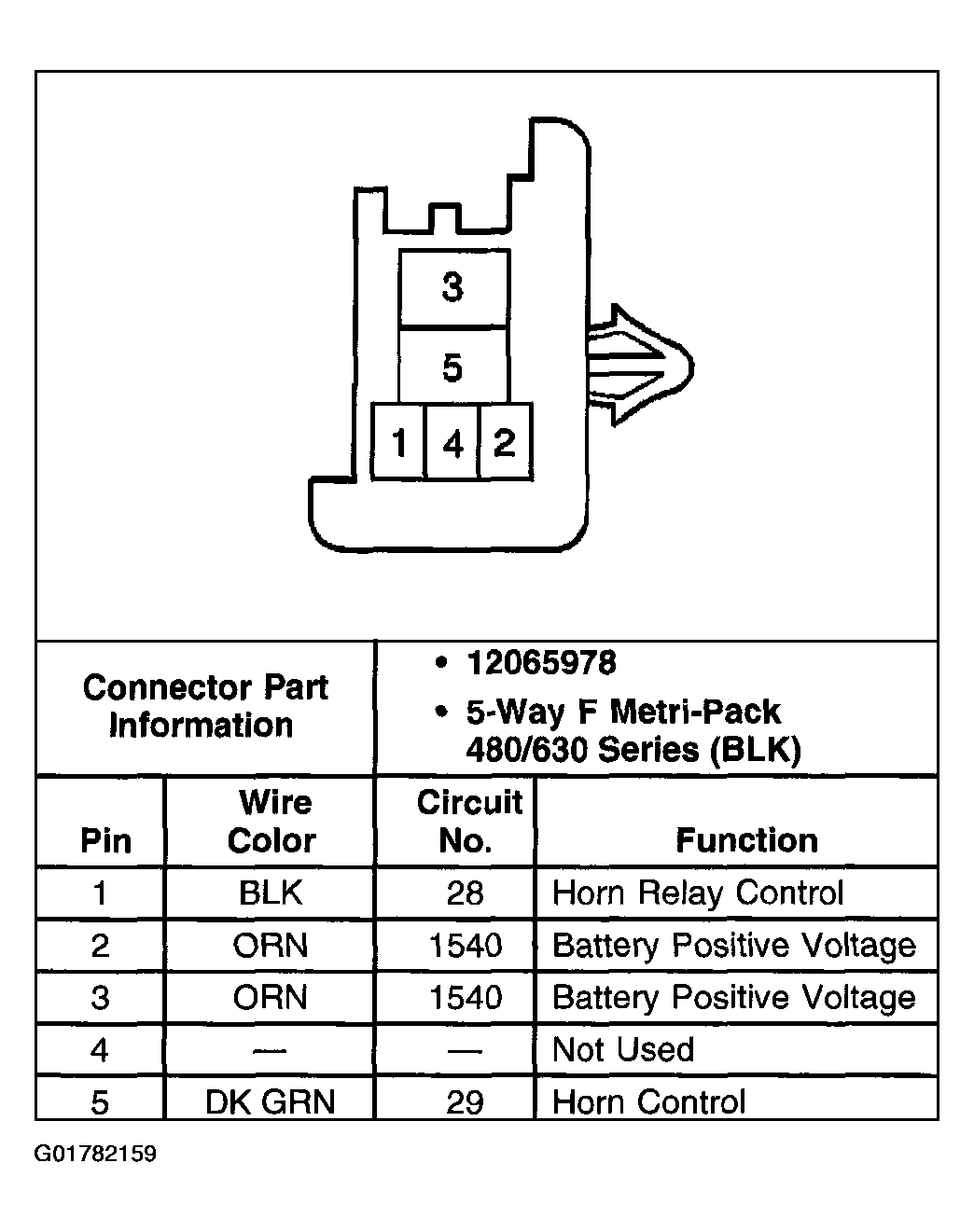

Fig 2: Identifying Horn Relay Terminals

G01782159

Courtesy of GENERAL MOTORS CORP.
