Entertainment Connector End Views

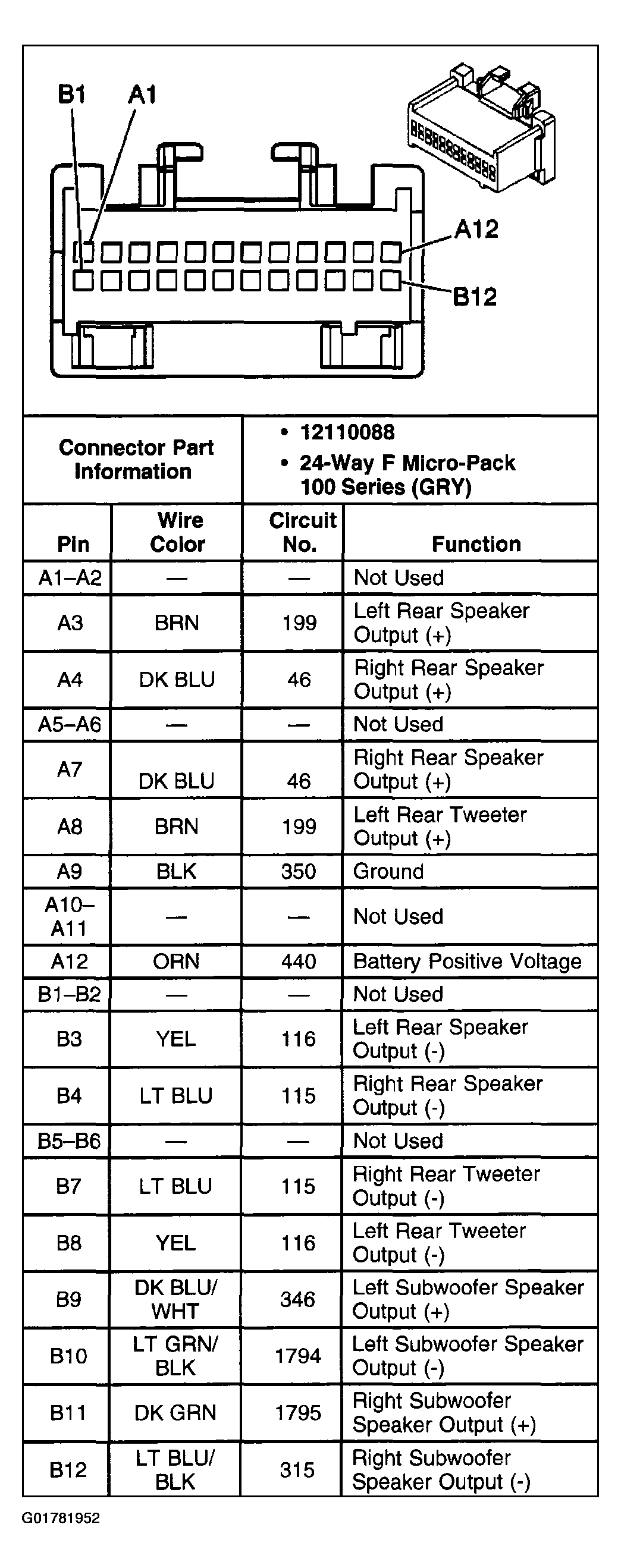

Fig 1: Identifying Audio Amplifier (UQ3) Terminals

G01781952

Courtesy of GENERAL MOTORS CORP.

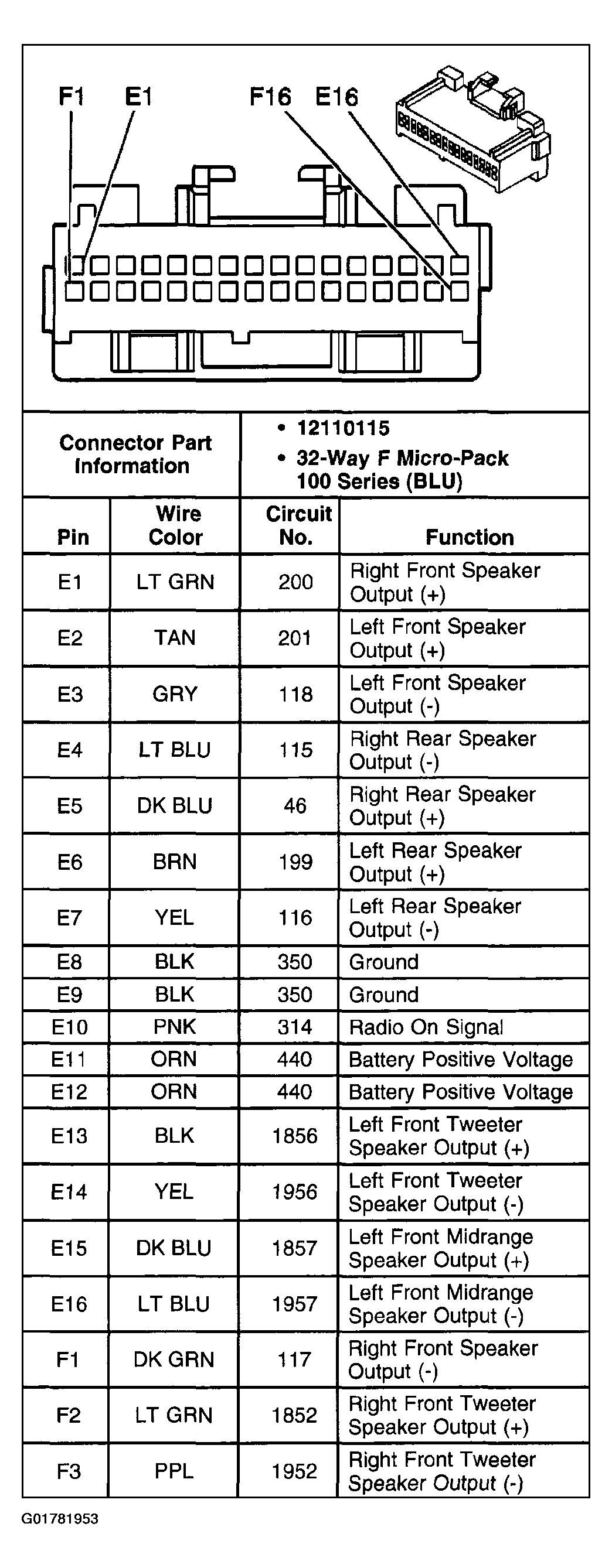

Fig 2: Identifying Audio Amplifier (U85) Terminals (1 Of 2)

G01781953

Courtesy of GENERAL MOTORS CORP.

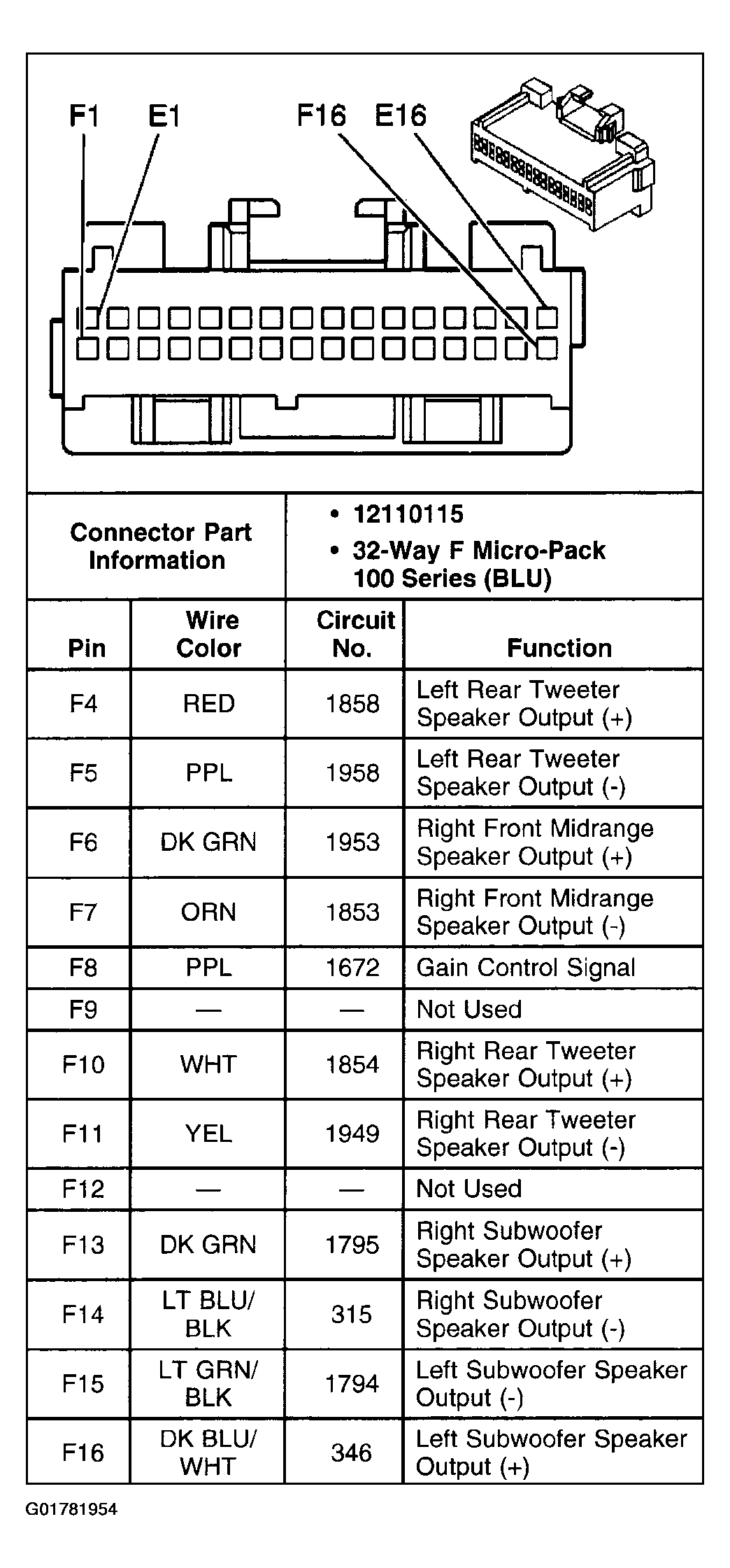

Fig 3: Identifying Audio Amplifier (U85) Terminals (2 Of 2)

G01781954

Courtesy of GENERAL MOTORS CORP.

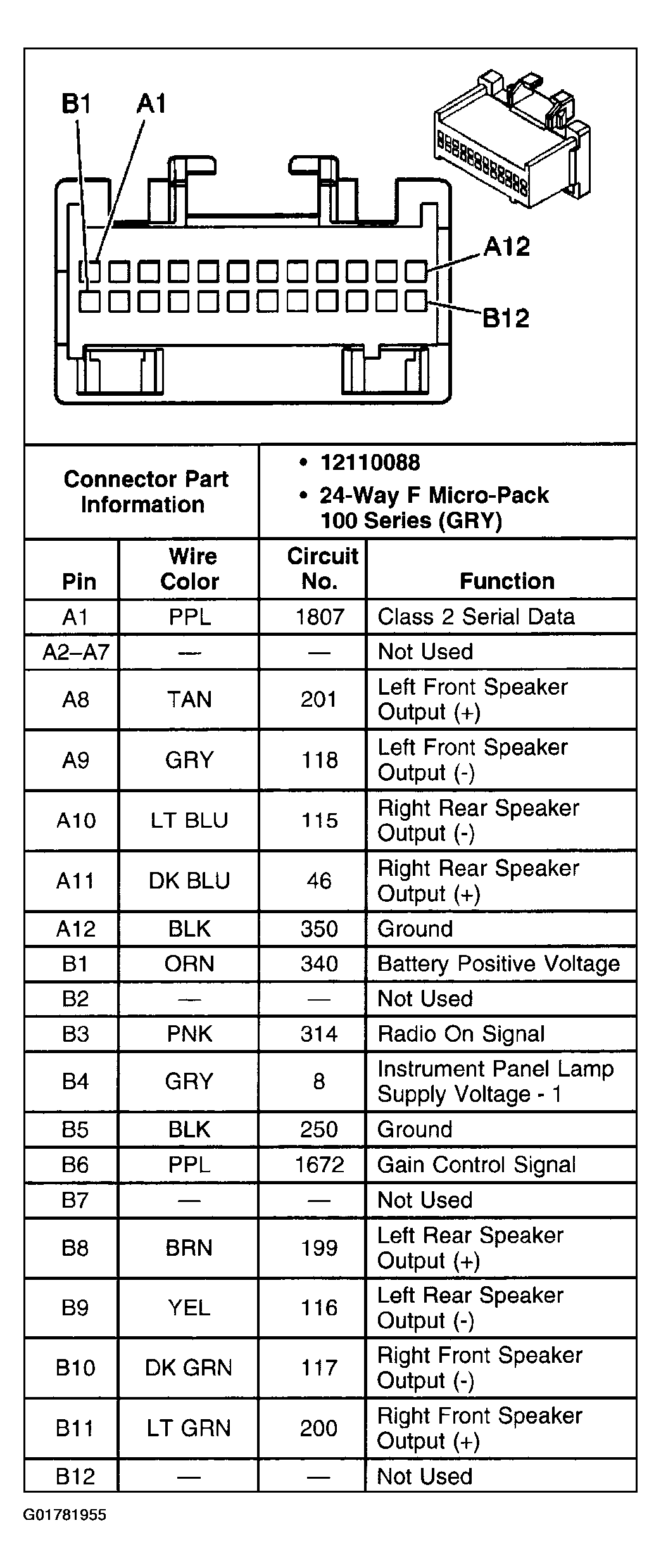

Fig 4: Identifying Radio (U85) Terminals

G01781955

Courtesy of GENERAL MOTORS CORP.

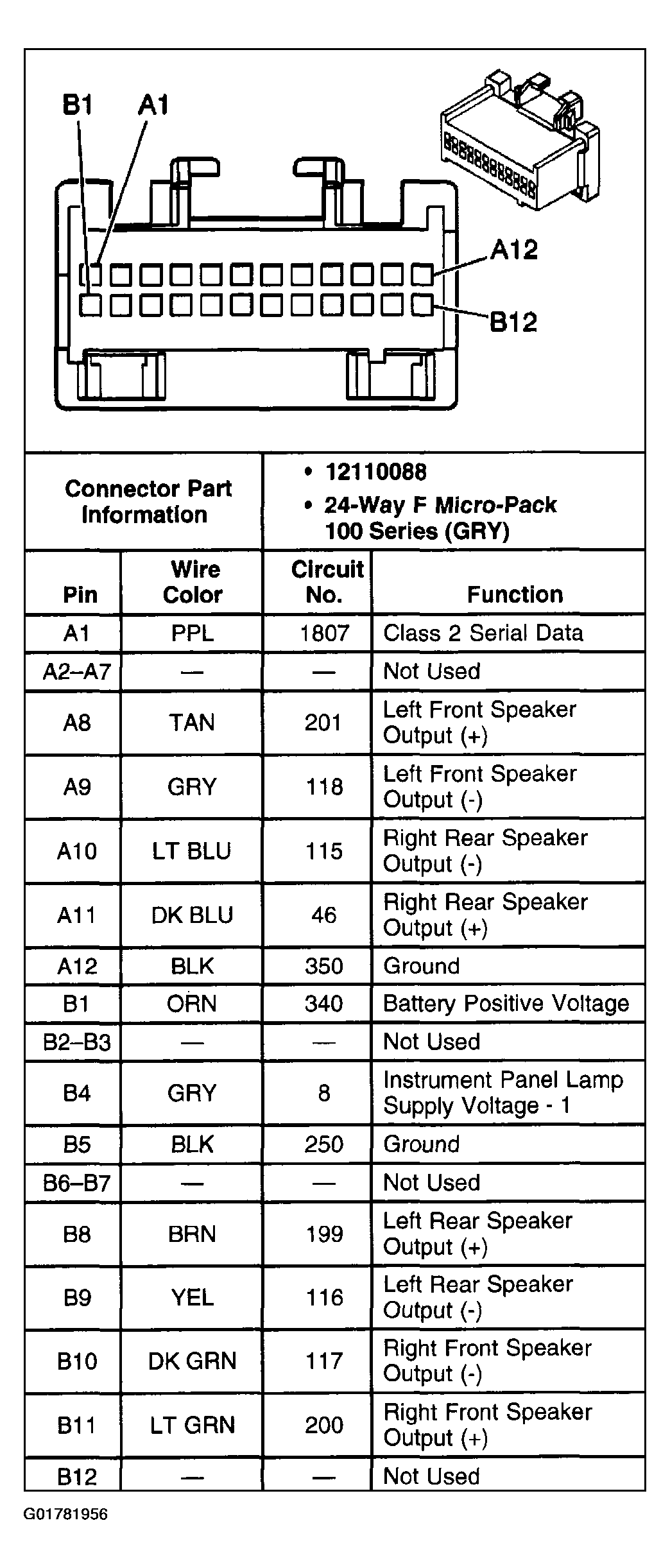

Fig 5: Identifying Radio Terminals (UX7/UW6/UQ3)

G01781956

Courtesy of GENERAL MOTORS CORP.

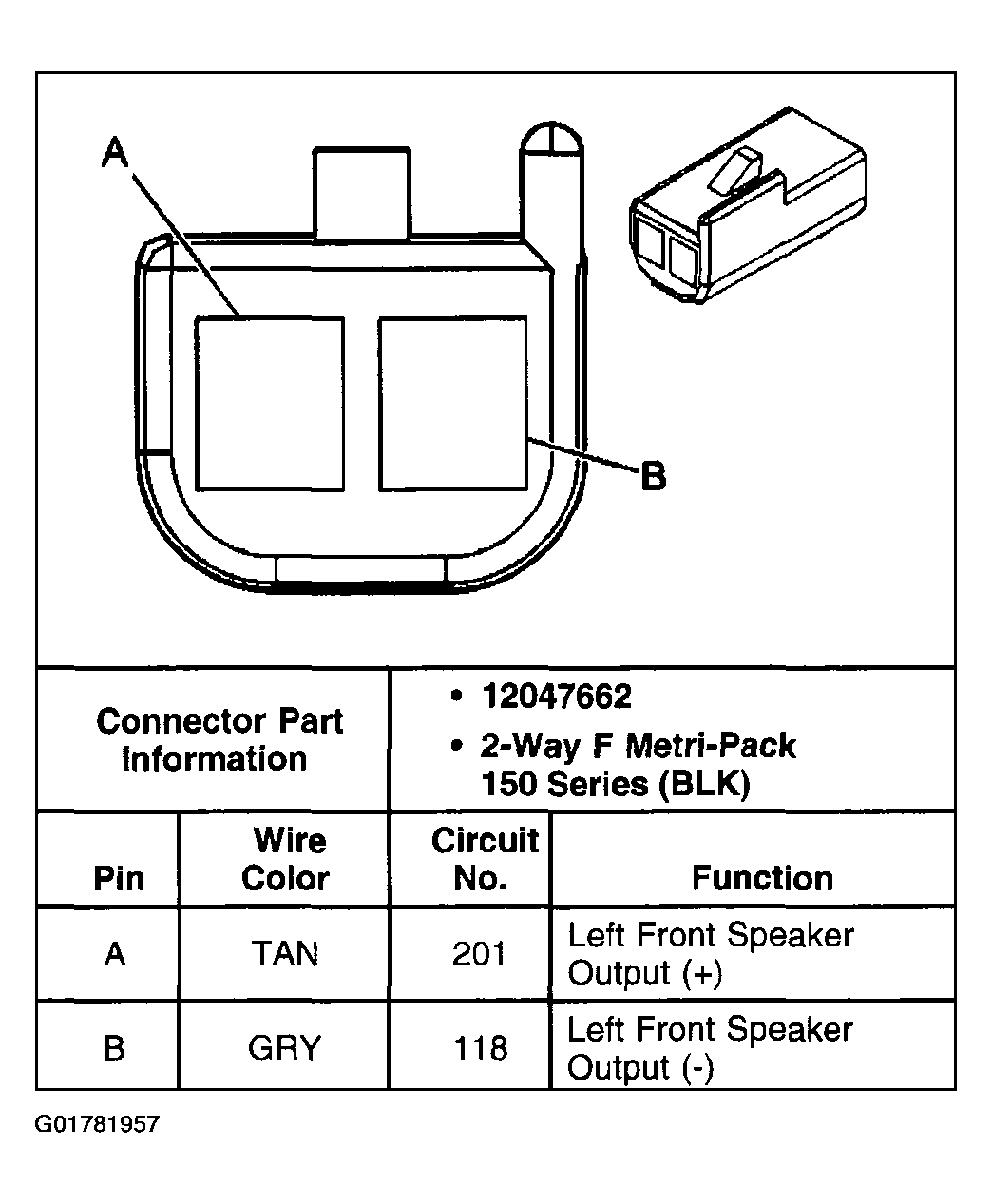

Fig 6: Identifying Speaker Terminals - LF (U79)

G01781957

Courtesy of GENERAL MOTORS CORP.

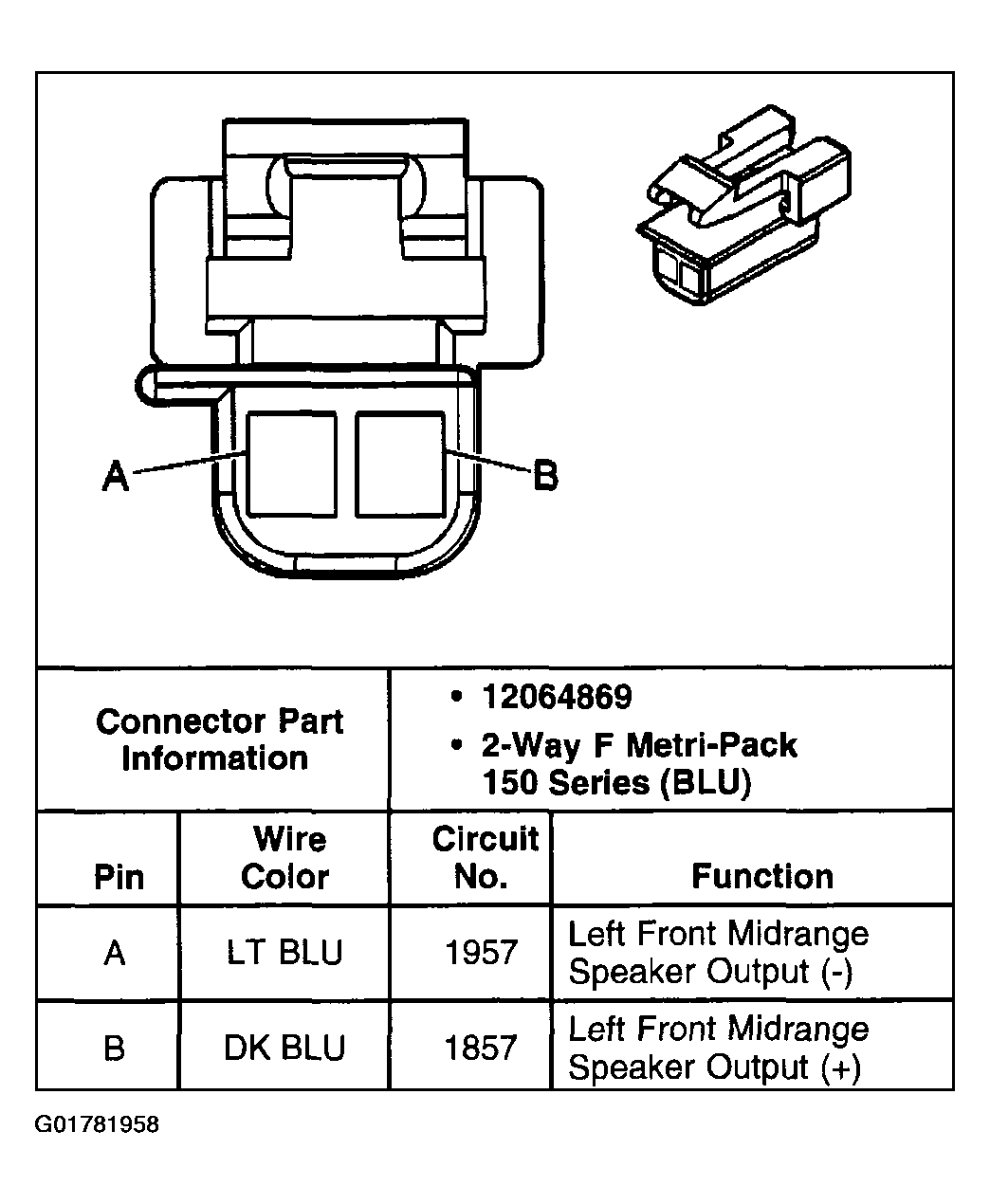

Fig 7: Identifying Speaker Terminals - LF (U85)

G01781958

Courtesy of GENERAL MOTORS CORP.

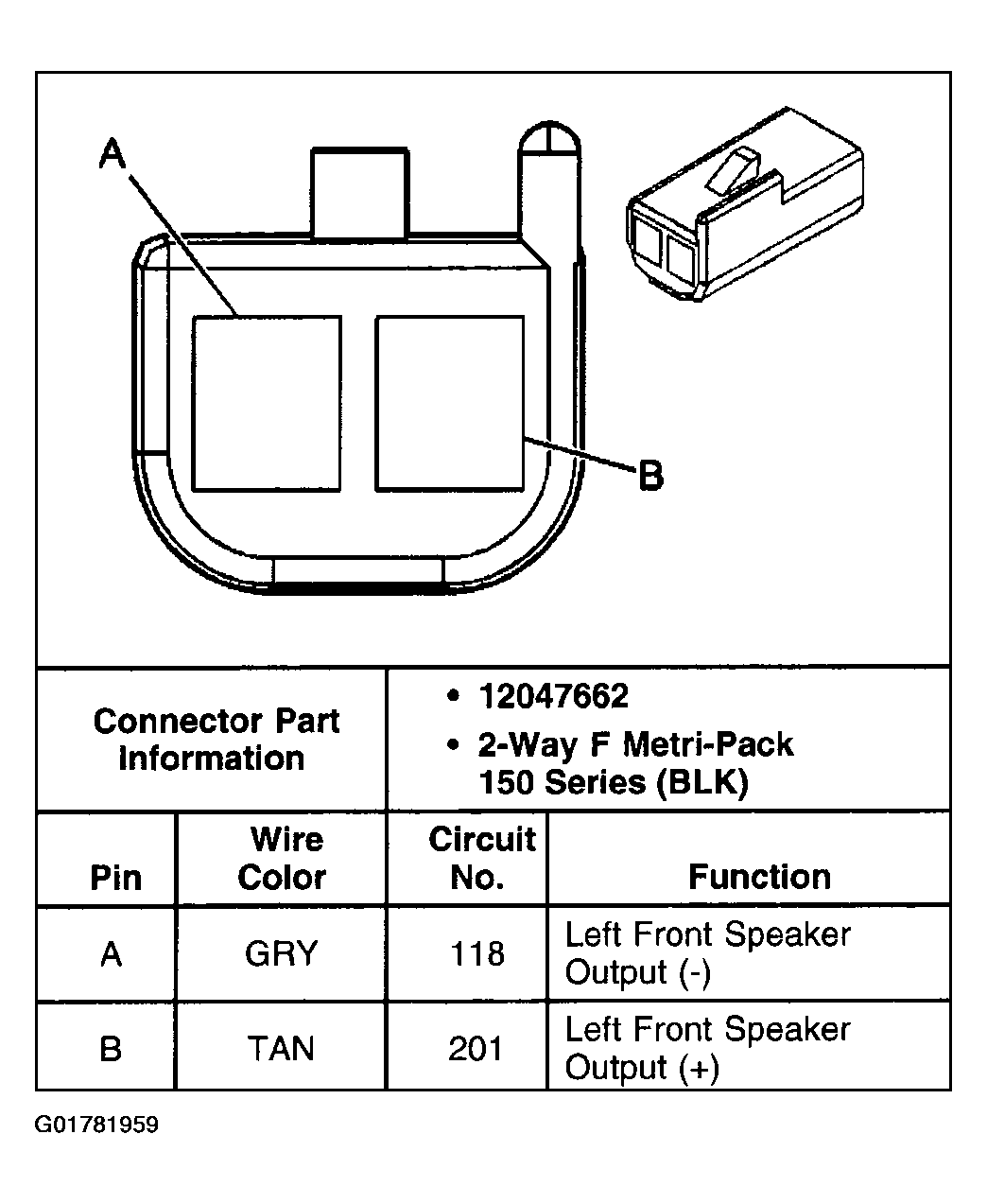

Fig 8: Identifying Speaker Terminals - LF (UW6/UQ3)

G01781959

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Speaker Terminals - LF (UX7)

G01781960

Courtesy of GENERAL MOTORS CORP.

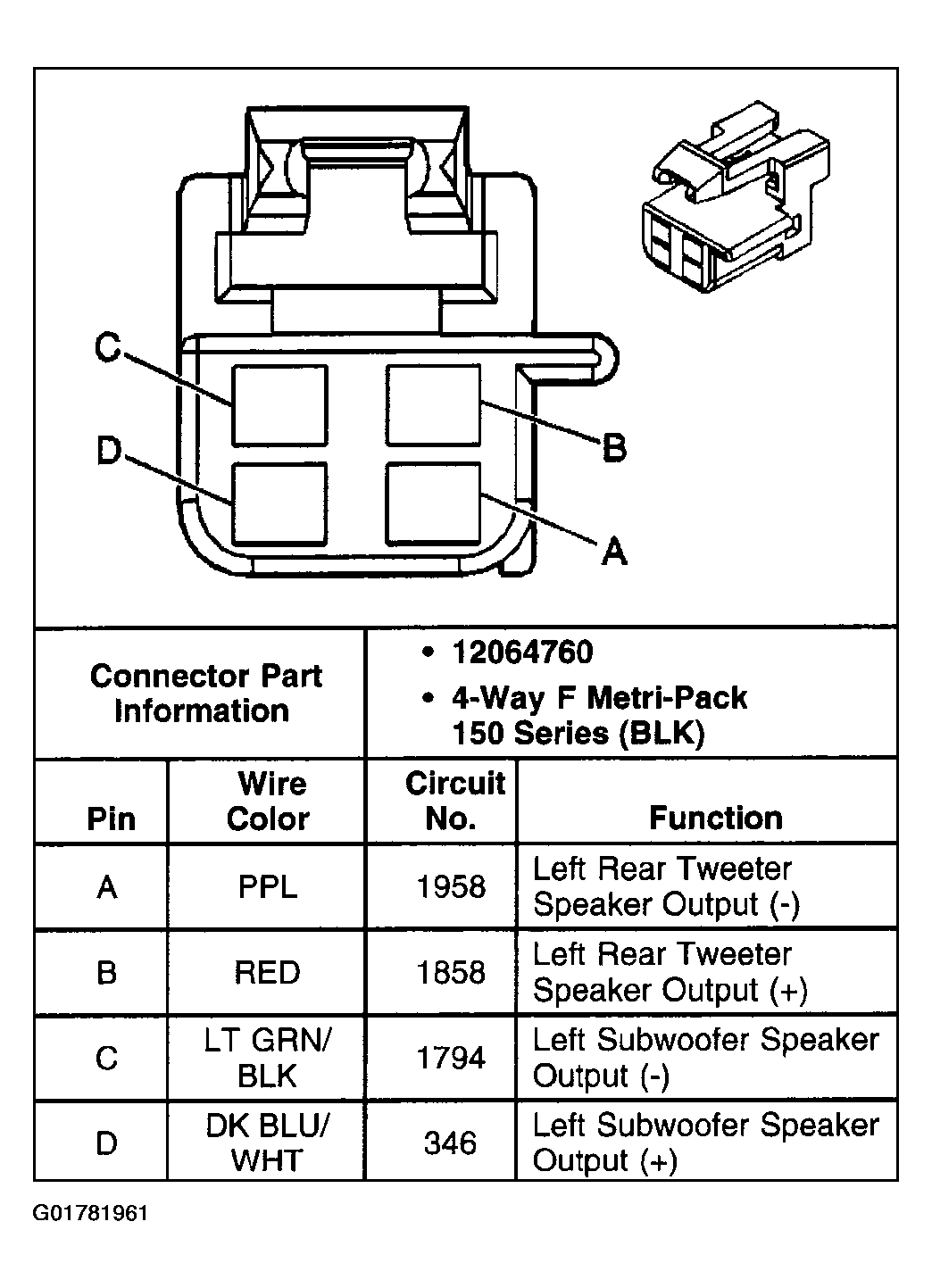

Fig 10: Identifying Speaker Terminals - LR (U85)

G01781961

Courtesy of GENERAL MOTORS CORP.

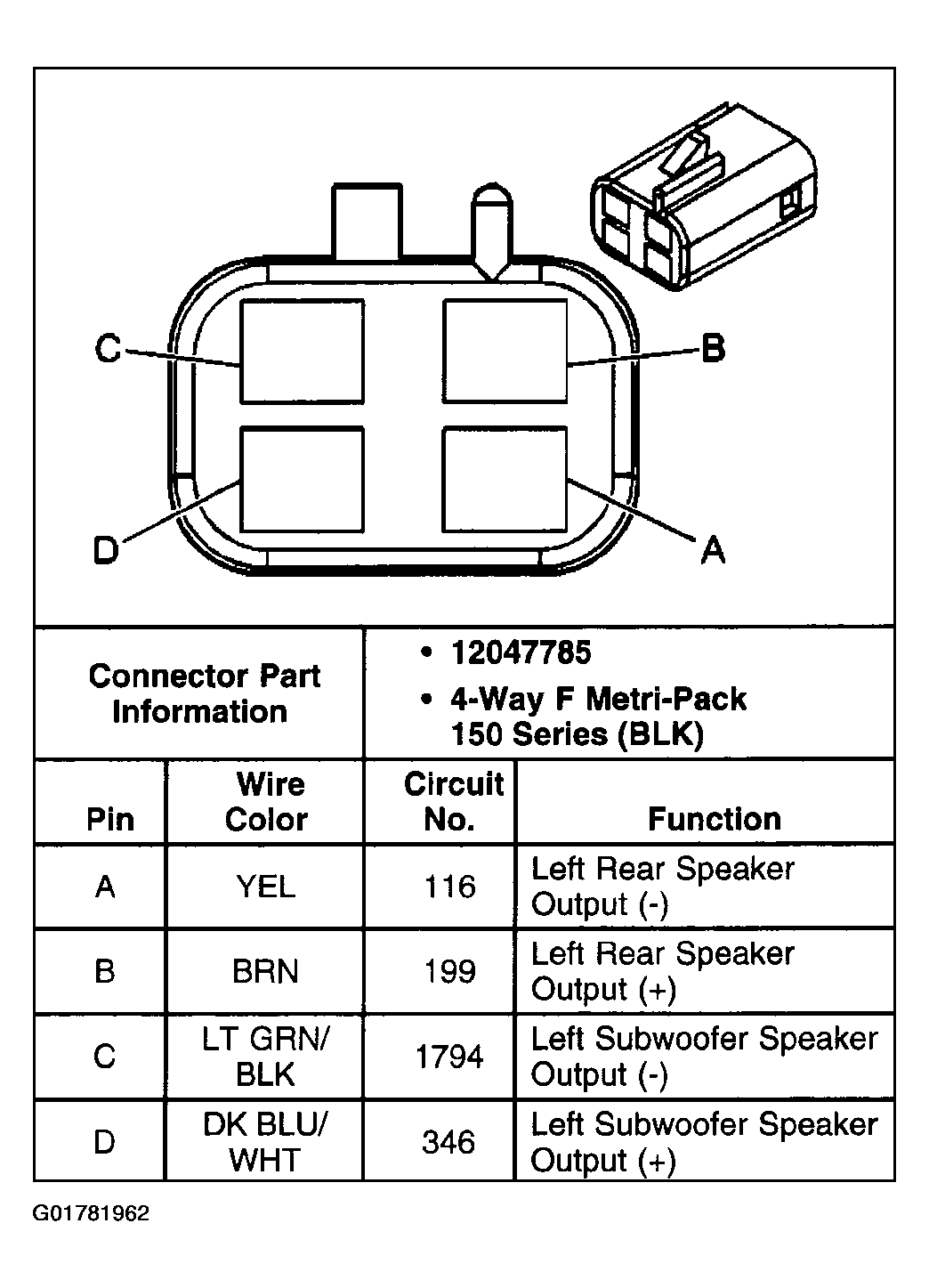

Fig 11: Identifying Speaker Terminals - LR (UQ3)

G01781962

Courtesy of GENERAL MOTORS CORP.

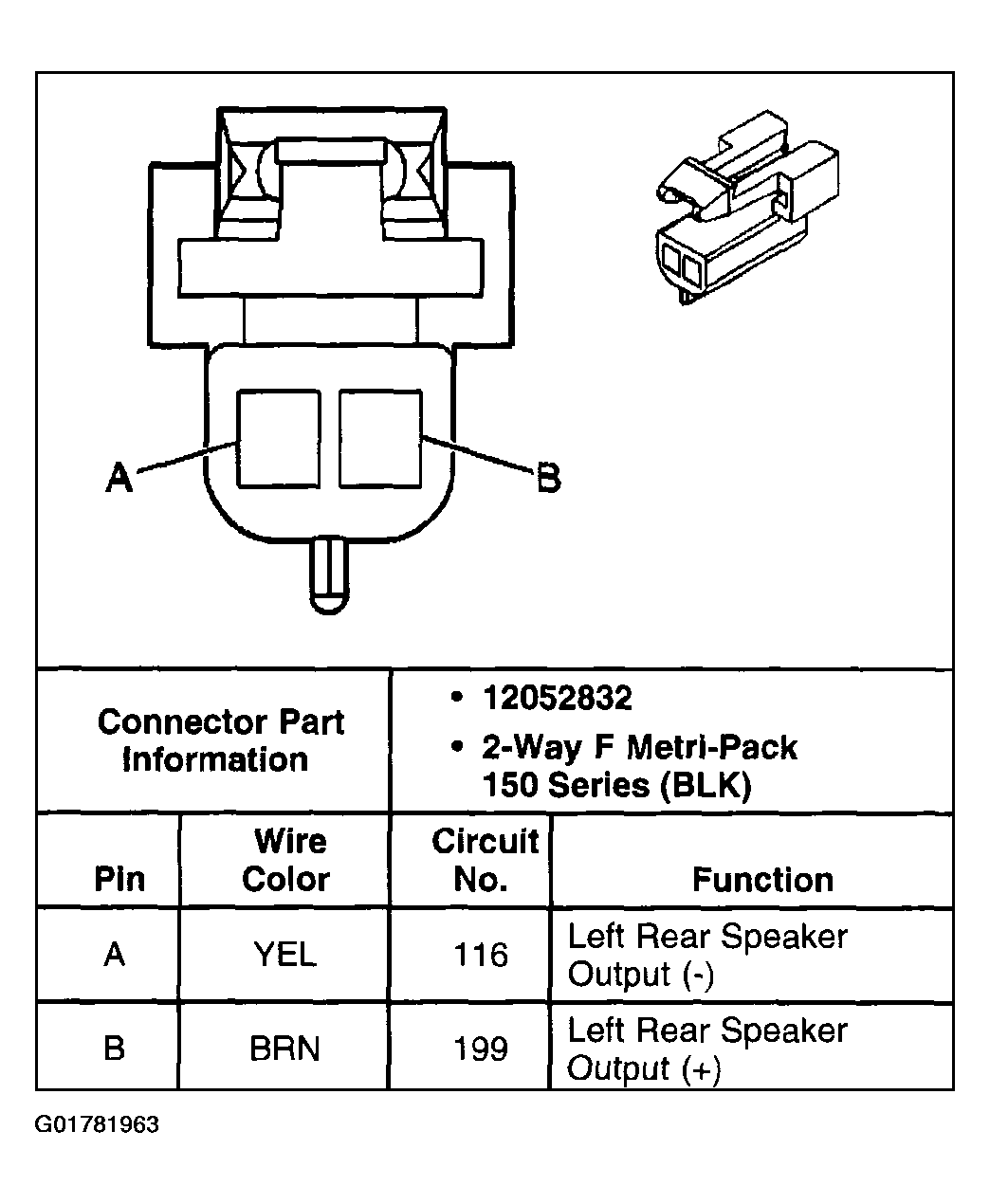

Fig 12: Identifying Speaker Terminals - LR (UX7/UW6/U79)

G01781963

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Speaker Terminals - RF (U79)

G01781964

Courtesy of GENERAL MOTORS CORP.

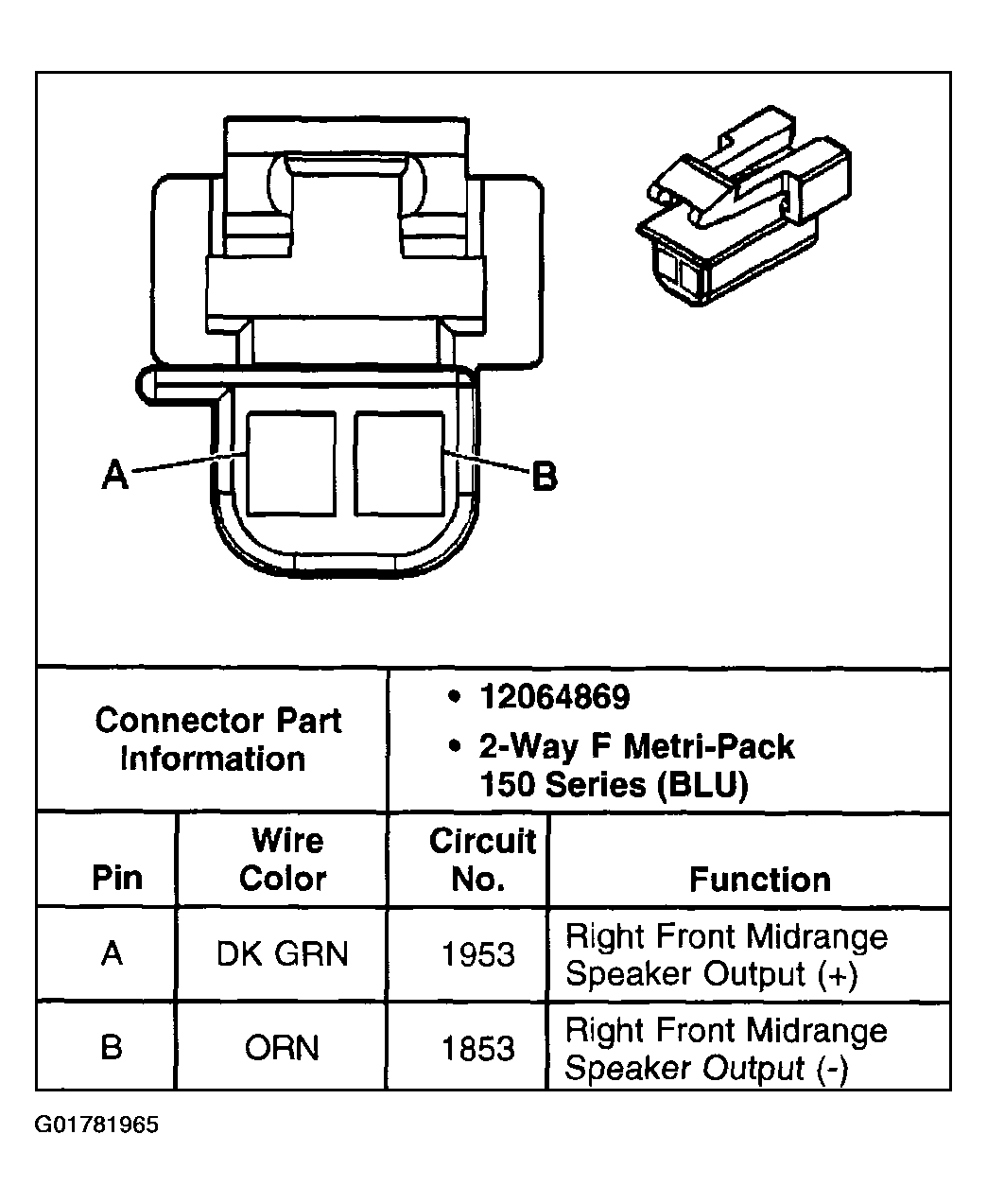

Fig 14: Identifying Speaker Terminals - RF (U85)

G01781965

Courtesy of GENERAL MOTORS CORP.

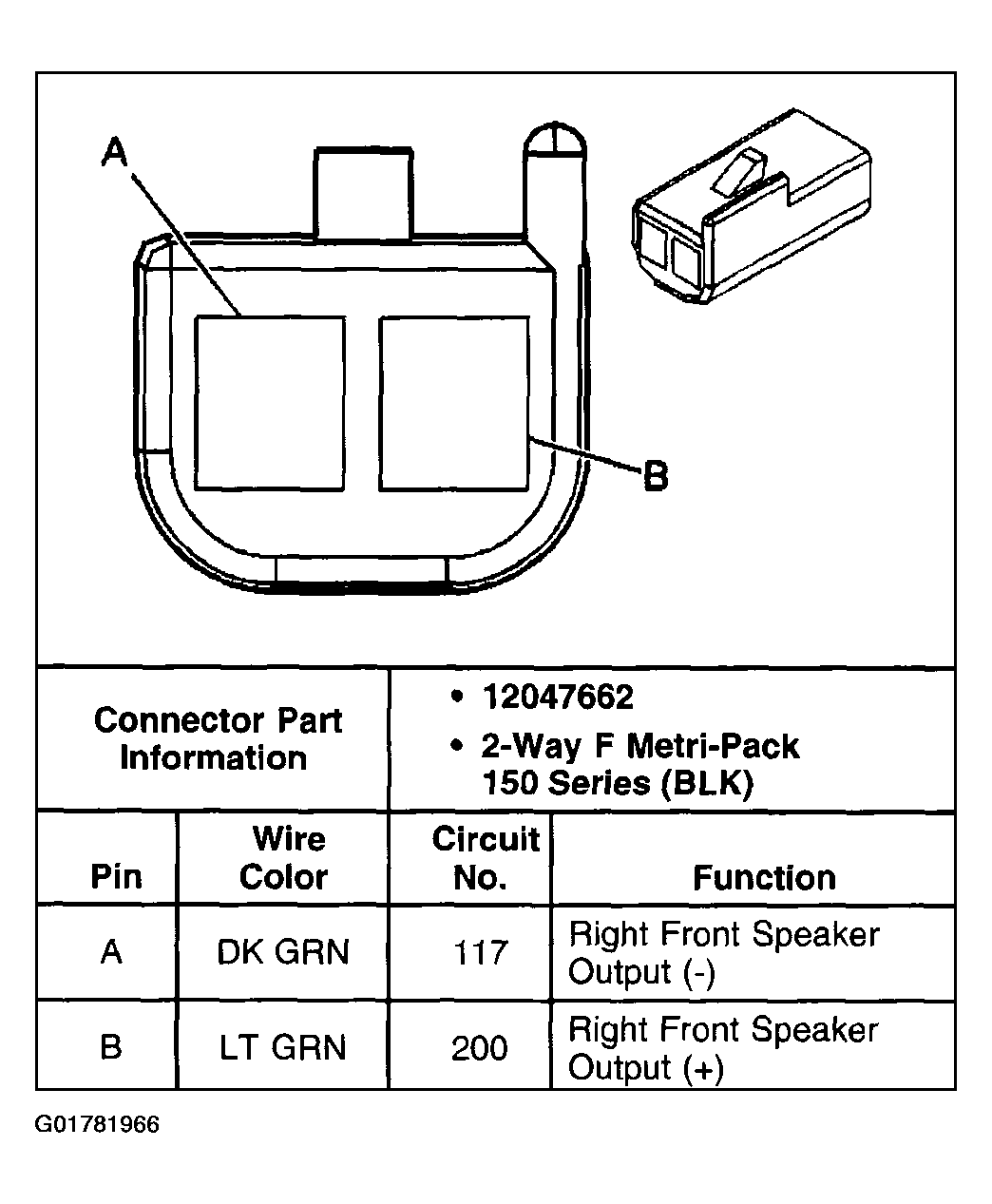

Fig 15: Identifying Speaker Terminals - RF (UW6/UQ3)

G01781966

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Speaker Terminals - RF (UX7)

G01781967

Courtesy of GENERAL MOTORS CORP.

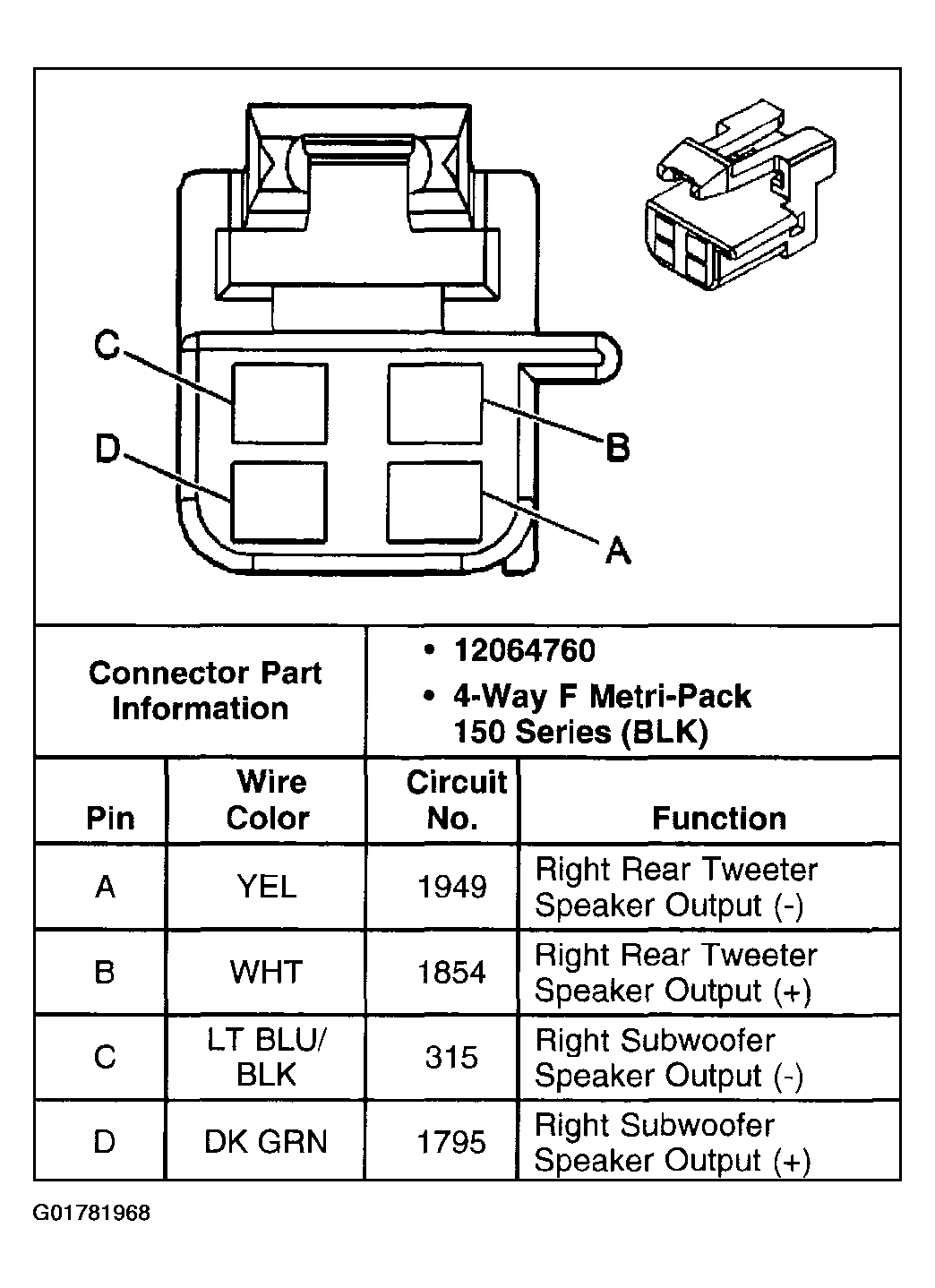

Fig 17: Identifying Speaker Terminals - RR (U85)

G01781968

Courtesy of GENERAL MOTORS CORP.

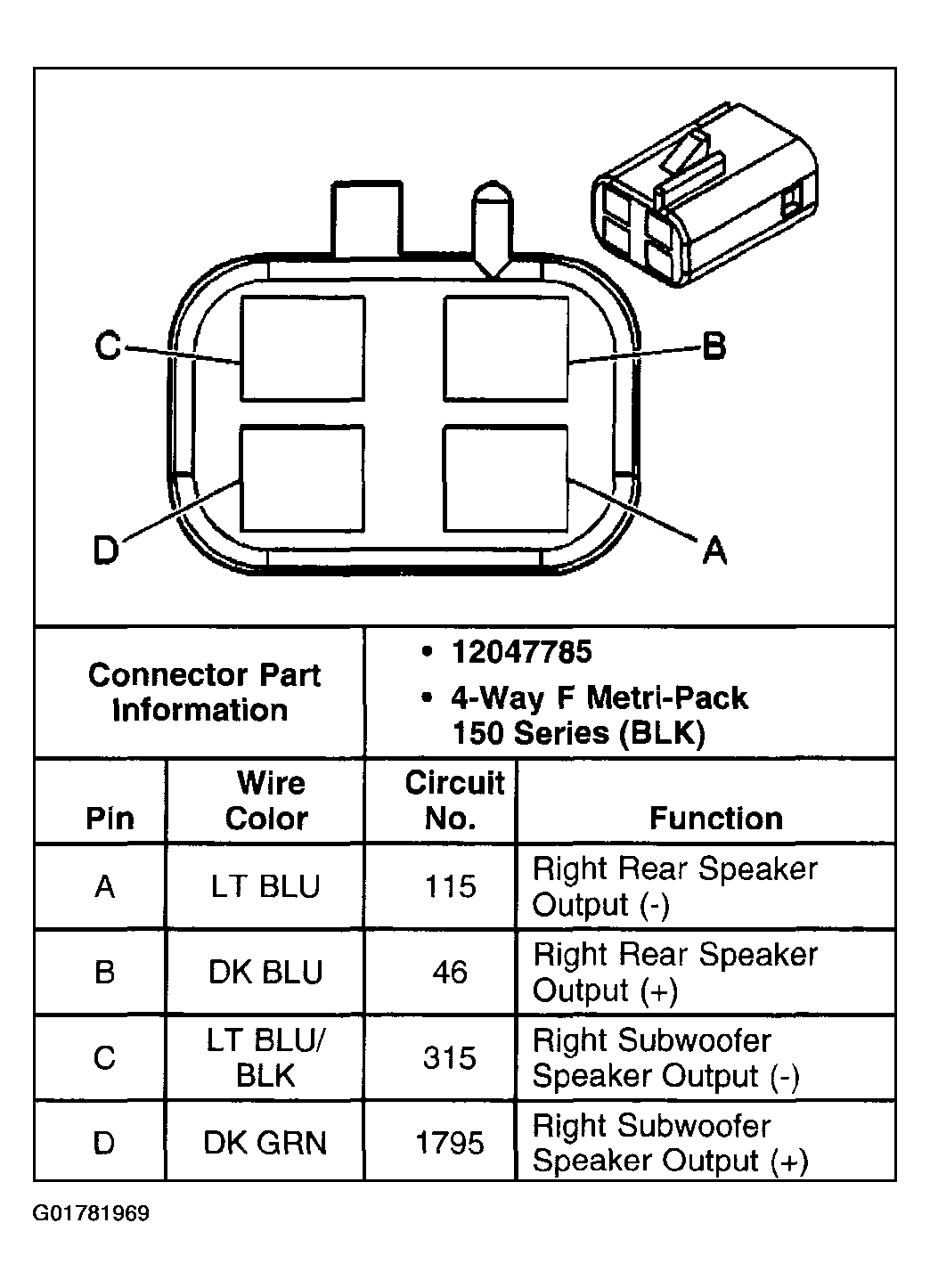

Fig 18: Identifying Speaker Terminals - RR (UQ3)

G01781969

Courtesy of GENERAL MOTORS CORP.

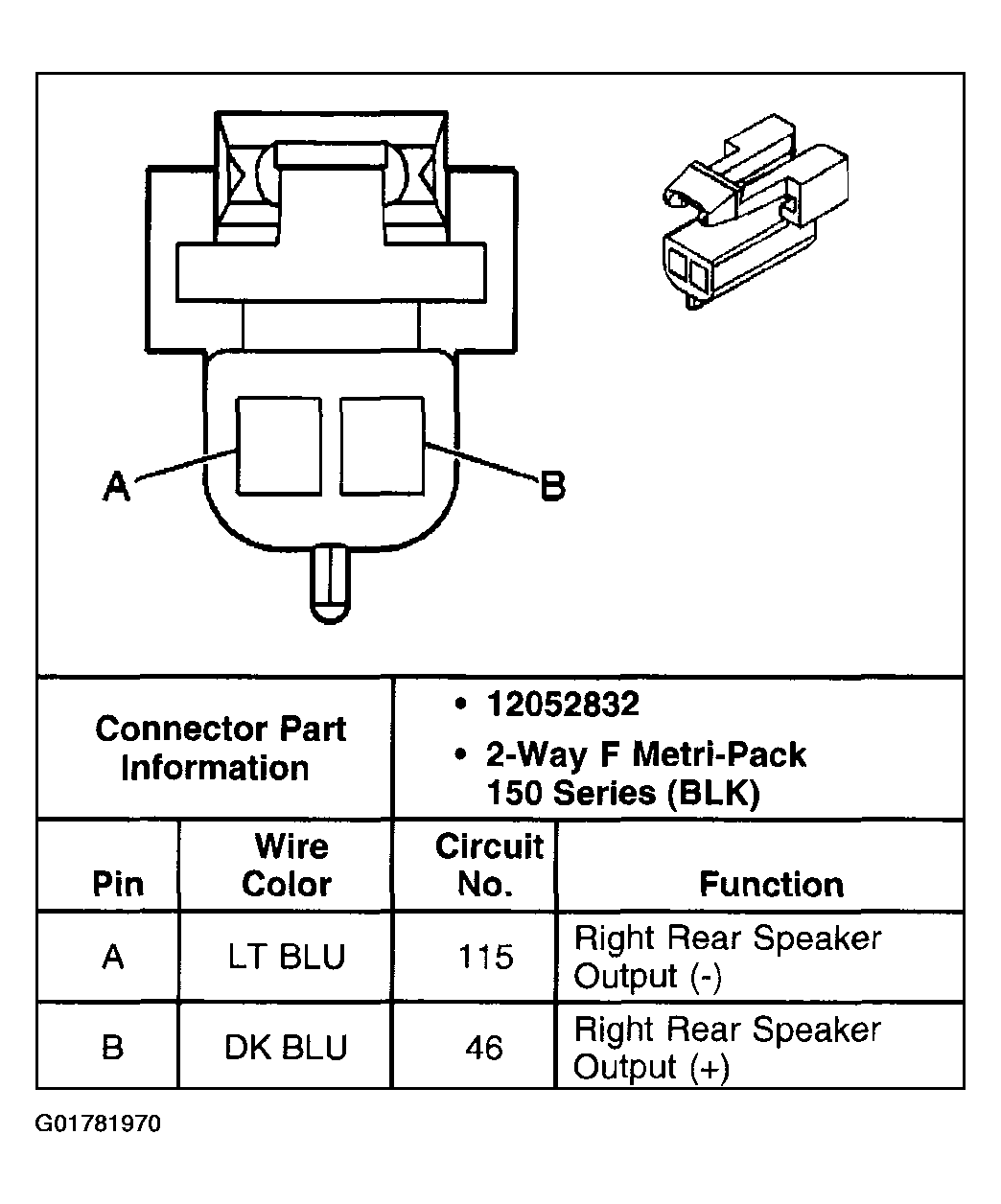

Fig 19: Identifying Speaker Terminals - RR (UX7/UW6/U79)

G01781970

Courtesy of GENERAL MOTORS CORP.

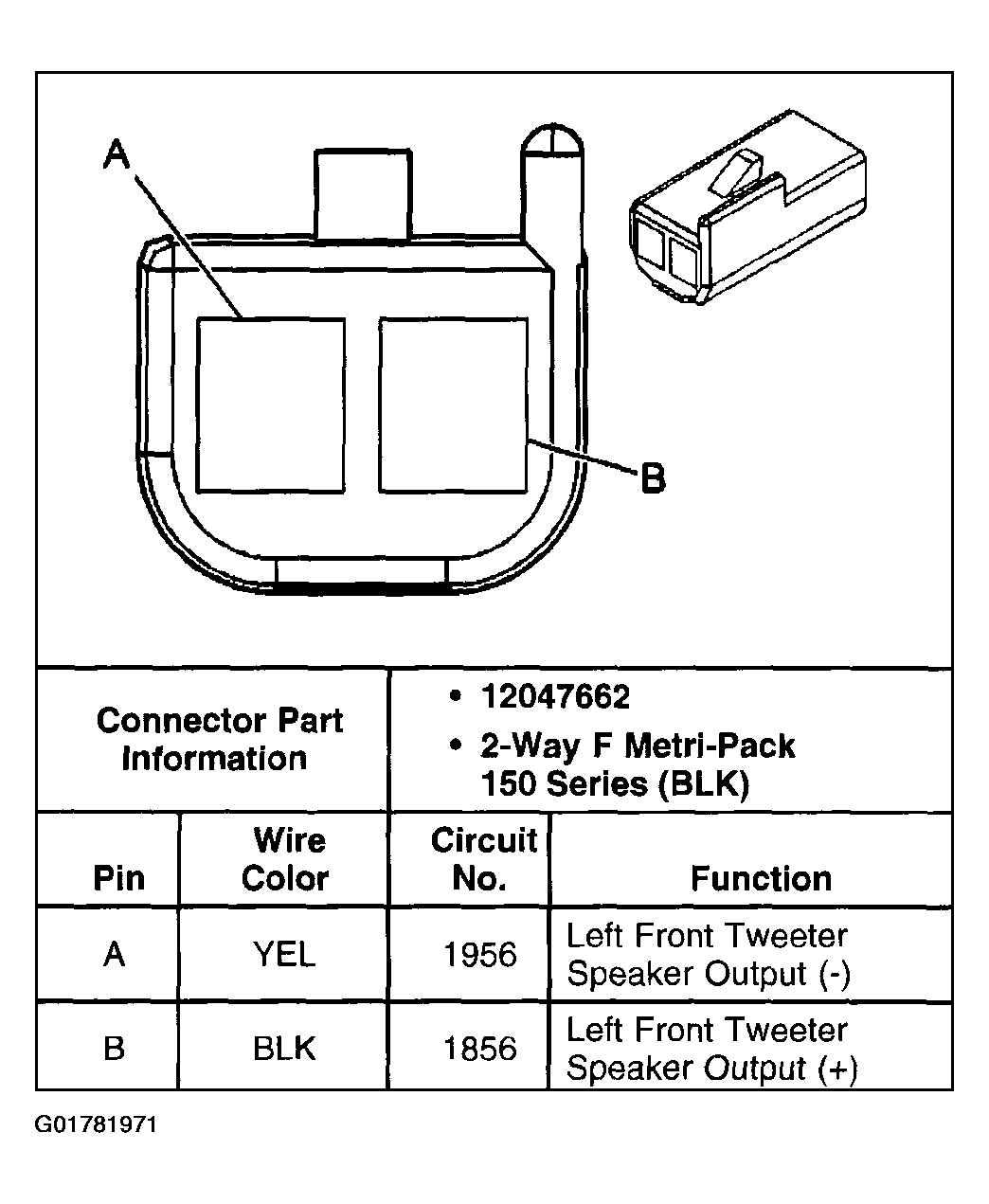

Fig 20: Identifying Tweeter Terminals - LF (U85)

G01781971

Courtesy of GENERAL MOTORS CORP.

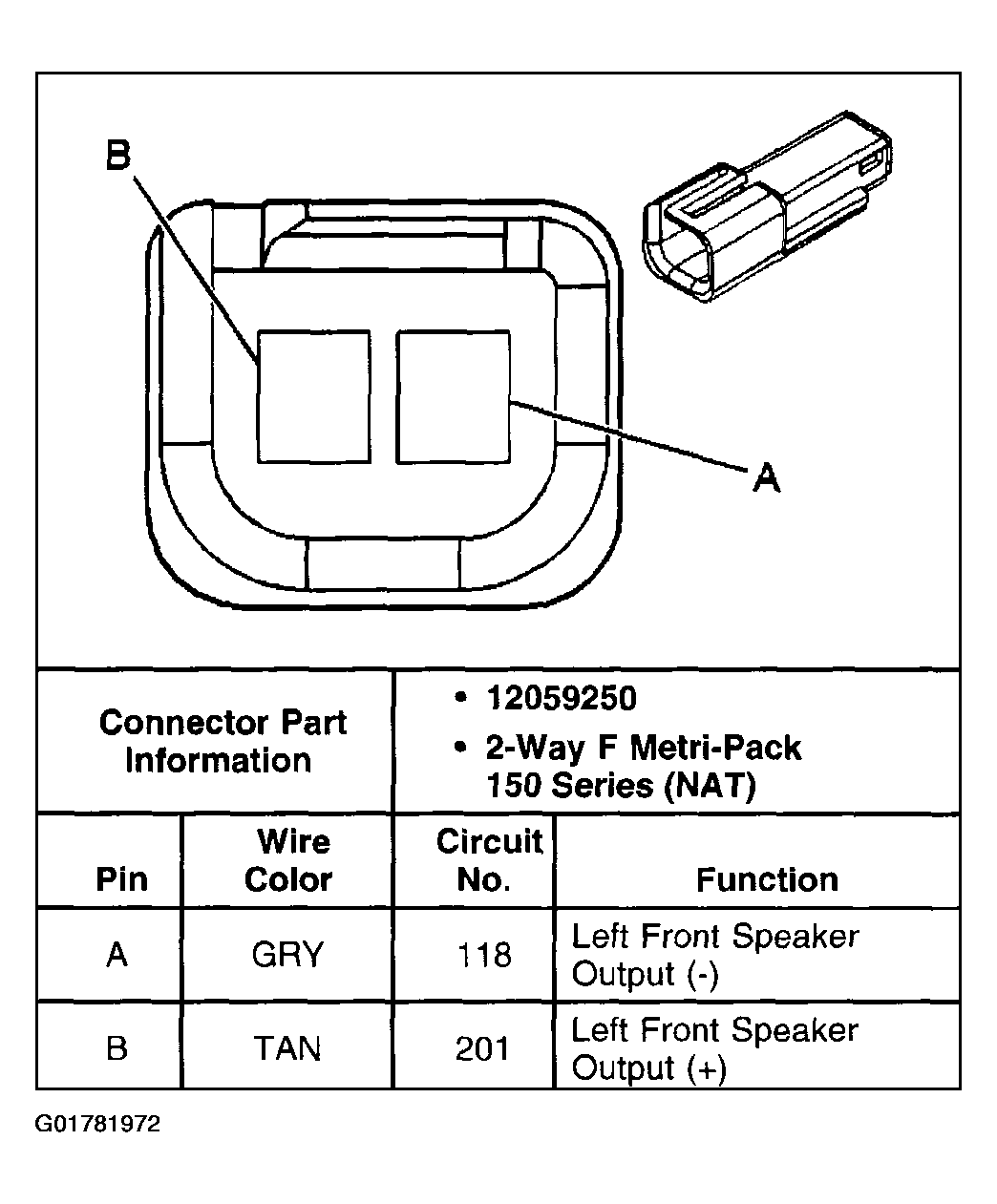

Fig 21: Identifying Tweeter Terminals - LF (UW6/UQ3)

G01781972

Courtesy of GENERAL MOTORS CORP.

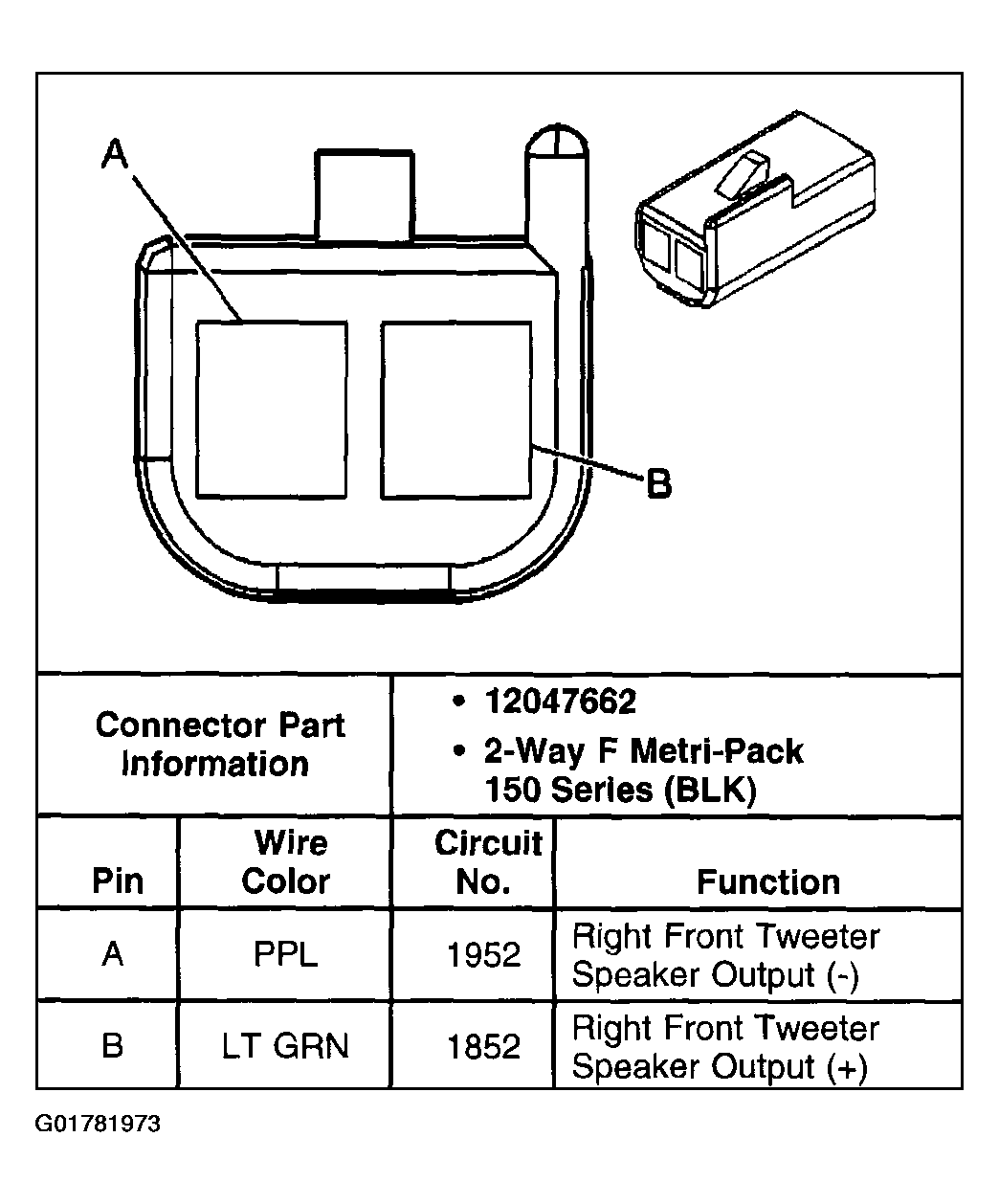

Fig 22: Identifying Tweeter Terminals - RF (U85)

G01781973

Courtesy of GENERAL MOTORS CORP.

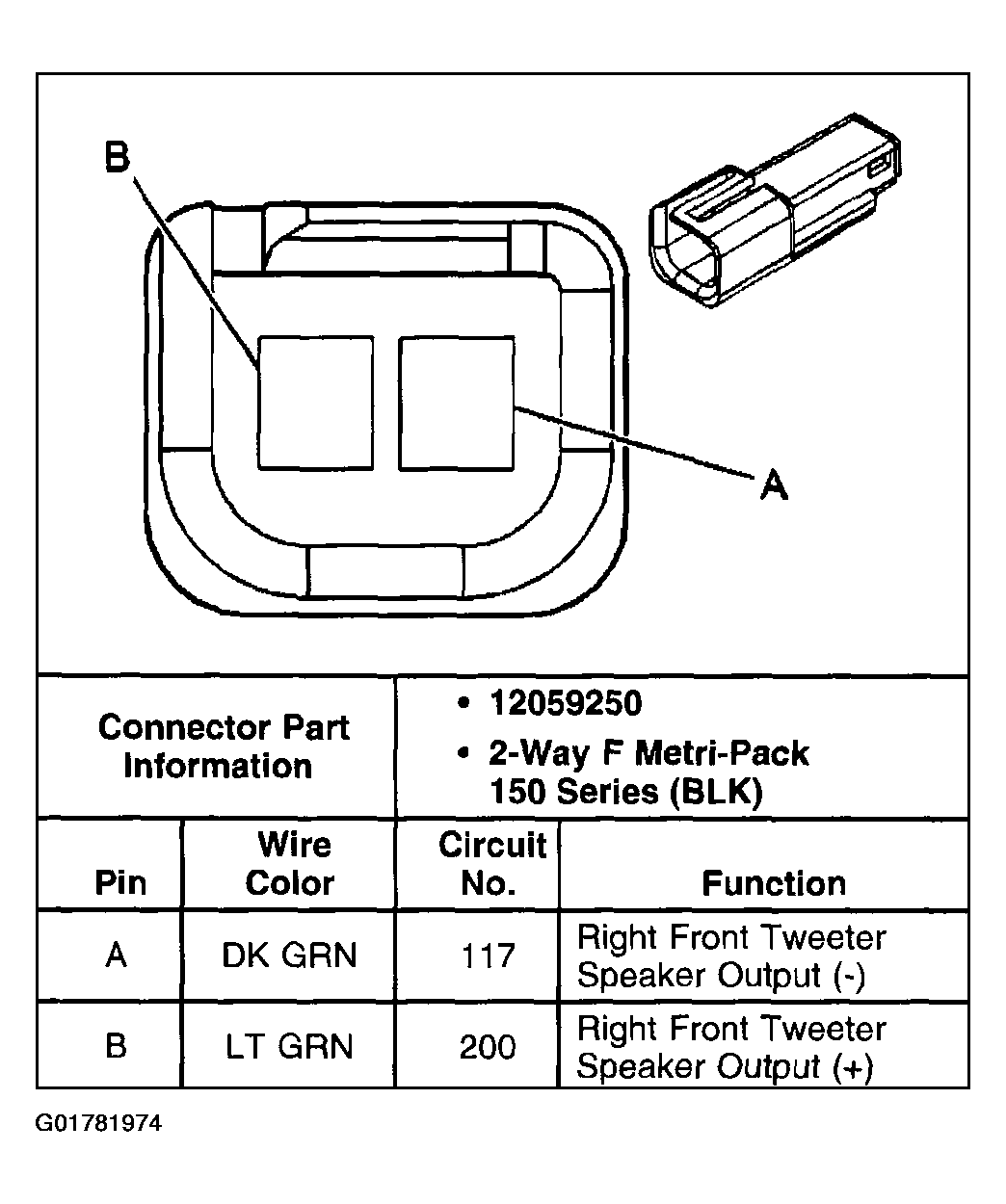

Fig 23: Identifying Tweeter Terminals - RF (UW6/UQ3)

G01781974

Courtesy of GENERAL MOTORS CORP.
