Entertainment Component Views

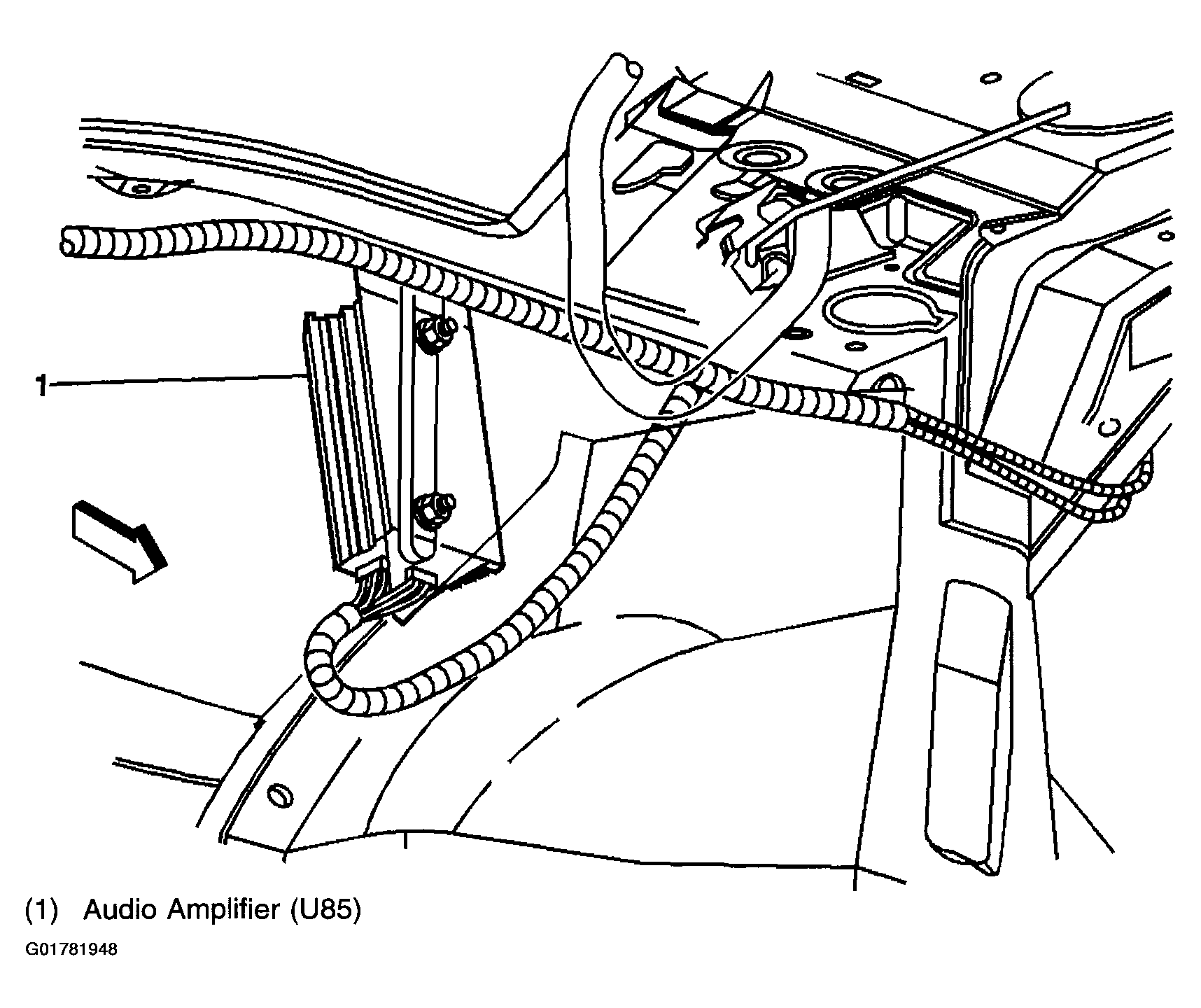

Fig 1: Locating Audio Amplifier
G01781948Courtesy of GENERAL MOTORS CORP.

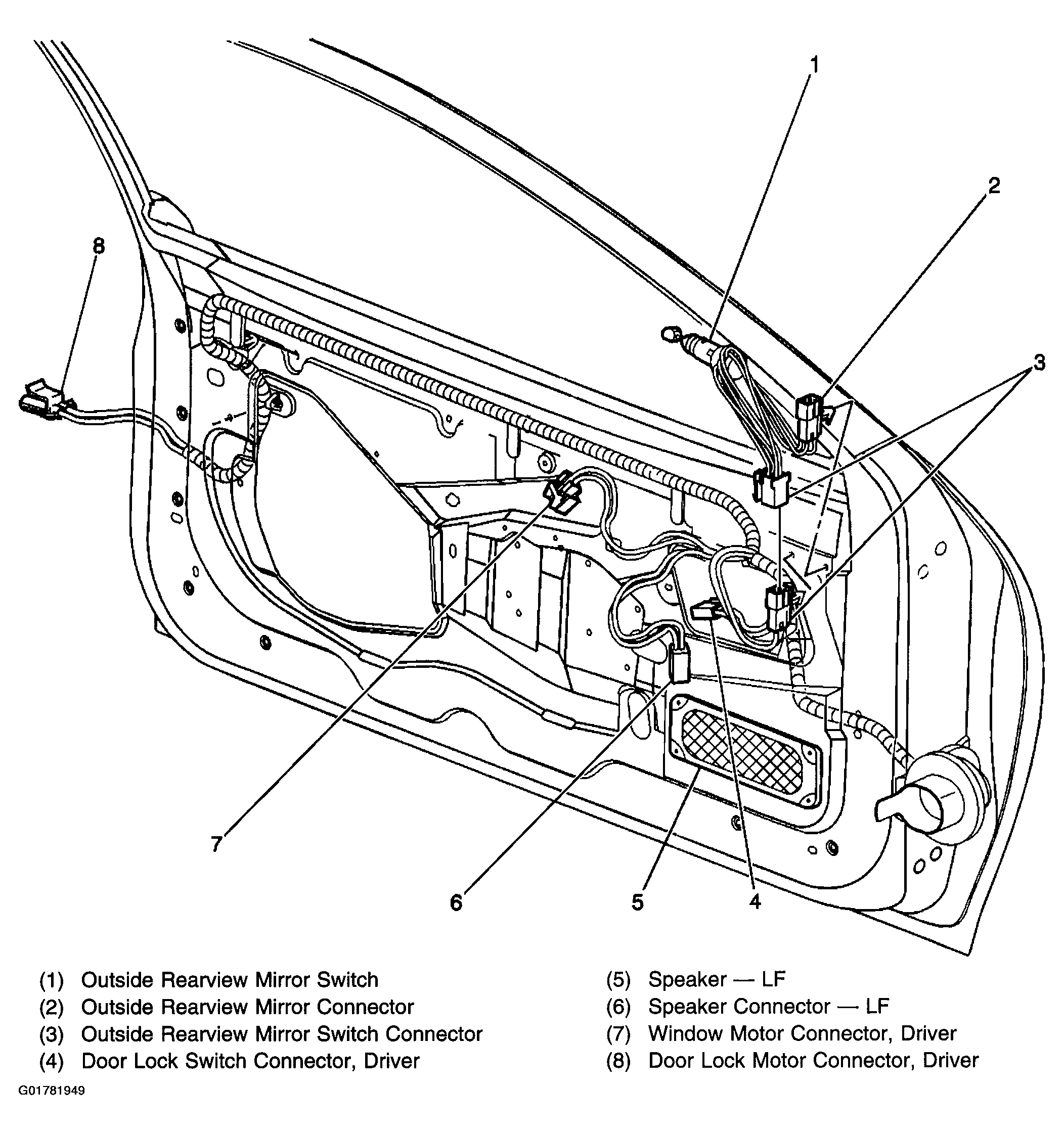

Fig 2: Locating Electrical Components - Driver Door
G01781949Courtesy of GENERAL MOTORS CORP.

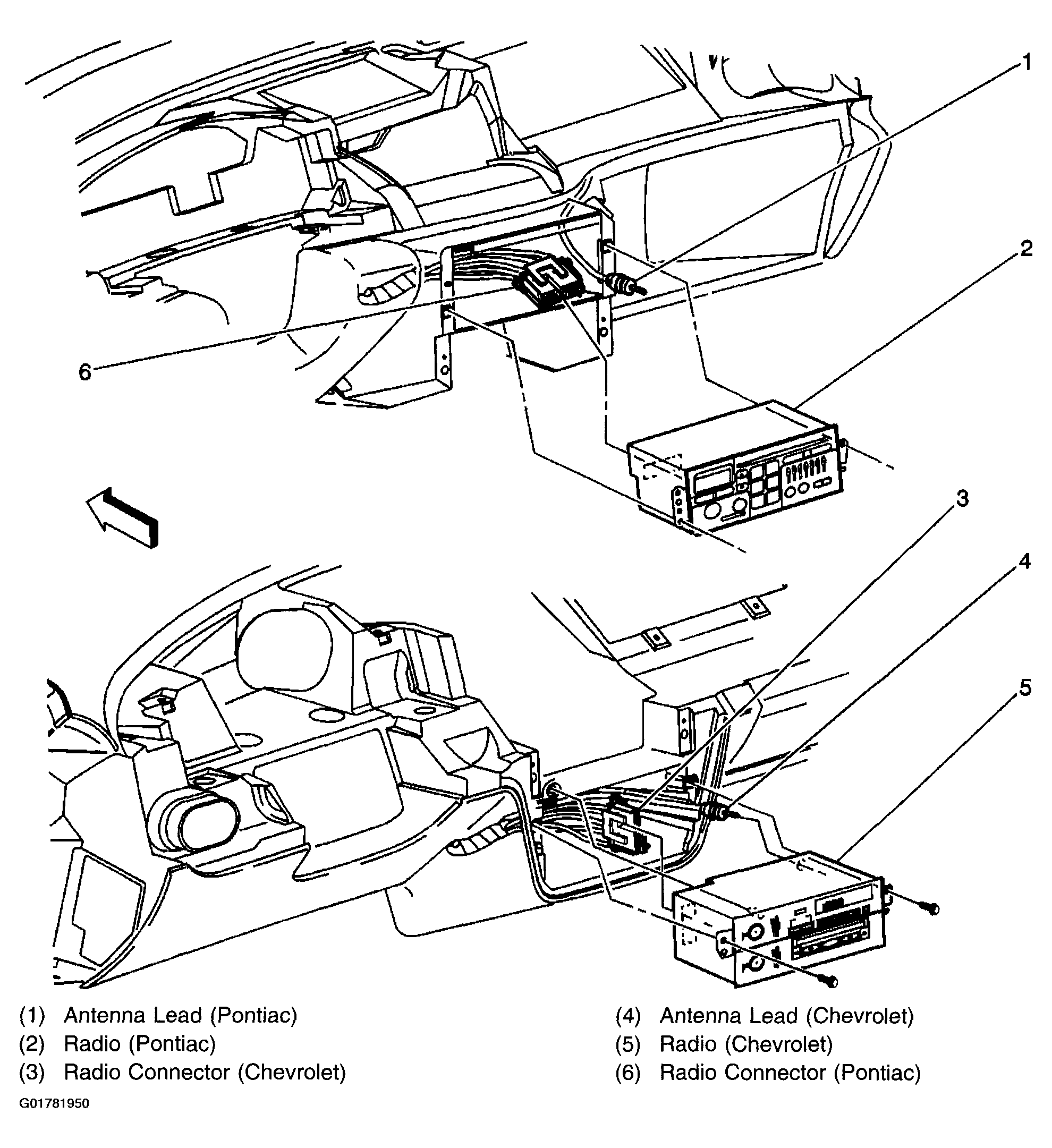

Fig 3: Locating Antenna Lead & Radio Connector
G01781950Courtesy of GENERAL MOTORS CORP.

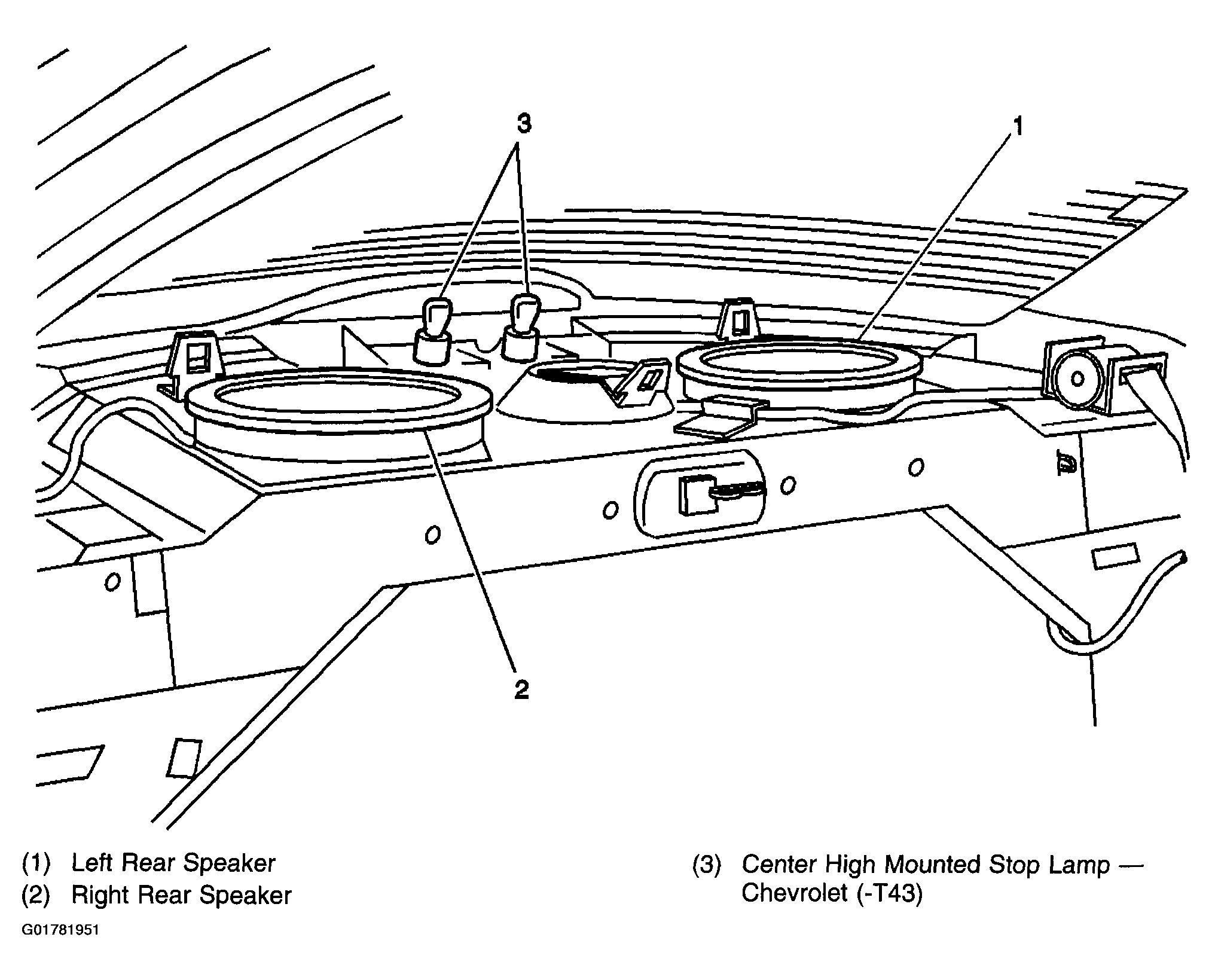

Fig 4: Locating Rear Package Shelf Speakers & CHMSL Components
G01781951Courtesy of GENERAL MOTORS CORP.
