Vehicle Speed Sensor (VSS) Connector End View

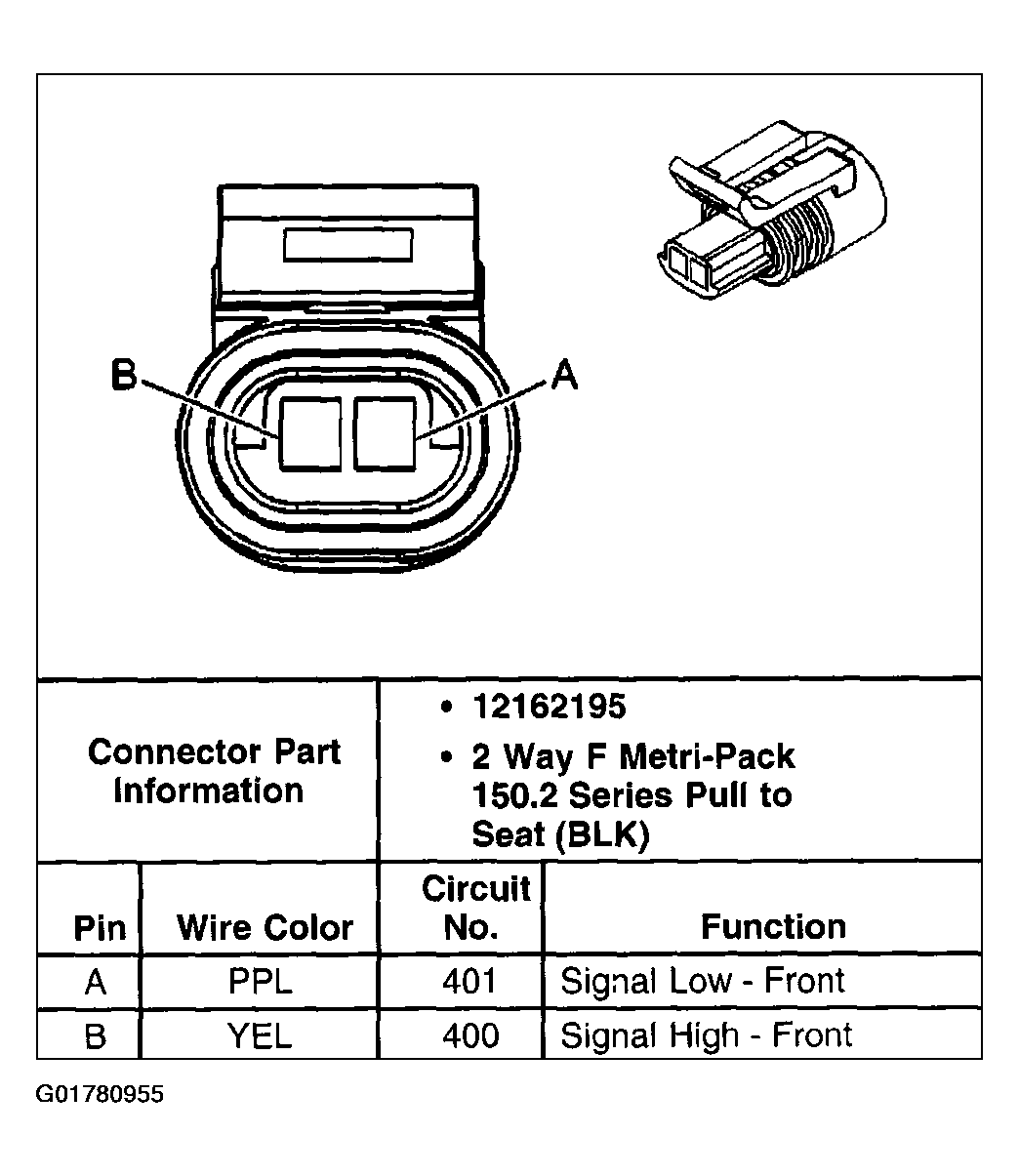

Fig 1: Vehicle Speed Sensor (VSS) Connector End View

G01780955

Courtesy of GENERAL MOTORS CORP.
