Rear Compartment Lid Release Switch Connector End View

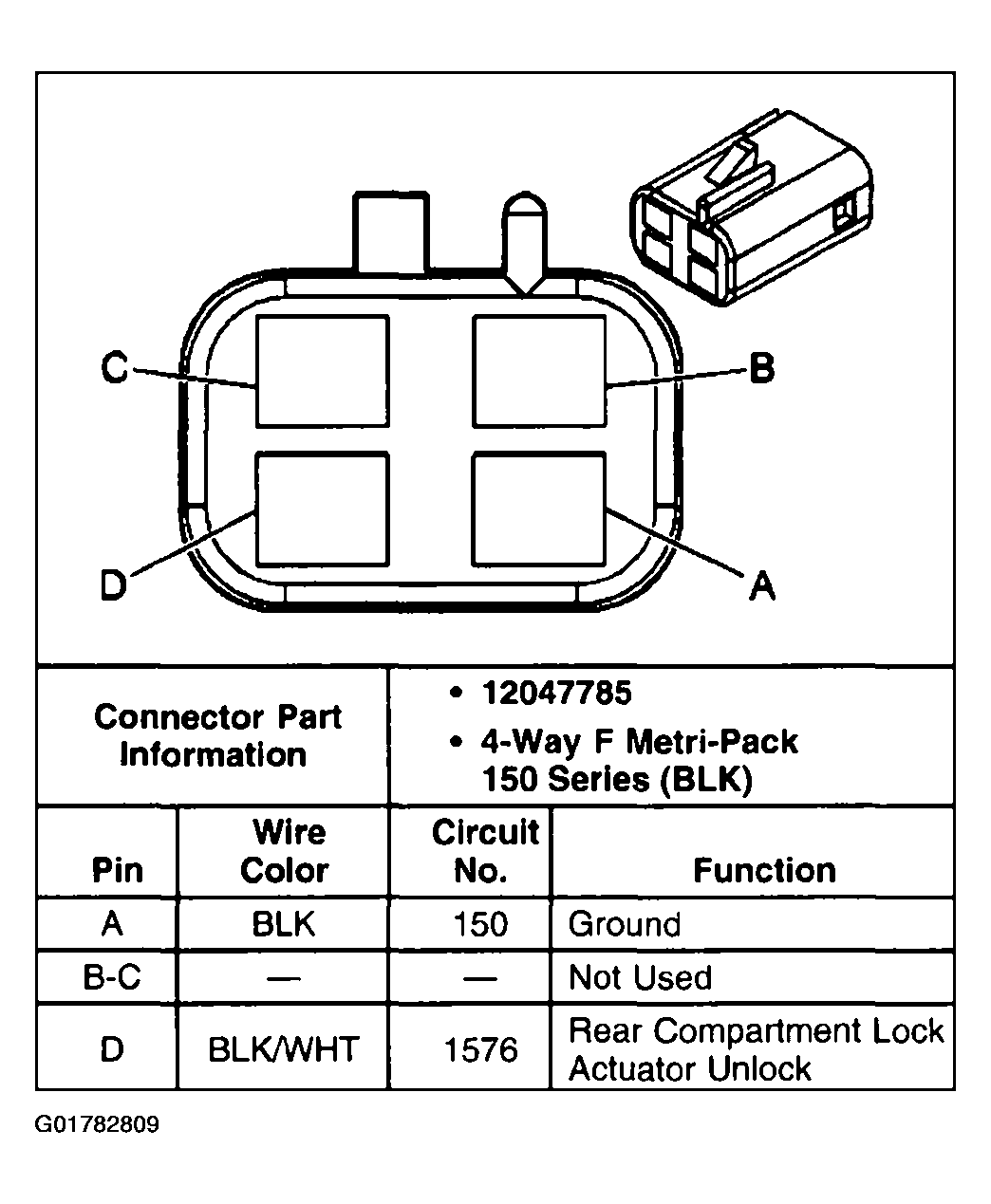

Fig 1: Rear Compartment Lid Release Switch Connector End View

G01782809

Courtesy of GENERAL MOTORS CORP.
