A/C Pressure Switch Connector End View
A/C Pressure Switch Connector End View

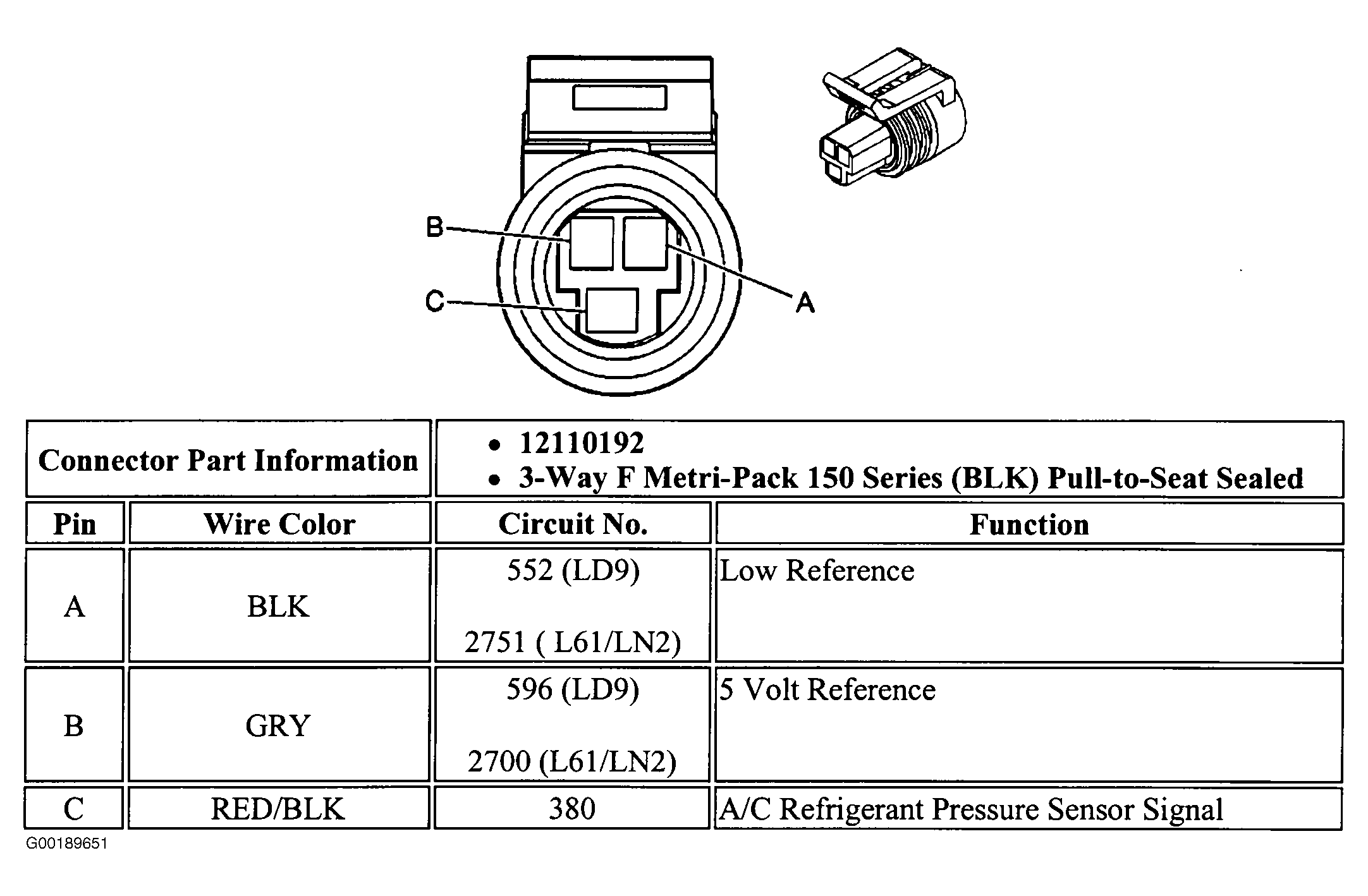

Fig 1: A/C Pressure Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
