Installation Procedure

  1. Clean the EBCM gasket and the BPMV surface with alcohol using a clean rag.
  2. Install the EBCM (1) to the BPMV (2).
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the four screws that attach the EBCM (1) to BPMV (2).

    Tighten

    Tighten the four screws to 5 N.m (44 lb in).

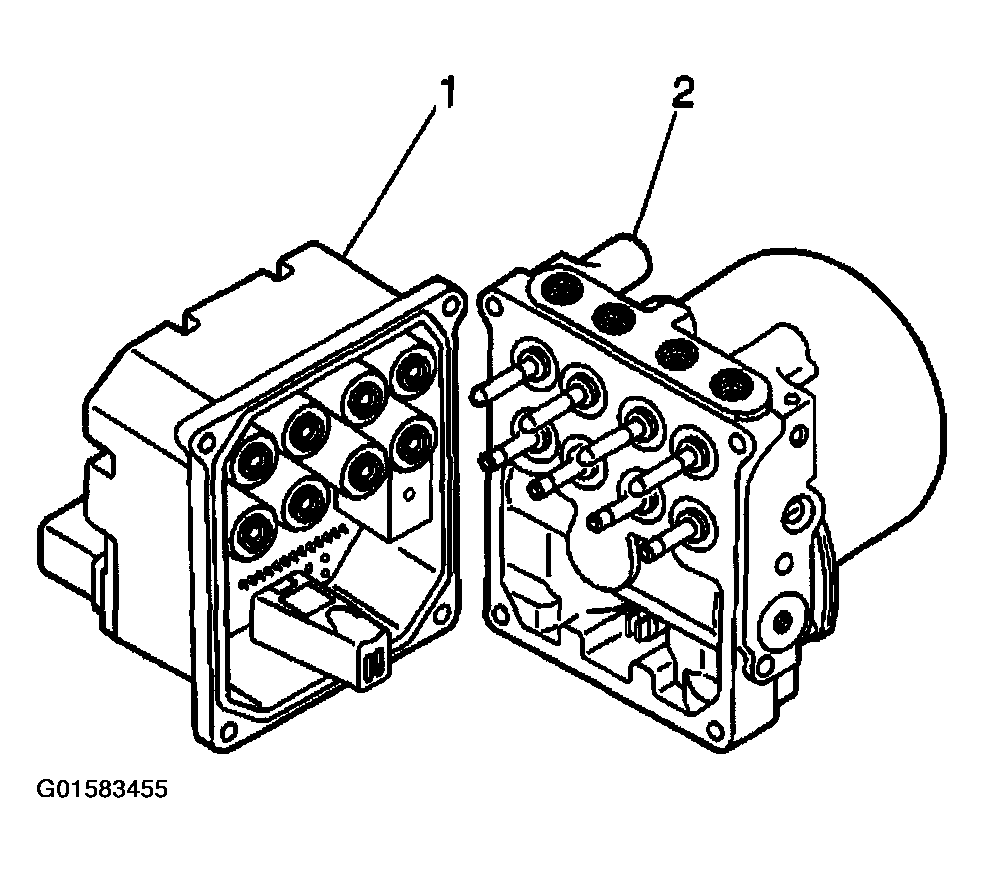

    Fig 1: Electronic Brake Control Module (EBCM) installation (1 Of 3)
    G01583455Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector (4).
  5. Push down the harness connector lock tab and then move the sliding connector cover back in the home position to lock.

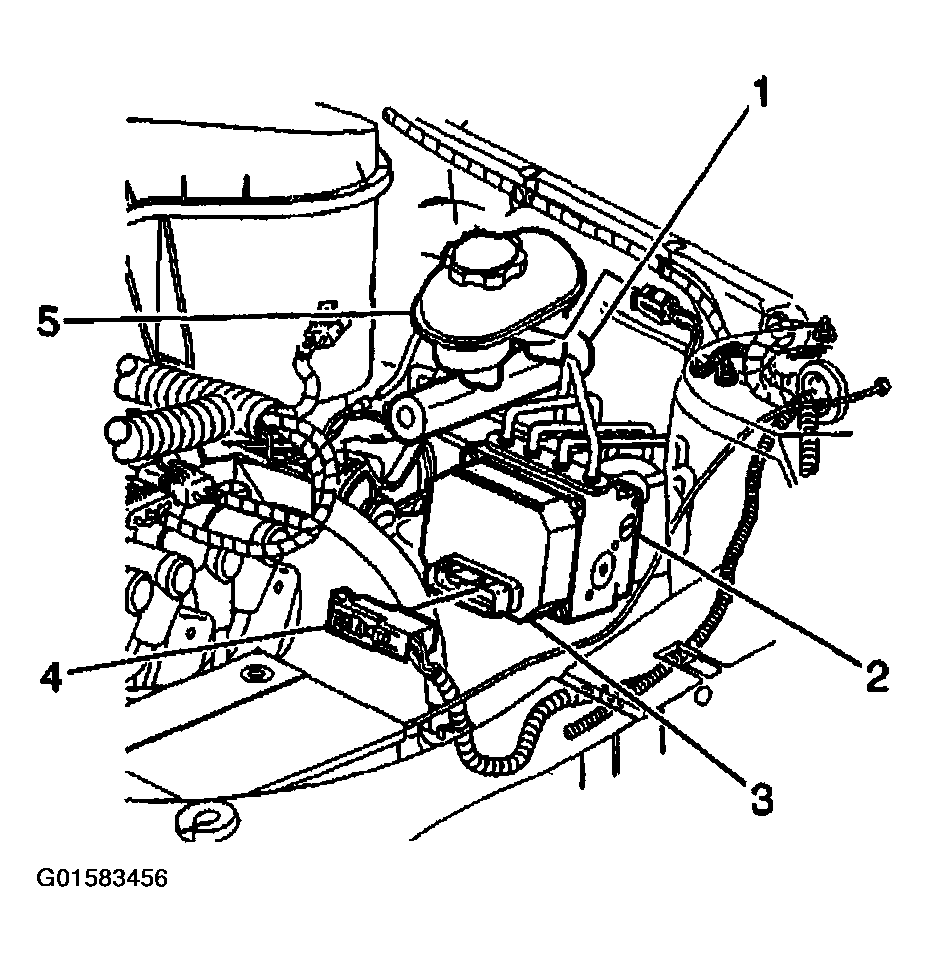

    Fig 2: Electronic Brake Control Module (EBCM) installation (2 Of 3)
    G01583456Courtesy of GENERAL MOTORS CORP.
  6. Push the CPA (2) back into place.
  7. Perform the Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

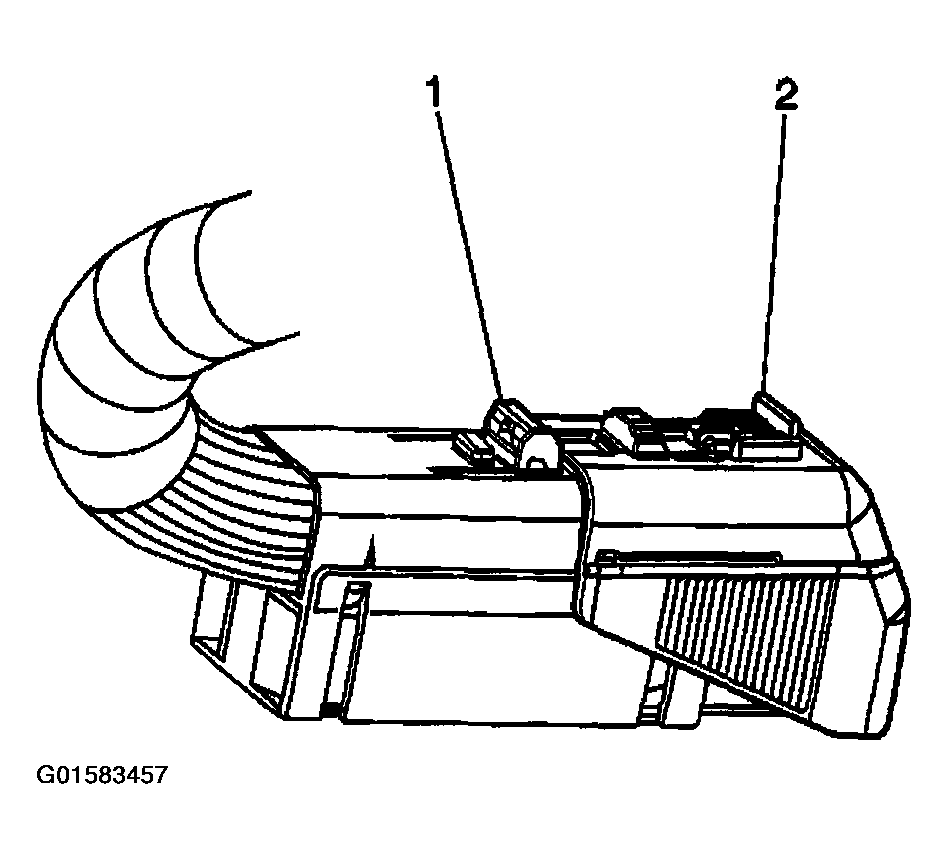

    Fig 3: Electronic Brake Control Module (EBCM) installation (3 Of 3)
    G01583457Courtesy of GENERAL MOTORS CORP.
