Chevrolet
>>
2002
>>
Cavalier Base, 2D Coupe, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Component Locator
>>
ABS Connector End Views
ABS Connector End Views

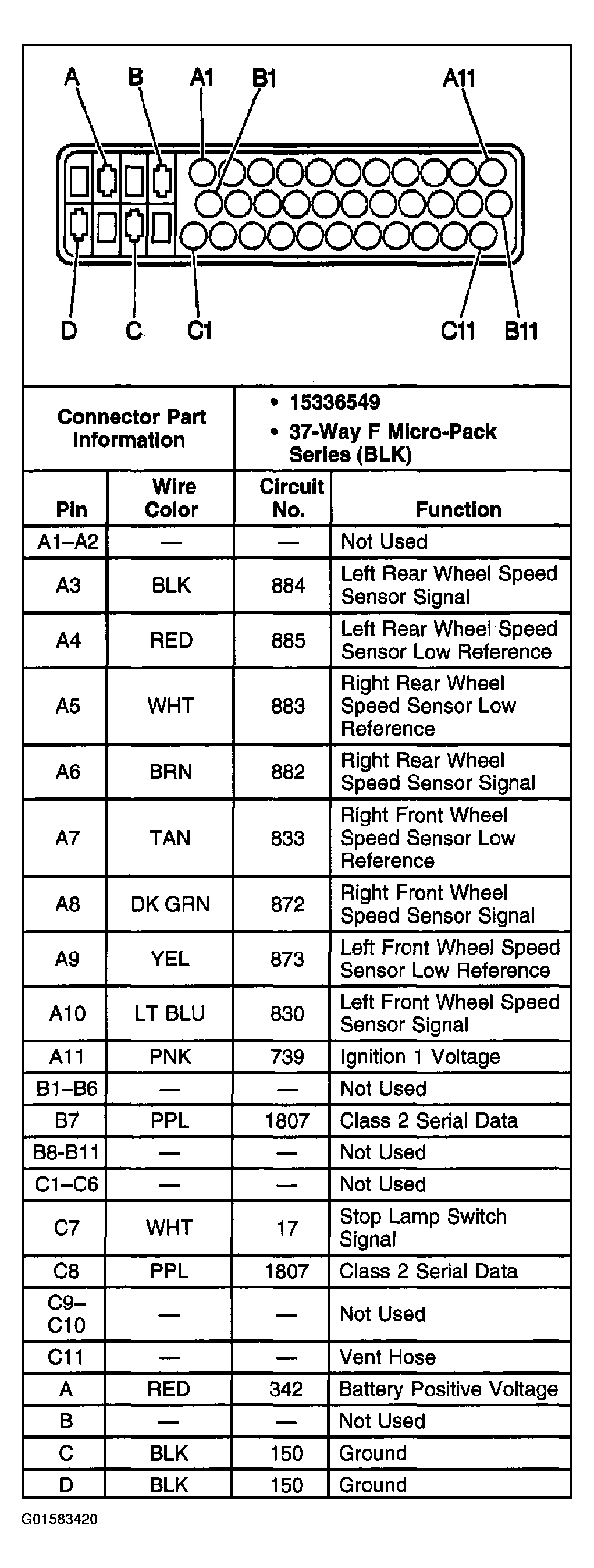

Fig 1: Electronic Brake Control Module (EBCM)
Courtesy of GENERAL MOTORS CORP.

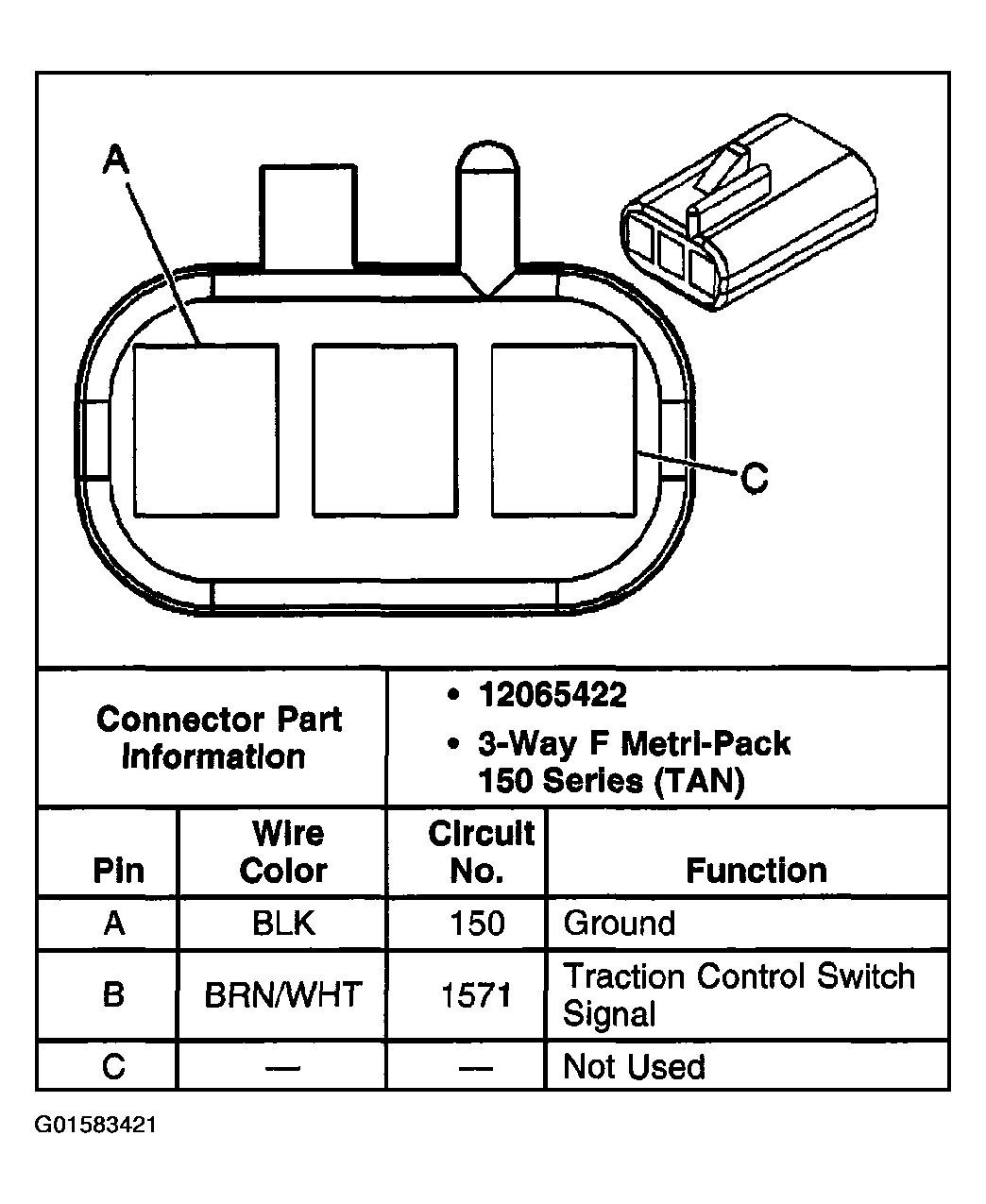

Fig 2: Traction Control Switch (Pontiac)
Courtesy of GENERAL MOTORS CORP.

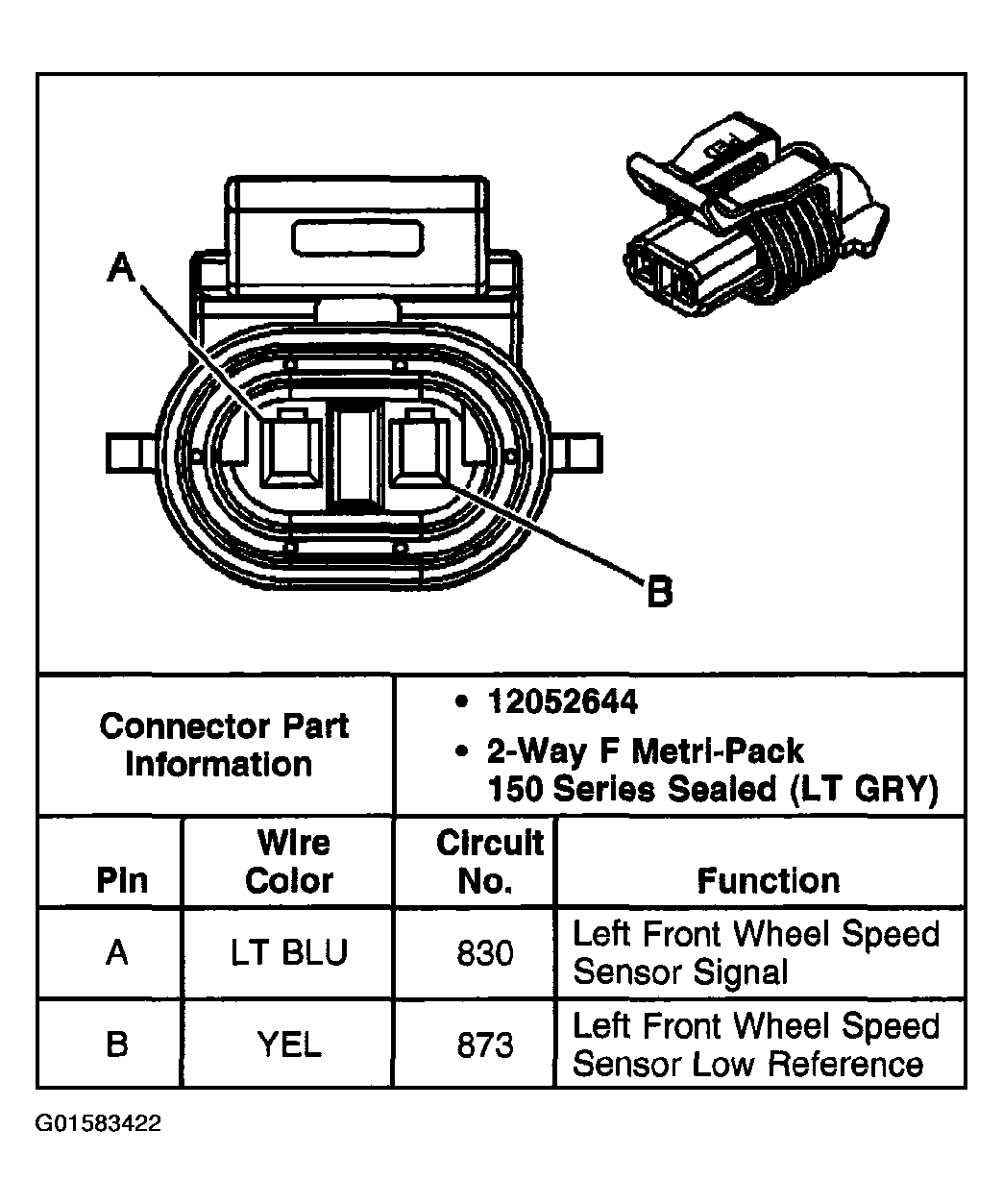

Fig 3: Wheel Speed Sensor (WSS) - LF
Courtesy of GENERAL MOTORS CORP.

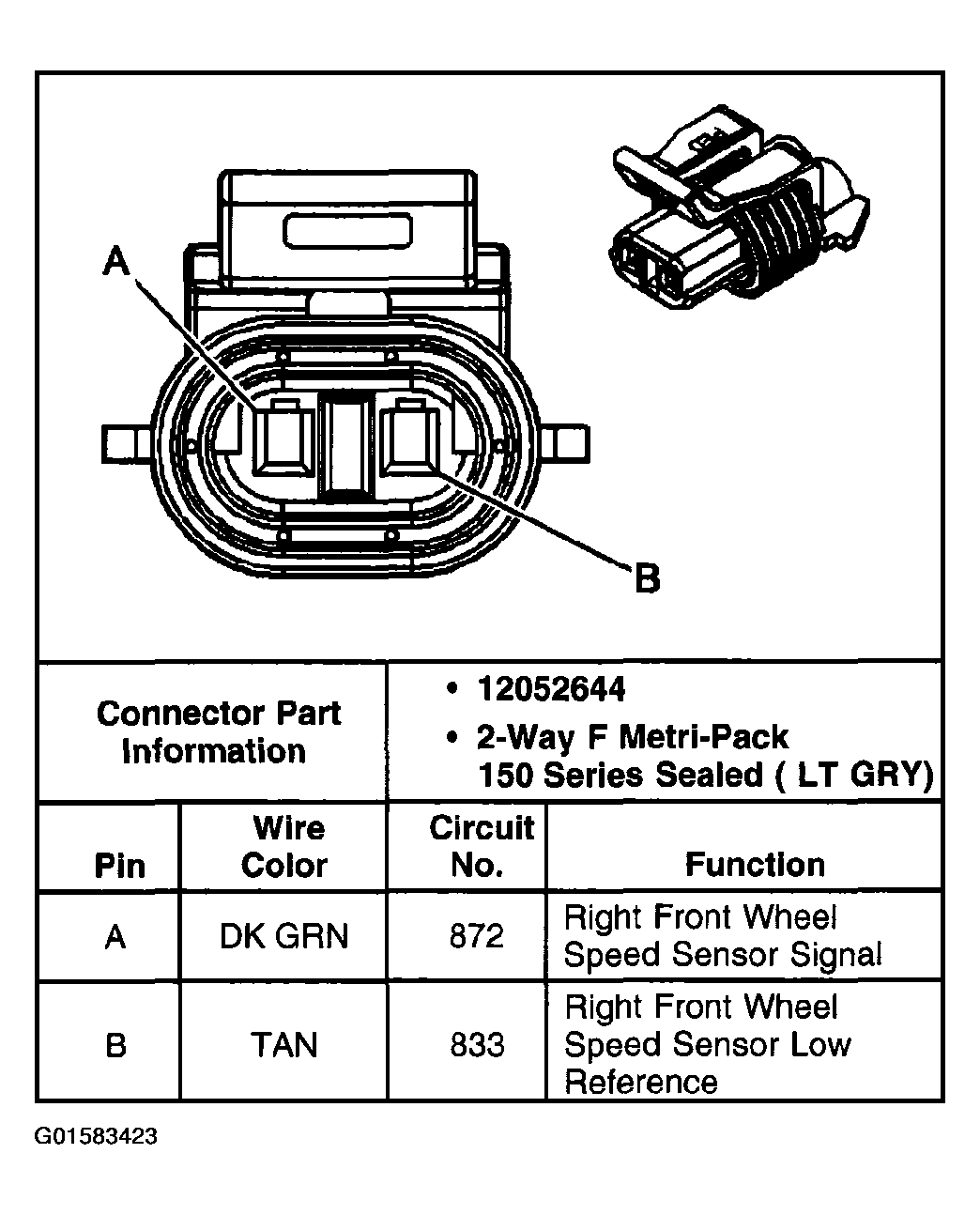

Fig 4: Wheel Speed Sensor (WSS) - RF
Courtesy of GENERAL MOTORS CORP.

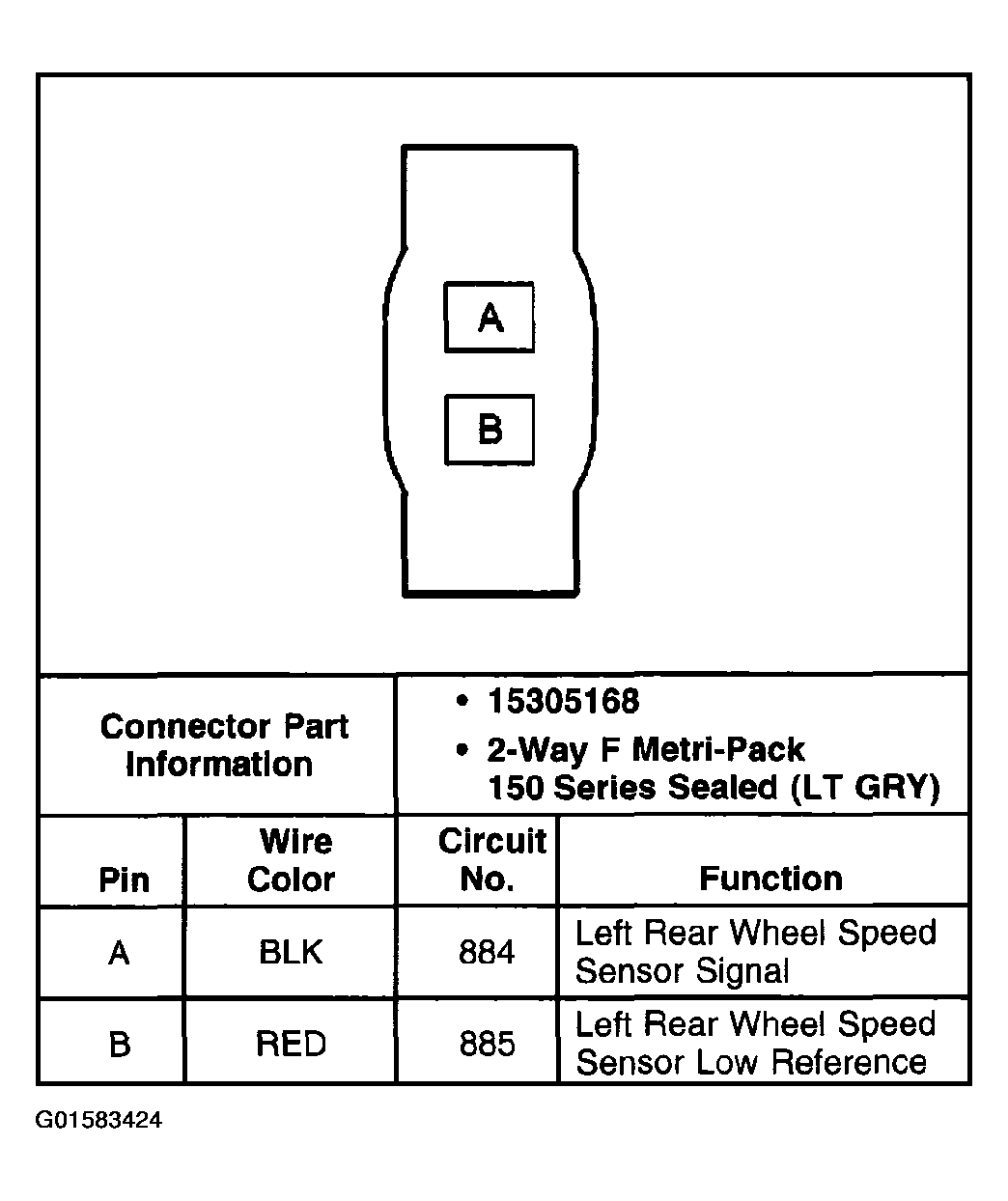

Fig 5: Wheel Speed Sensor (WSS) - LR
Courtesy of GENERAL MOTORS CORP.

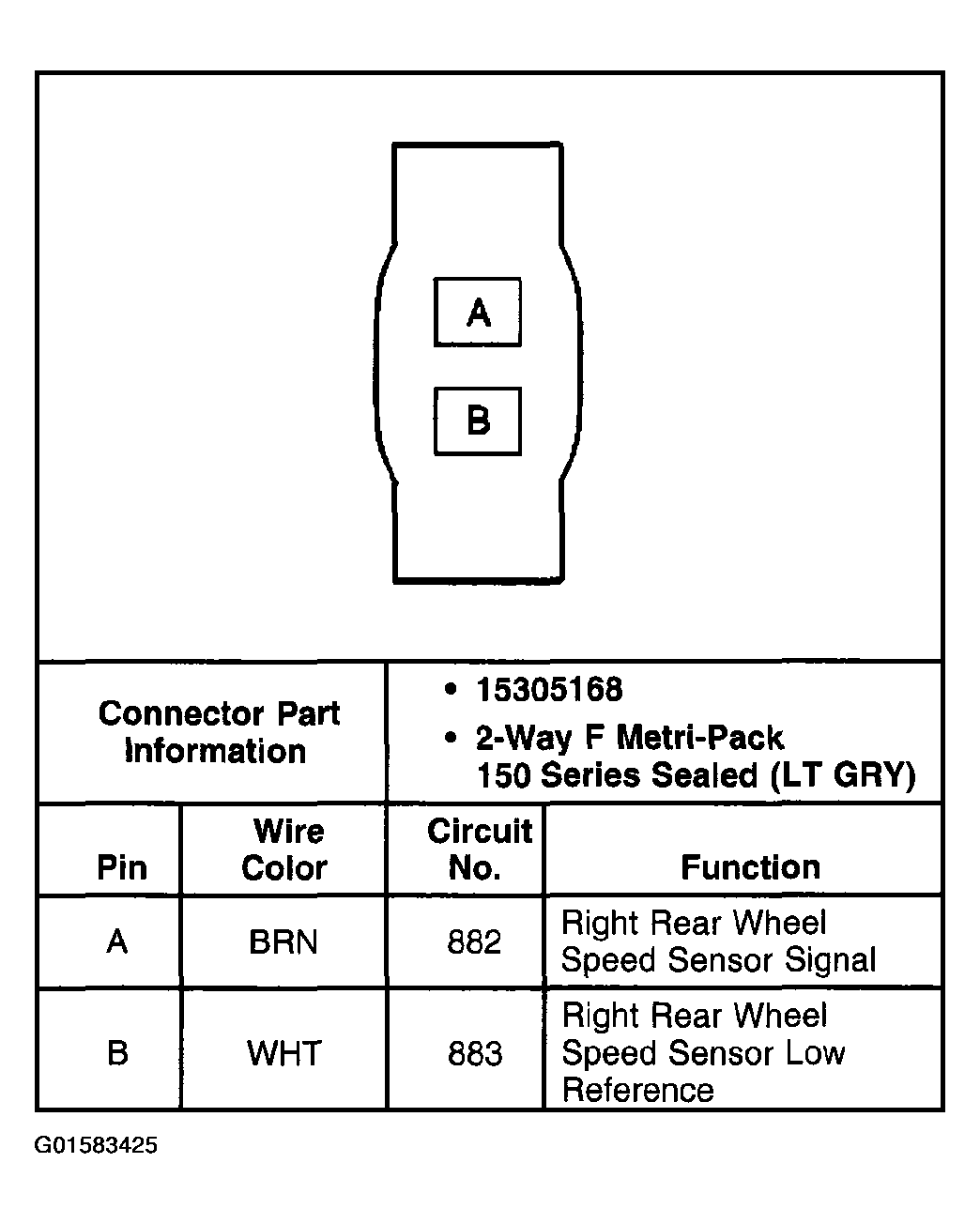

Fig 6: Wheel Speed Sensor (WSS) RR
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
