Component Locations

NOTE: Electronic Brake Control Module (EBCM) is an integral part of brake pressure modulator valve.
NOTE: For additional component locations, refer to illustrations. See Fig 1 -Fig 5 . For fuse and relay locations, refer to illustrations. See Fig 6 and Fig 7 .
COMPONENT LOCATIONS

Component Location
Body Control Module Behind Left Side Of Instrument Panel
Data Link Connector Lower Left Side Of Instrument Panel, Near Steering Column
Electronic Brake Control Module Next To Master Cylinder
Sensing & Diagnostic Module Under Right Front Seat Carpet
Instrument Panel Fuse Block On Left Side Of Instrument Panel
Powertrain Control Module On Right Front Frame Rail, In Engine Compartment
Underhood Fuse Block Left Front Of Engine Compartment, Near Battery
Fig 1: Locating Body Control Module, Instrument Panel Fuse Block & Ground Point G204 (Behind Instrument Panel)
G00041007Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Electronic Brake Control Module
G00040983Courtesy of GENERAL MOTORS CORP.

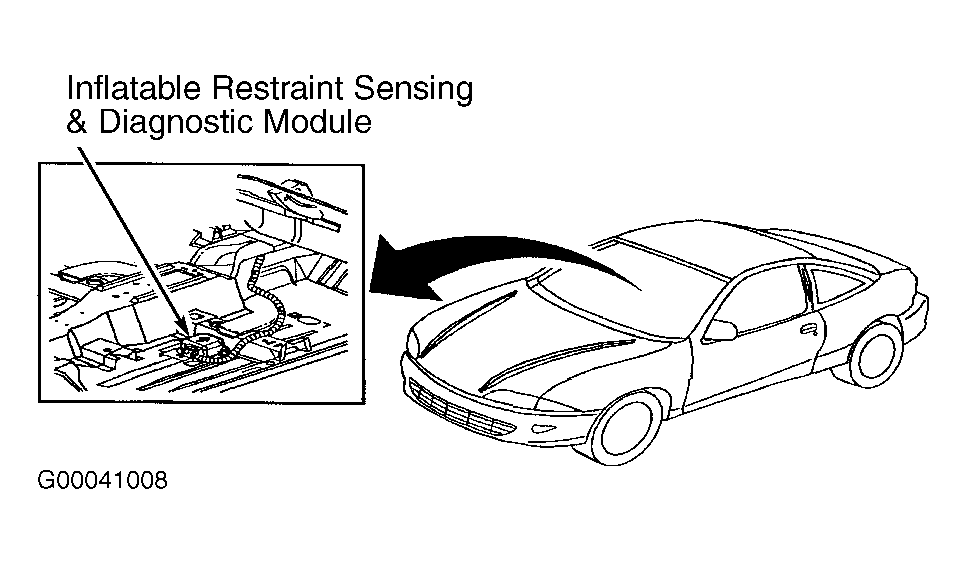

Fig 3: Locating Sensing & Diagnostic Module
G00041008Courtesy of GENERAL MOTORS CORP.

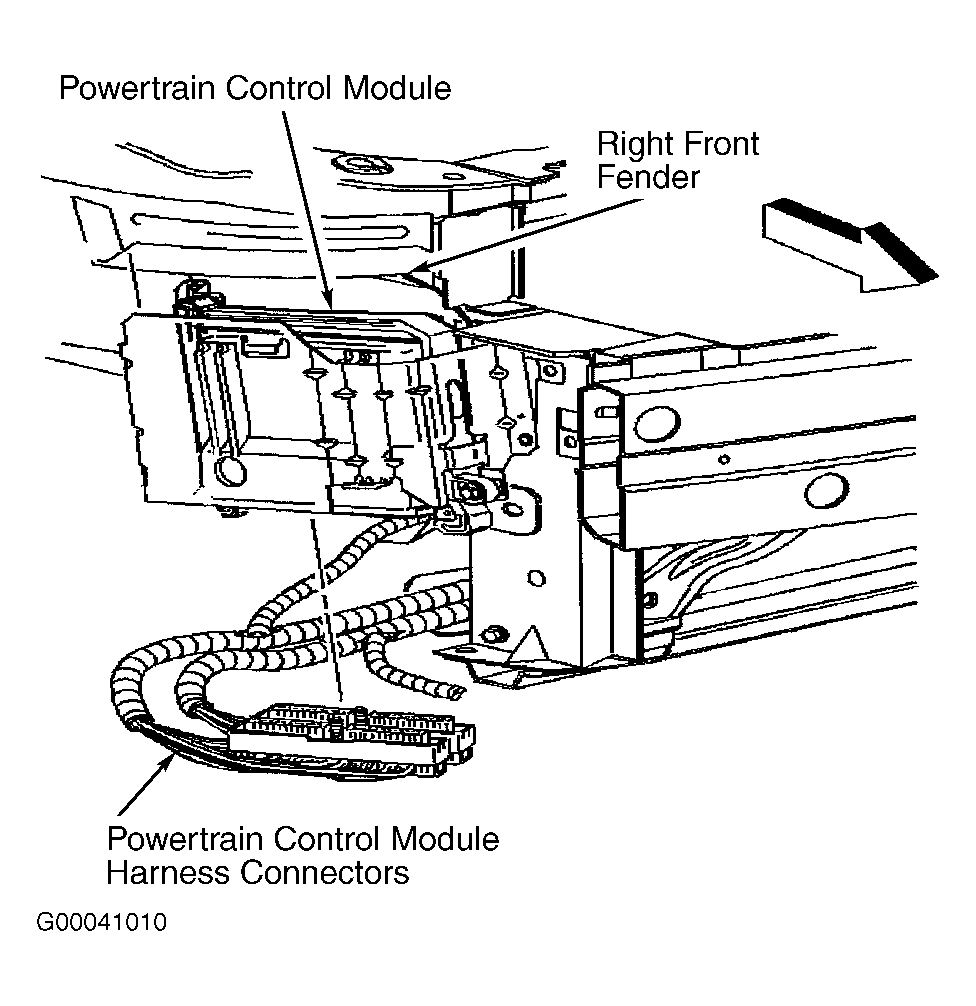

Fig 4: Locating Powertrain Control Module
G00041010Courtesy of GENERAL MOTORS CORP.

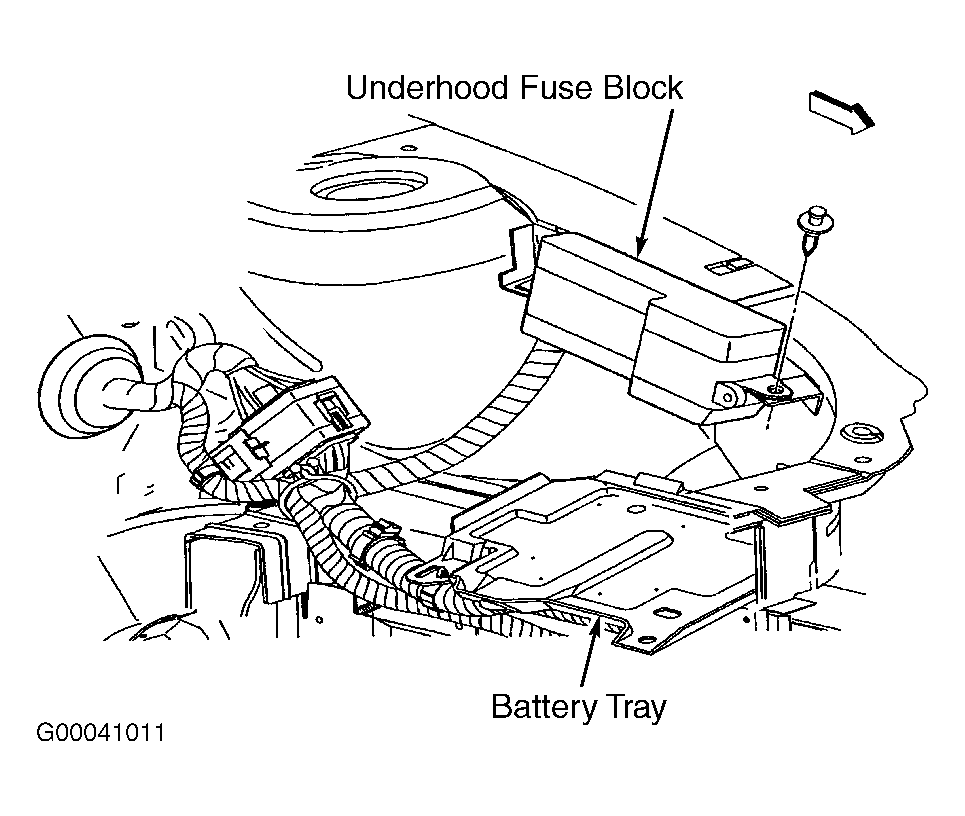

Fig 5: Locating Underhood Fuse Block
G00041011Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Instrument Panel Fuse Block Fuses
G00041019Courtesy of GENERAL MOTORS CORP.

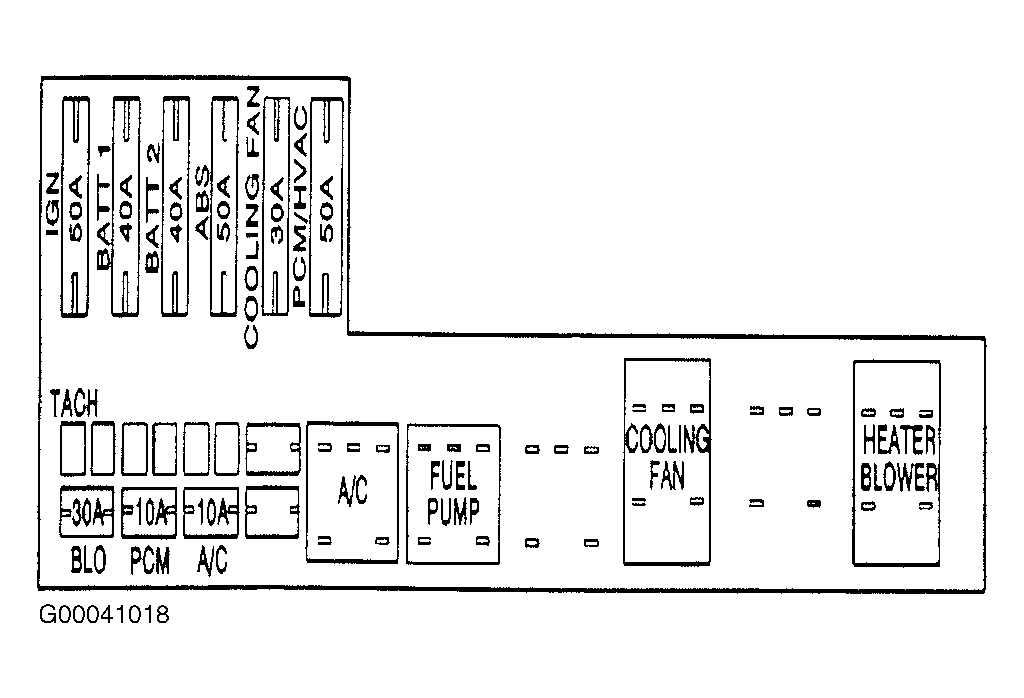

Fig 7: Identifying Underhood Fuse Block Fuses & Relays
G00041018Courtesy of GENERAL MOTORS CORP.
