Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring to the vehicle.
  2. Install the water pump to the vehicle.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Use 6 bolts (1, 2) in order to secure the water pump.

    Tighten

    Tighten the water pump bolts to 11 N.m (8 ft lbs).

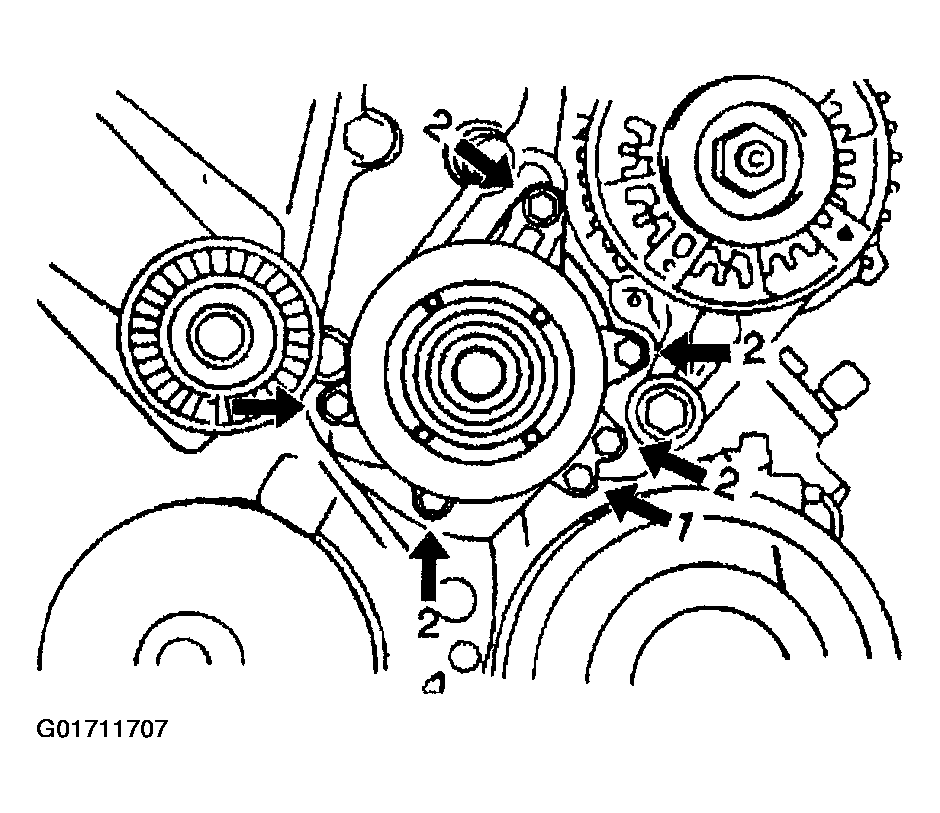

    Fig 1: Installing Water Pump Bolts
    G01711707Courtesy of GENERAL MOTORS CORP.
  4. Install the right side lower engine splash shield.
  5. Lower the vehicle.
  6. Install the accessory drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  7. Connect the negative battery cable.
  8. Use approved engine coolant in order to fill the radiator. Refer to Draining and Filling Cooling System .
  9. Start the engine.
  10. Inspect the system for leaks.

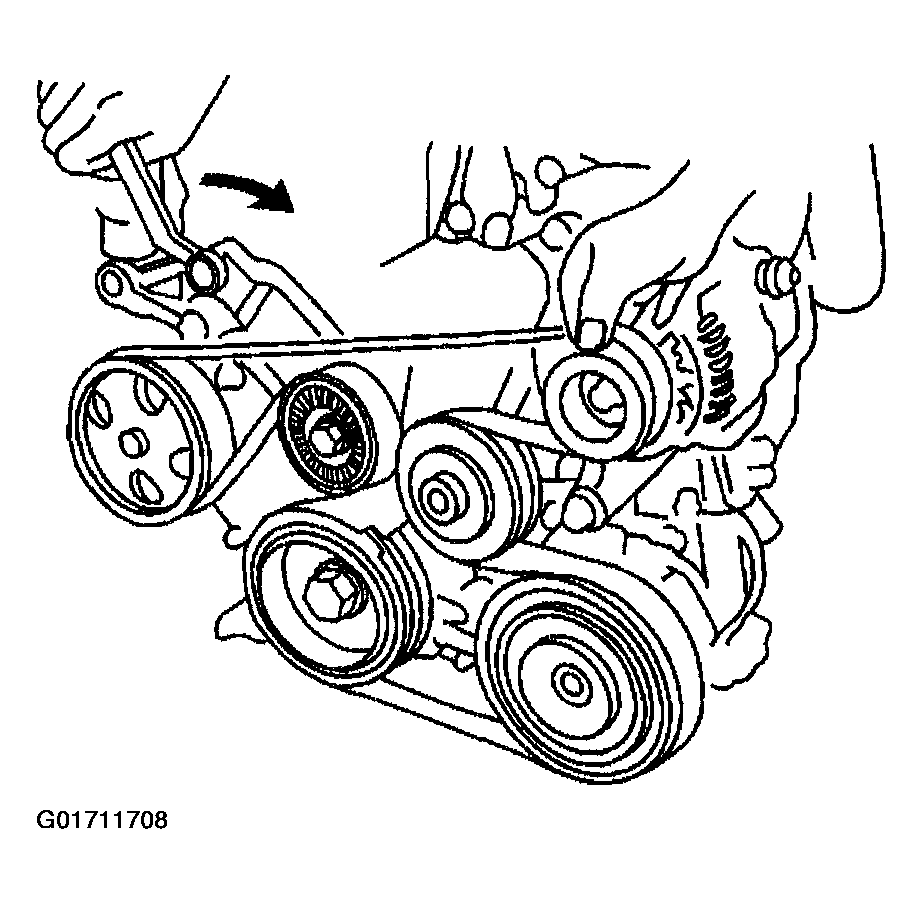

    Fig 2: Installing Drive Belt
    G01711708Courtesy of GENERAL MOTORS CORP.
