Removal Procedure

  1. Raise and support the vehicle.
  2. Disconnect the wheel speed sensor electrical connector.

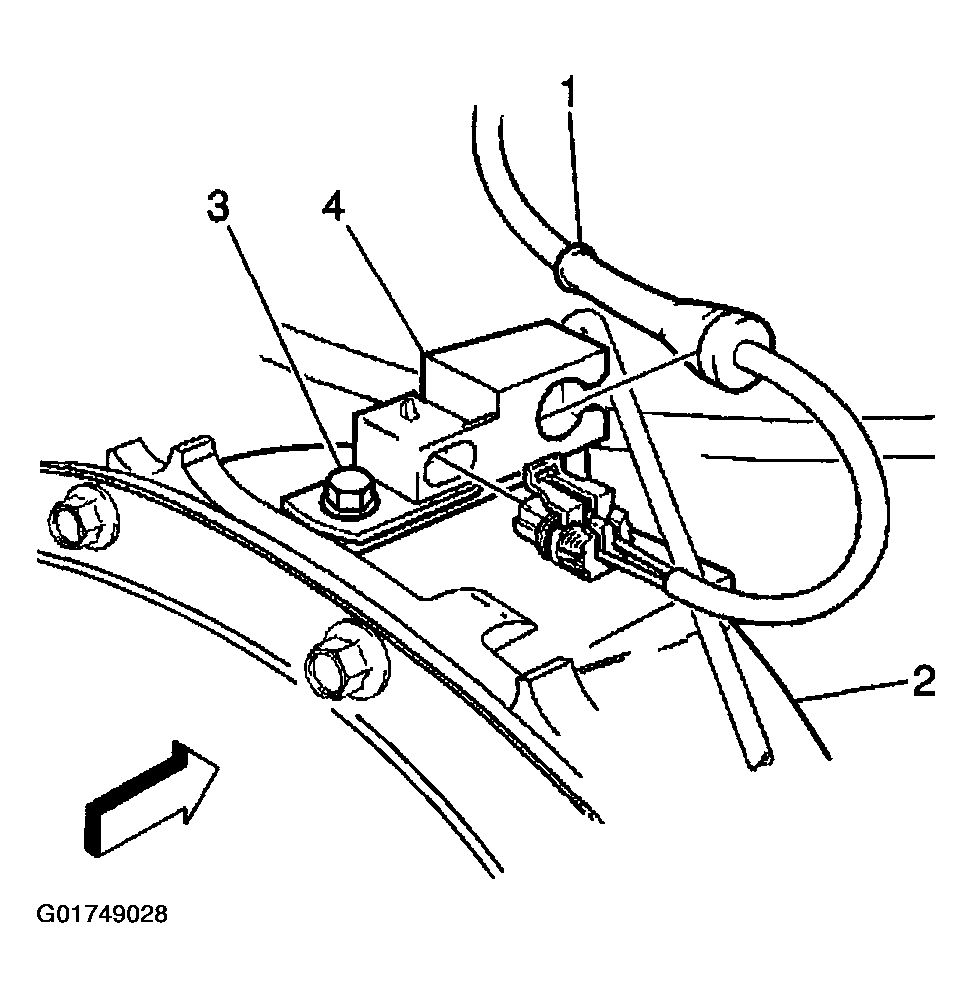

    Fig 1: Disconnecting Wheel Speed Sensor Electrical Connector
    G01749028Courtesy of GENERAL MOTORS CORP.
  3. Clean all dirt and debris from the sensor housing/sensor interface area.
  4. Remove the wheel speed sensor bolt (3).
  5. Remove the wheel speed sensor (4) by pulling straight up from the rear axle housing.
