Removal Procedure

  1. Pry up the rear edge of the drivers side accessory panel (1), and or the front edge of the passenger side accessory panel.
  2. Slide the drivers side accessory panel (1) rearward, the passenger side accessory panel forward, out of the door trim panel.
  3. Disconnect the electrical connector (6) from the mirror switch (2).
  4. Remove mirror switch (2) from accessory panel (1).

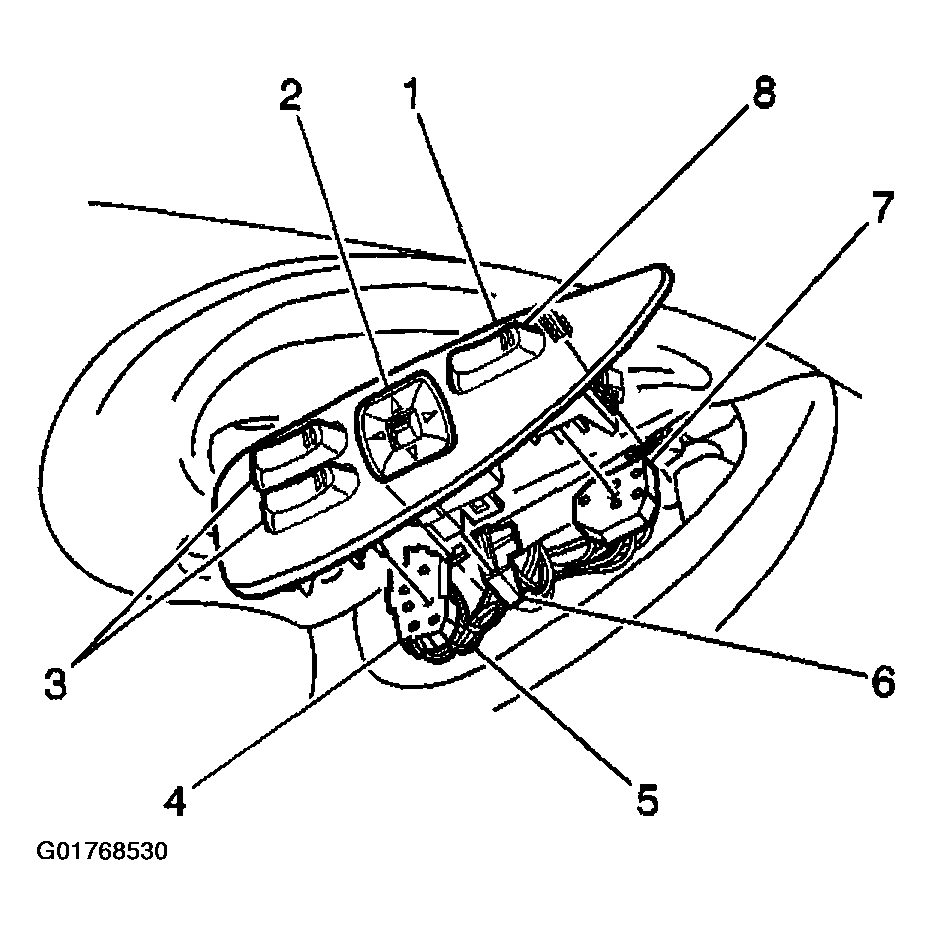

    Fig 1: Removing Power Mirror Switch (Pontiac)
    G01768530Courtesy of GENERAL MOTORS CORP.
