Removal Procedure

  1. Pry up the rear edge of the drivers side accessory panel (3), and or the front edge of the passenger side accessory panel.
  2. Slide the drivers side accessory panel (3) rearward, and or the passenger side accessory panel forward, out of the door trim panel.
  3. Disconnect the electrical connector (7) from the power door switch (2).
  4. Remove the power lock switch (2) from the accessory panel (3).

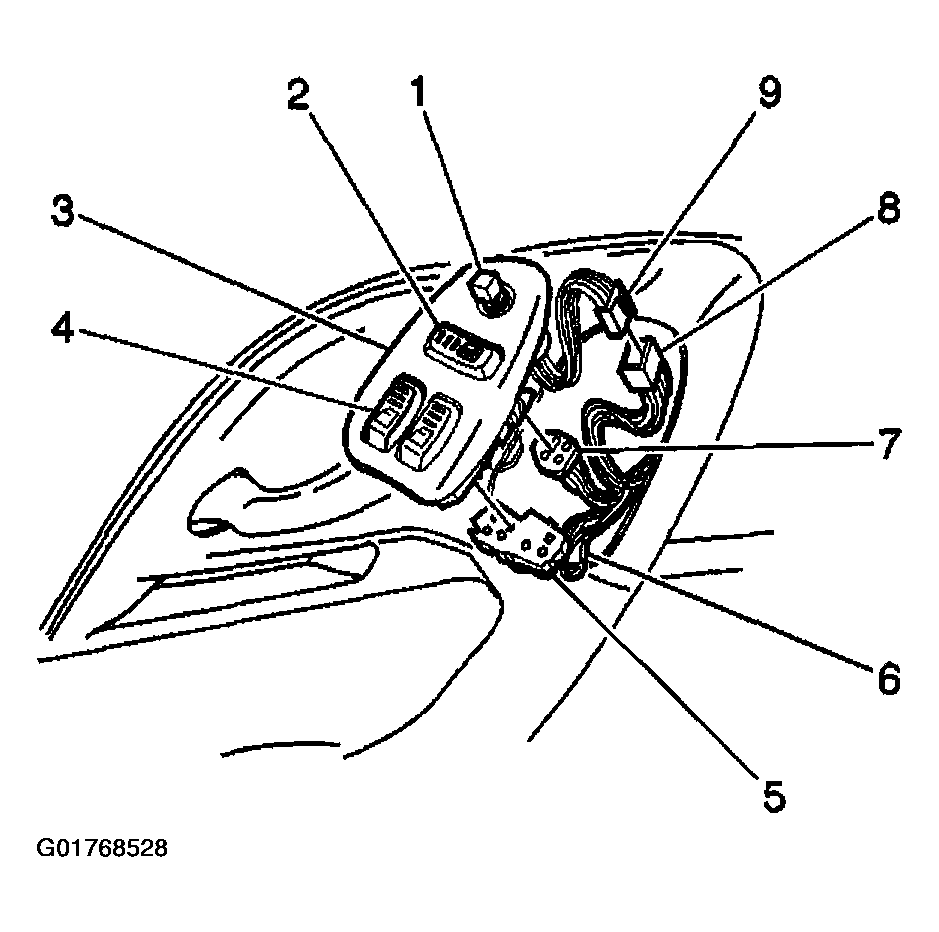

    Fig 1: Removing Power Door Lock Switch (Chevrolet)
    G01768528Courtesy of GENERAL MOTORS CORP.
