Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

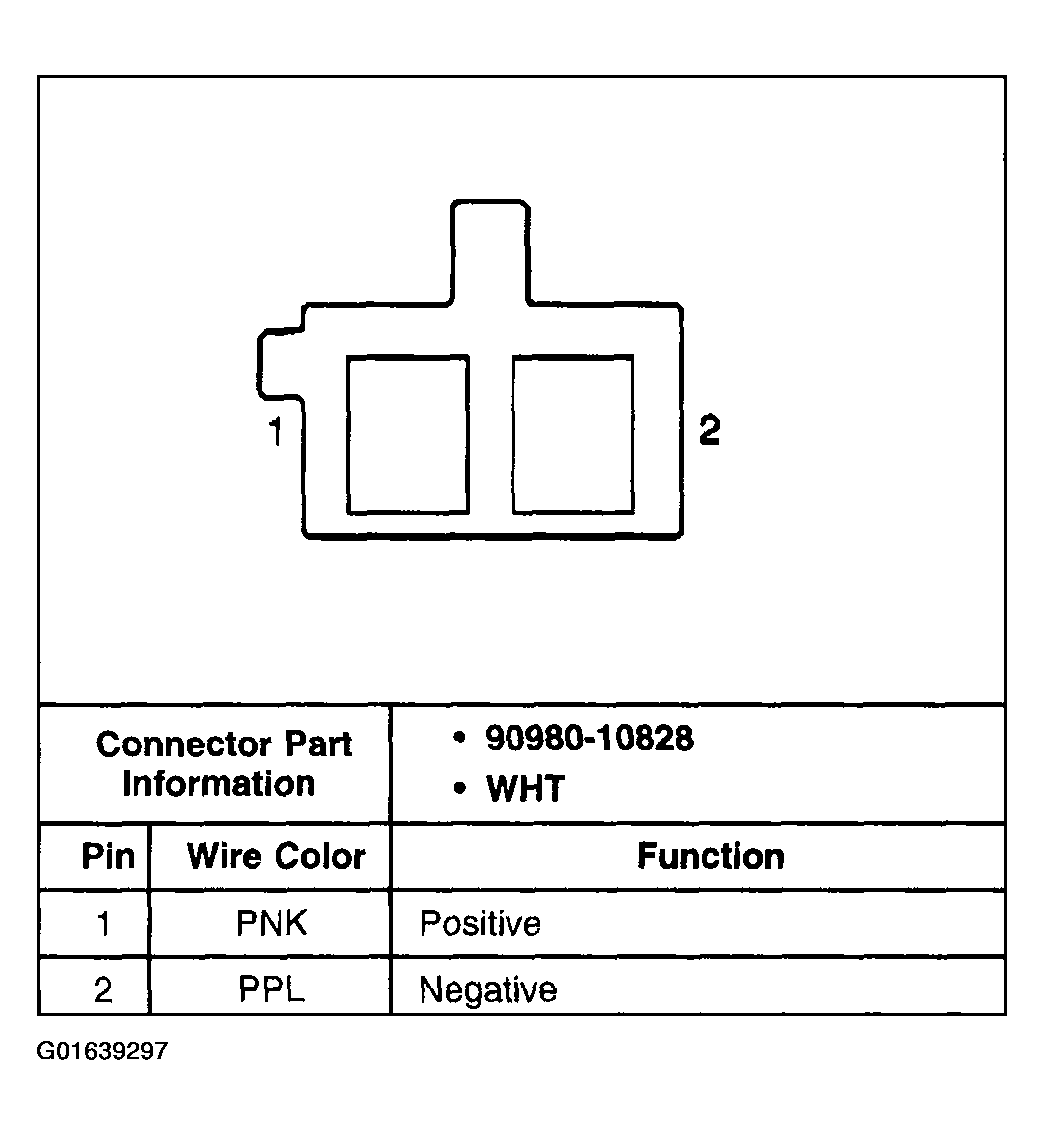

Fig 1: LH Front Speaker

Courtesy of GENERAL MOTORS CORP.

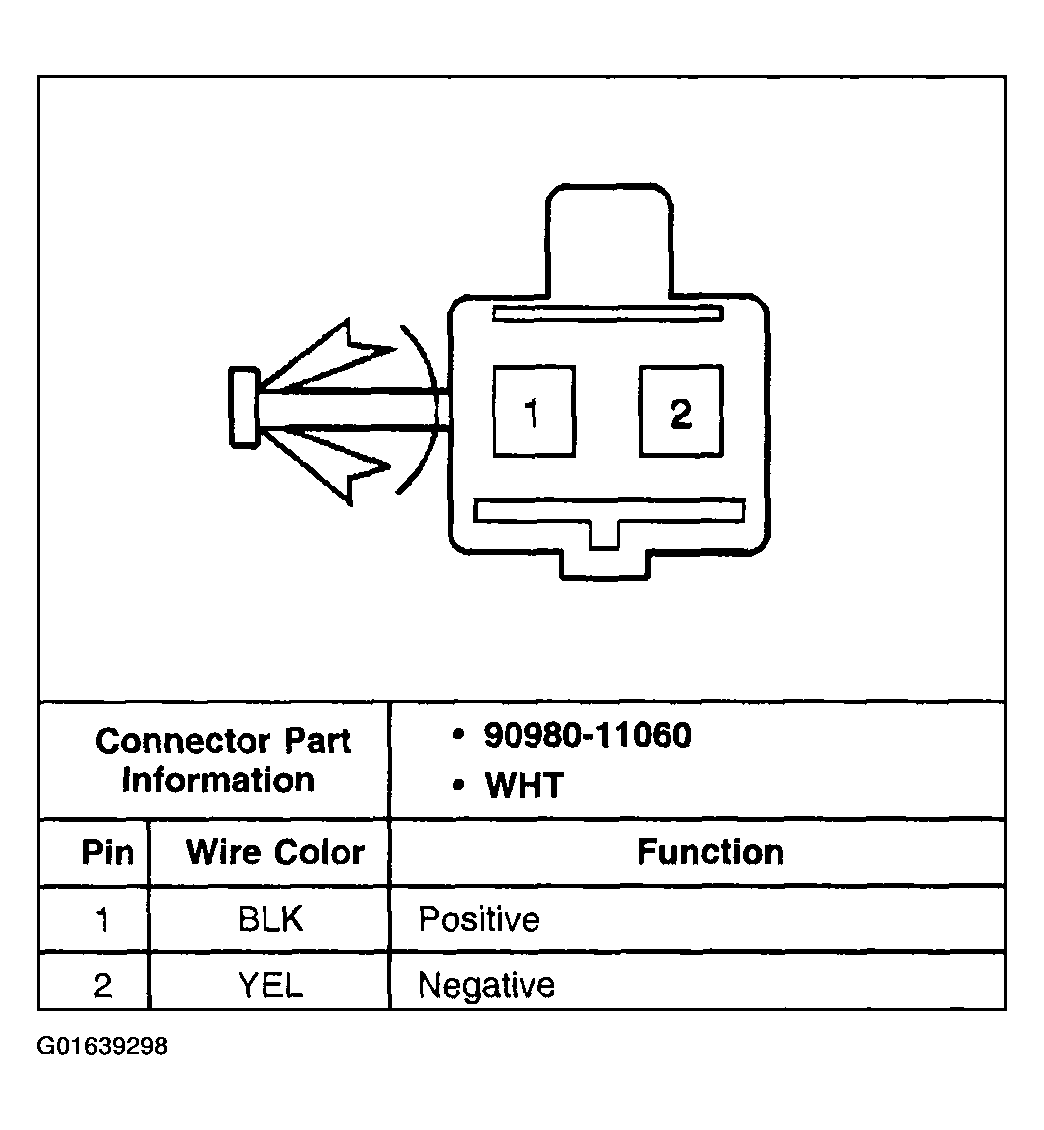

Fig 2: LH Rear Speaker

Courtesy of GENERAL MOTORS CORP.

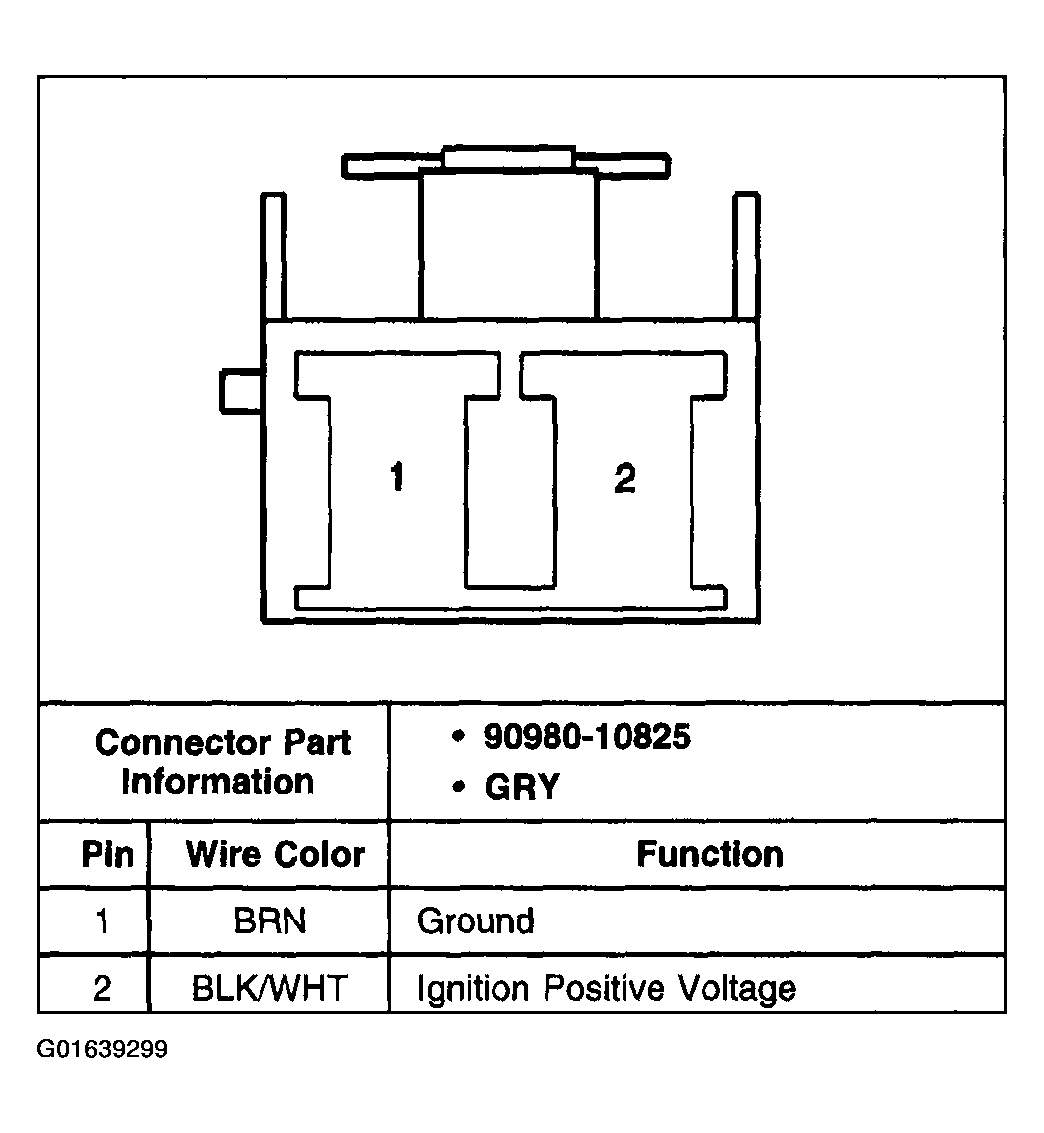

Fig 3: Noise Filter

Courtesy of GENERAL MOTORS CORP.

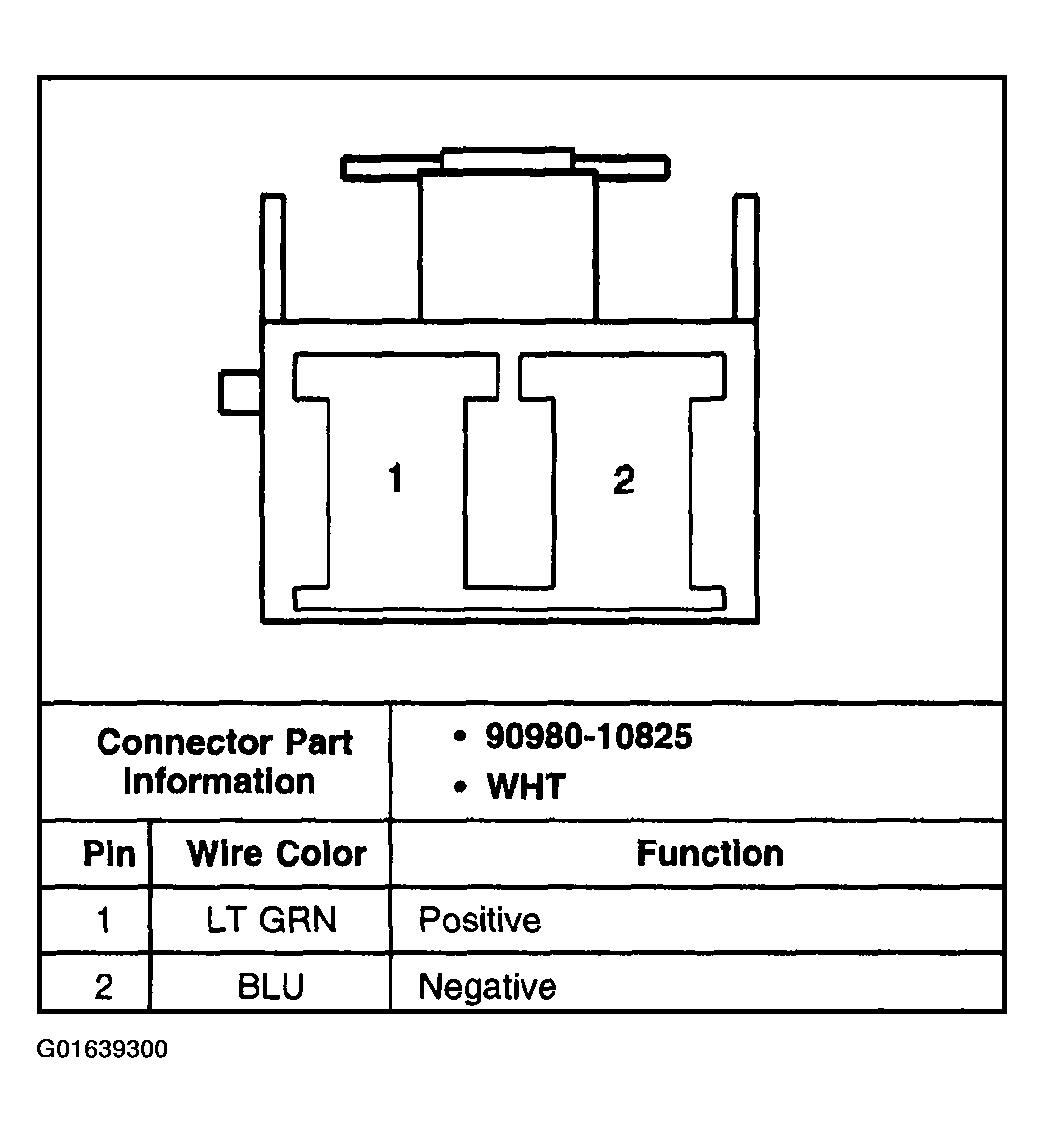

Fig 4: RH Front Speaker

Courtesy of GENERAL MOTORS CORP.

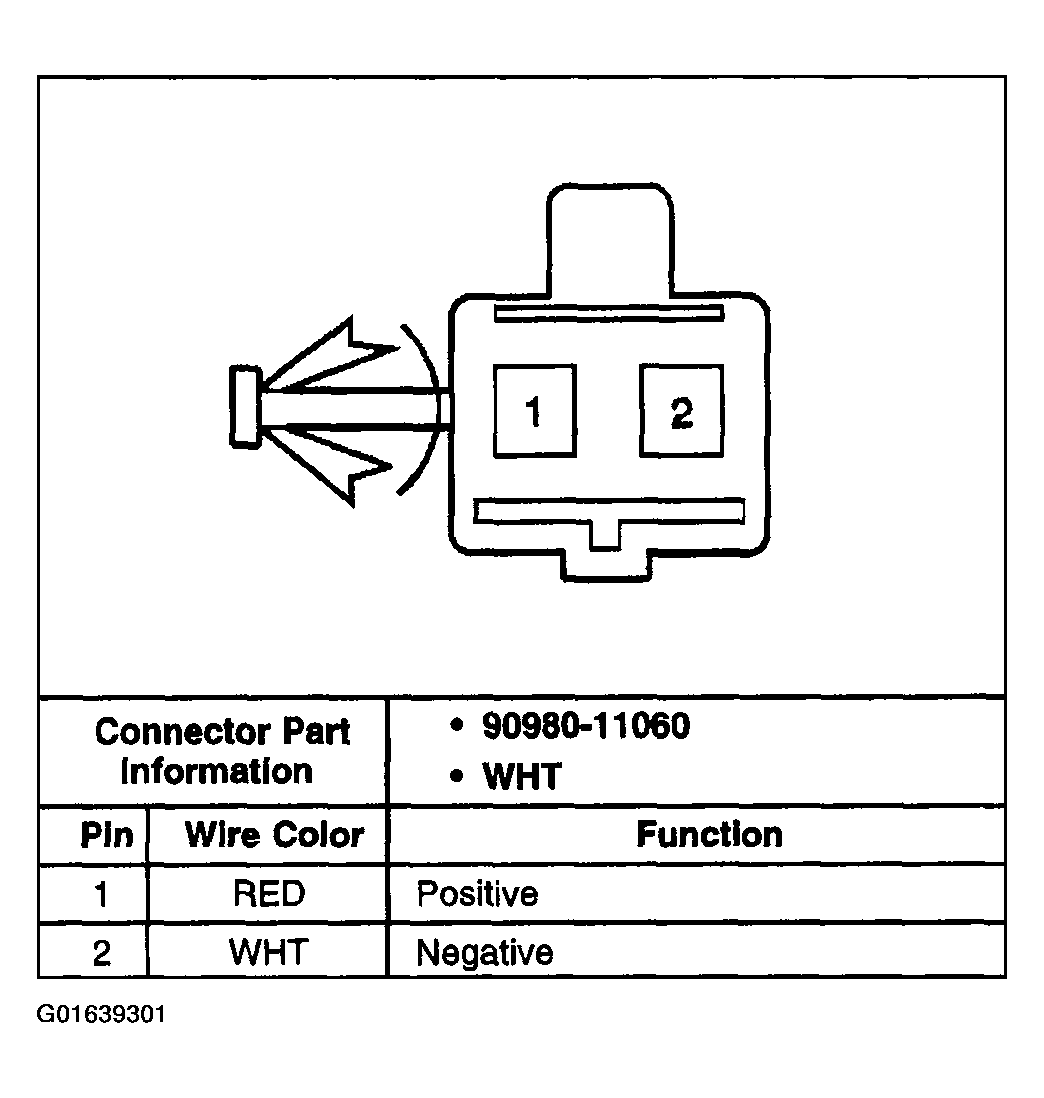

Fig 5: RH Rear Speaker

Courtesy of GENERAL MOTORS CORP.

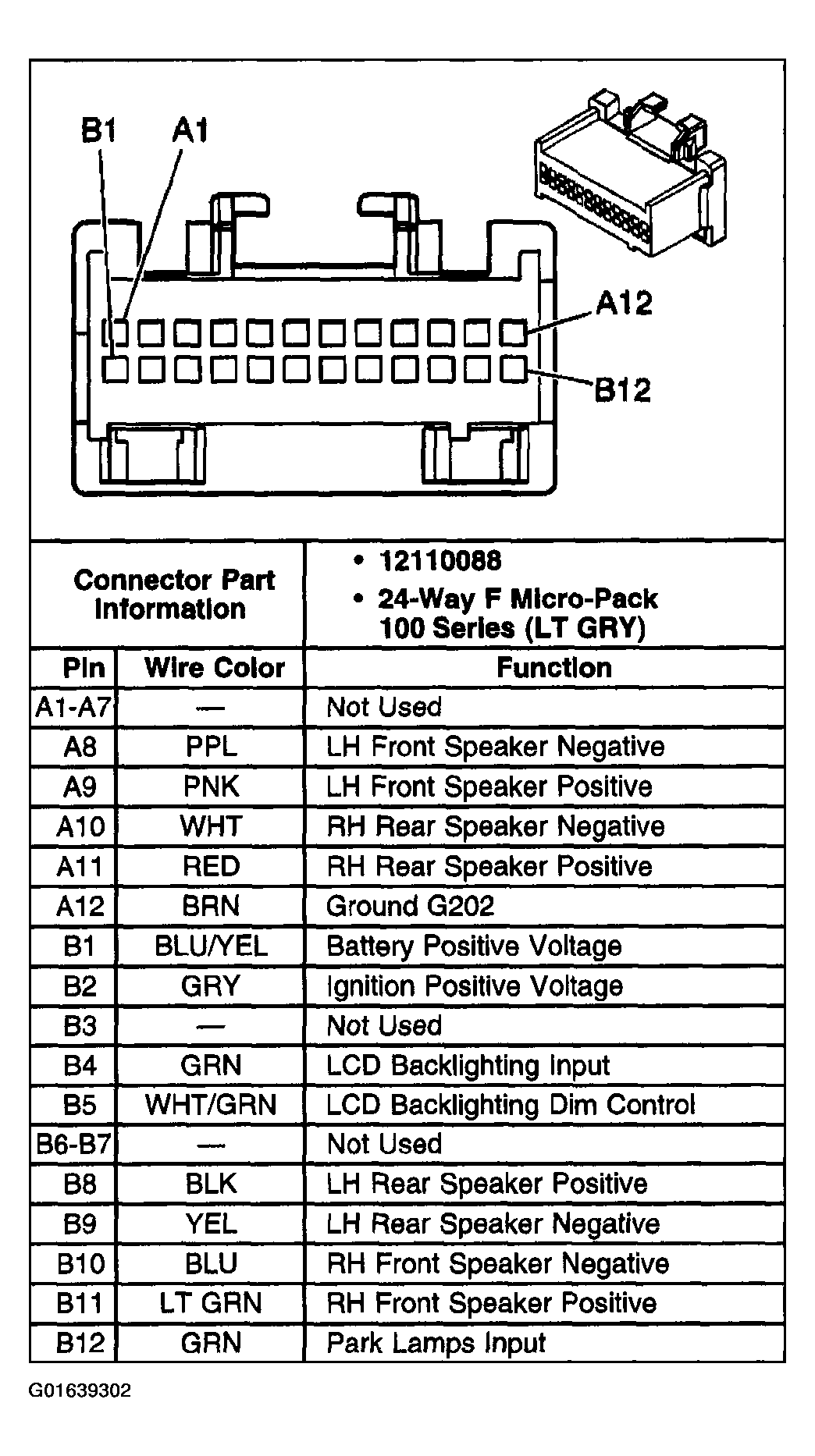

Fig 6: Radio

Courtesy of GENERAL MOTORS CORP.
