Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Straighten the left wiper tabs (2) until the windshield wiper element can slide freely.
  2. Slide the wiper element (3) out through the windshield wiper blade (1).

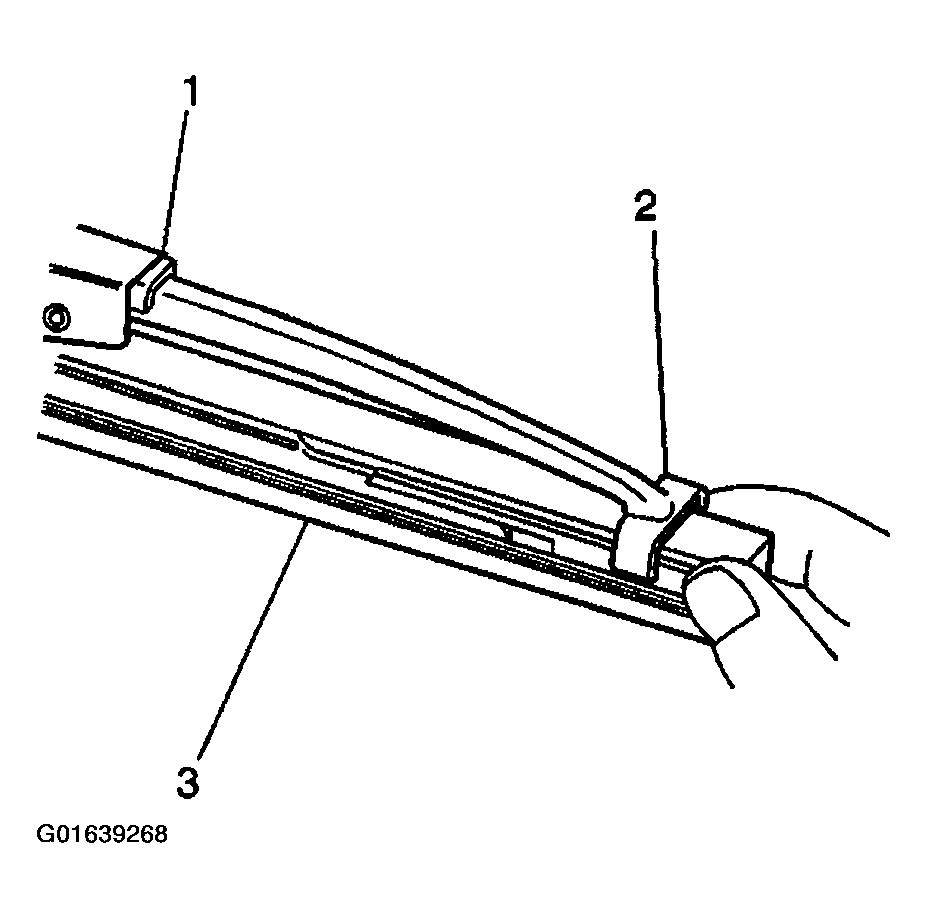

    Fig 1: Removing Wiper Blade Element
    G01639268Courtesy of GENERAL MOTORS CORP.
