Installation Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
- Slide the windshield wiper blade over the wiper arm past the hook.

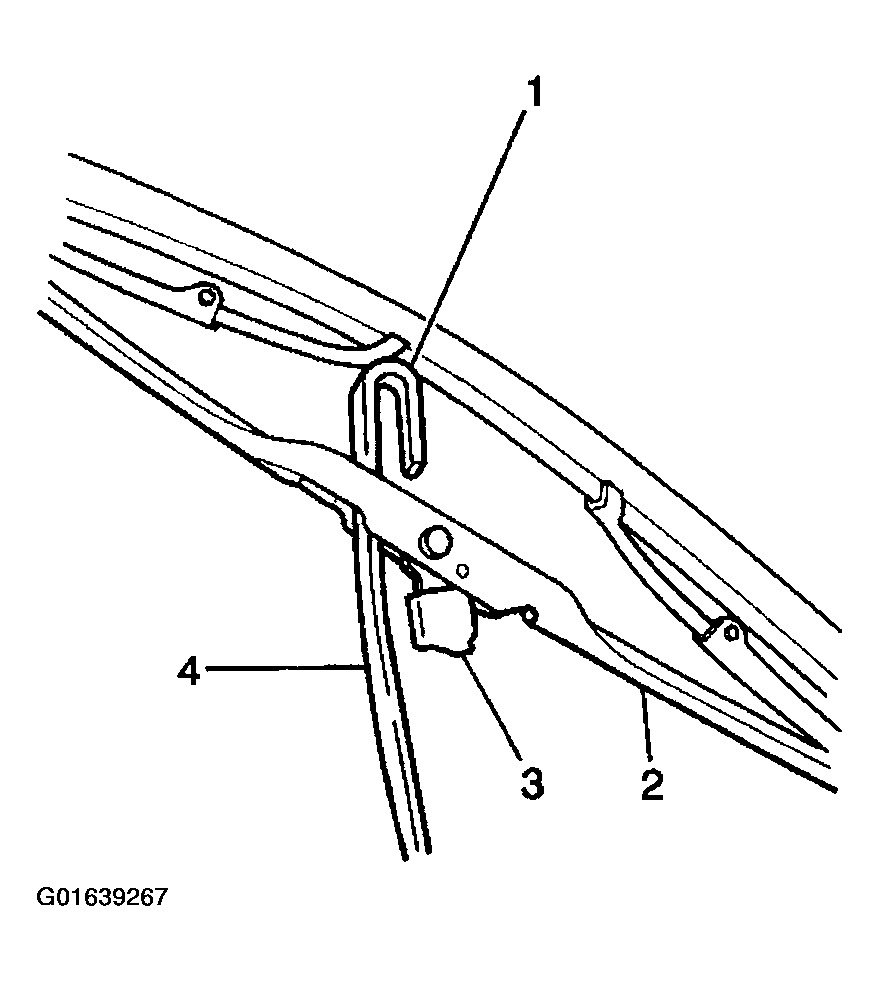

- Guide the retaining tab (3) into the hook (1). Slide the blade up until the tab (3) engages.
- Lower the windshield wiper arm until the blade contacts the windshield.
Courtesy of GENERAL MOTORS CORP.
