Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the nozzle (1) to the hood (2). Ensure that the retaining tabs are fully engaged.

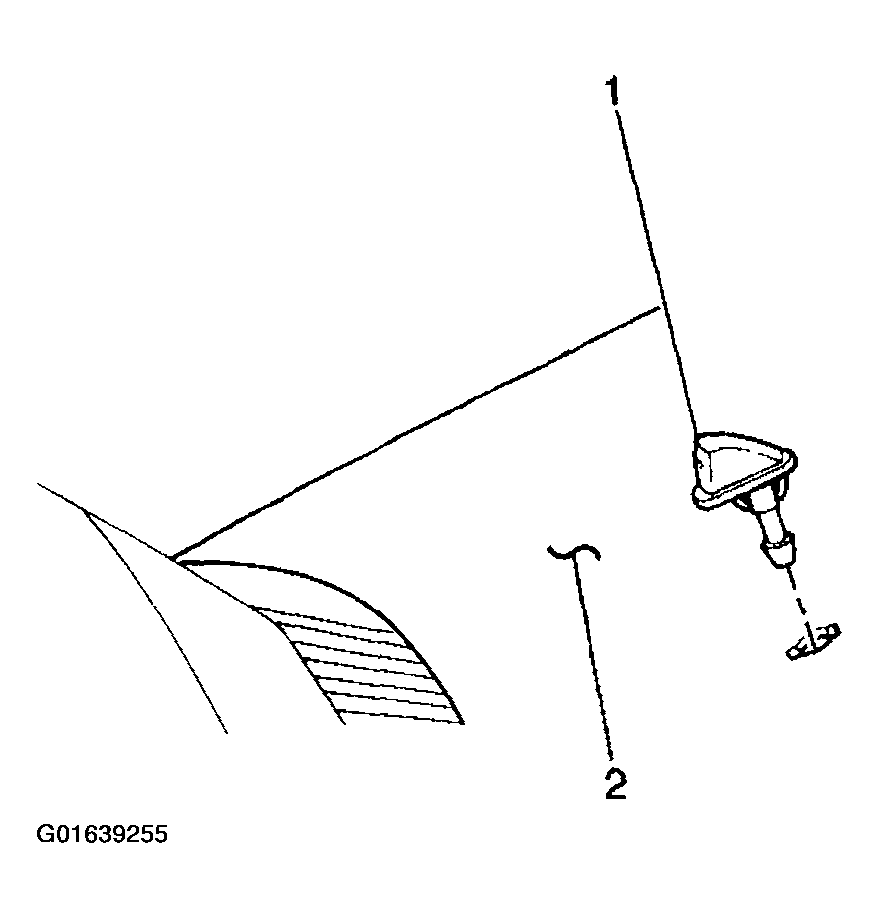

    Fig 1: Installing Nozzle To Hood
    G01639255Courtesy of GENERAL MOTORS CORP.
  2. Install the hose (1) to the nozzle (2).
  3. Reposition the hood insulator (4) back to its original position. Secure the insulator with the 2 plastic retainers.

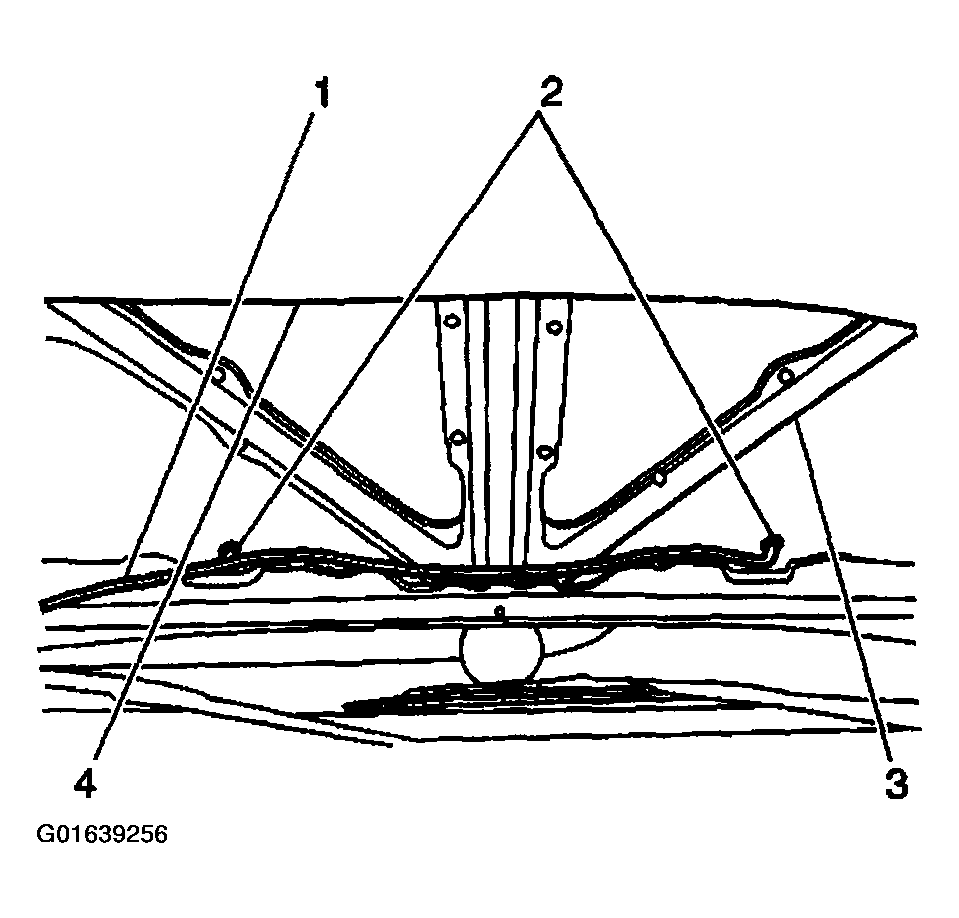

    Fig 2: Installing Hose To Nozzle
    G01639256Courtesy of GENERAL MOTORS CORP.
