Removal & Installation (3.8L)

Throttle Actuator Control (TAC) module is integral to the accelerator pedal assembly. See Fig 1 . Remove the left instrument panel insulator. Disconnect the harness from the TAC module. Remove the TAC module retaining bolt and nut. Remove the TAC module from the vehicle. To install, reverse removal procedure.

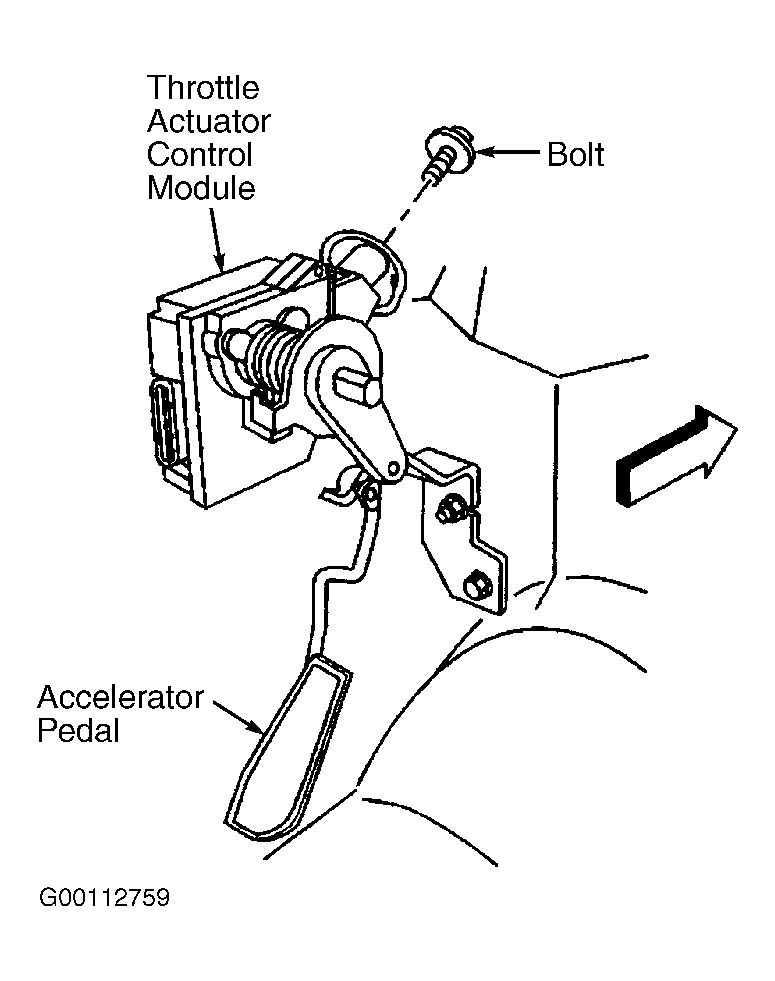

Fig 1: Locating Throttle Actuator Control Module (3.8L)

Courtesy of GENERAL MOTORS CORP.
