Removal Procedure

  1. Open the door.
  2. Remove the door sealing strip using J 25070 or careful scraping.
  3. Clean the area with a suitable solution of isopropyl alcohol 50/50 mixture by volume with water or high flash naptha.
  4. Clean and dry the area with a dry cloth.

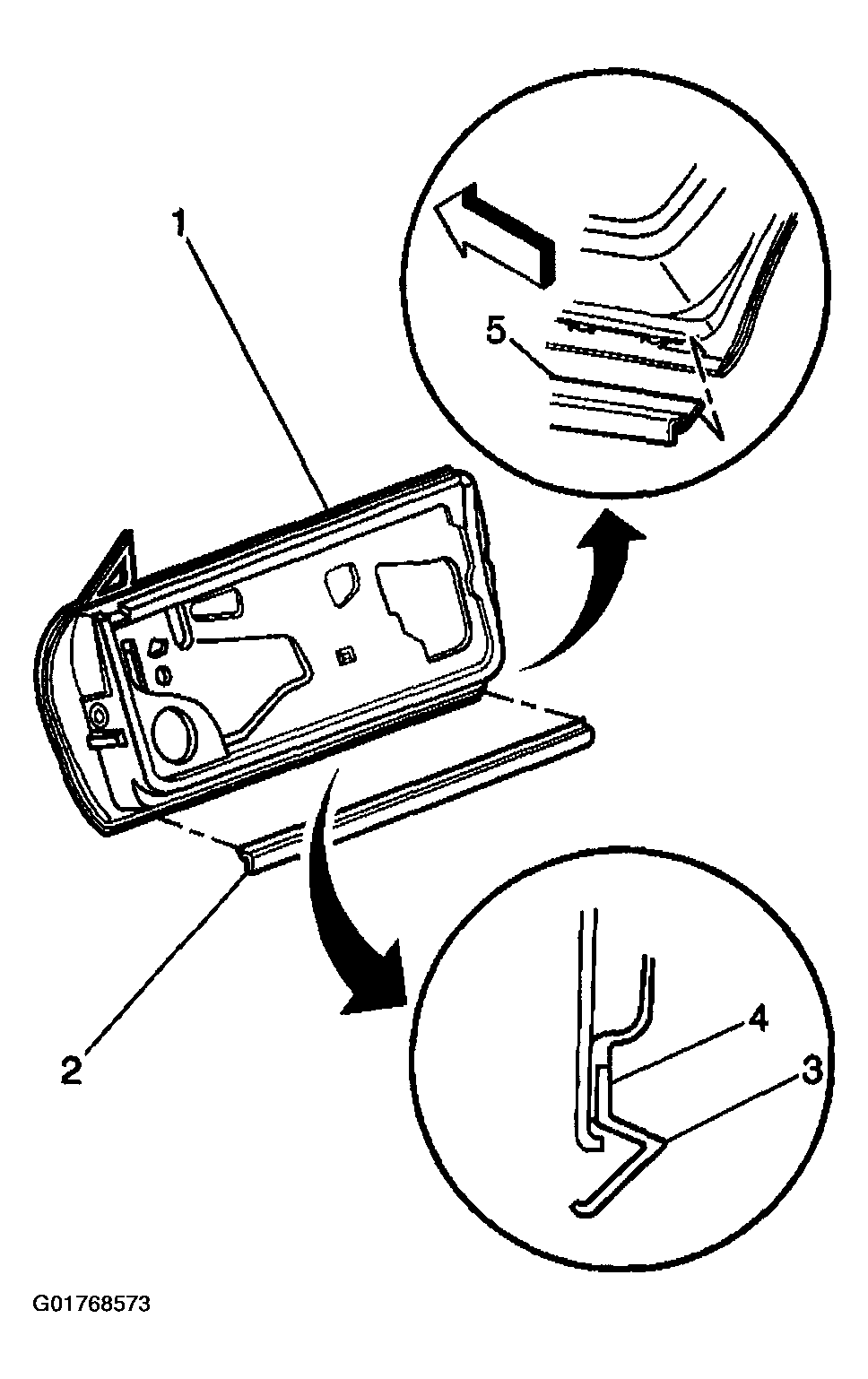

    Fig 1: Removing Door Seal
    G01768573Courtesy of GENERAL MOTORS CORP.
