Installation Procedure

  1. Install the wire harness connector to the controls.
  2. Install the radio control switch to the steering wheel.

    Press in the radio control switch in at the lower edge.

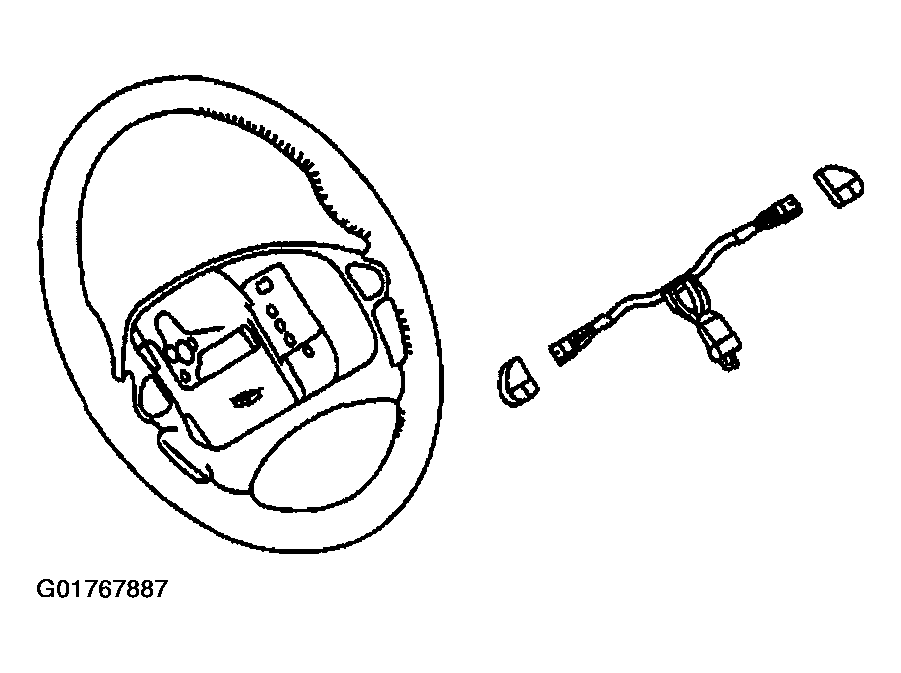

    Fig 1: Installing Radio Control Switch To Steering Wheel
    G01767887Courtesy of GENERAL MOTORS CORP.
  3. Connect the redundant radio control electrical connector.

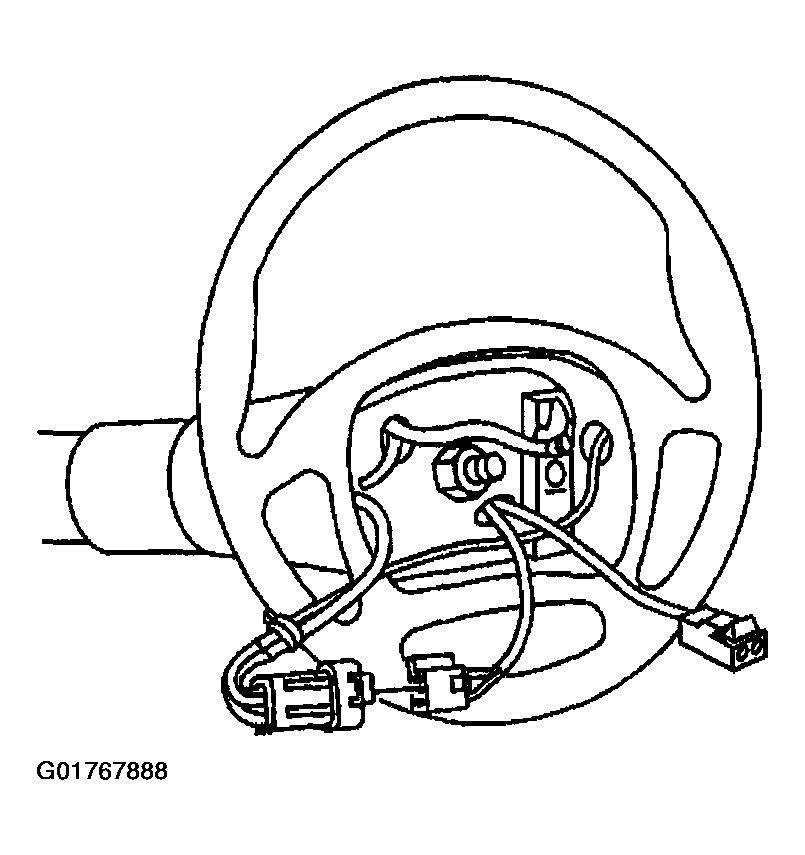

    Fig 2: Connecting Redundant Radio Control Electrical Connector
    G01767888Courtesy of GENERAL MOTORS CORP.
  4. Install the redundant radio control connector to the steering wheel retainer.
  5. Install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION .

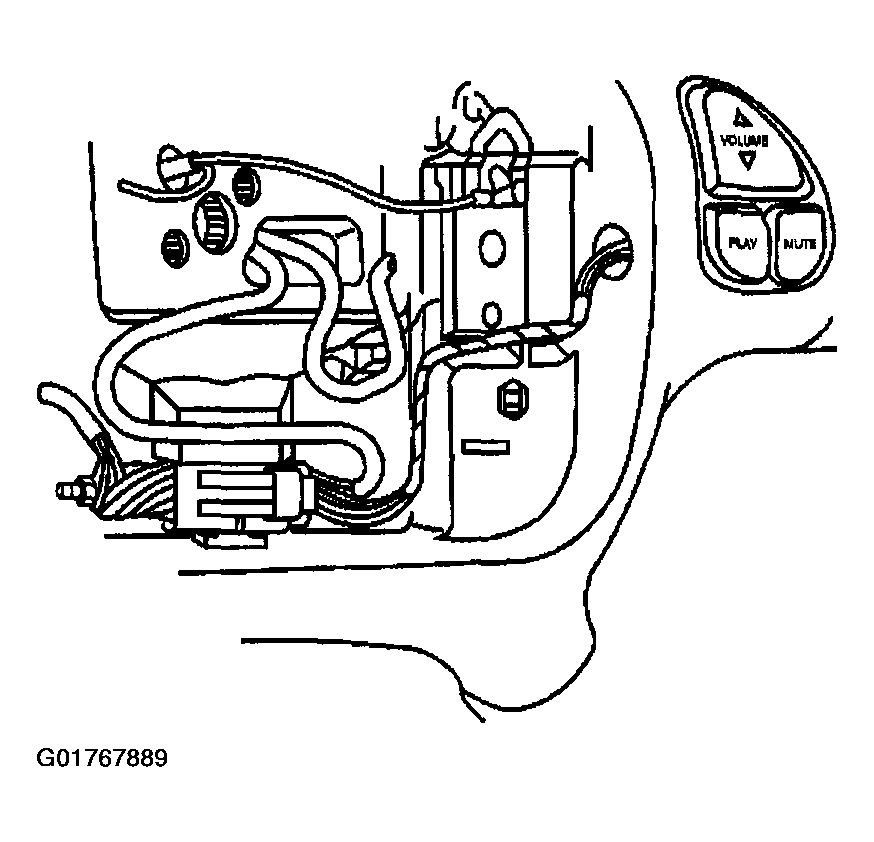

    Fig 3: Installing Redundant Radio Control Connector
    G01767889Courtesy of GENERAL MOTORS CORP.
