Installation Procedure

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. c to the CD changer, as needed.

    Tighten

    Tighten the bolts to 1.9 N.m (17 lb in).

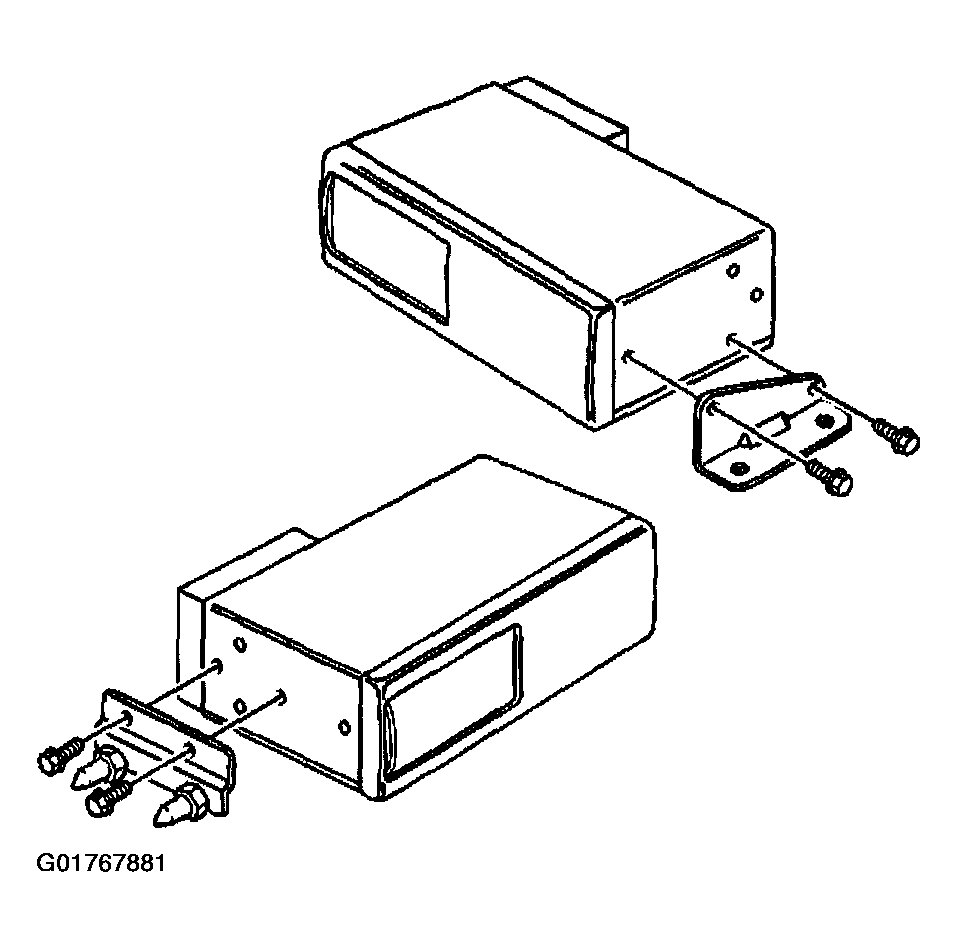

    Fig 1: Installing Brackets And Bolts
    G01767881Courtesy of GENERAL MOTORS CORP.
  2. Install the CD changer.
  3. Connect the CD changer electrical connector.
  4. Position the inboard stud through the bracket hole.
  5. Position the inboard hole over the stud.
  6. Install the CD changer mounting nut.

    Tighten

    Tighten the nut to 2.5 N.m (22 lb in).

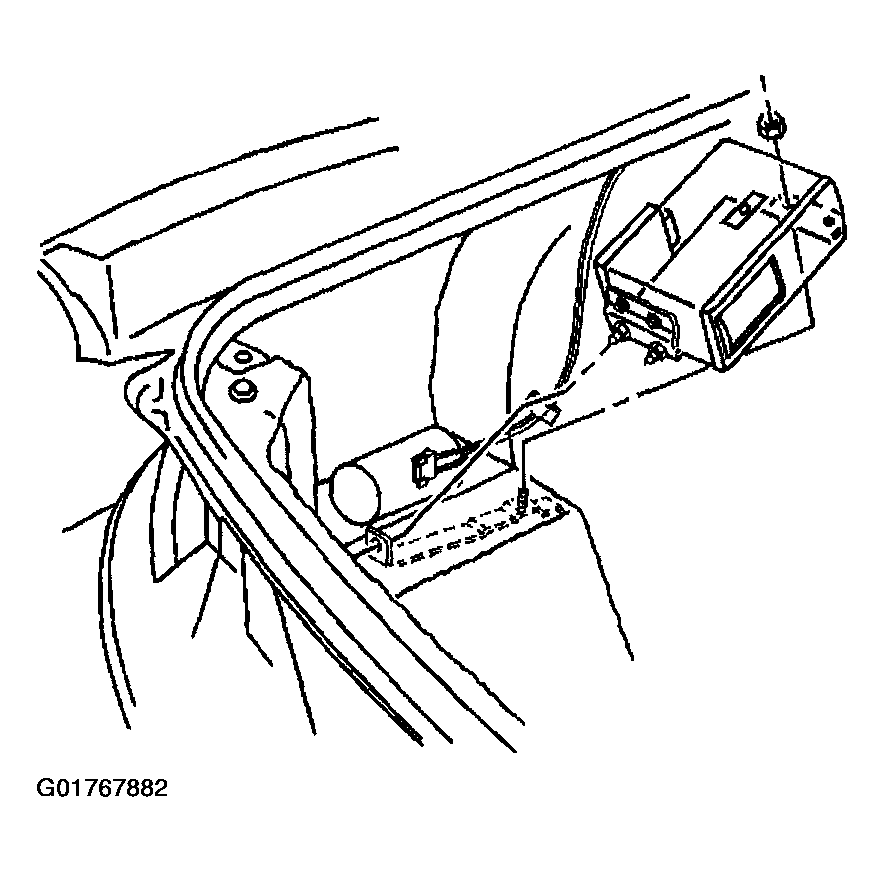

    Fig 2: Installing CD Changer Mounting Nut
    G01767882Courtesy of GENERAL MOTORS CORP.
  7. Install the CD magazine to the CD changer.
  8. Close the trunk.

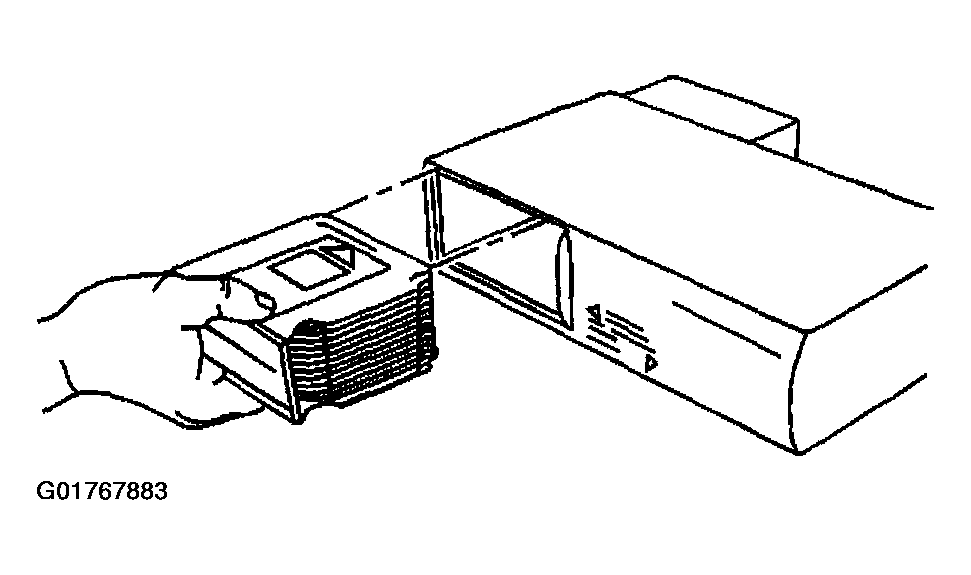

    Fig 3: Installing CD Magazine
    G01767883Courtesy of GENERAL MOTORS CORP.
