Installation Procedure

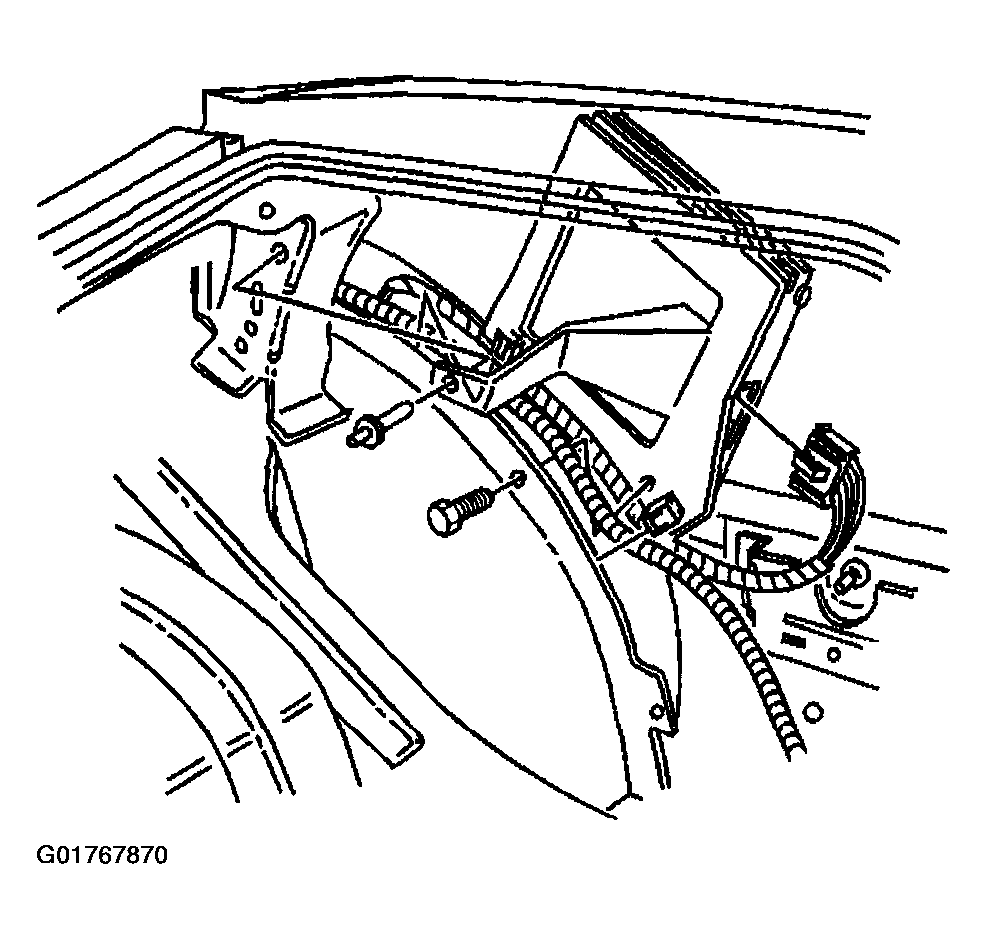

- Install the amplifier to the vehicle.
- Connect the amplifier electrical connector.
- Place tabs on the amplifier over the rear wheelhouse flange.
- Position the amplifier bracket leg onto the inboard side of the support panel frame.NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the amplifier bolt.
Tighten
Tighten the bolt to 4 N.m (35 lb in).
- Install the rivet through the hole in the amplifier bracket and through the support.
- Install the right side compartment trim.
