System Wiring Diagrams: Starting/Charging: Charging

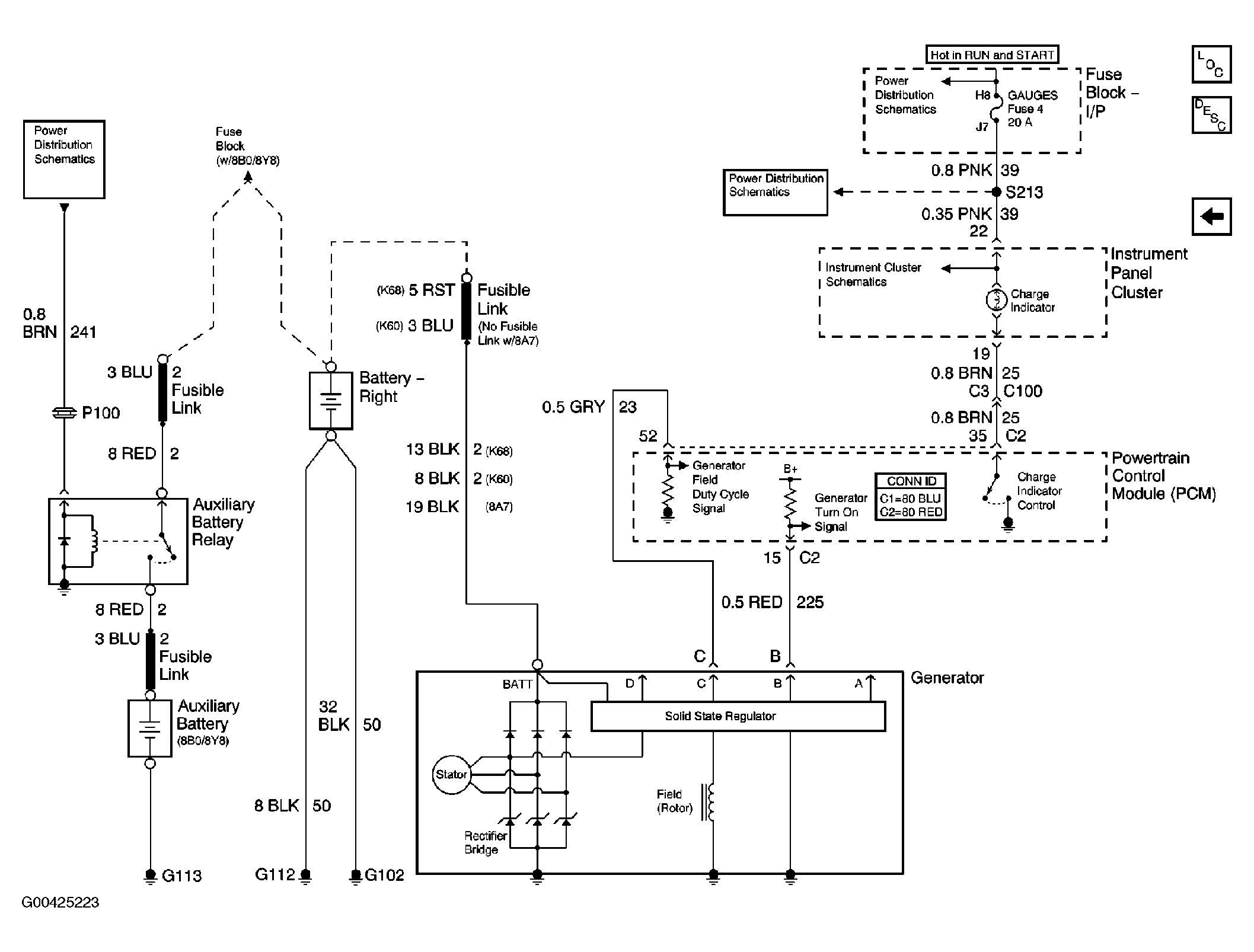

Fig 1: Charging Wiring Diagram (Gasoline)
G00425223Courtesy of GENERAL MOTORS CORP.

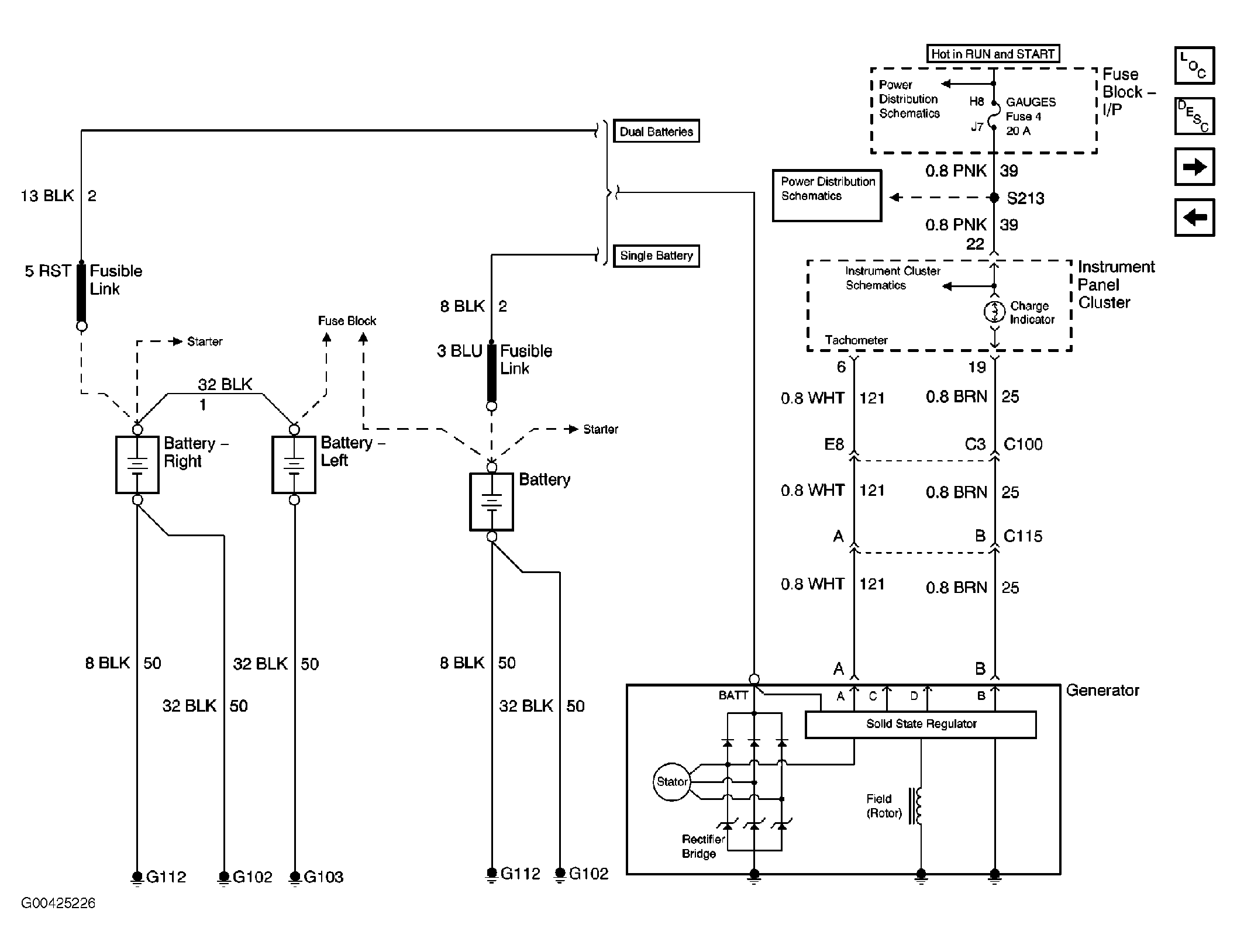

Fig 2: Charging Wiring Diagram (Diesel) (1 Of 2)
G00425226Courtesy of GENERAL MOTORS CORP.

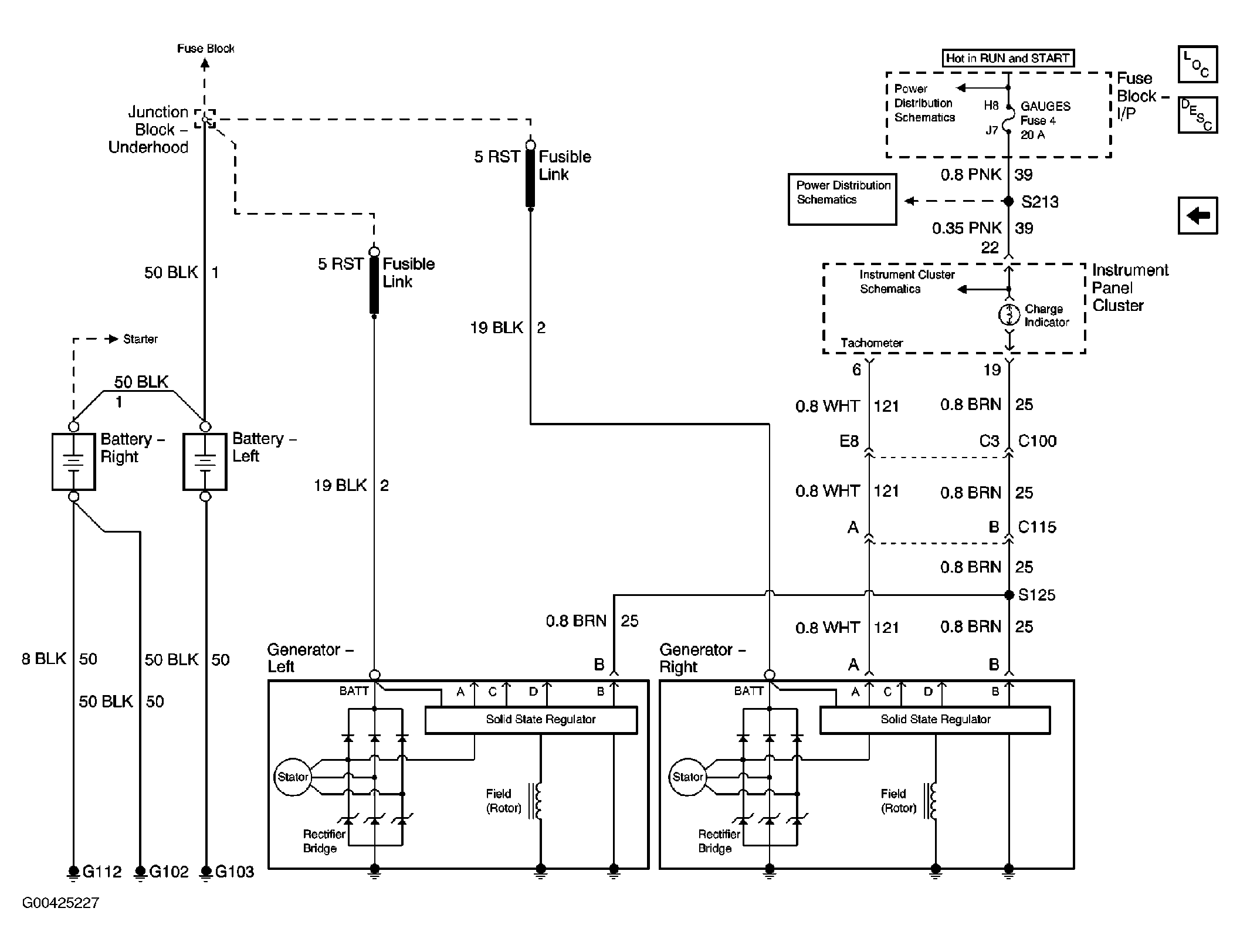

Fig 3: Charging Wiring Diagram (Diesel) (2 Of 2)
G00425227Courtesy of GENERAL MOTORS CORP.
