Shift Lock Control

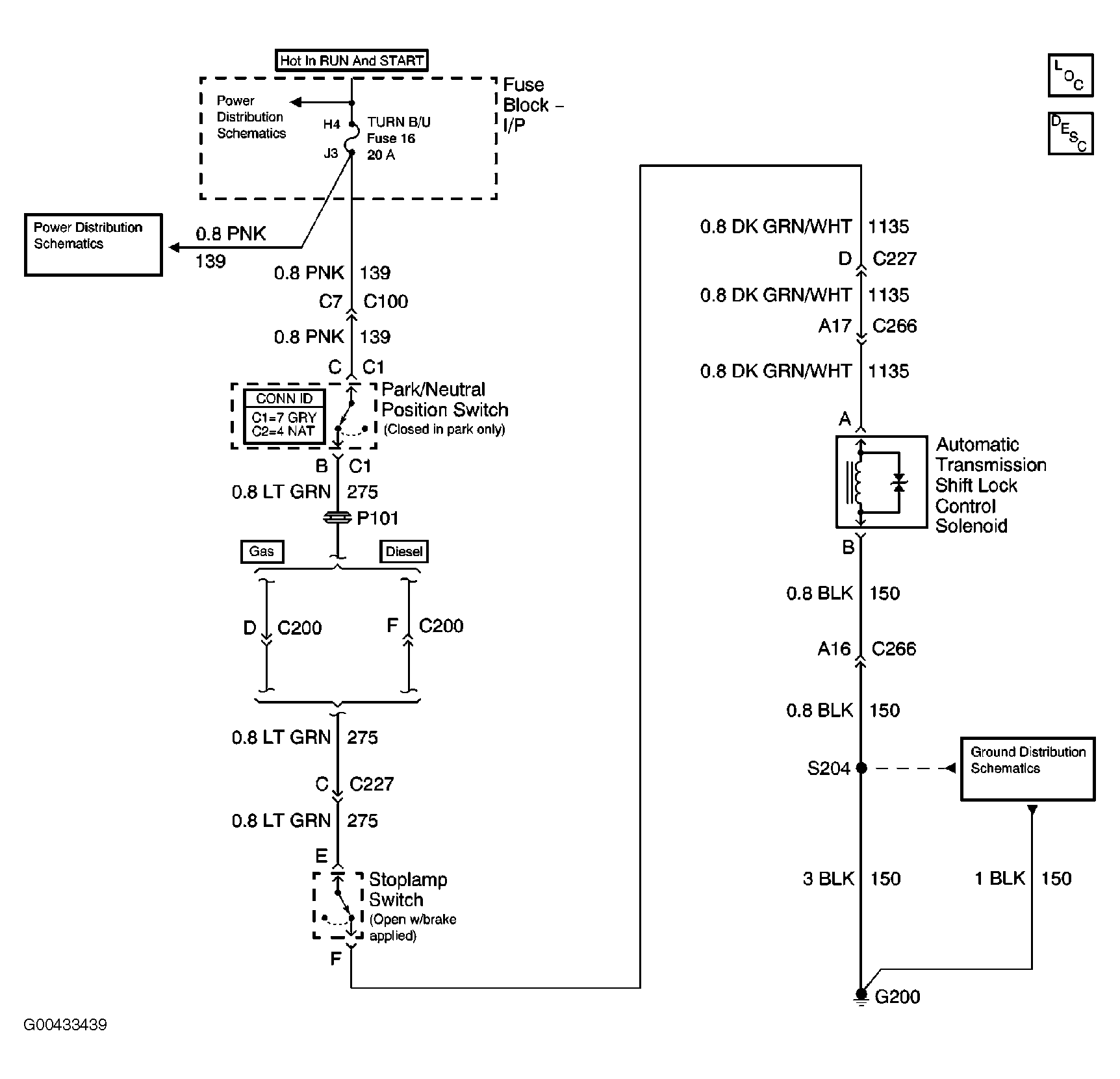

Fig 1: Shift Lock Control Schematics

G00433439

Courtesy of GENERAL MOTORS CORP.
