Power and Grounding Component Views

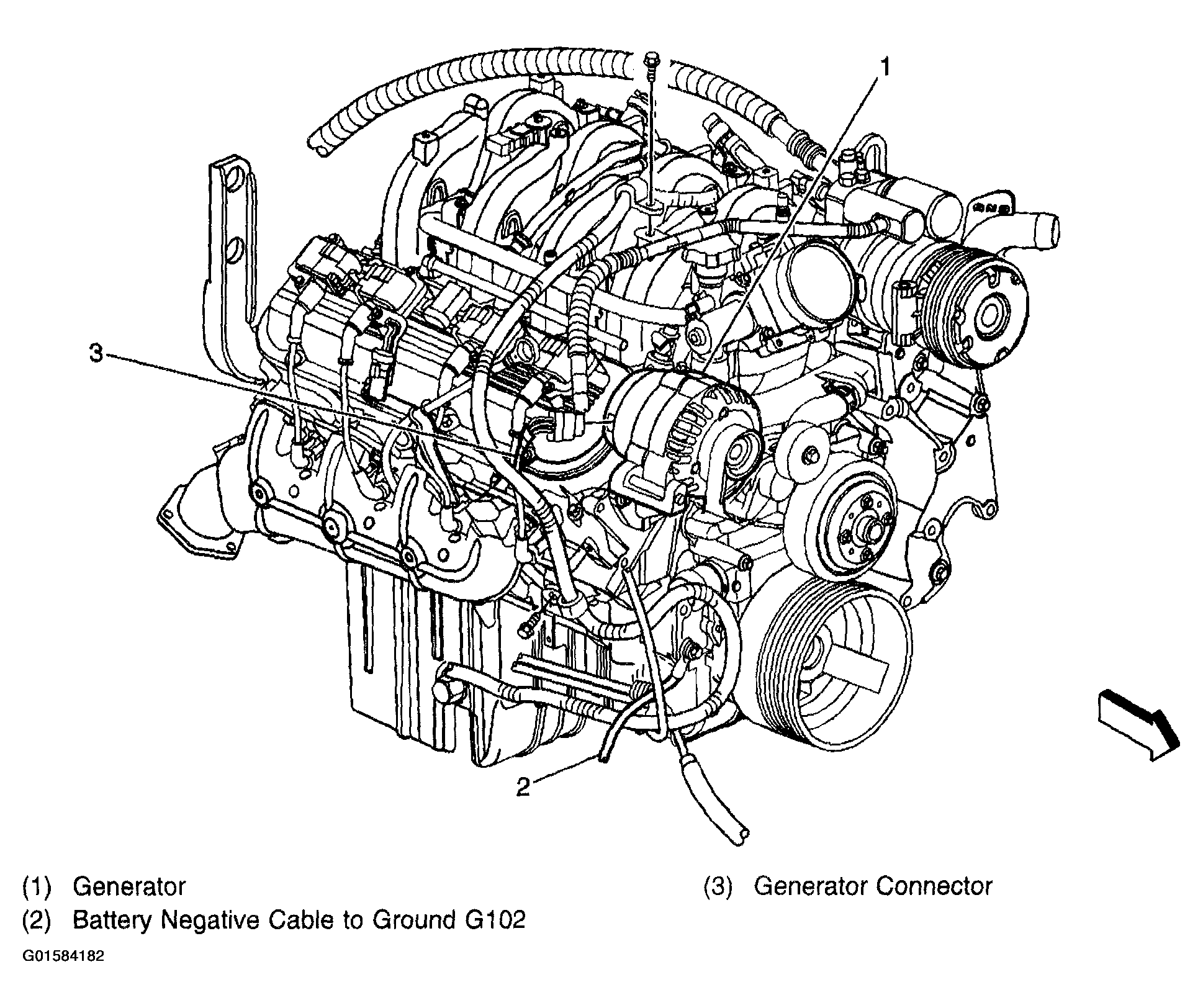

Fig 1: G102 & Generator Wiring - L18

G01584182

Courtesy of GENERAL MOTORS CORP.

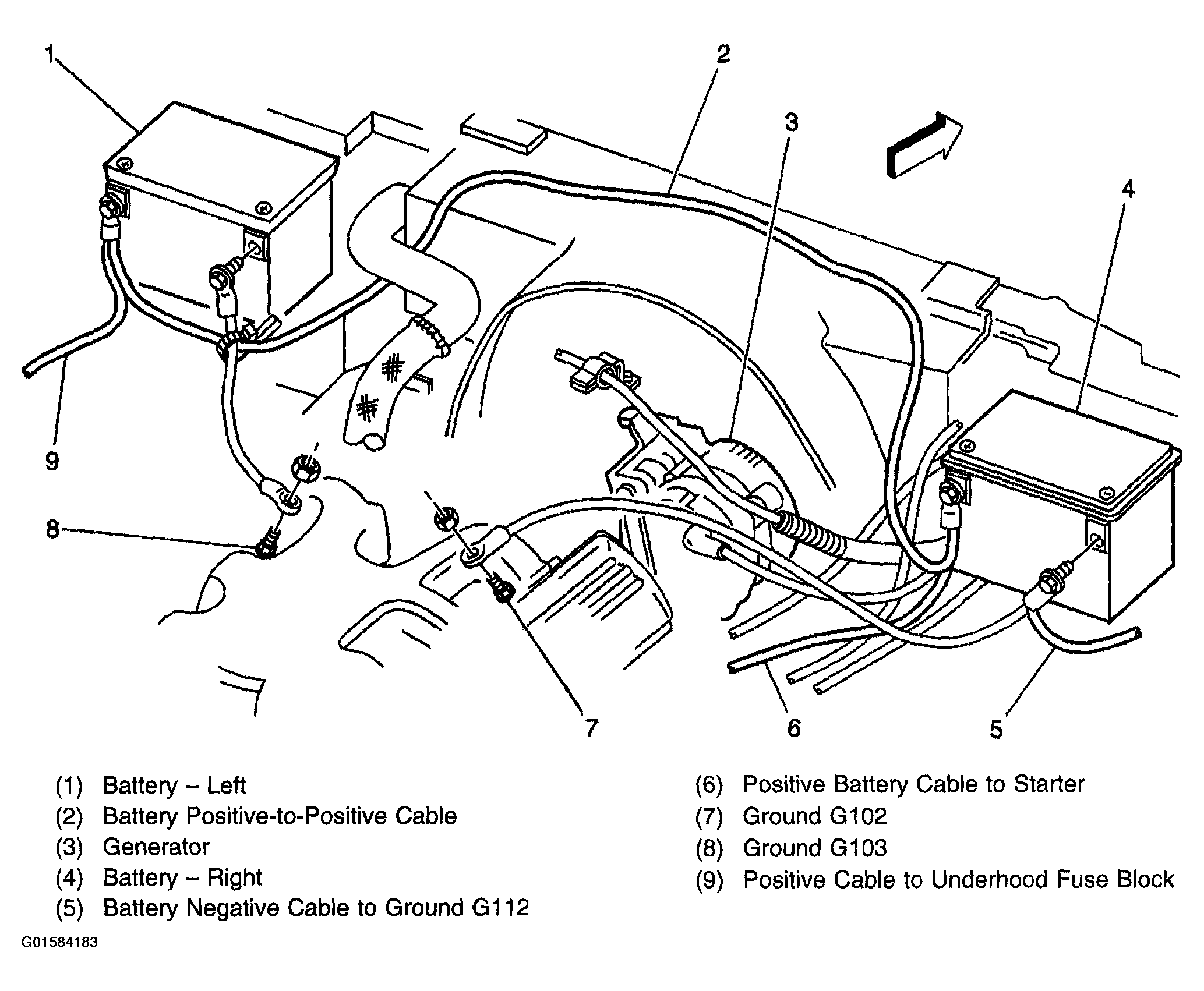

Fig 2: G102, G103 & Dual Battery Wiring - L65 Single Generator

G01584183

Courtesy of GENERAL MOTORS CORP.

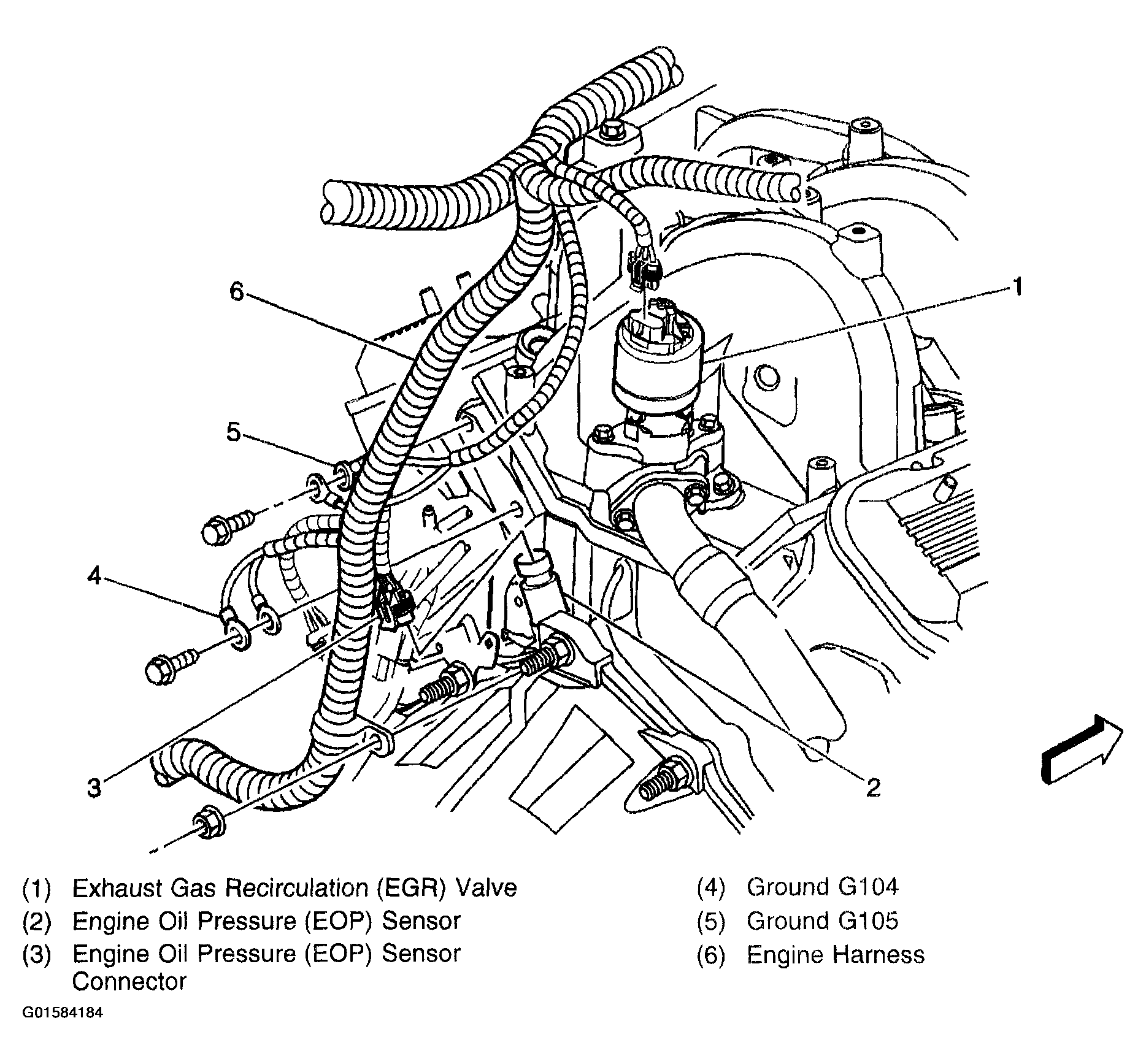

Fig 3: EGR Valve, Engine Oil Pressure (EOP) Sensor, G104 & G105

G01584184

Courtesy of GENERAL MOTORS CORP.

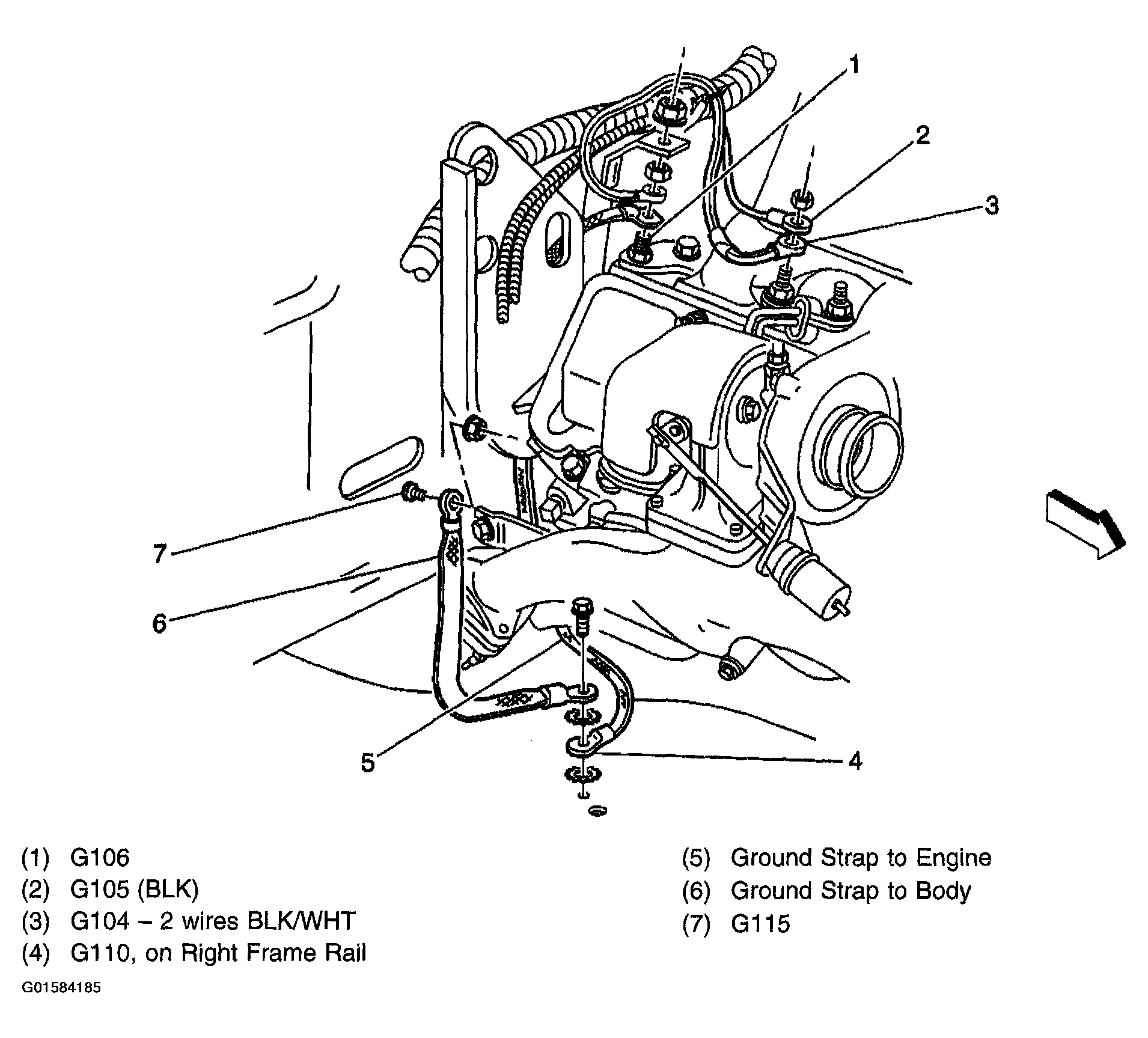

Fig 4: G104, G105, G106, G110 & G115-L65

G01584185

Courtesy of GENERAL MOTORS CORP.

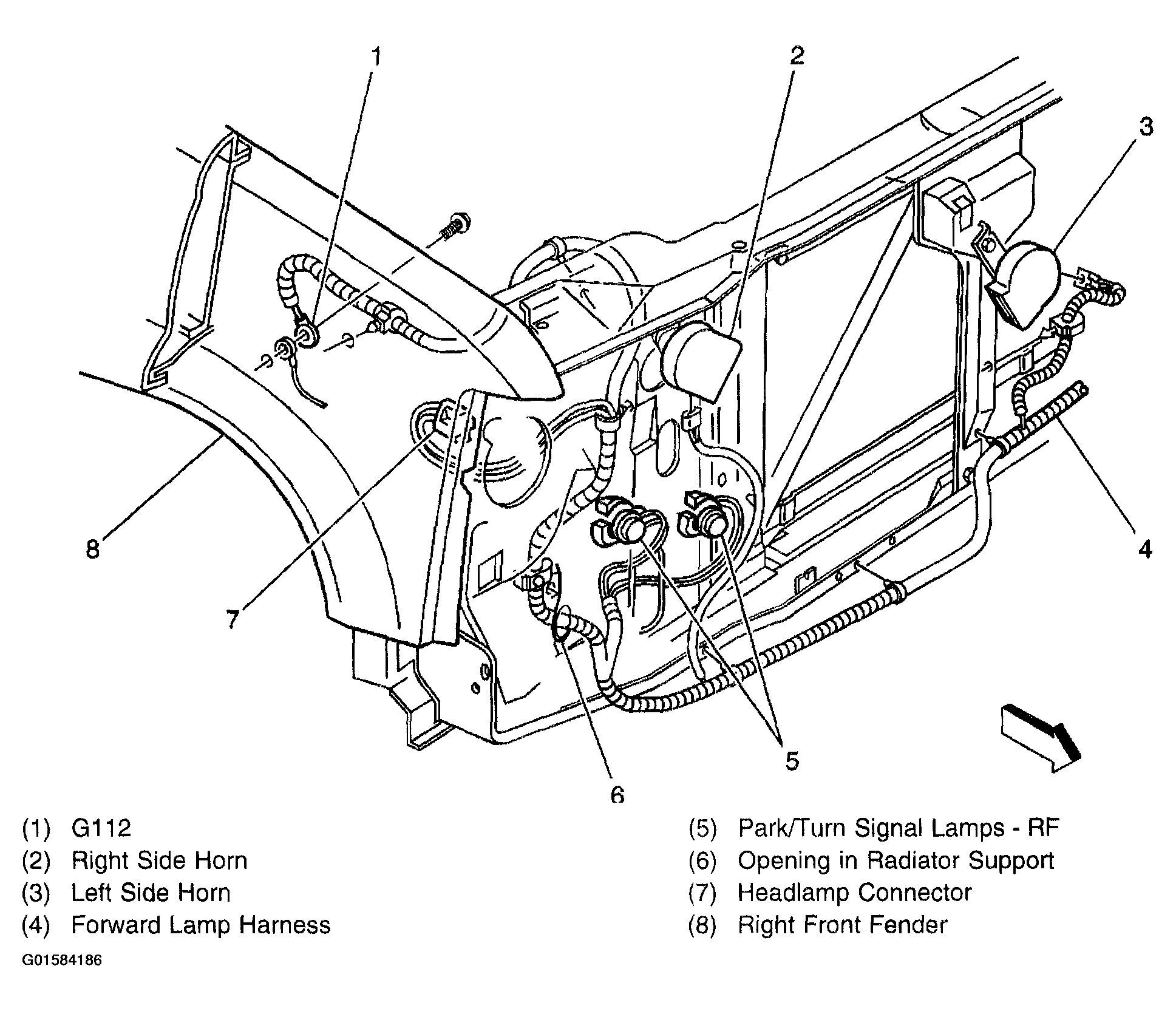

Fig 5: G112 & Forward Lamps Harness - Right Side, Base Headlamps

G01584186

Courtesy of GENERAL MOTORS CORP.

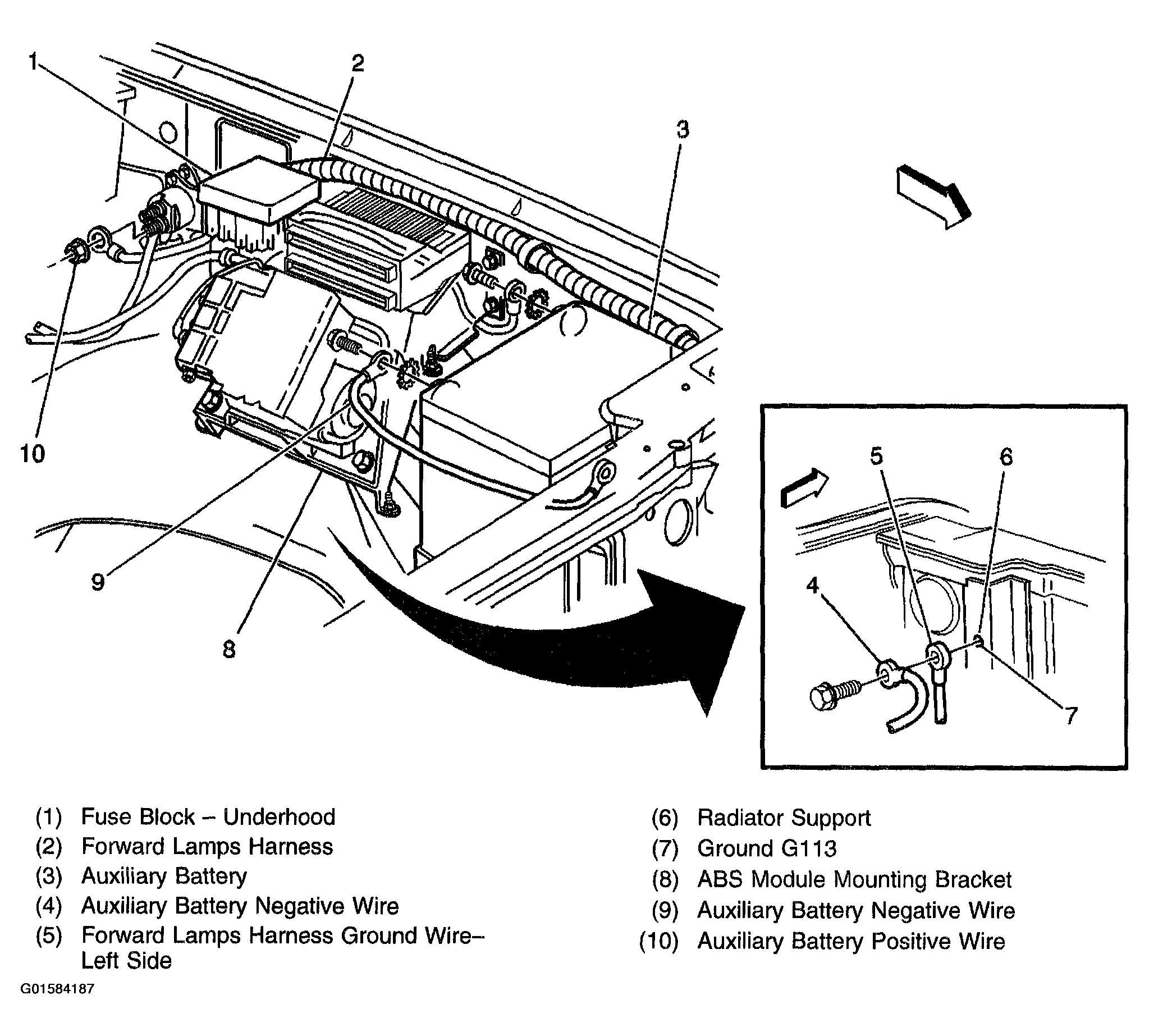

Fig 6: G113 & Auxiliary Battery Connections

G01584187

Courtesy of GENERAL MOTORS CORP.

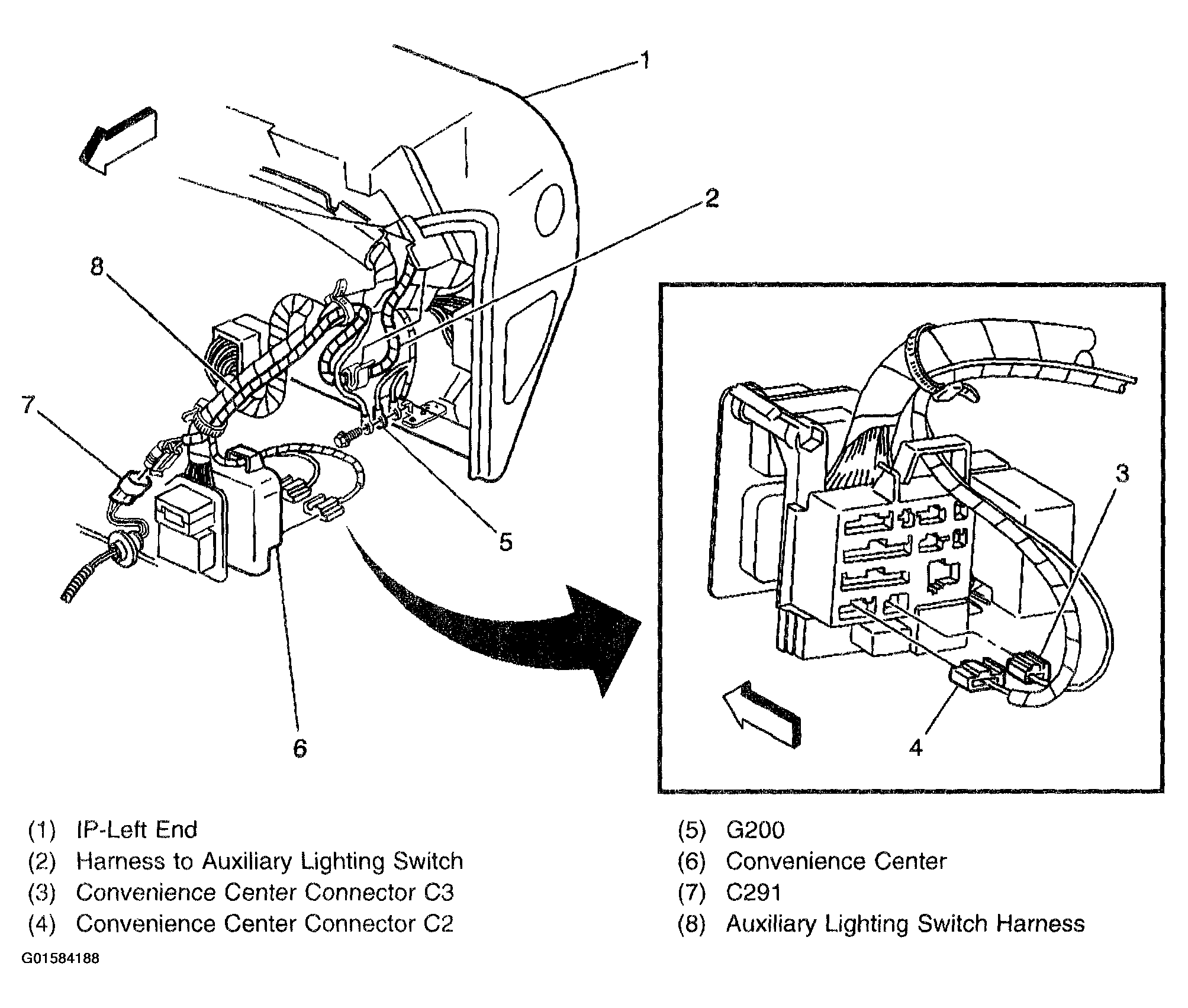

Fig 7: C291, G200 & Conveience Center C2 & C3

G01584188

Courtesy of GENERAL MOTORS CORP.

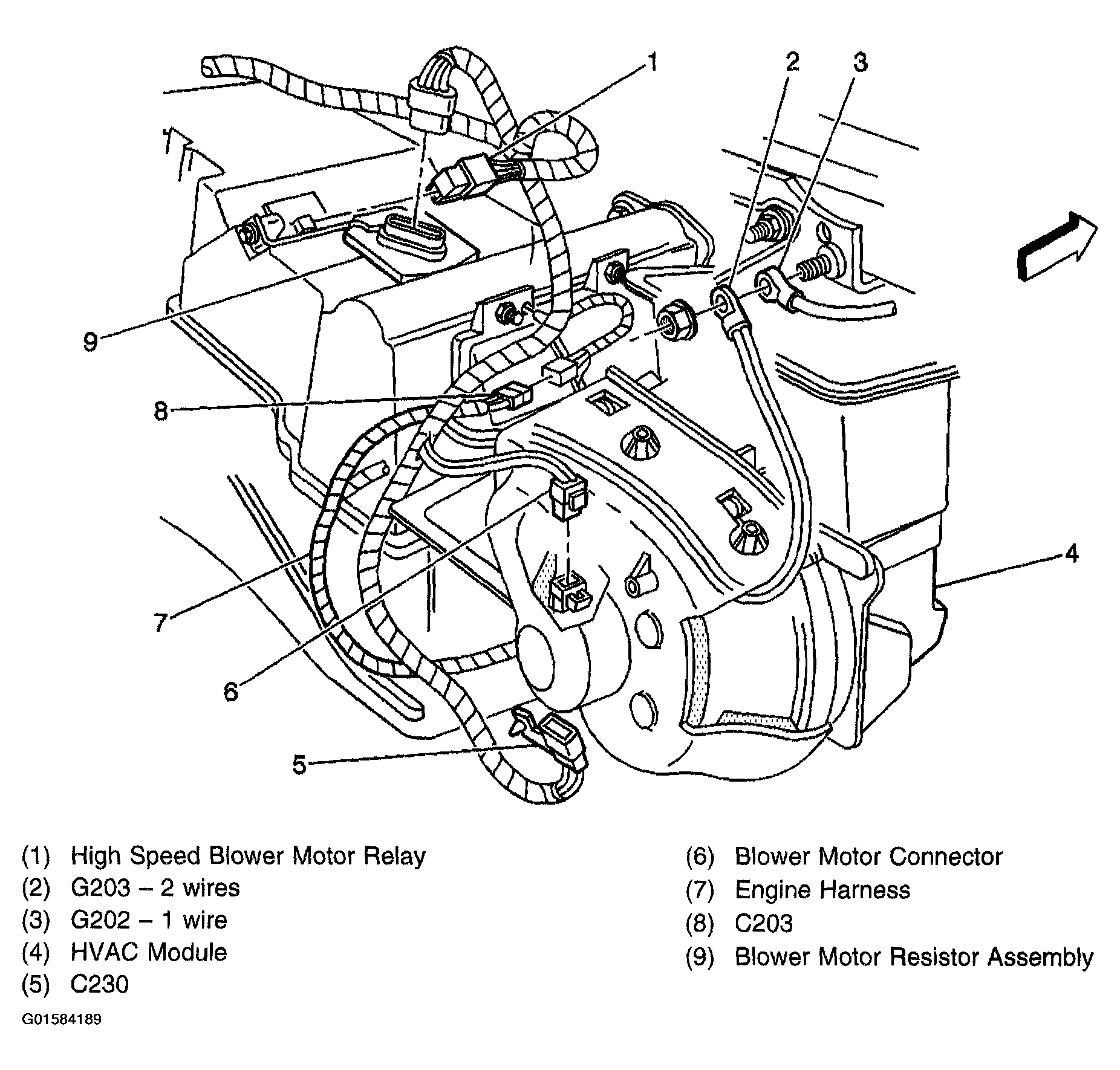

Fig 8: G202, G203, C203, C230 & HVAC Blower

G01584189

Courtesy of GENERAL MOTORS CORP.

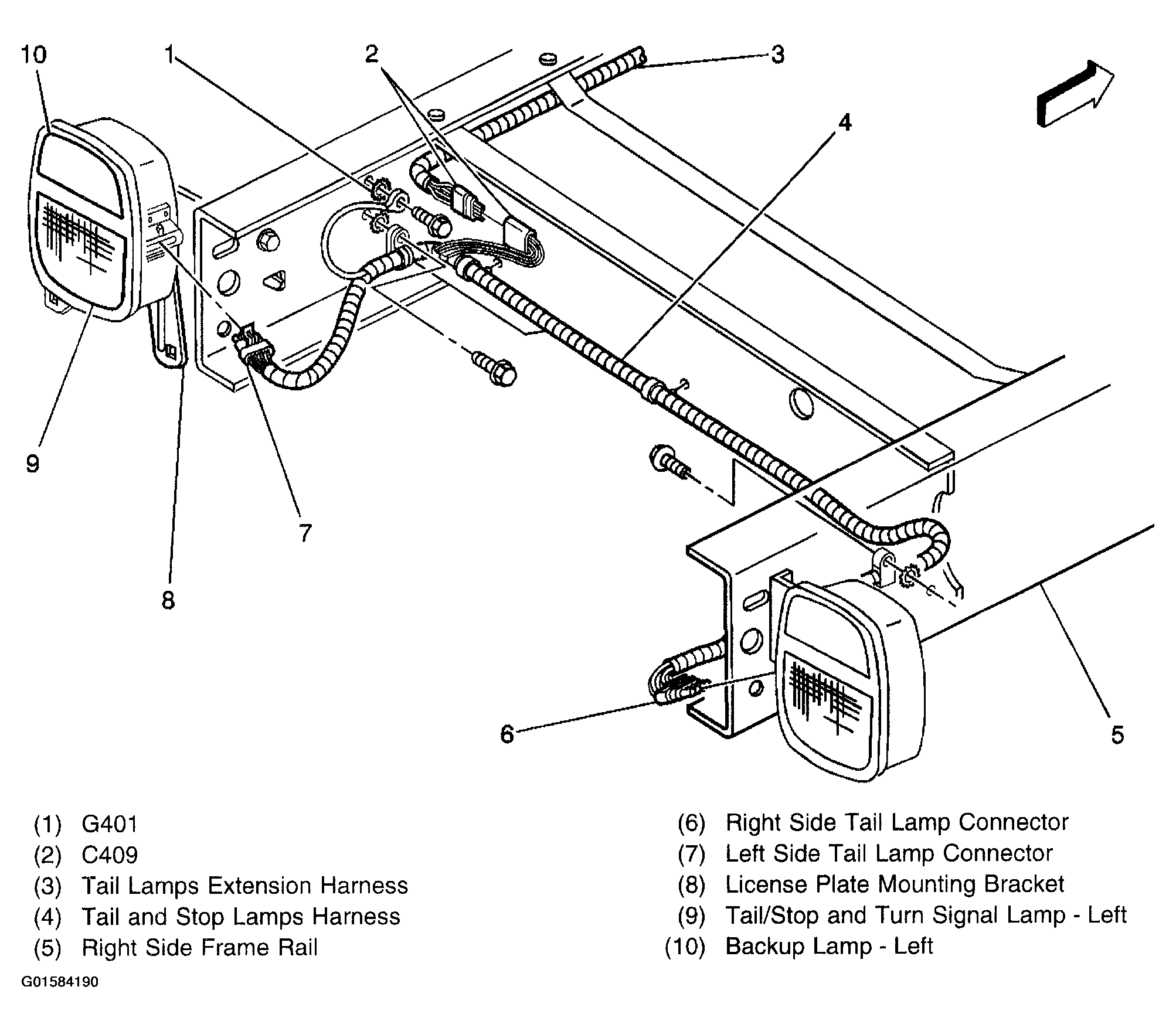

Fig 9: G401, C409 & Tail Lamps

G01584190

Courtesy of GENERAL MOTORS CORP.

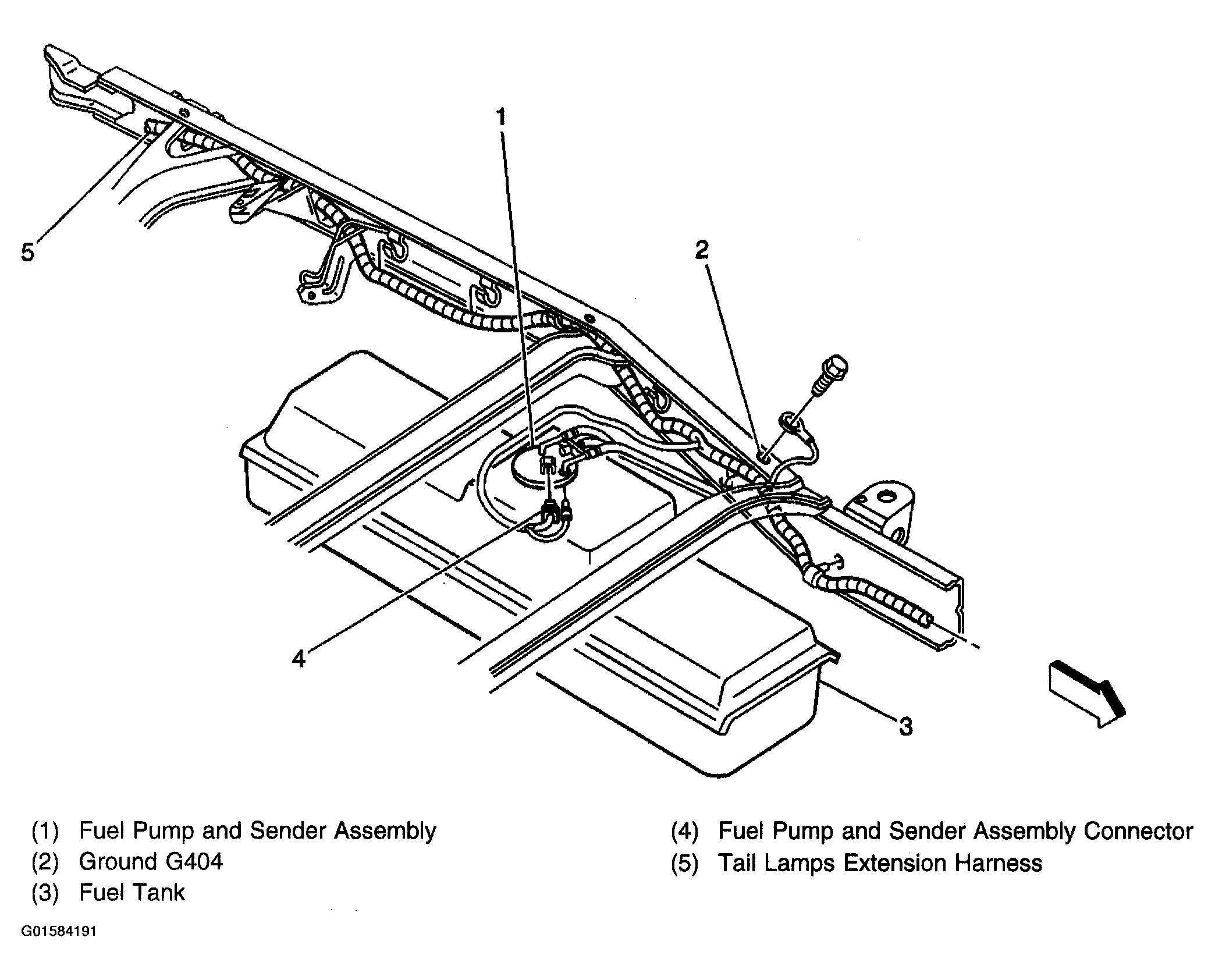

Fig 10: Fuel Tank & G404

G01584191

Courtesy of GENERAL MOTORS CORP.

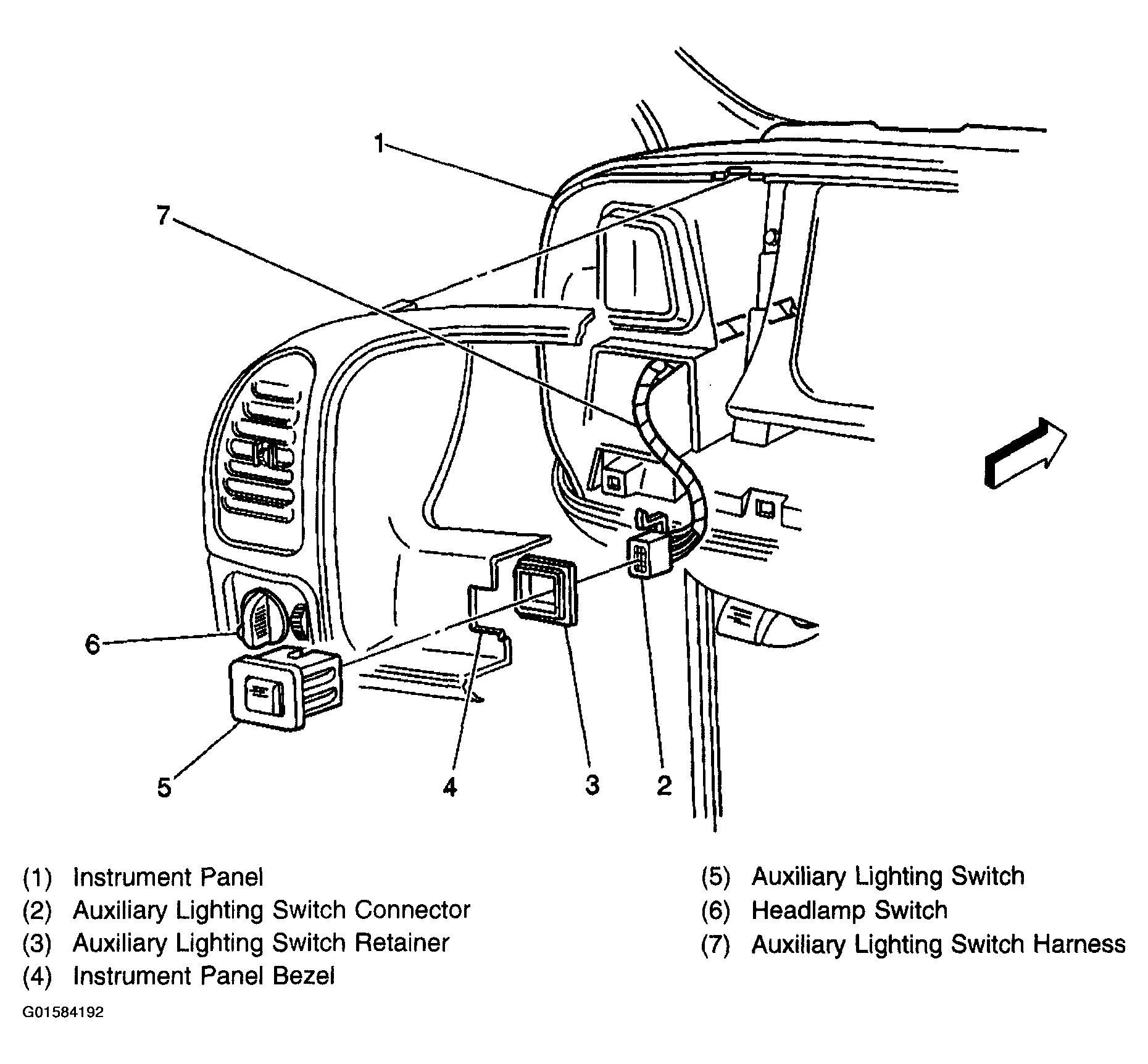

Fig 11: Auxiliary Lighting Switch-5G4, 5X7, 5Y0

G01584192

Courtesy of GENERAL MOTORS CORP.

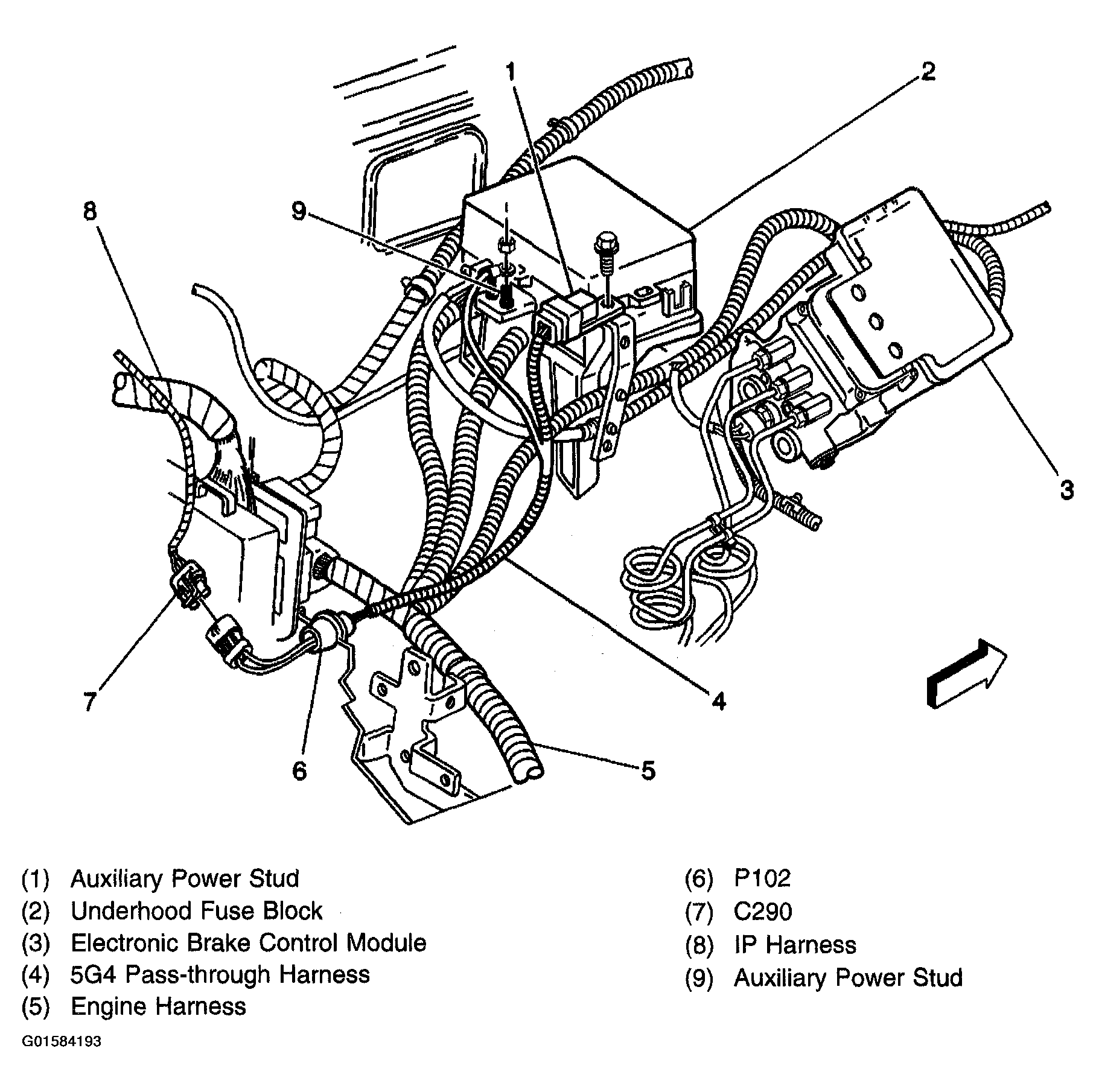

Fig 12: Pass-Through Harness-5G4

G01584193

Courtesy of GENERAL MOTORS CORP.

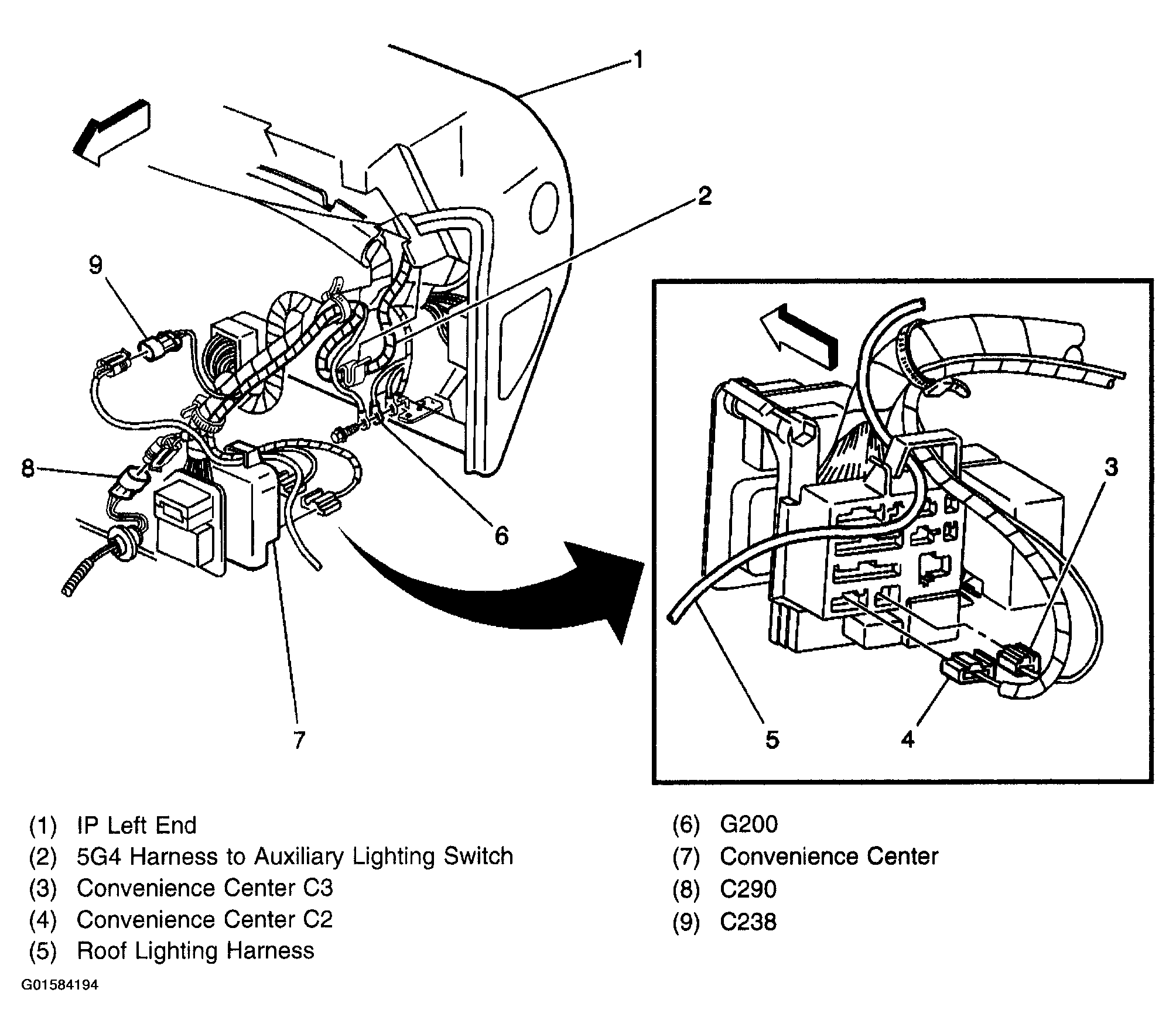

Fig 13: Roof Lamps Harness Wiring-5G4

G01584194

Courtesy of GENERAL MOTORS CORP.

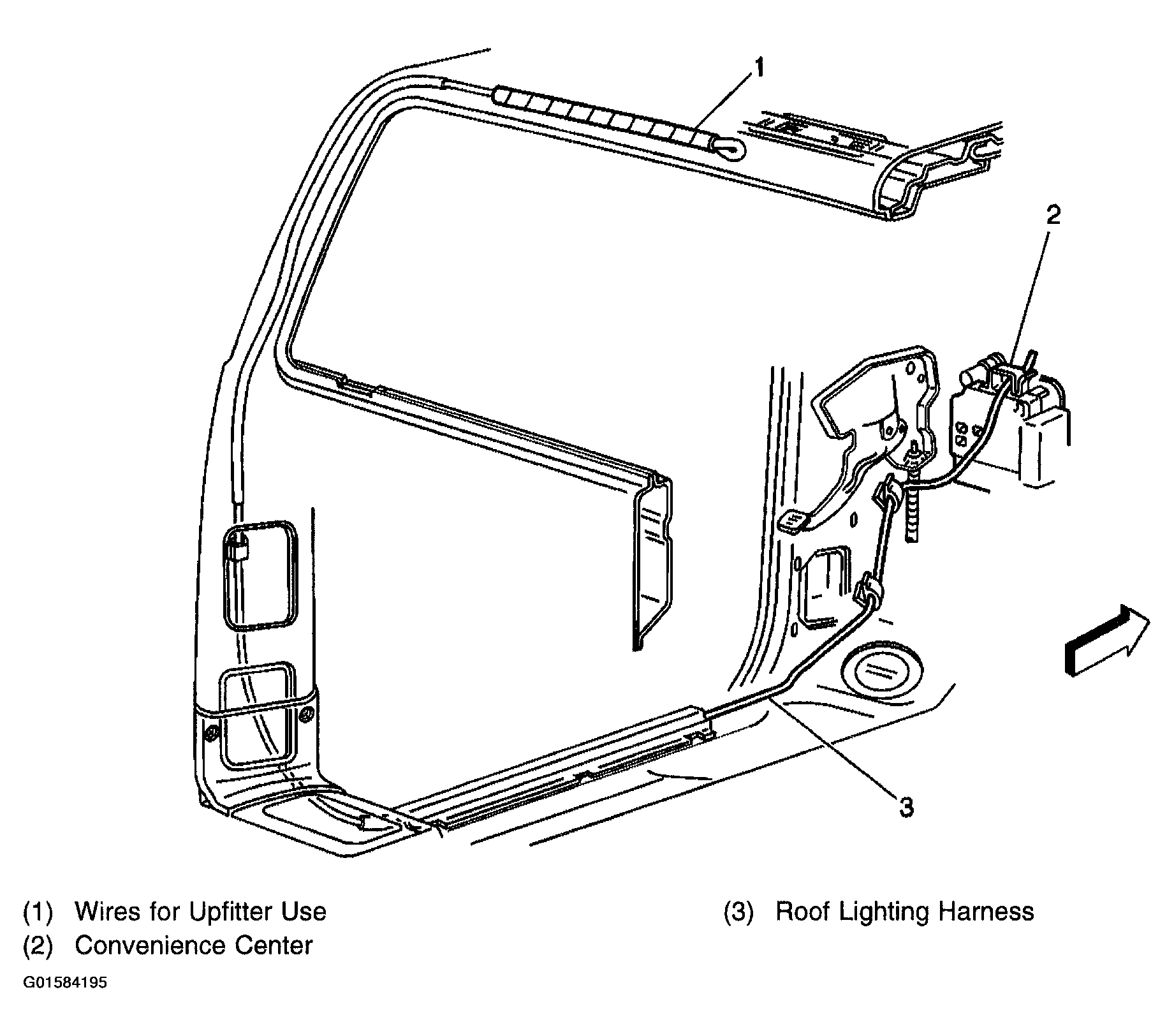

Fig 14: Roof Wiring-5G4

G01584195

Courtesy of GENERAL MOTORS CORP.

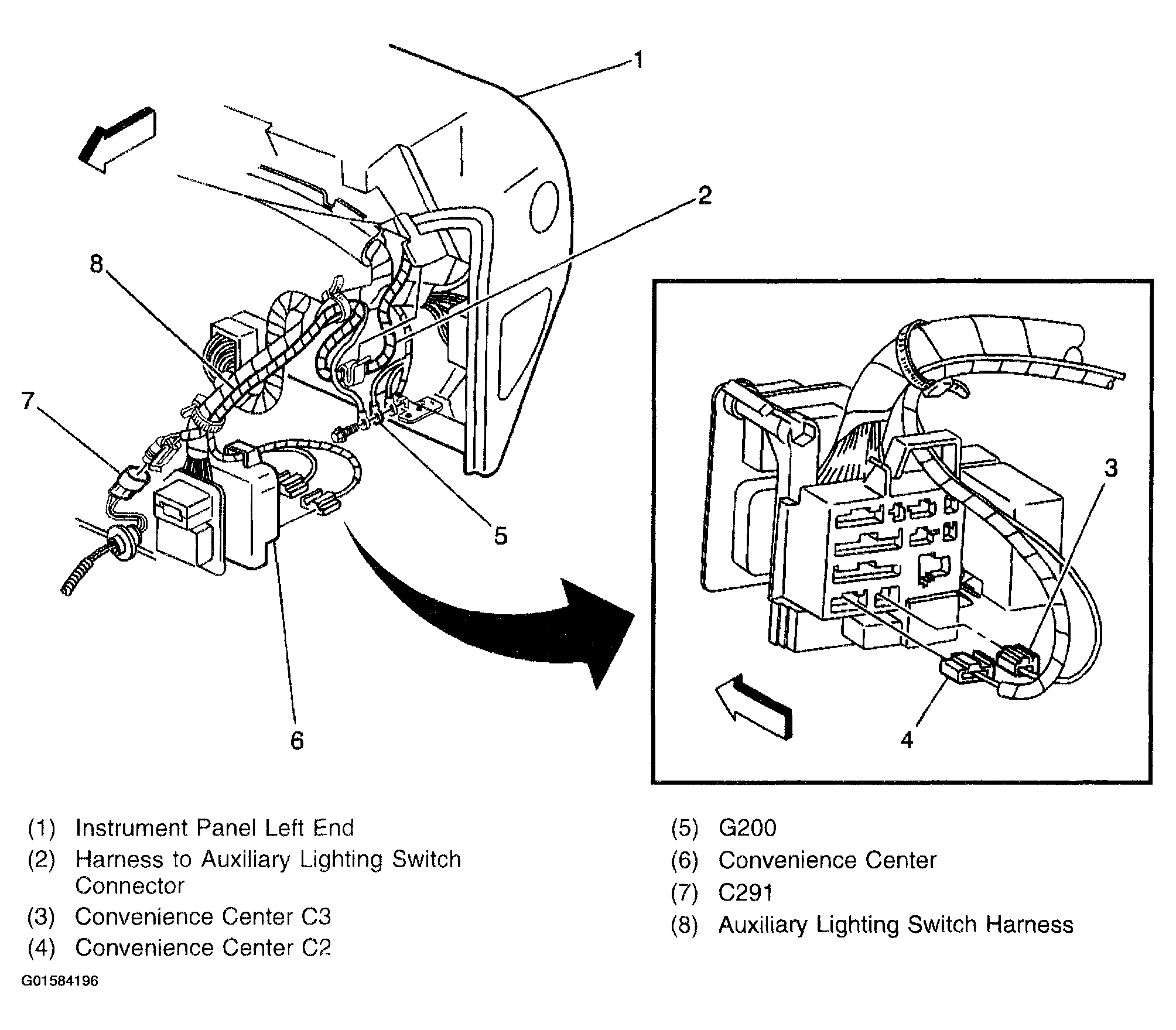

Fig 15: Auxiliary Lighting Switch Wiring-5X5, 5Y0

G01584196

Courtesy of GENERAL MOTORS CORP.

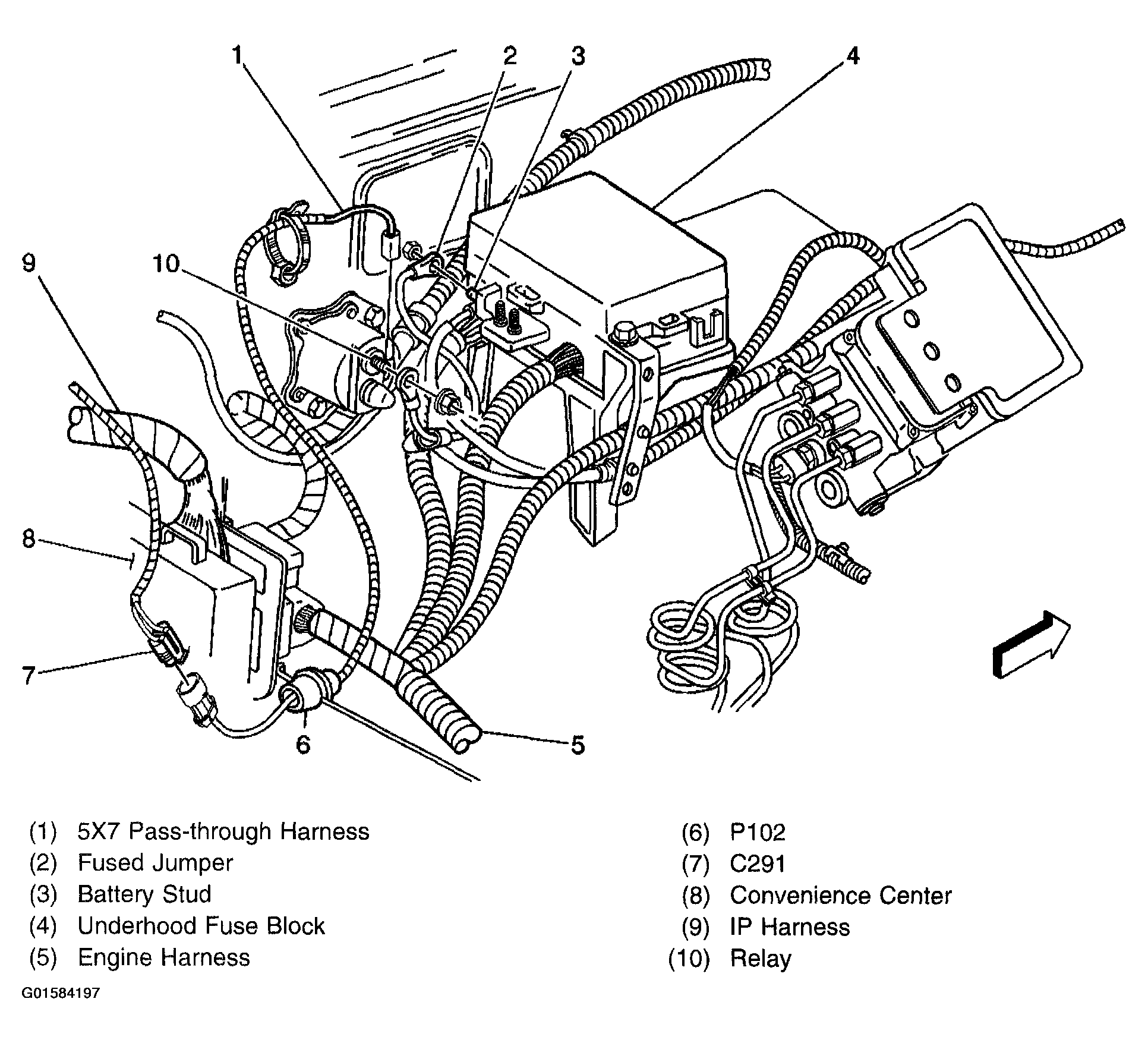

Fig 16: Pass-Through Harness-5X7

G01584197

Courtesy of GENERAL MOTORS CORP.

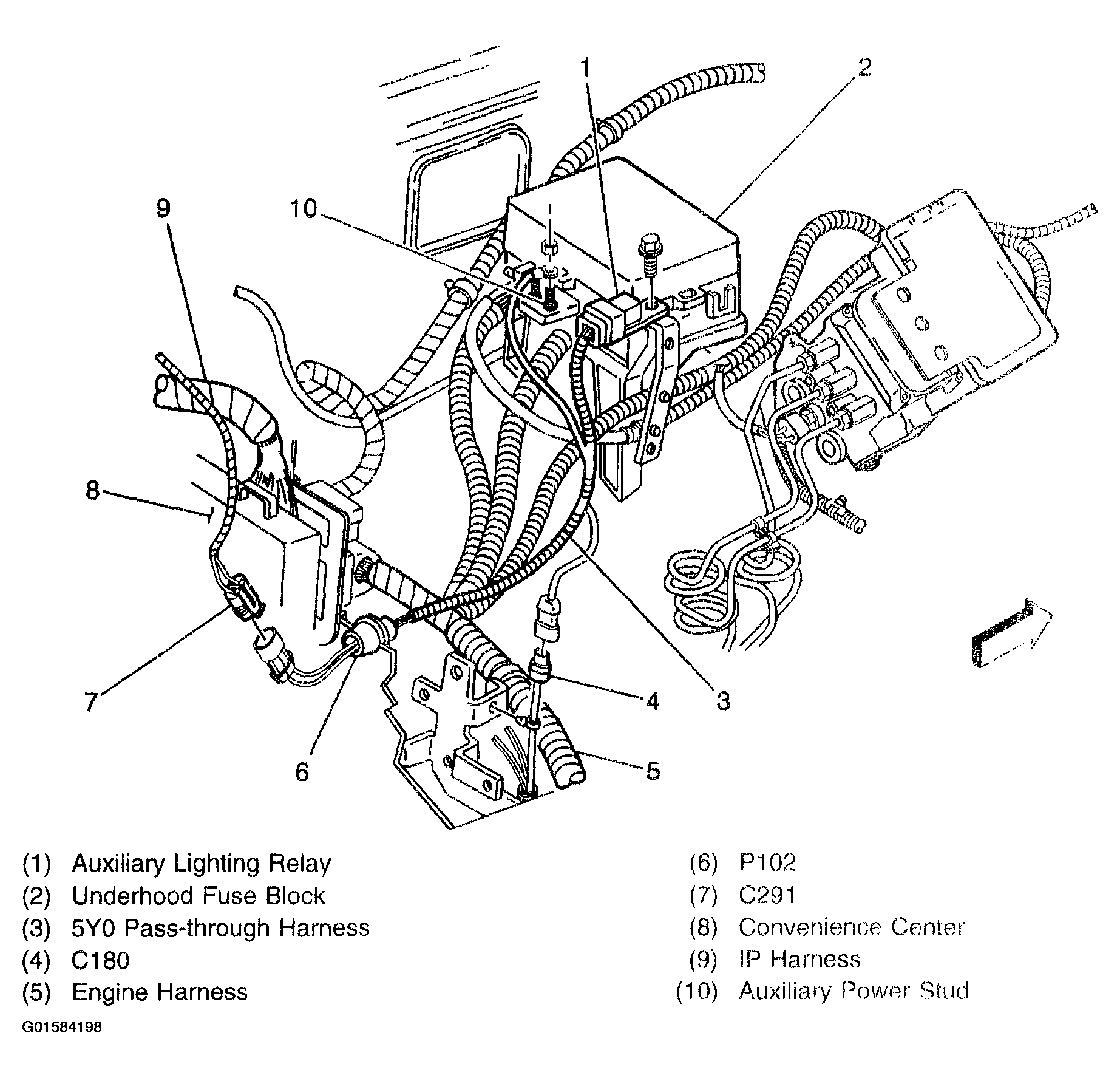

Fig 17: Pass-Through Harness-5Y0

G01584198

Courtesy of GENERAL MOTORS CORP.

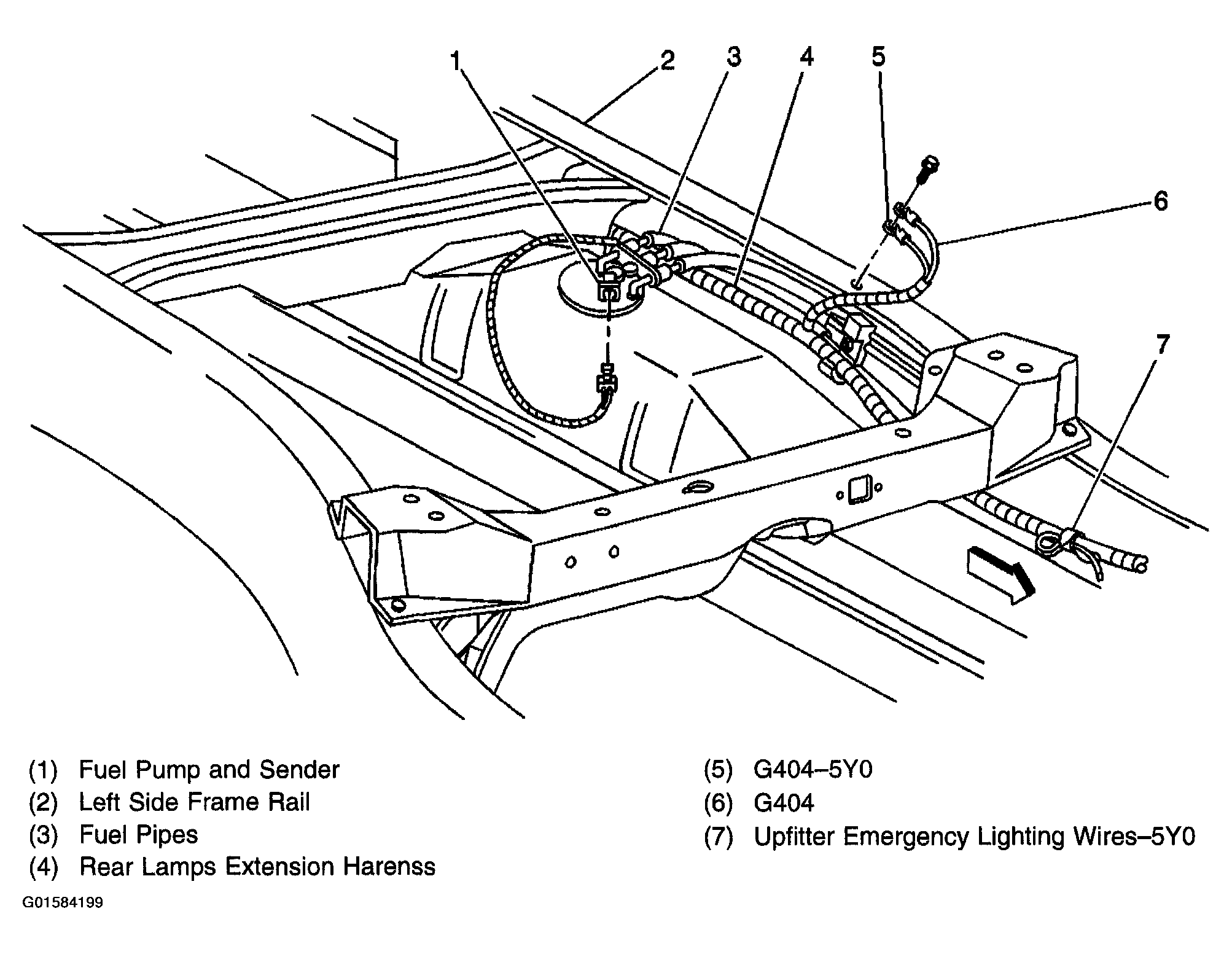

Fig 18: Upfitter Wiring-5Y0

G01584199

Courtesy of GENERAL MOTORS CORP.

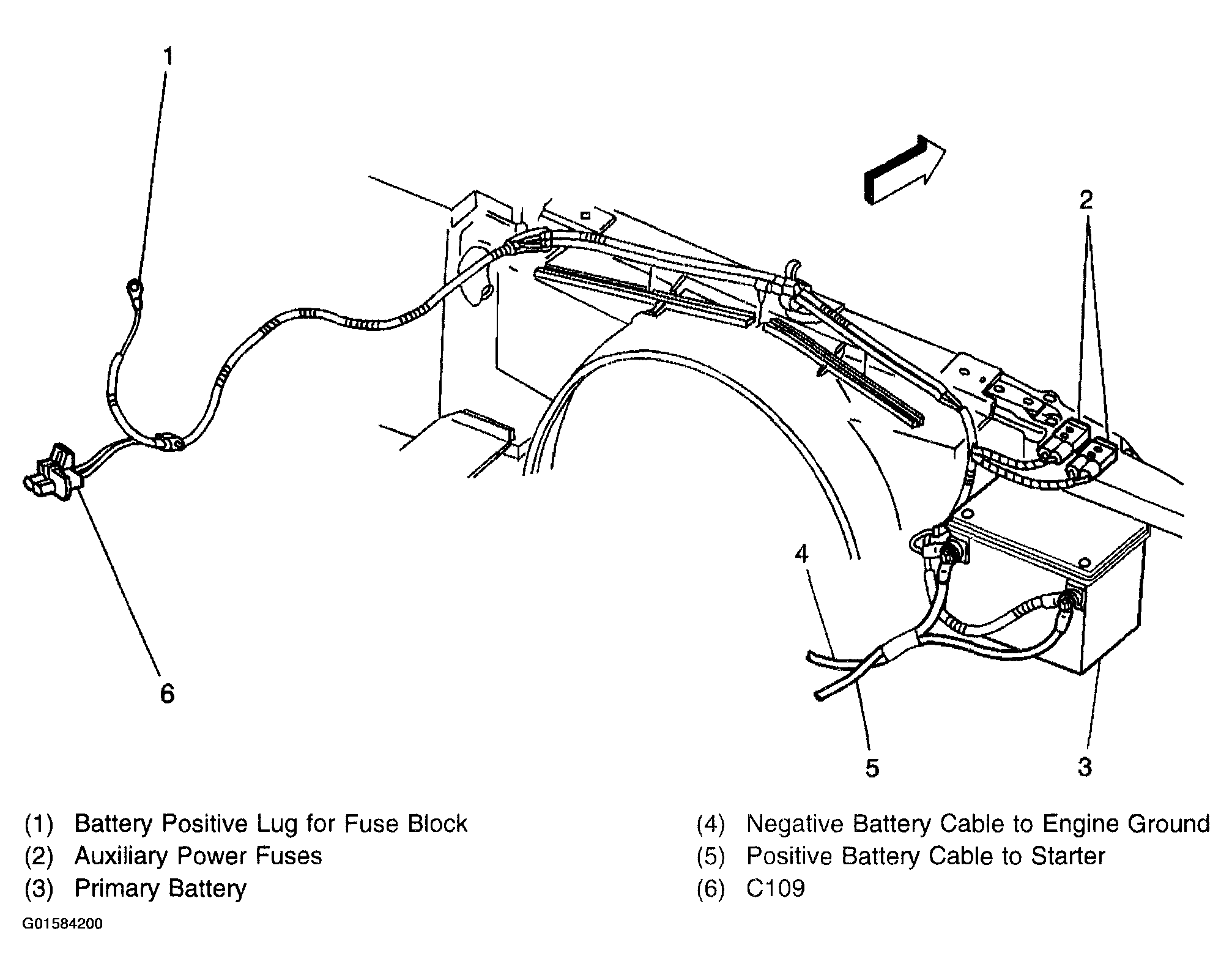

Fig 19: C109 & Battery Cables-9L4

G01584200

Courtesy of GENERAL MOTORS CORP.

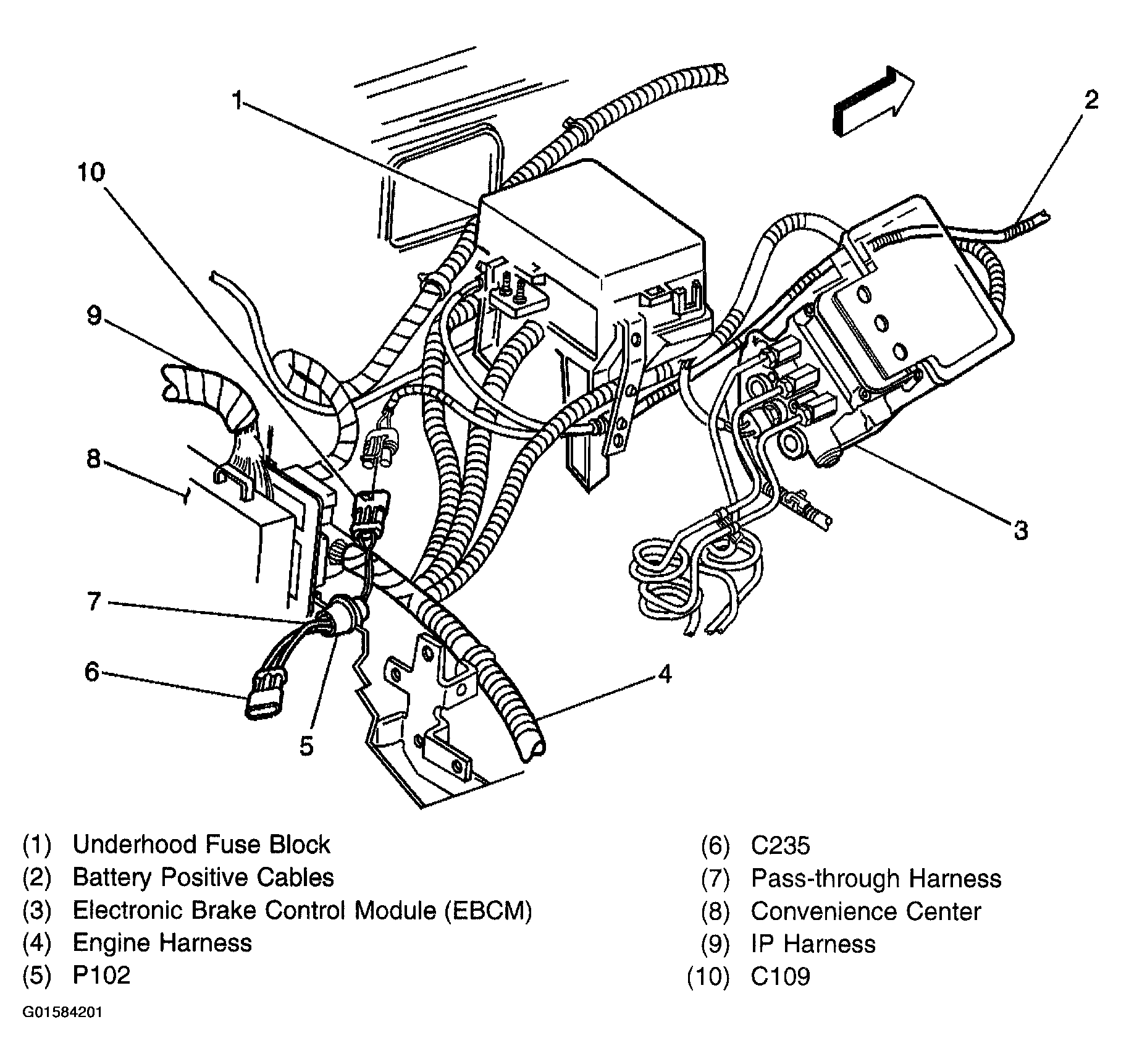

Fig 20: C109, C235 & Pass-Through Harness-9L4 & P102

G01584201

Courtesy of GENERAL MOTORS CORP.

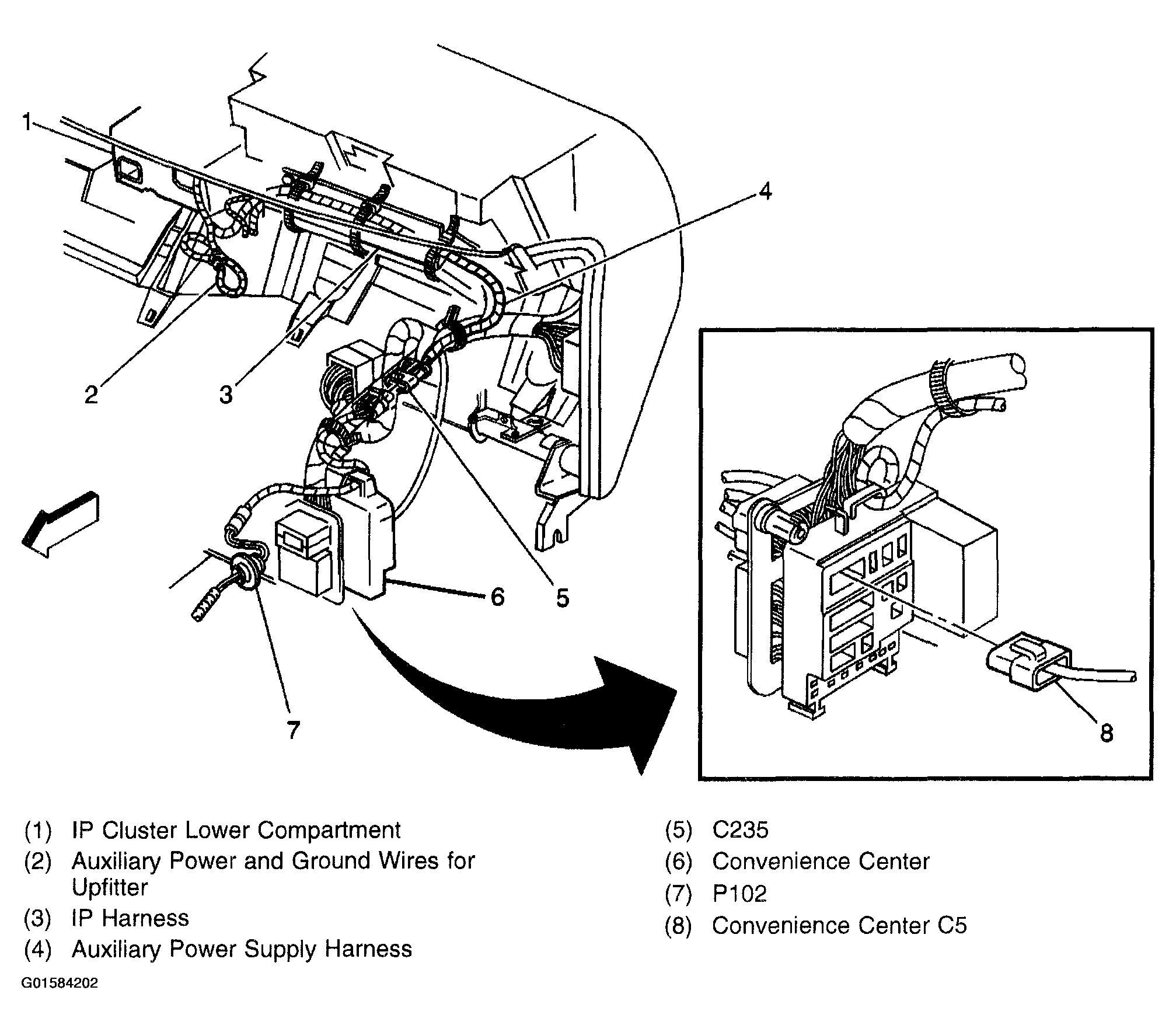

Fig 21: Auxiliary Power IP Wiring-9L4

G01584202

Courtesy of GENERAL MOTORS CORP.

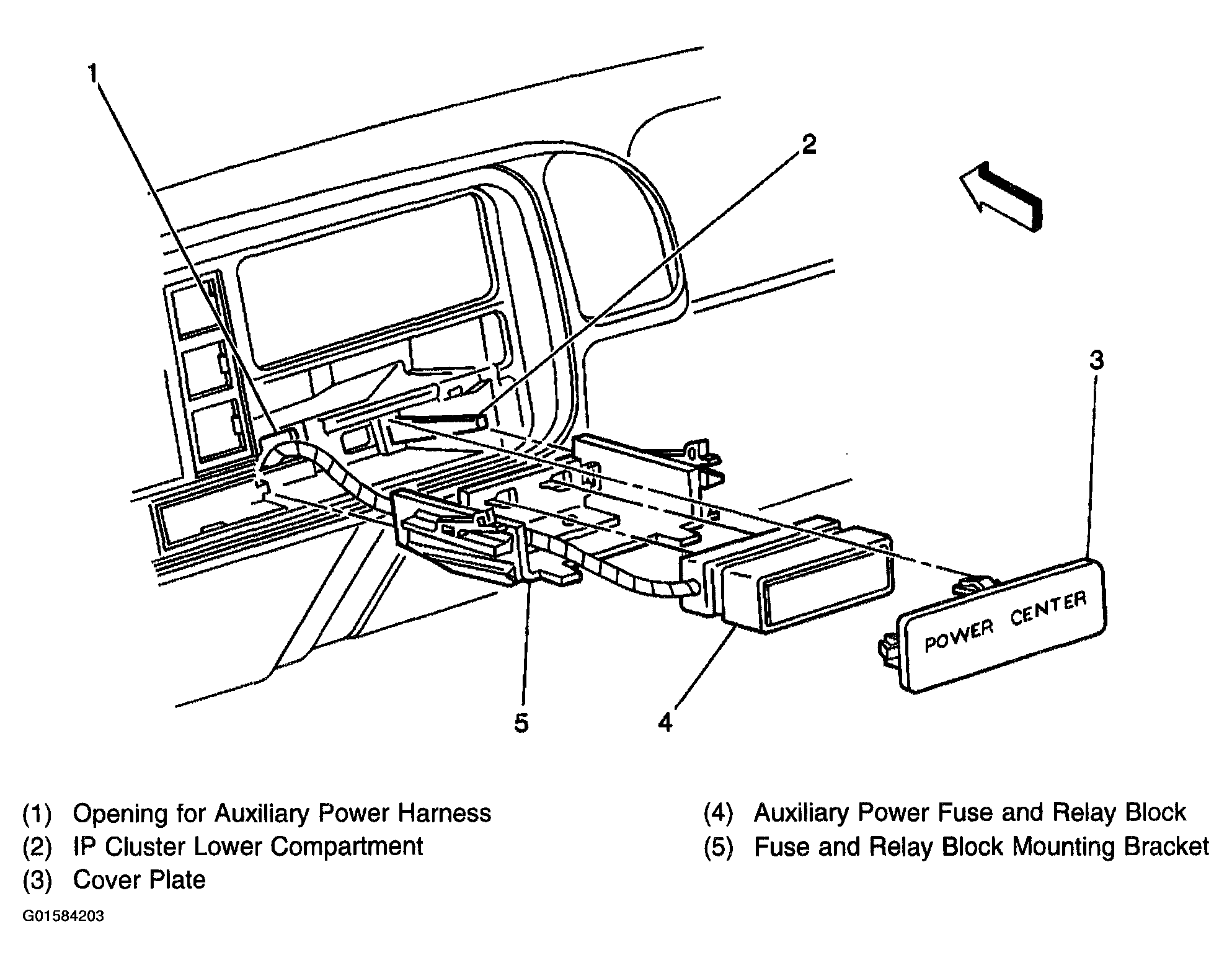

Fig 22: Auxiliary Power Fuse Block Mounting-9L4

G01584203

Courtesy of GENERAL MOTORS CORP.
