Master Electrical Component List

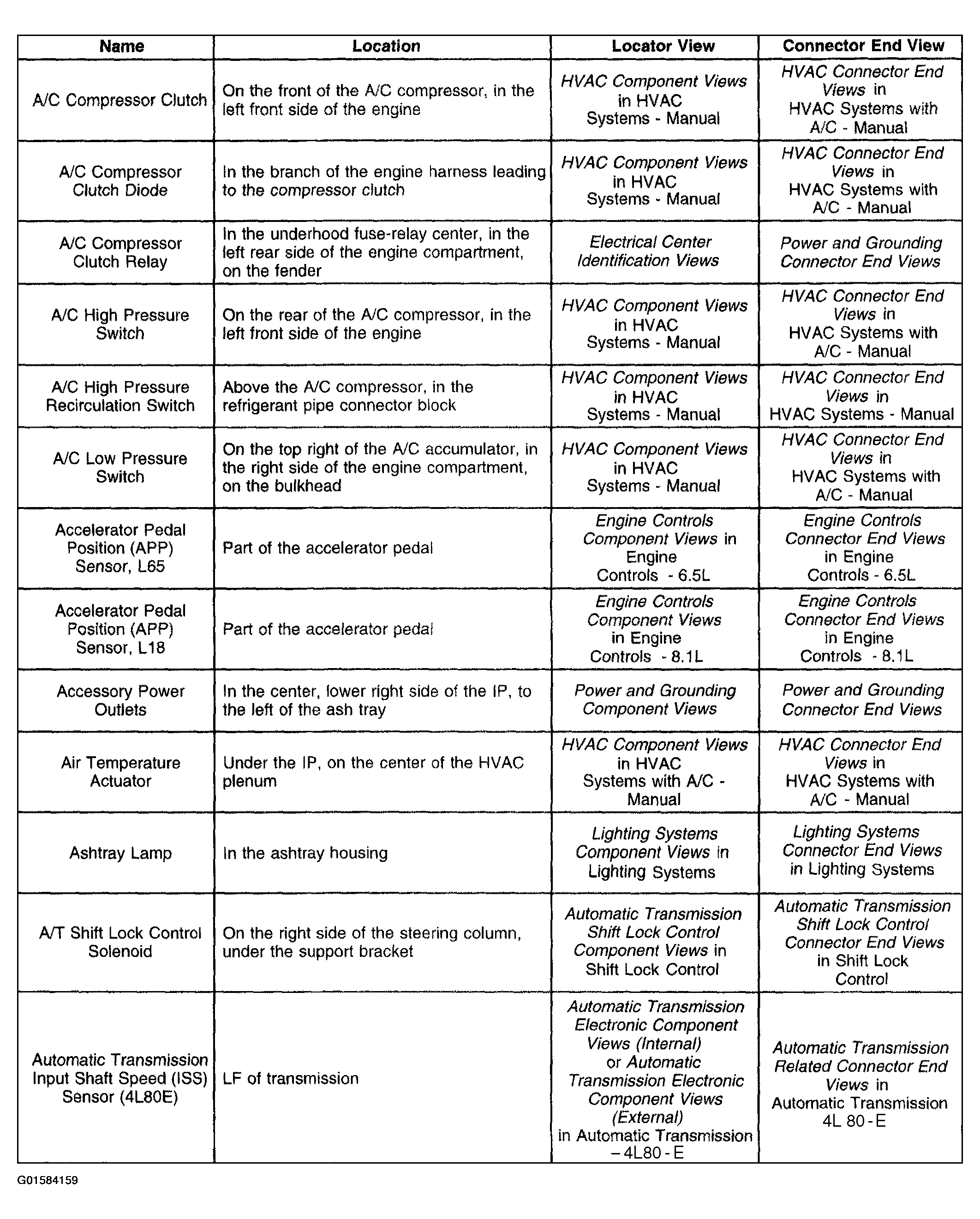

Fig 1: Master Electrical Component List (1 Of 23)

G01584159

Courtesy of GENERAL MOTORS CORP.

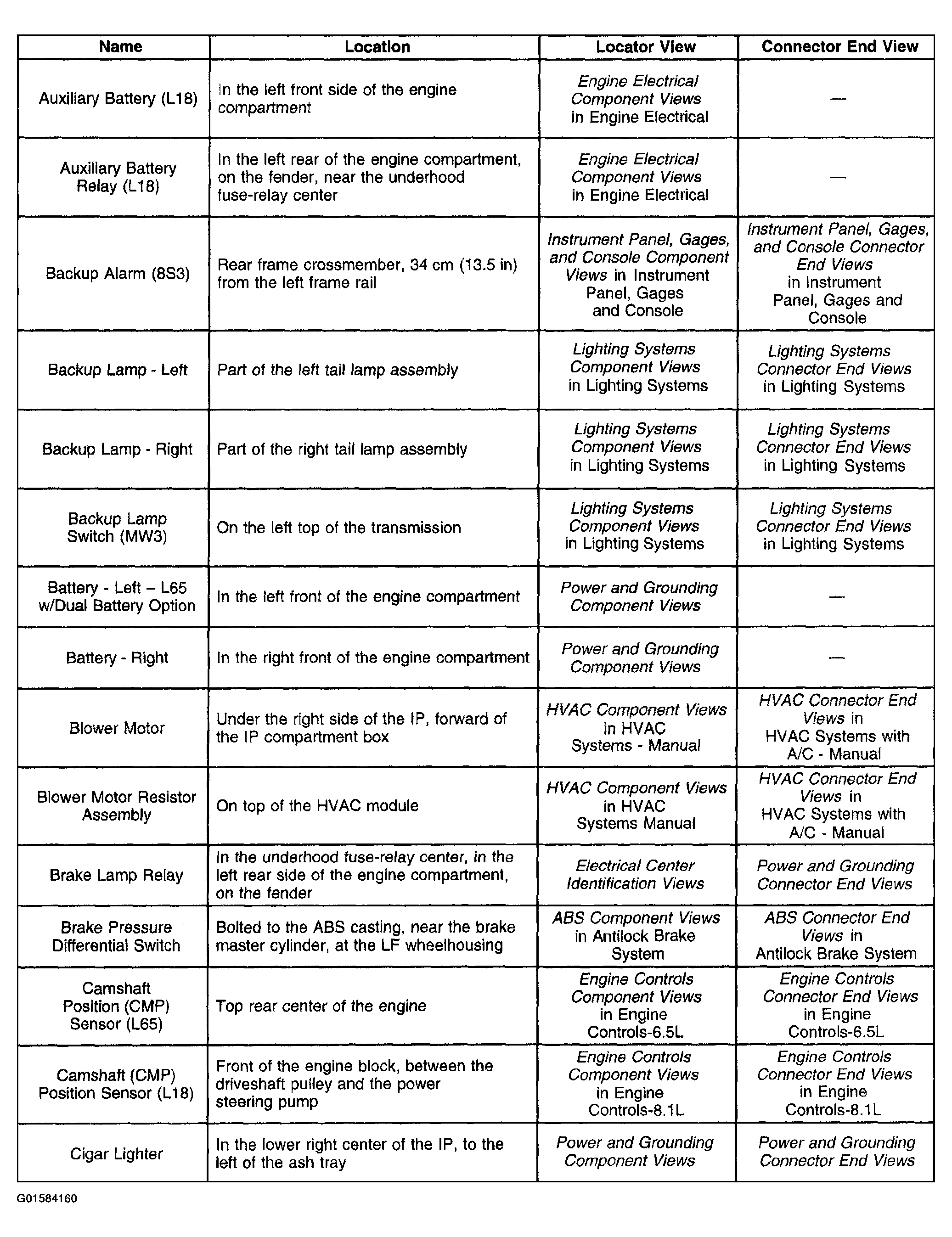

Fig 2: Master Electrical Component List (2 Of 23)

G01584160

Courtesy of GENERAL MOTORS CORP.

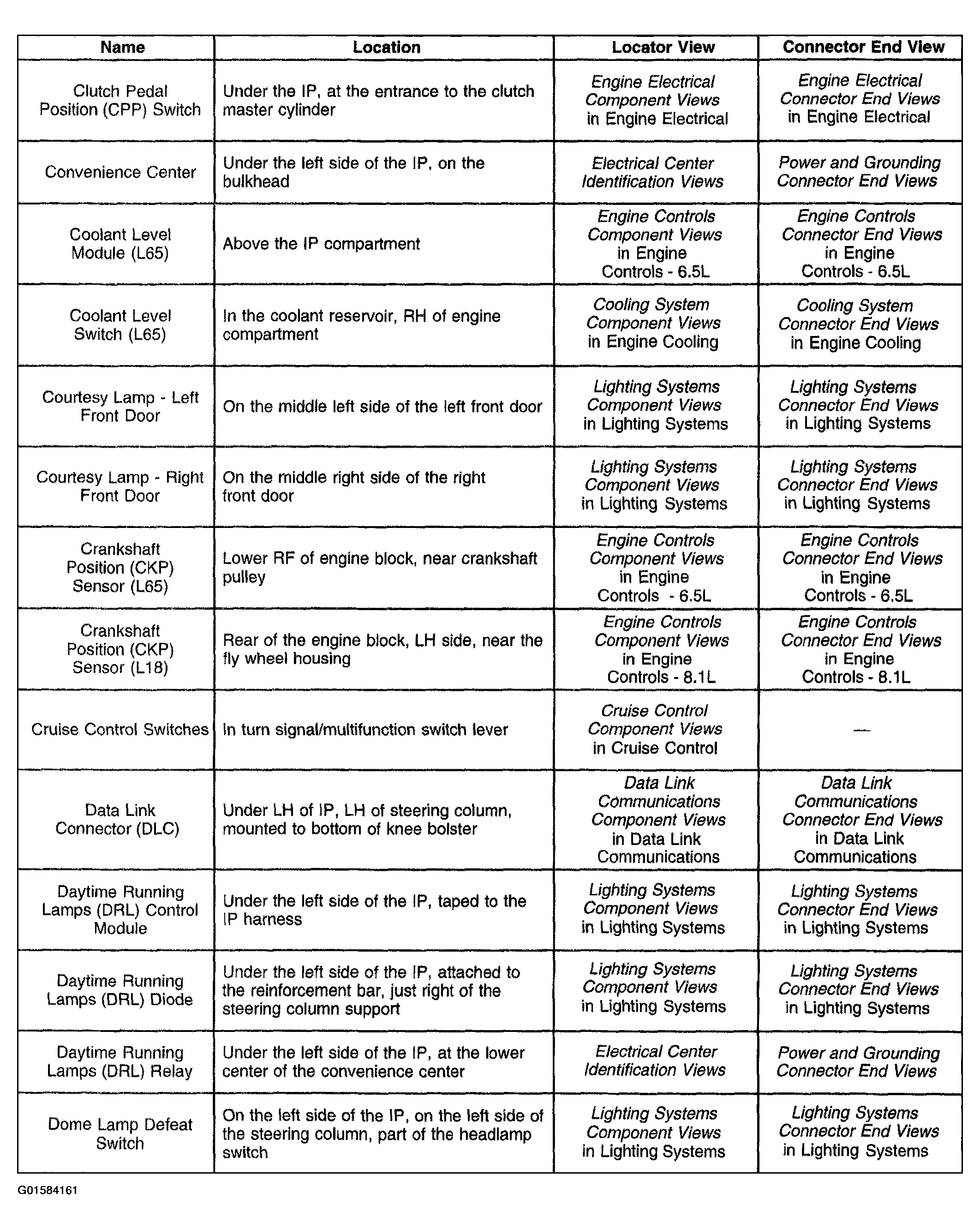

Fig 3: Master Electrical Component List (3 Of 23)

G01584161

Courtesy of GENERAL MOTORS CORP.

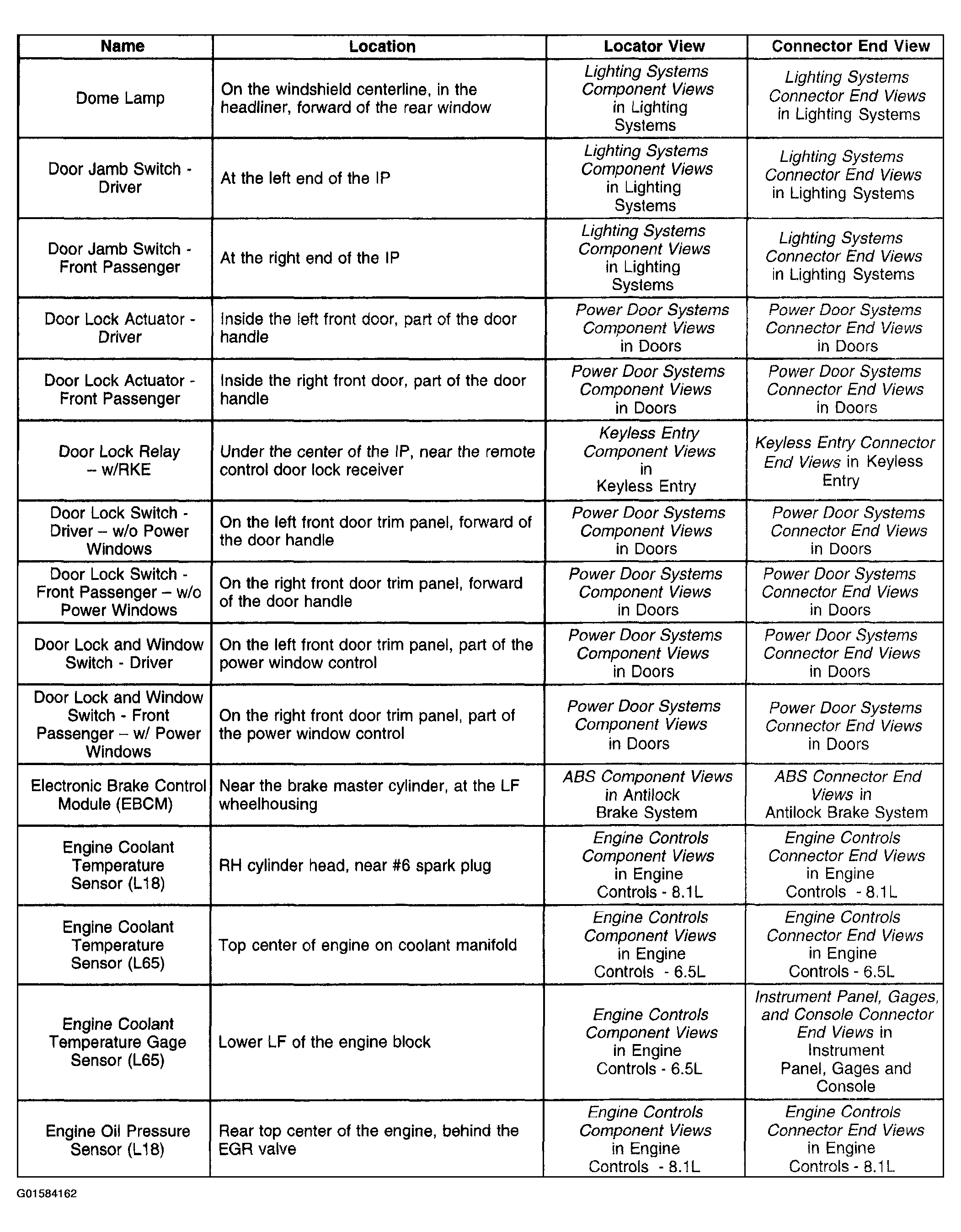

Fig 4: Master Electrical Component List (4 Of 23)

G01584162

Courtesy of GENERAL MOTORS CORP.

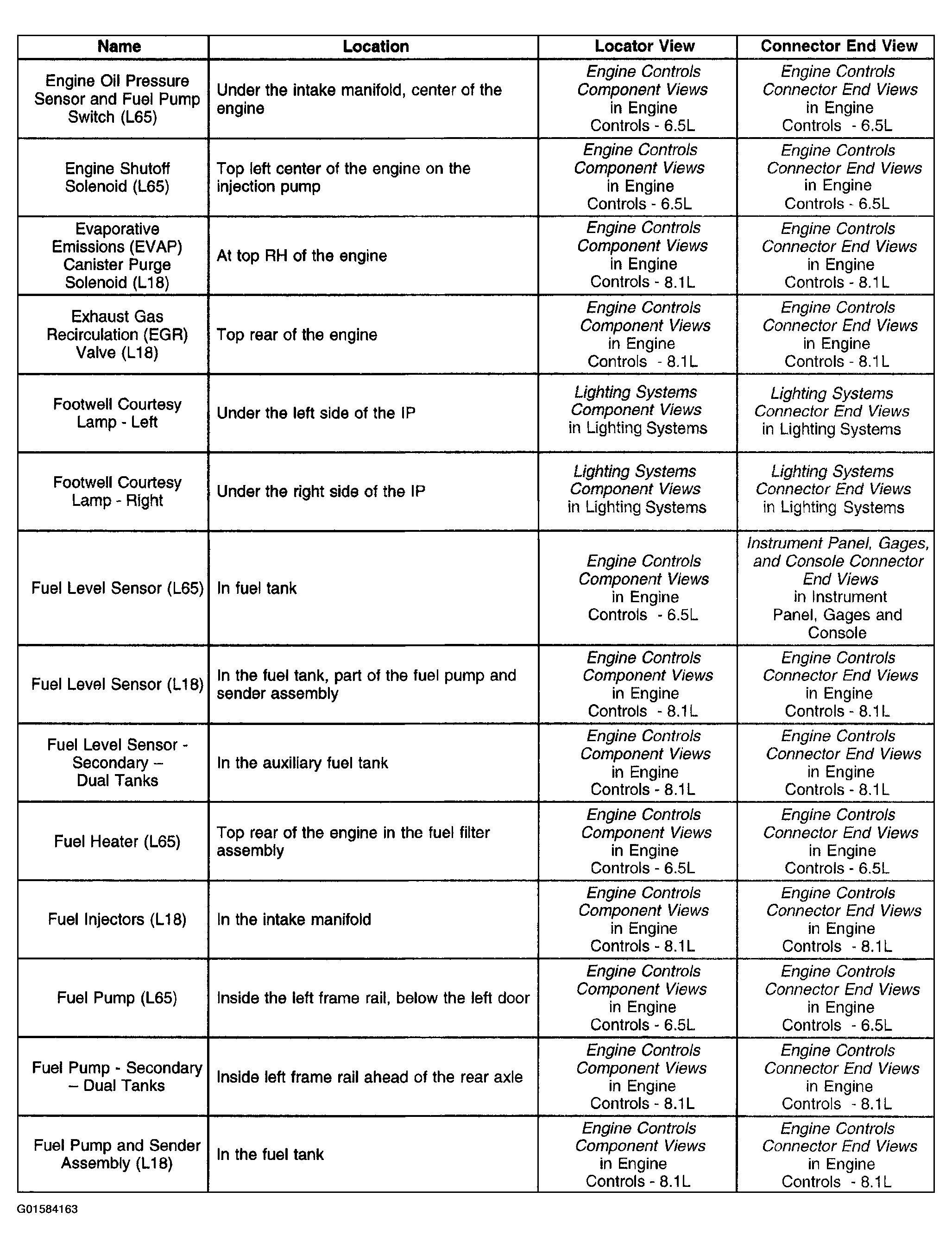

Fig 5: Master Electrical Component List (5 Of 23)

G01584163

Courtesy of GENERAL MOTORS CORP.

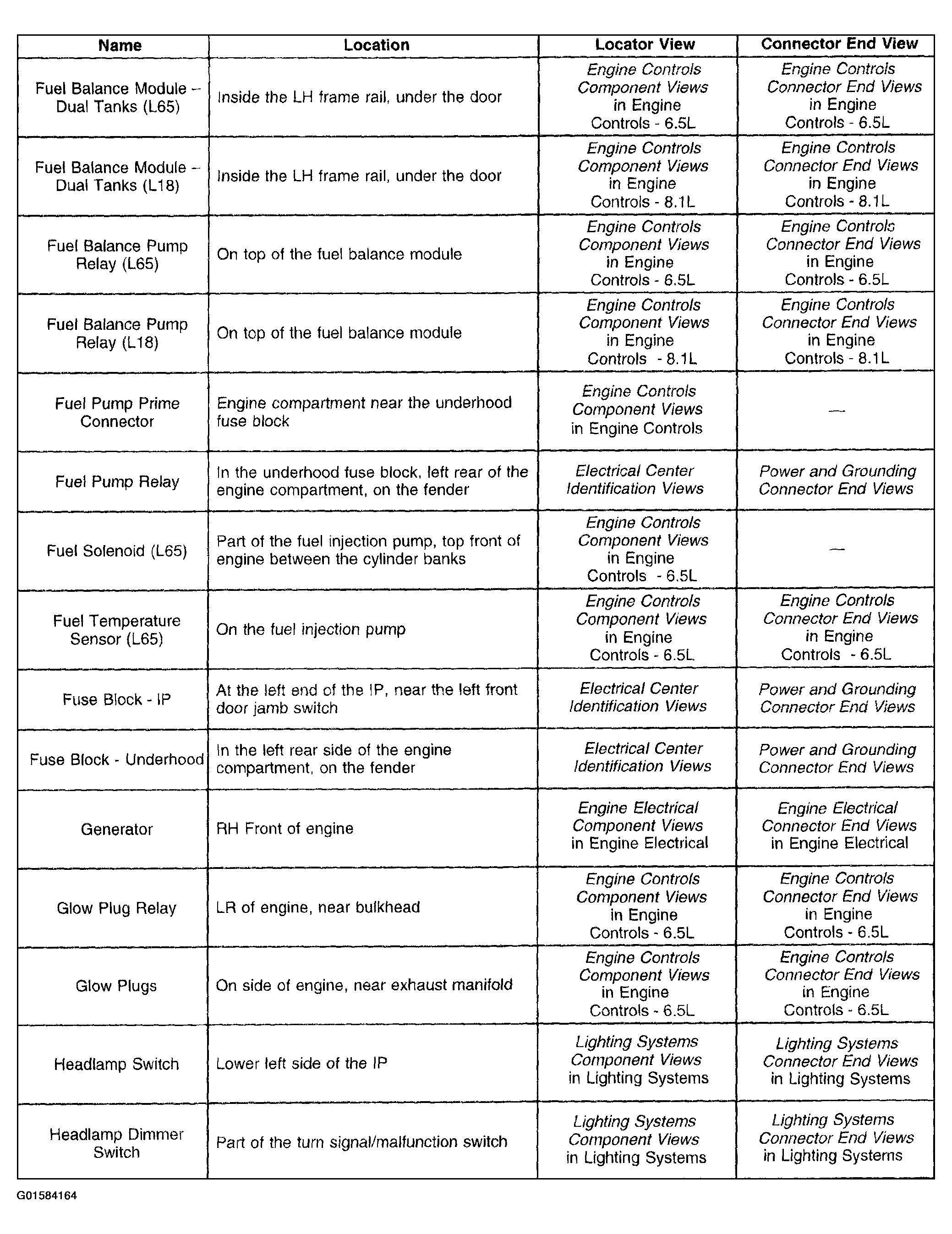

Fig 6: Master Electrical Component List (6 Of 23)

G01584164

Courtesy of GENERAL MOTORS CORP.

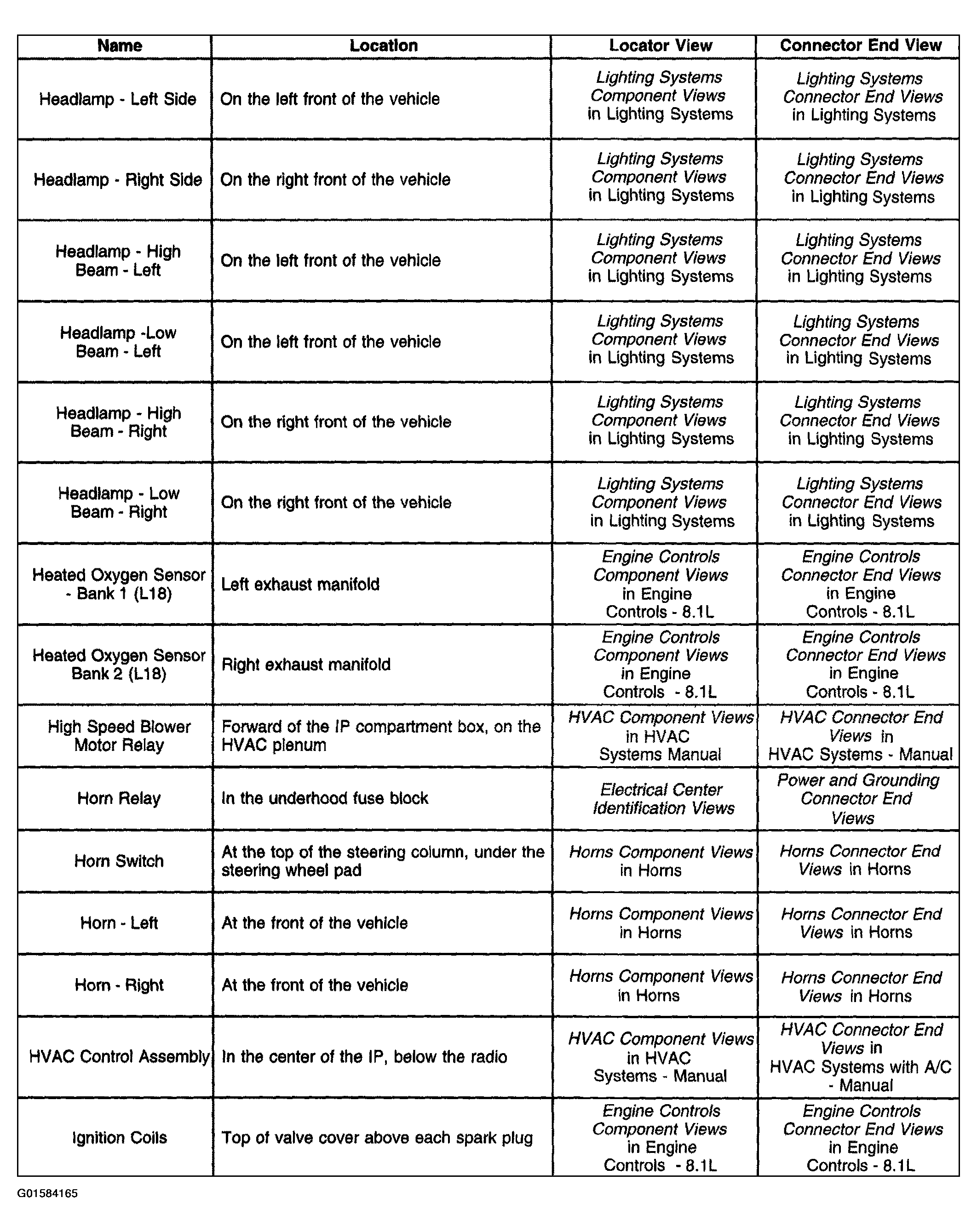

Fig 7: Master Electrical Component List (7 Of 23)

G01584165

Courtesy of GENERAL MOTORS CORP.

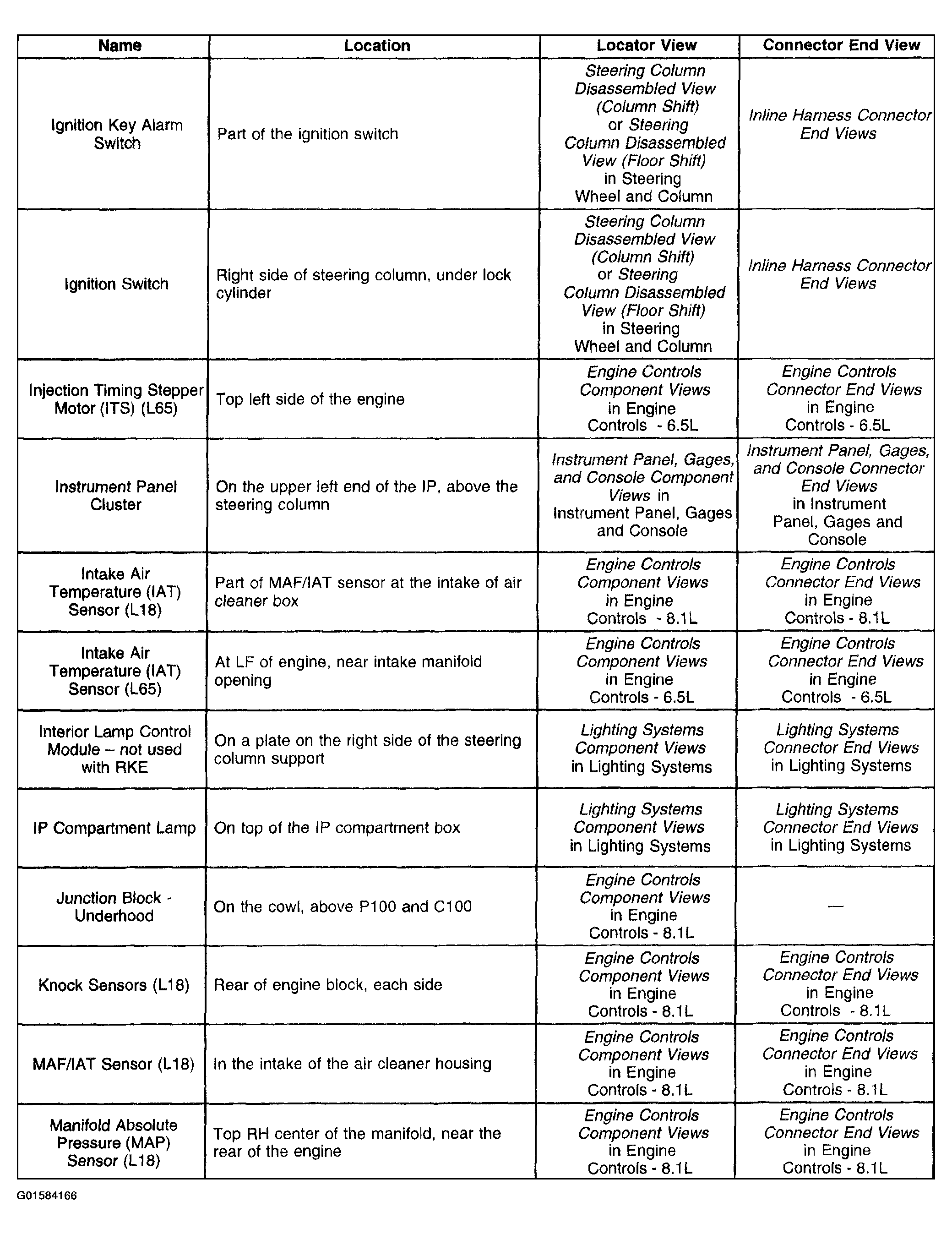

Fig 8: Master Electrical Component List (8 Of 23)

G01584166

Courtesy of GENERAL MOTORS CORP.

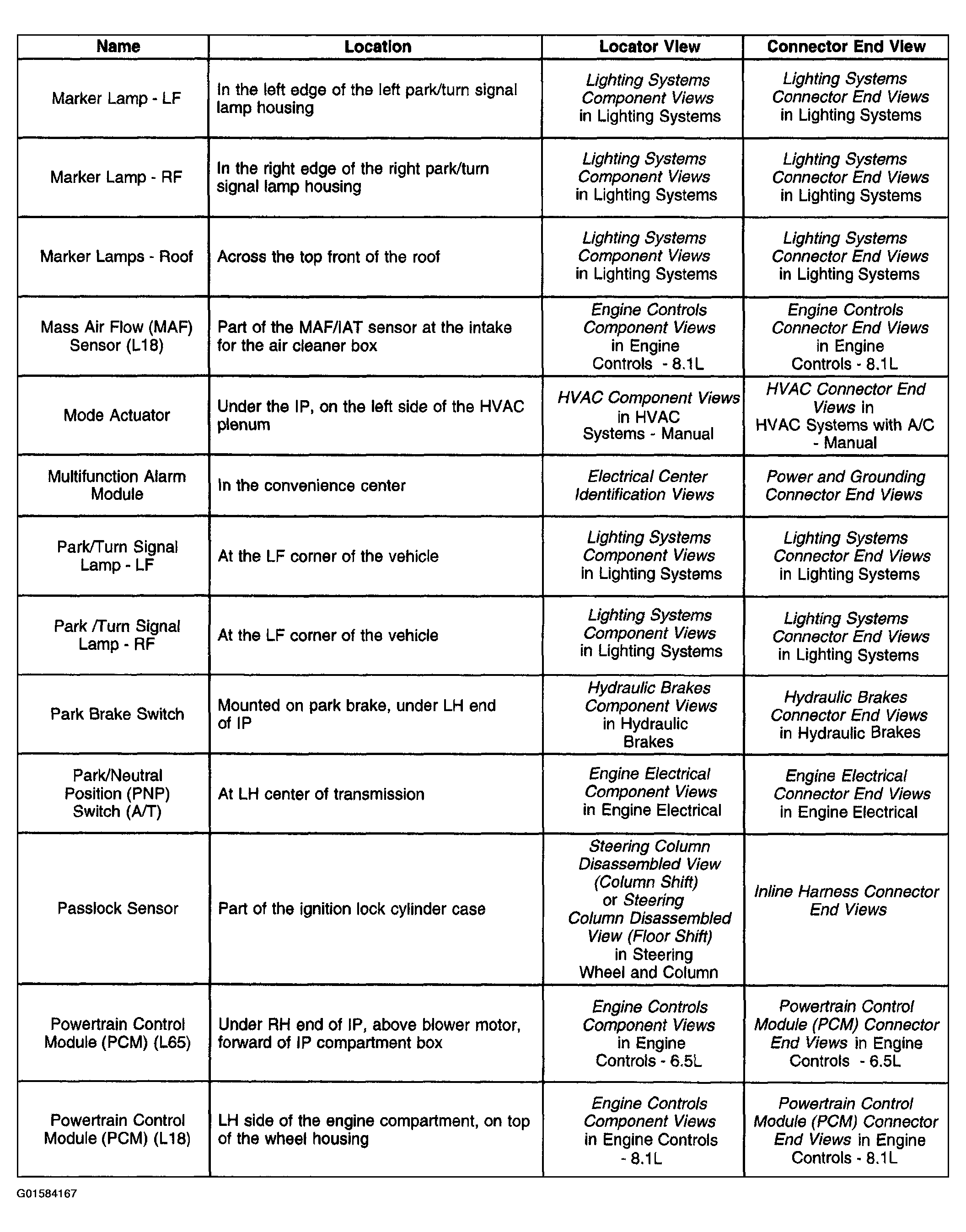

Fig 9: Master Electrical Component List (9 Of 23)

G01584167

Courtesy of GENERAL MOTORS CORP.

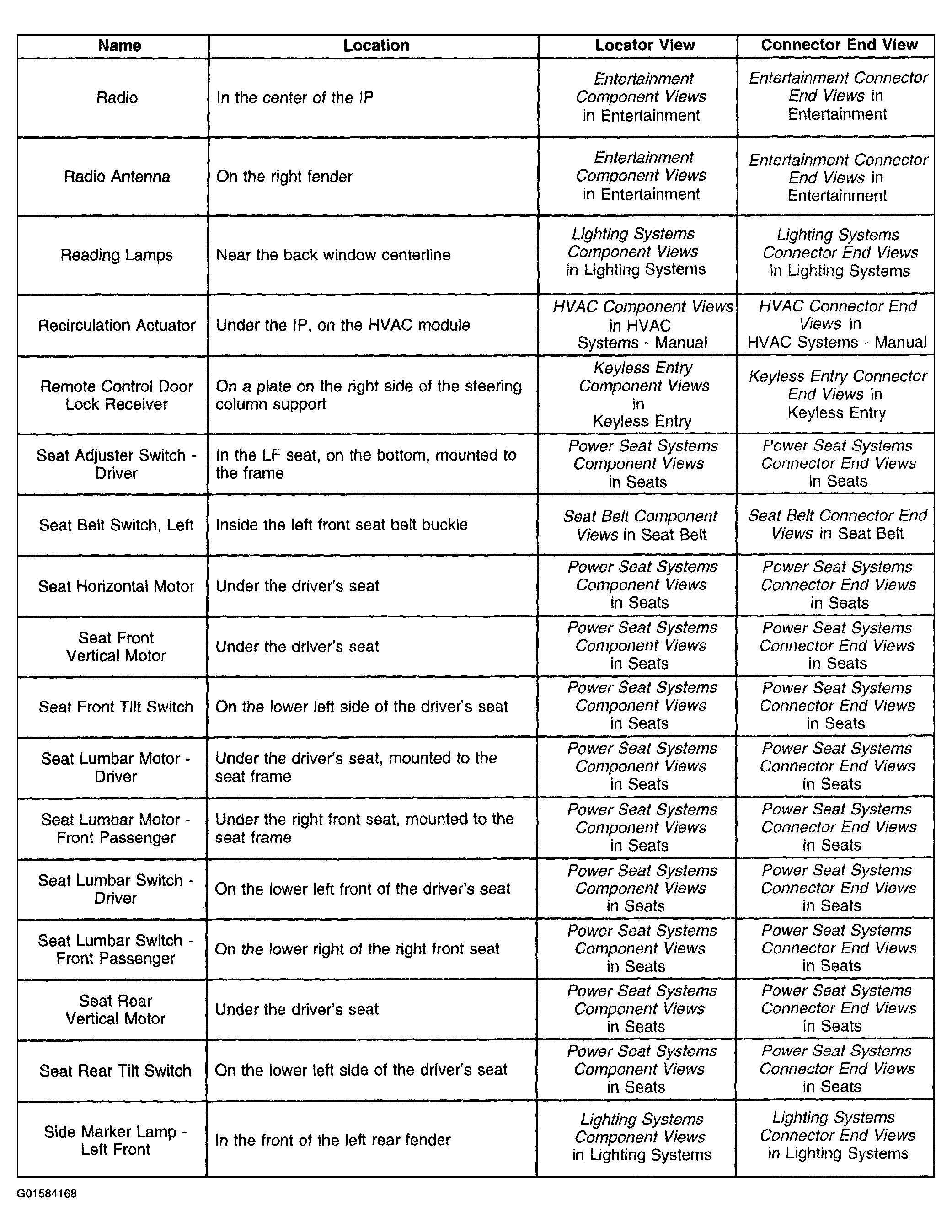

Fig 10: Master Electrical Component List (10 Of 23)

G01584168

Courtesy of GENERAL MOTORS CORP.

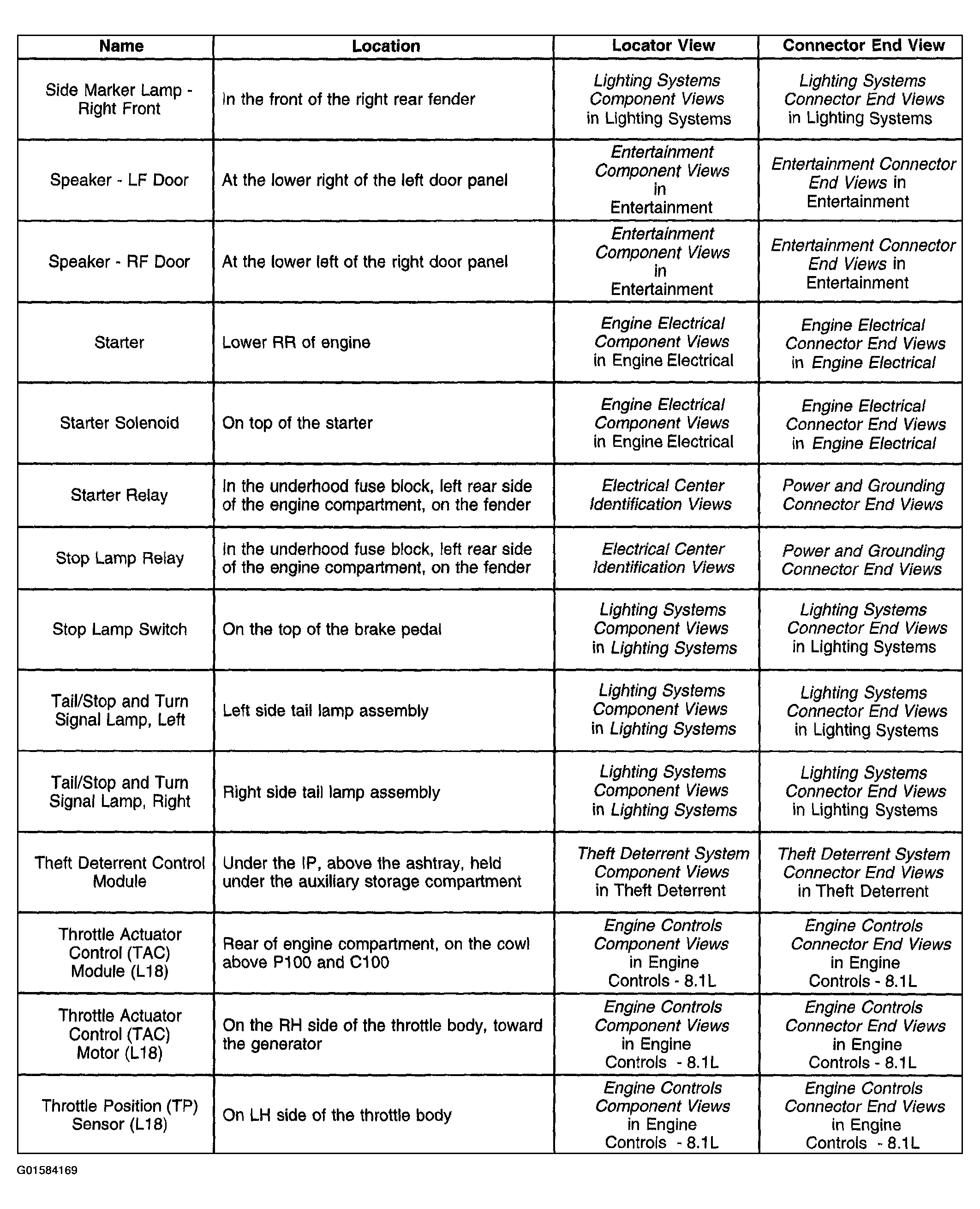

Fig 11: Master Electrical Component List (11 Of 23)

G01584169

Courtesy of GENERAL MOTORS CORP.

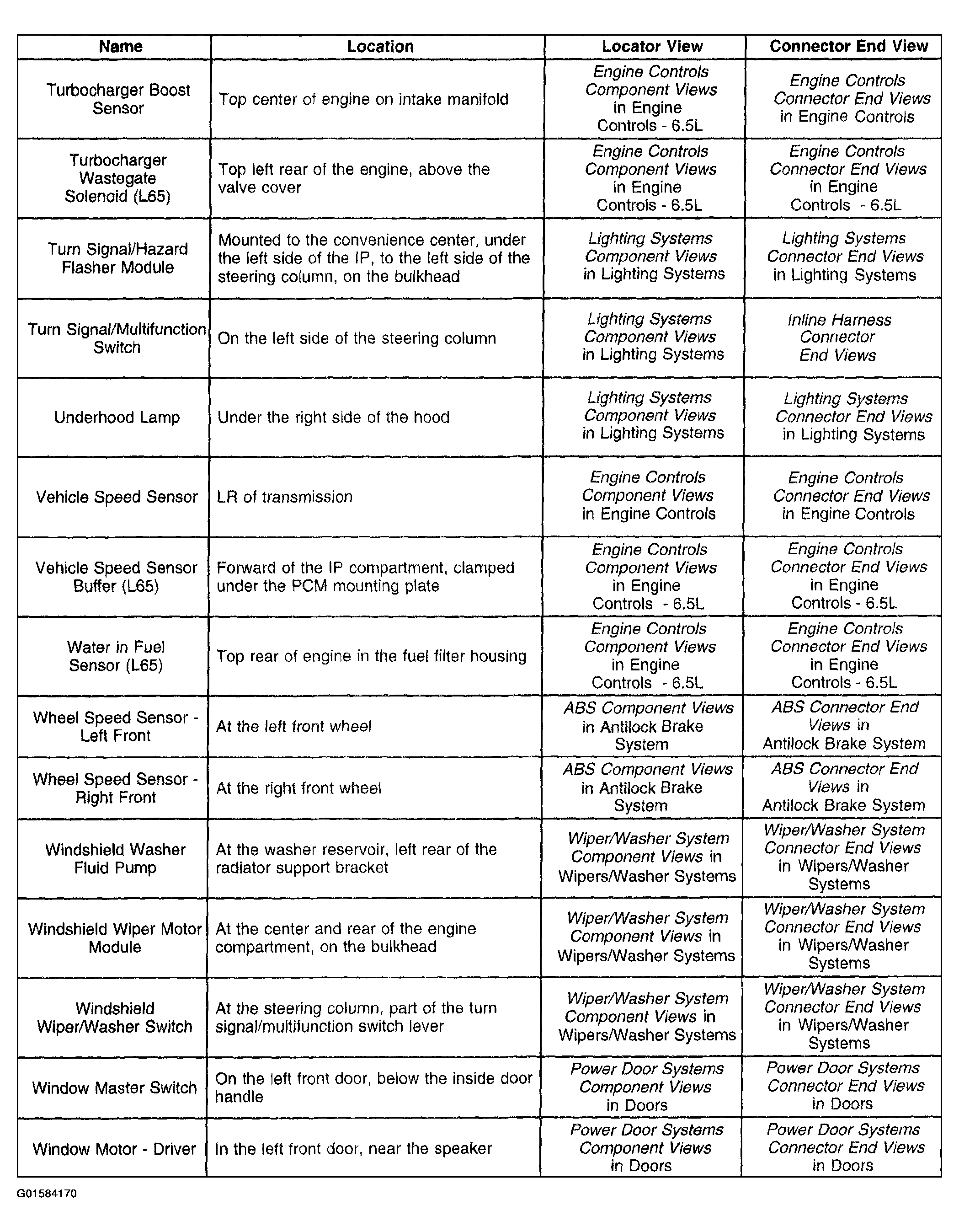

Fig 12: Master Electrical Component List (12 Of 23)

G01584170

Courtesy of GENERAL MOTORS CORP.

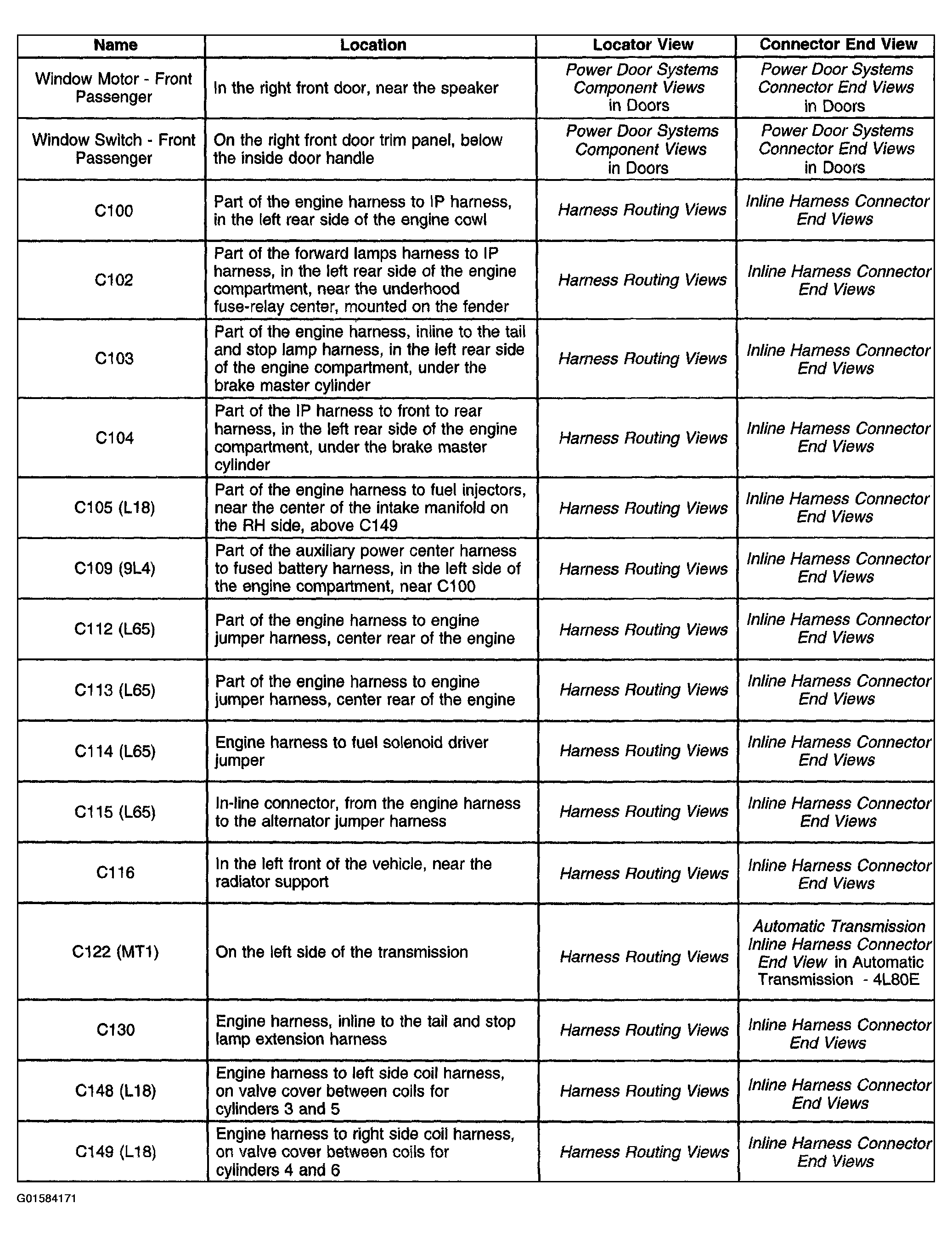

Fig 13: Master Electrical Component List (13 Of 23)

G01584171

Courtesy of GENERAL MOTORS CORP.

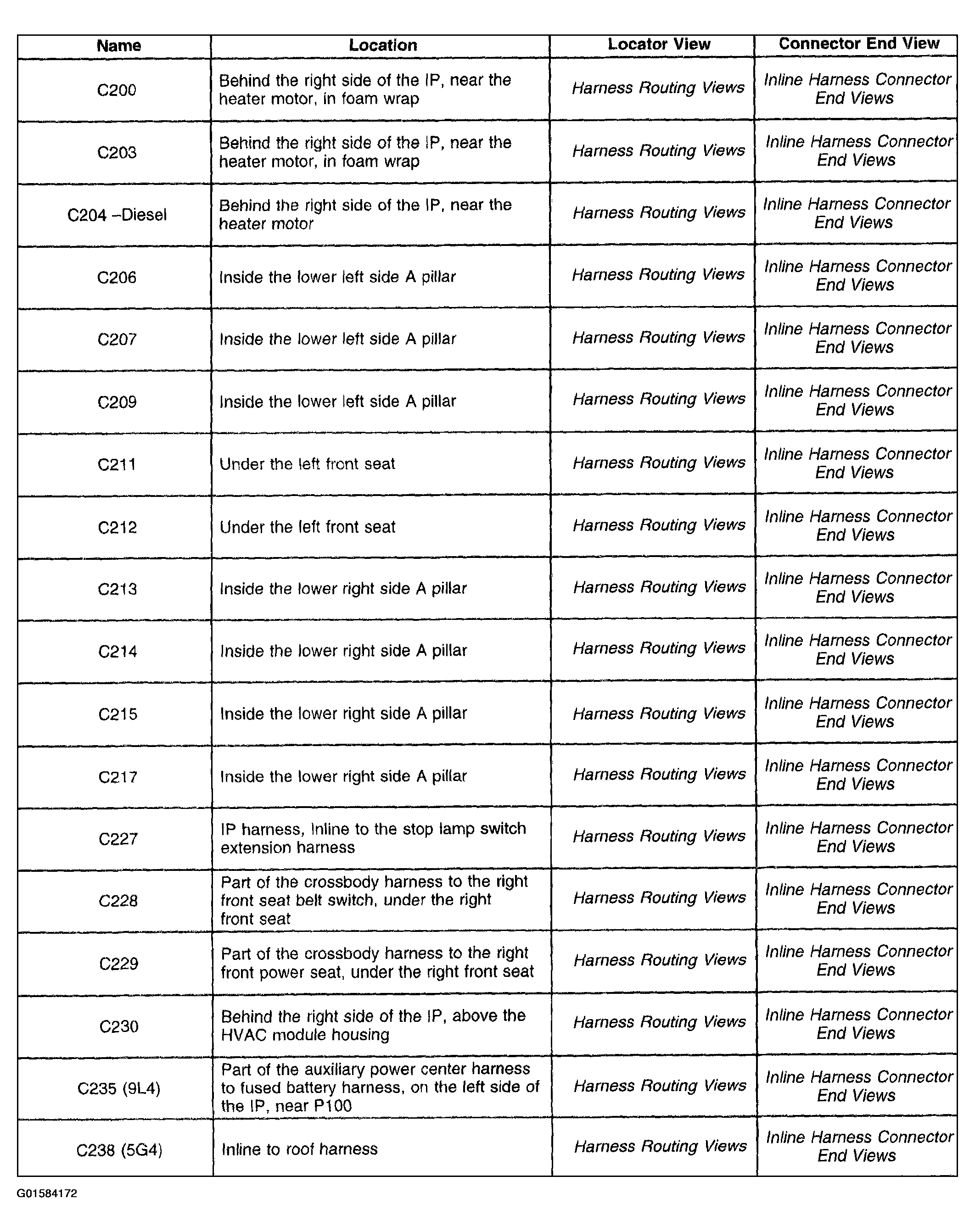

Fig 14: Master Electrical Component List (14 Of 23)

G01584172

Courtesy of GENERAL MOTORS CORP.

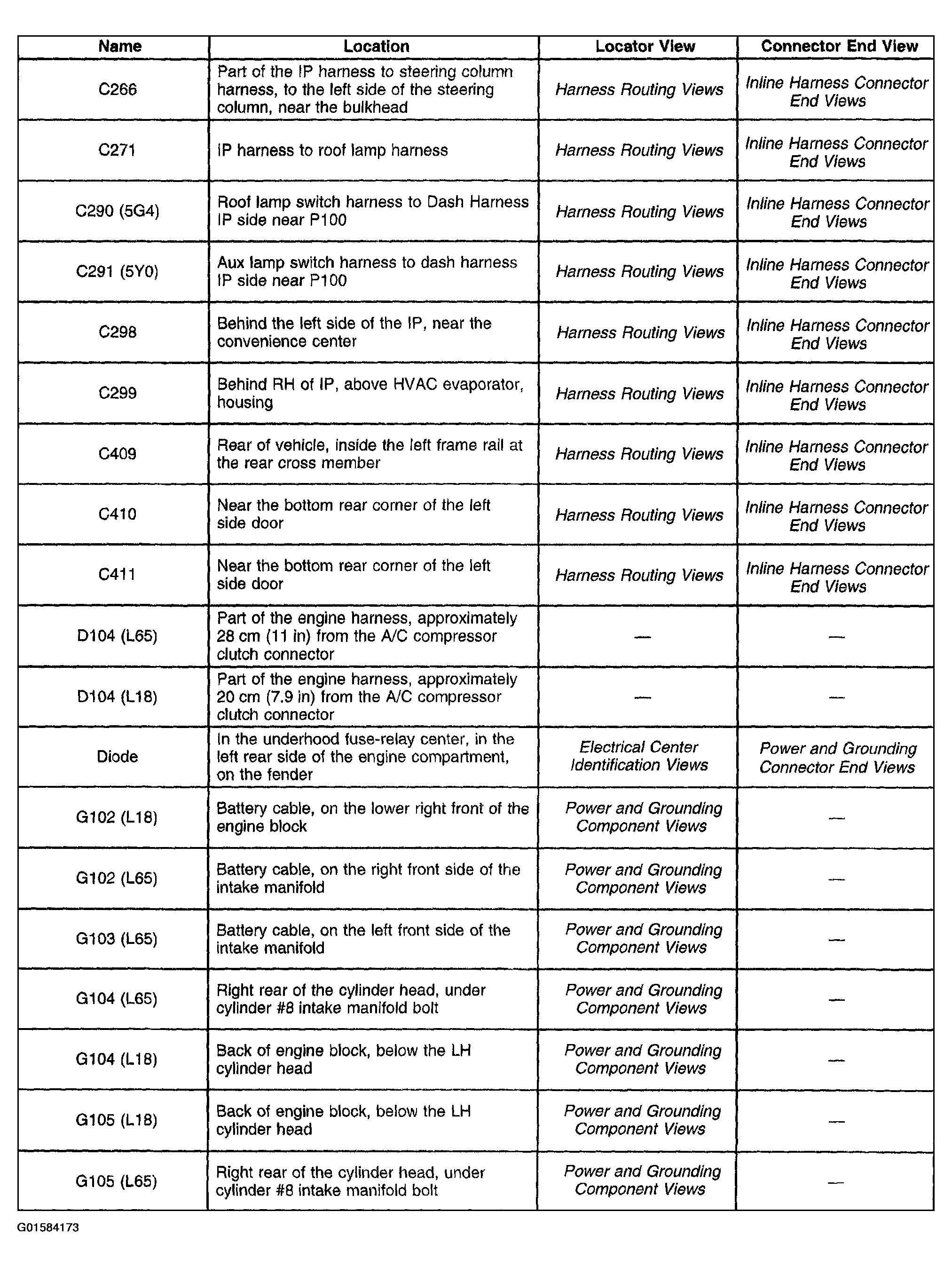

Fig 15: Master Electrical Component List (15 Of 23)

G01584173

Courtesy of GENERAL MOTORS CORP.

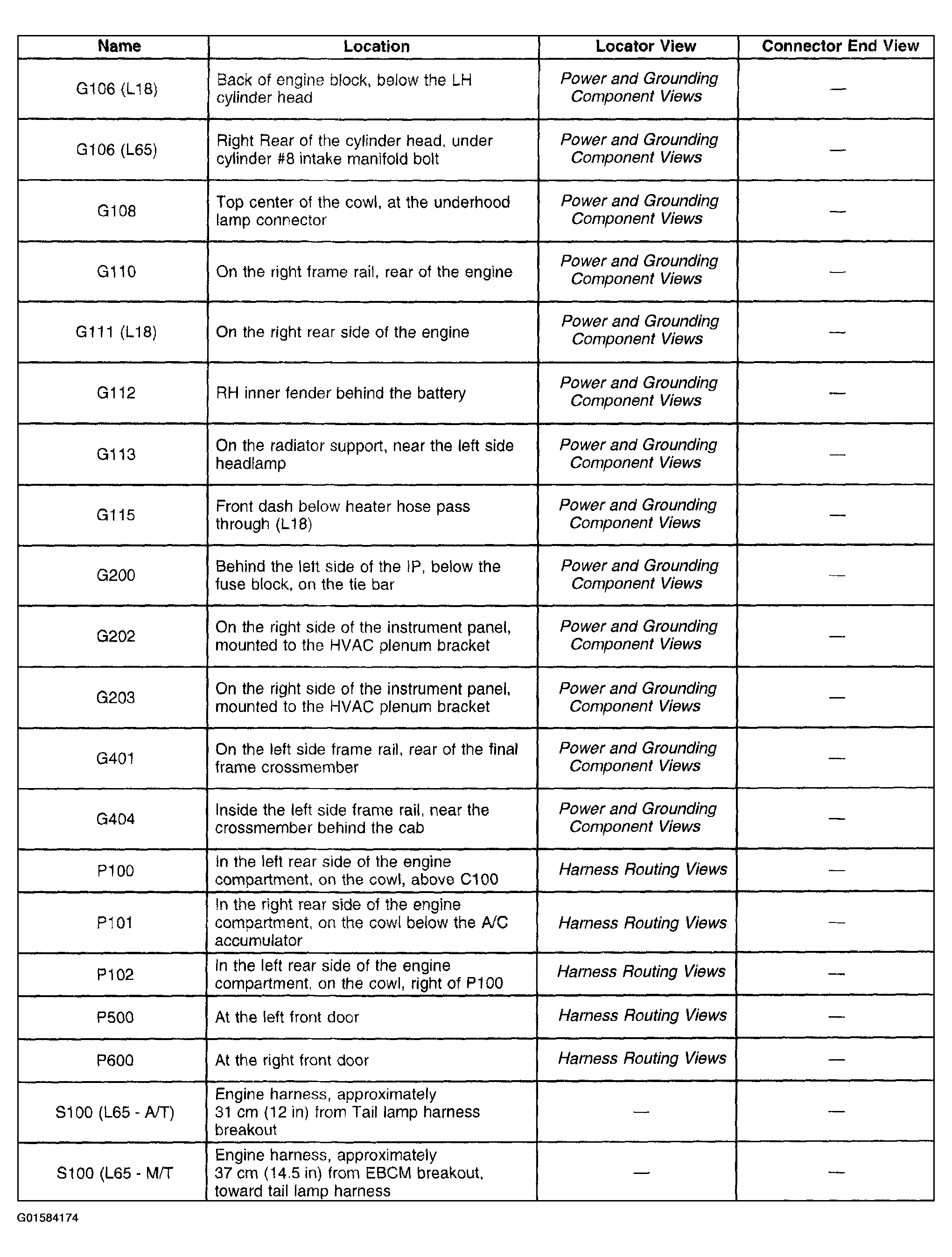

Fig 16: Master Electrical Component List (16 Of 23)

G01584174

Courtesy of GENERAL MOTORS CORP.

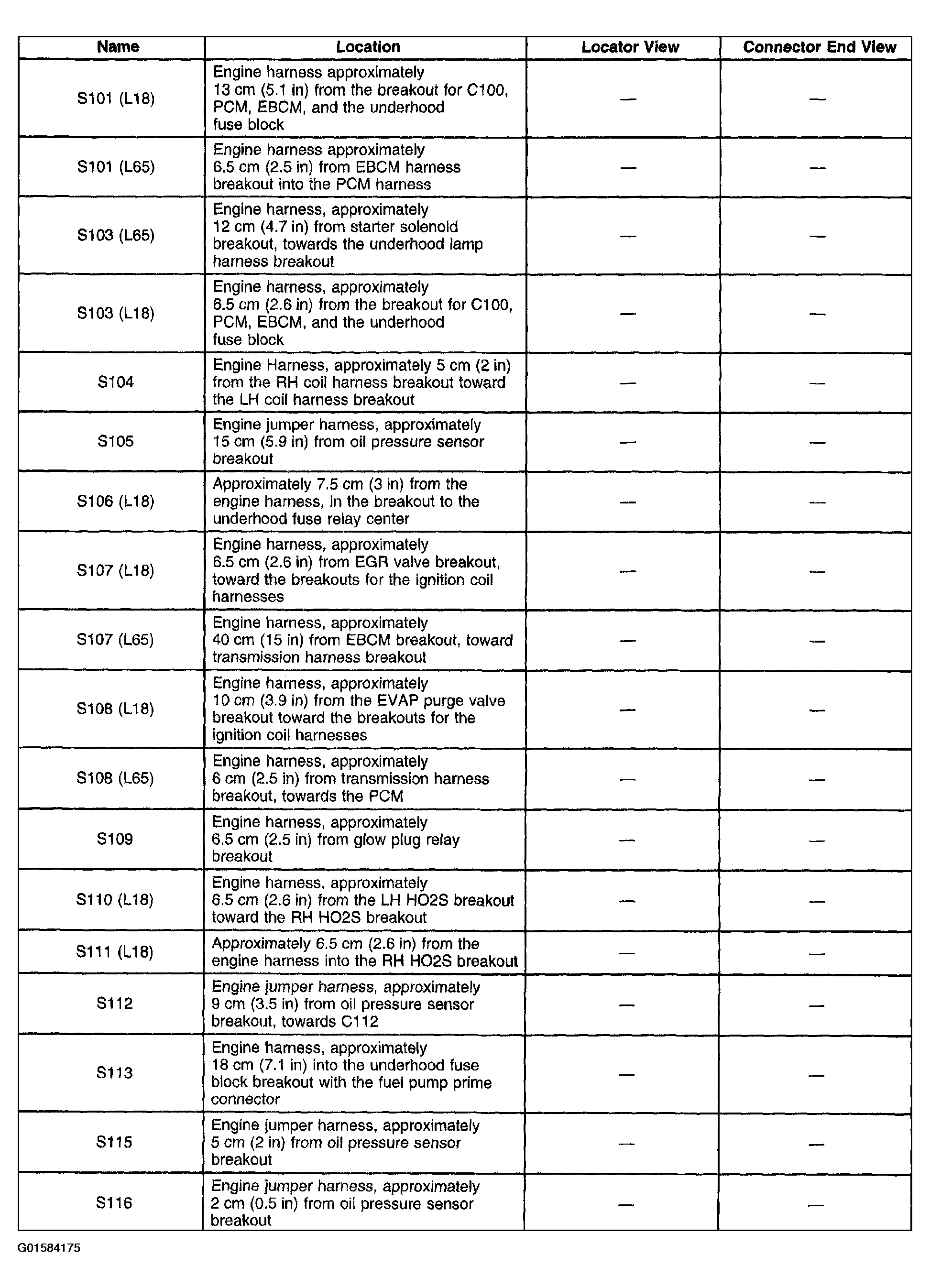

Fig 17: Master Electrical Component List (17 Of 23)

G01584175

Courtesy of GENERAL MOTORS CORP.

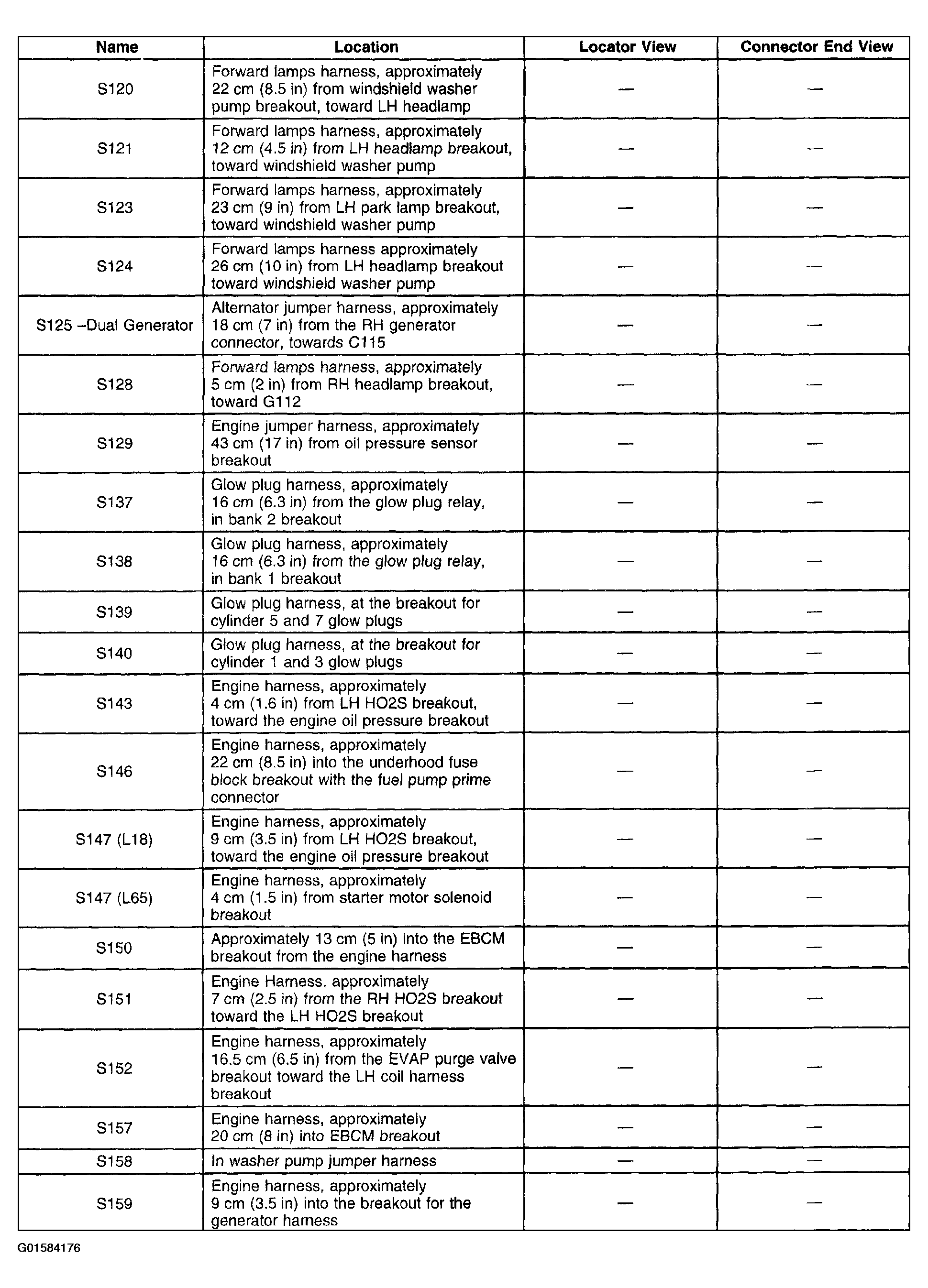

Fig 18: Master Electrical Component List (18 Of 23)

G01584176

Courtesy of GENERAL MOTORS CORP.

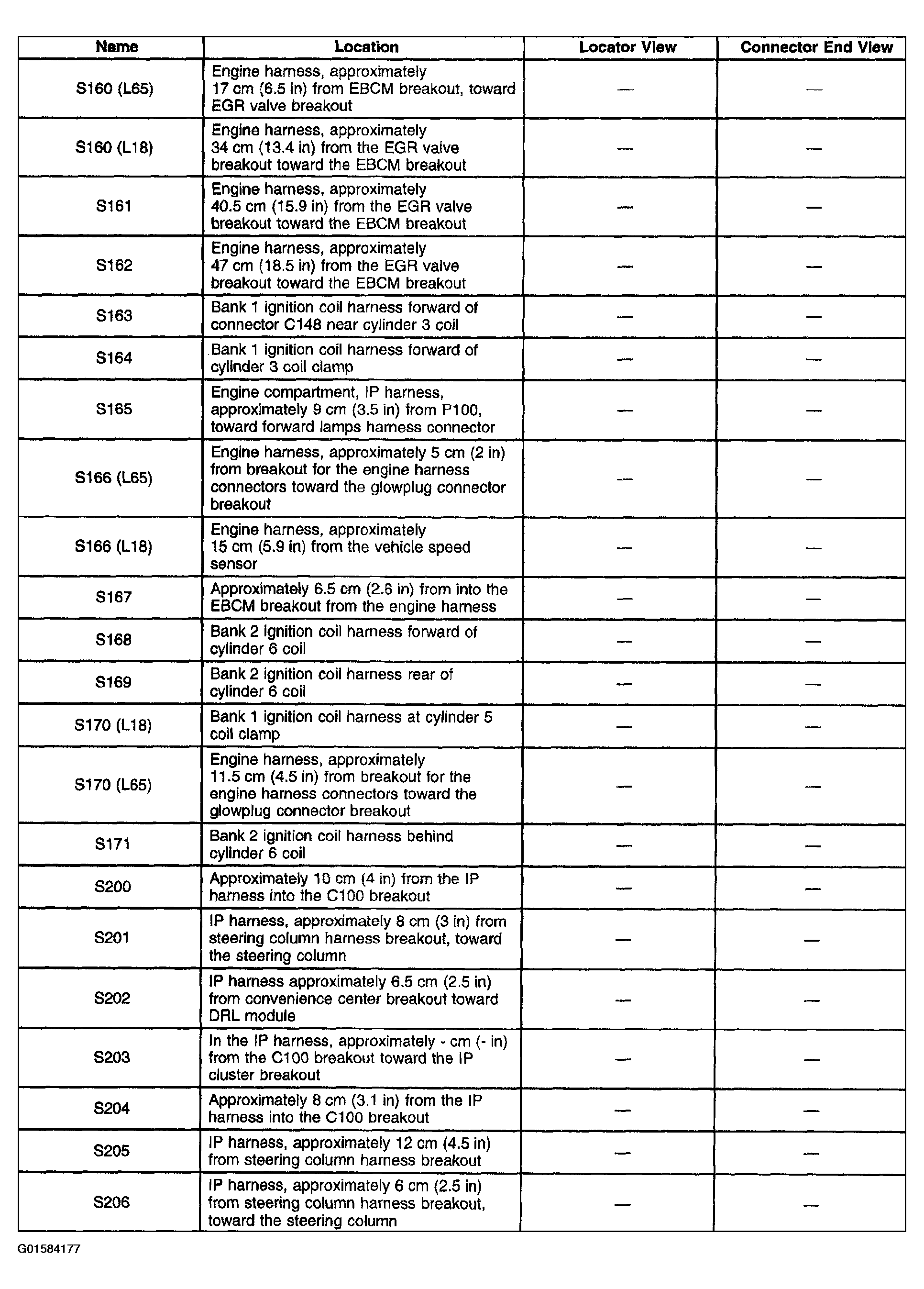

Fig 19: Master Electrical Component List (19 Of 23)

G01584177

Courtesy of GENERAL MOTORS CORP.

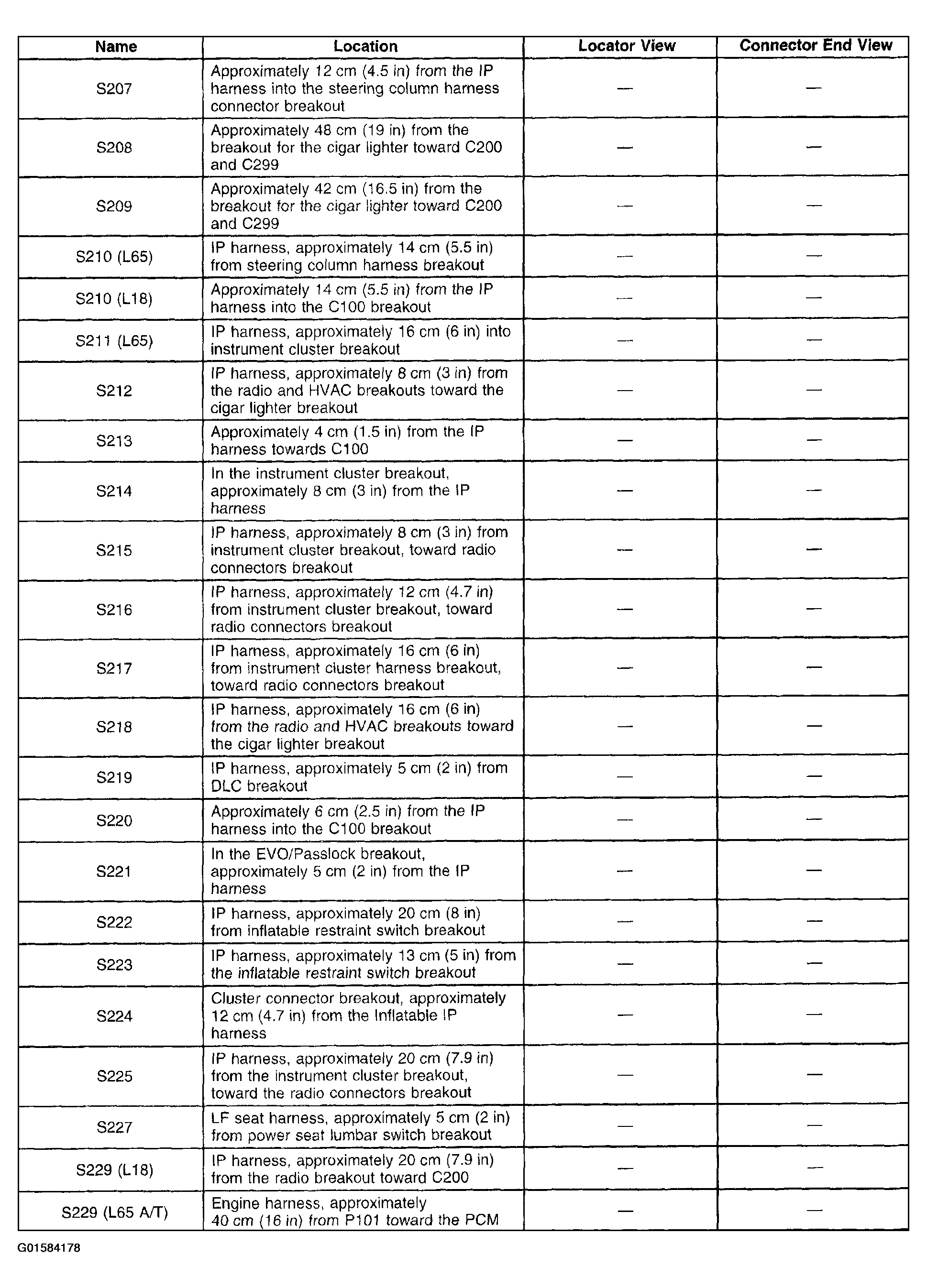

Fig 20: Master Electrical Component List (20 Of 23)

G01584178

Courtesy of GENERAL MOTORS CORP.

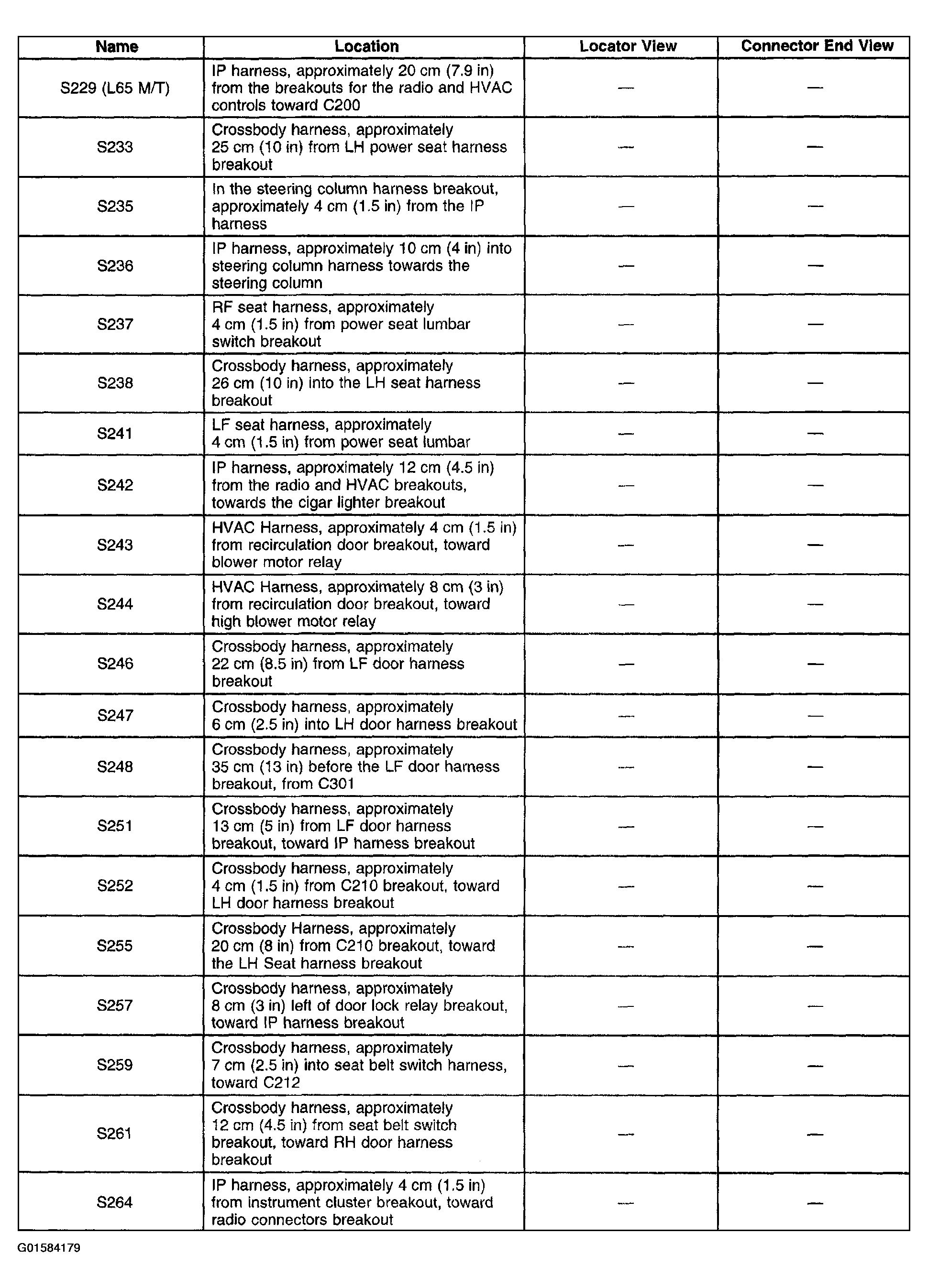

Fig 21: Master Electrical Component List (21 Of 23)

G01584179

Courtesy of GENERAL MOTORS CORP.

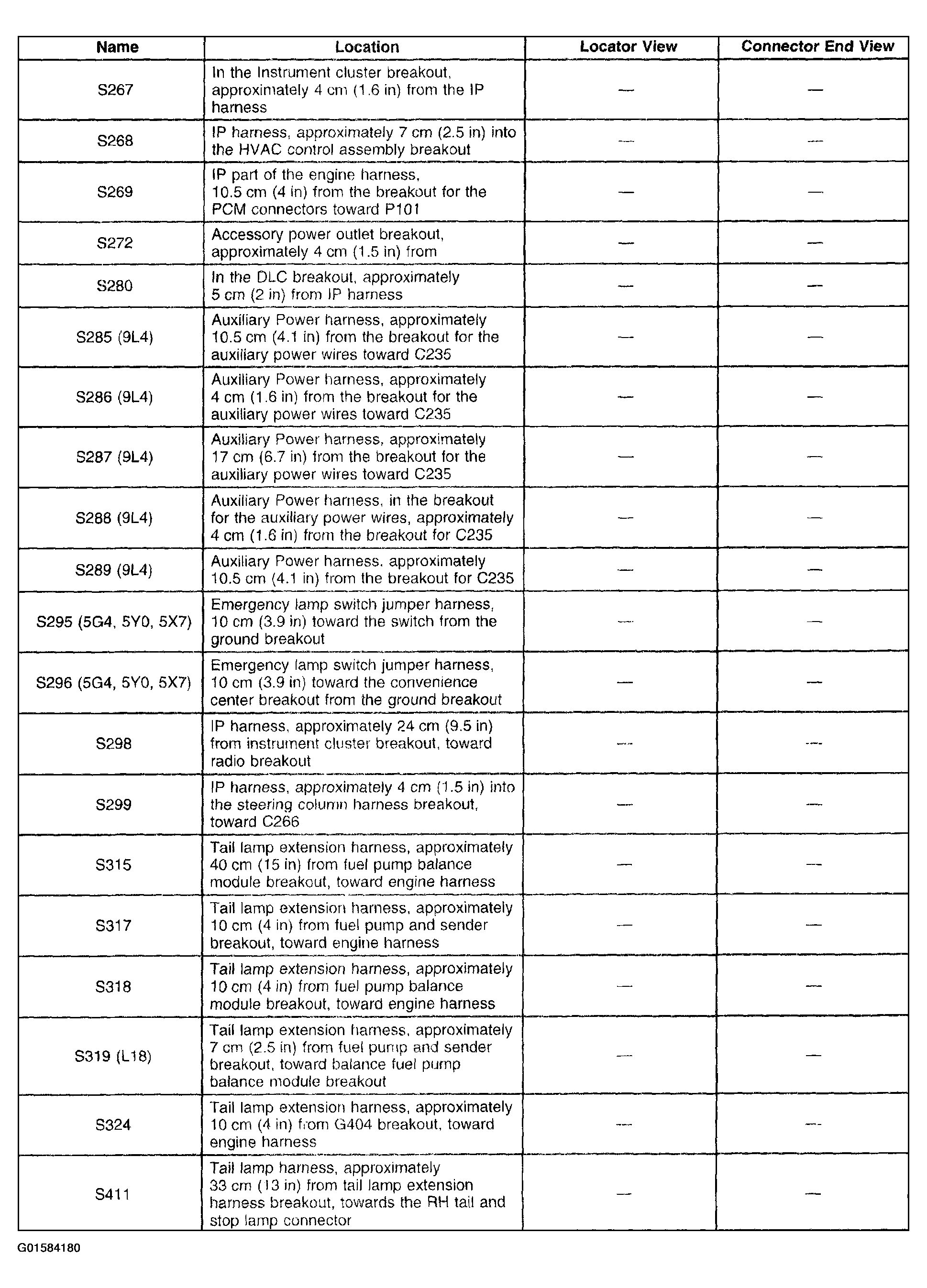

Fig 22: Master Electrical Component List (22 Of 23)

G01584180

Courtesy of GENERAL MOTORS CORP.

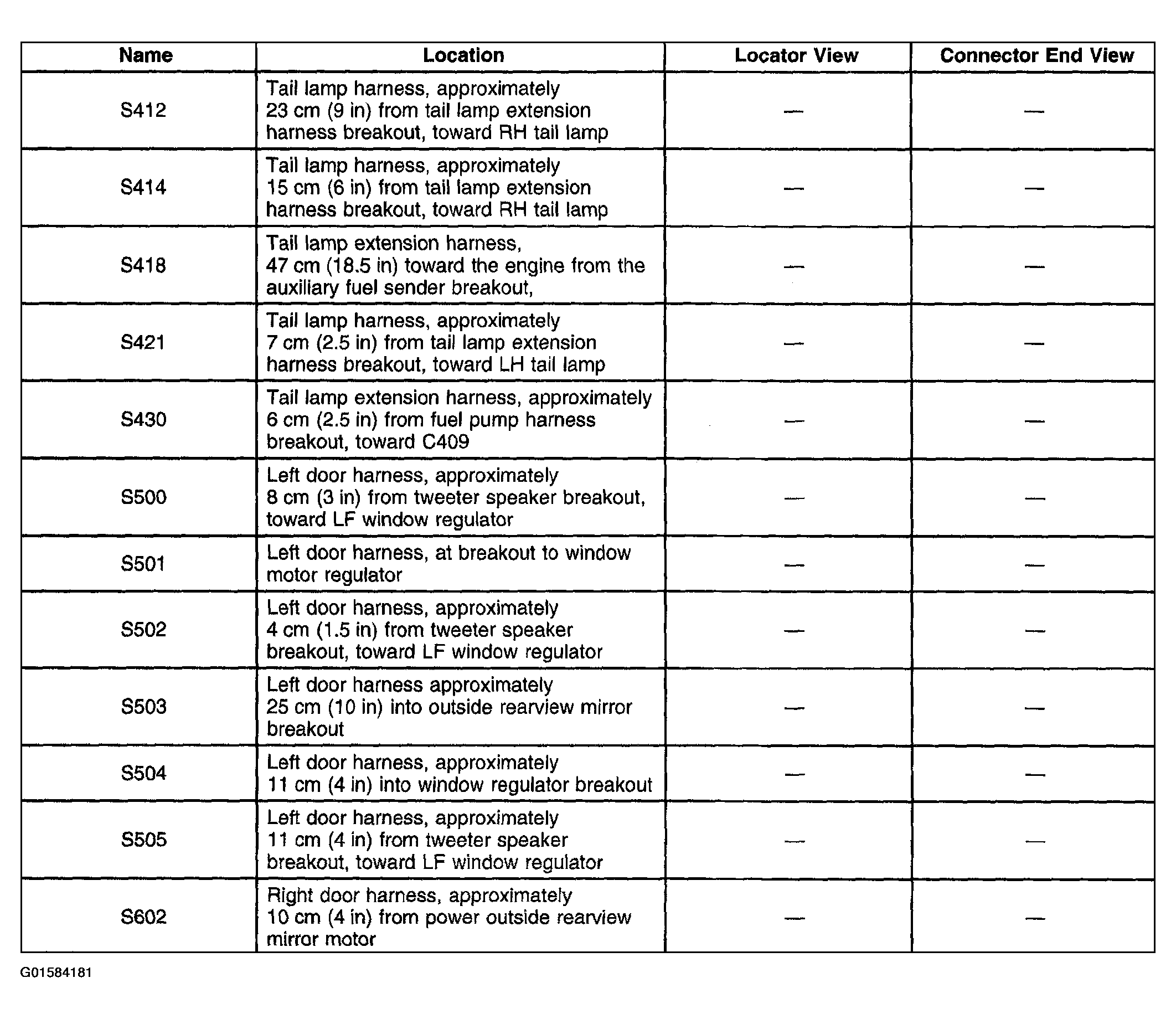

Fig 23: Master Electrical Component List (23 Of 23)

G01584181

Courtesy of GENERAL MOTORS CORP.
