Horns Connector End Views
Horns Connector End Views

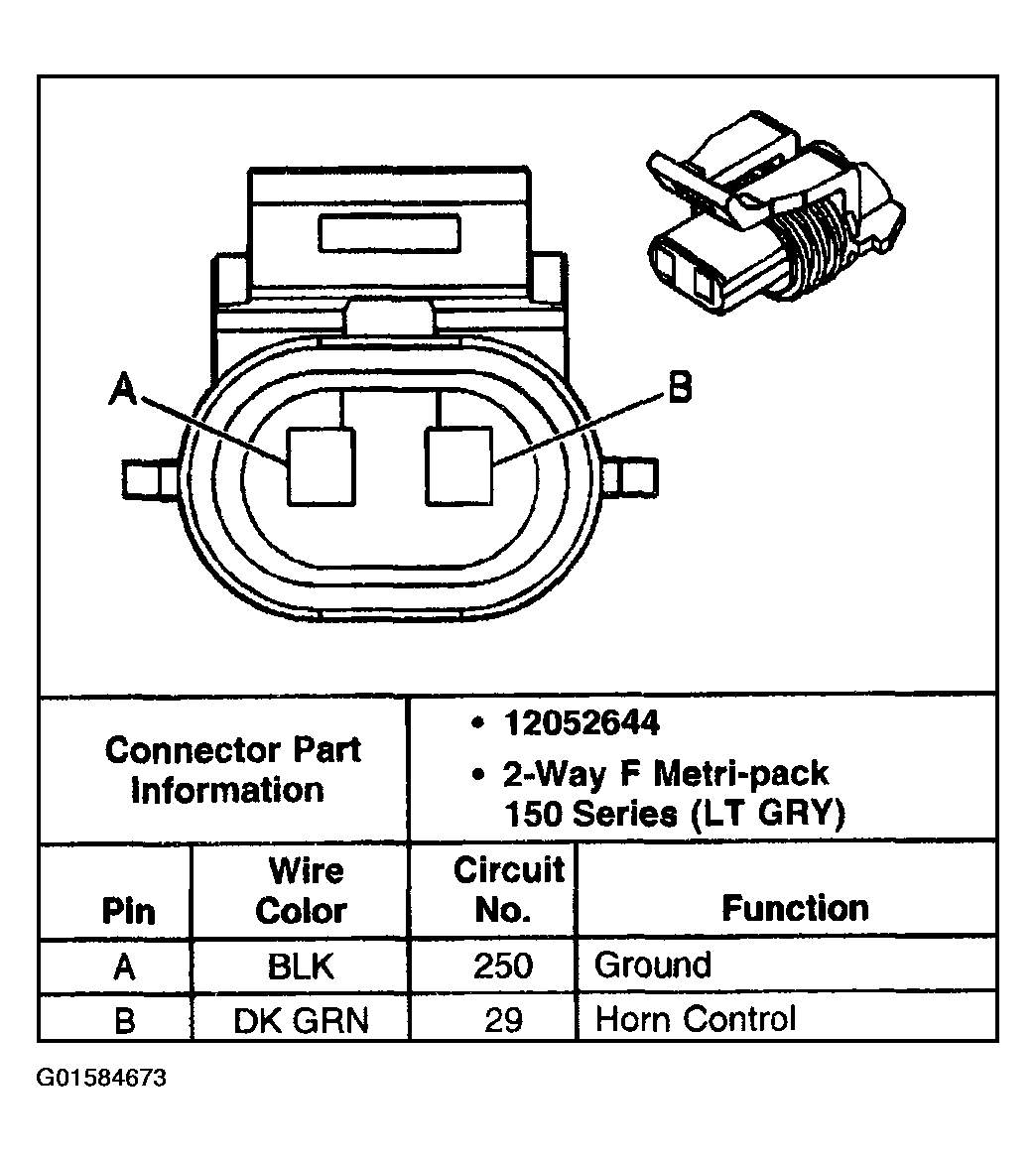

Fig 1: Horn - Left
Courtesy of GENERAL MOTORS CORP.

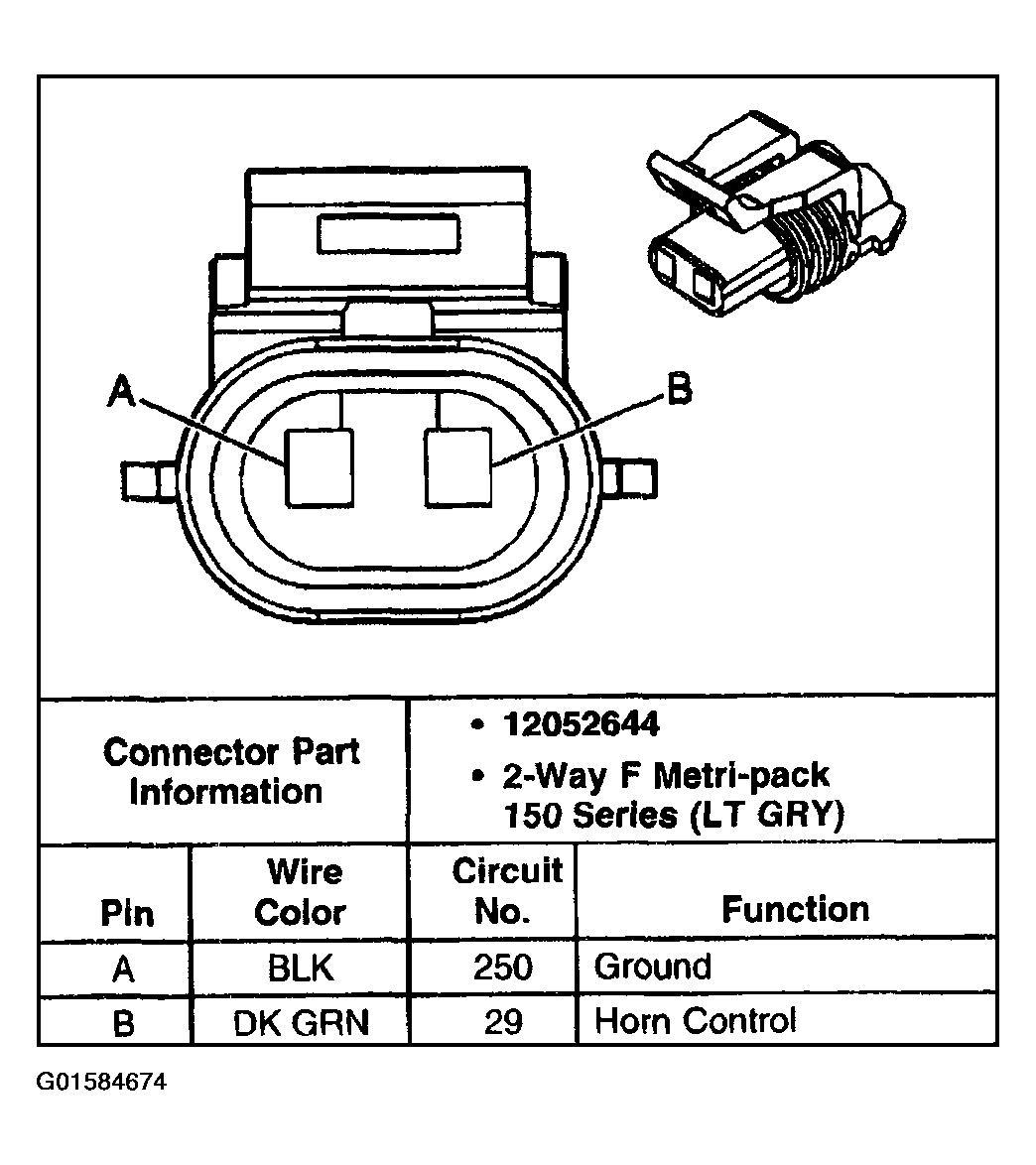

Fig 2: Horn - Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
