Power Seat Systems Connector End Views

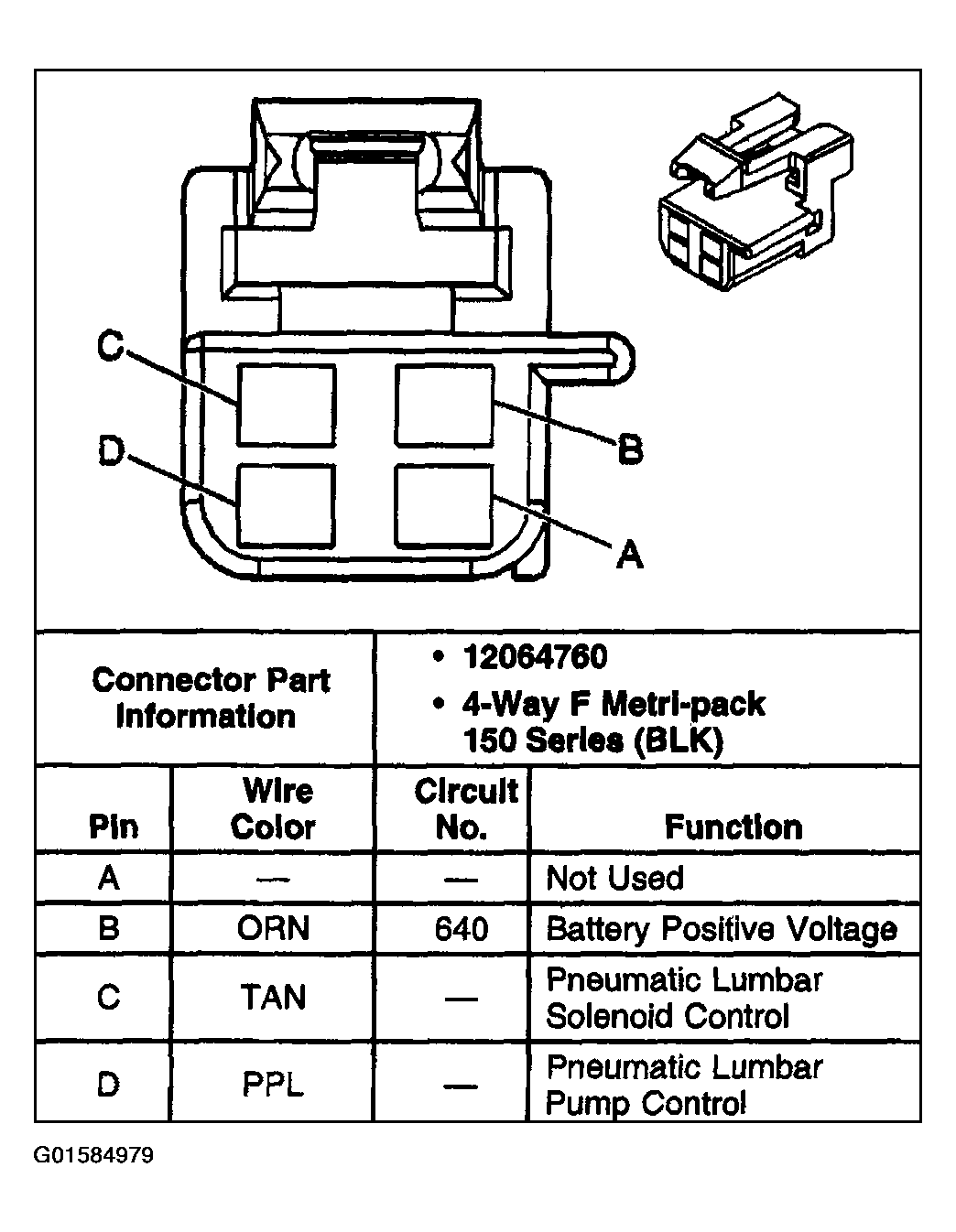

Fig 1: Seat Lumbar Switch - Driver W/O Power, Front Passenger W/Bucket Seats

Courtesy of GENERAL MOTORS CORP.

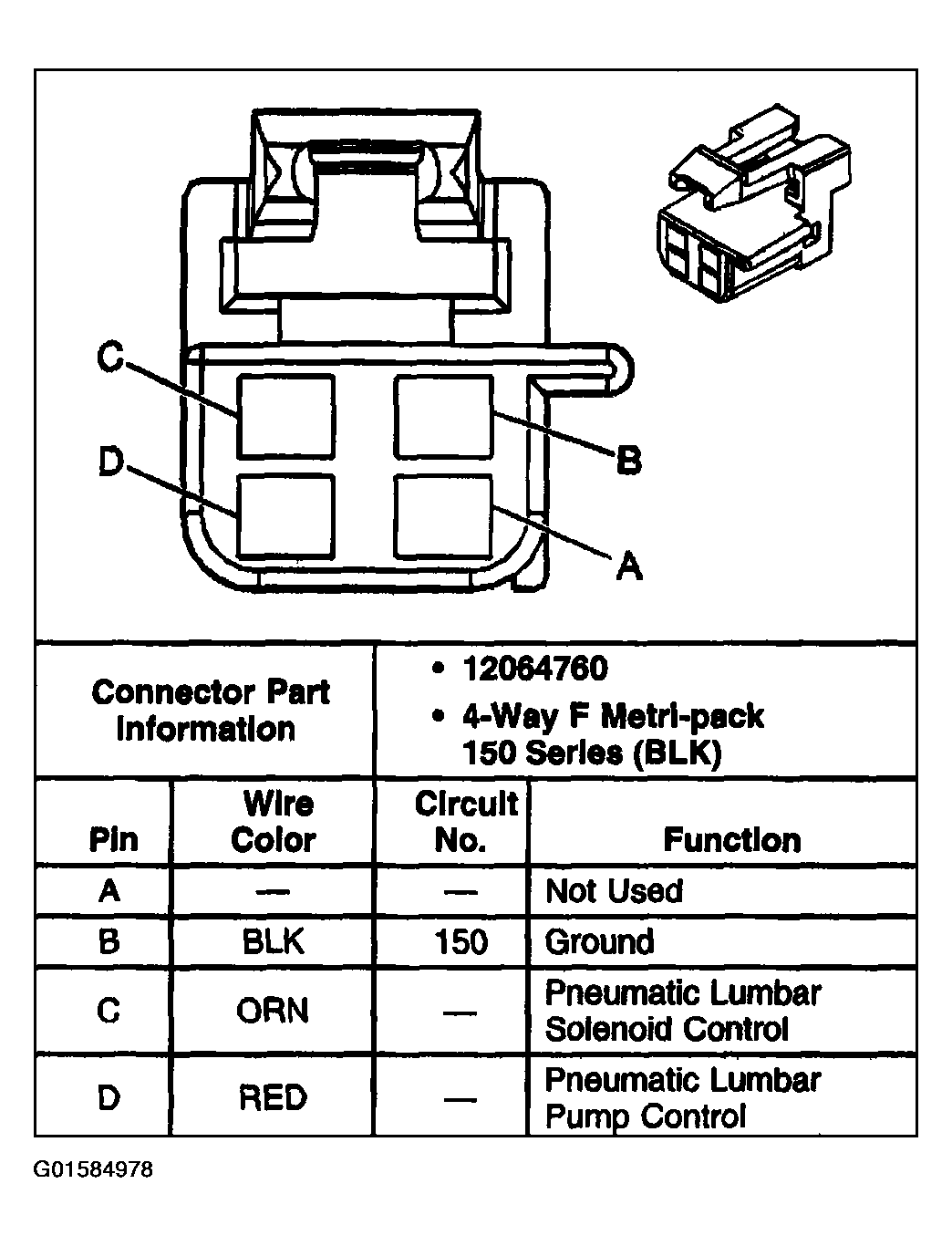

Fig 2: Seat Lumbar Switch - Driver W/Power Seats

Courtesy of GENERAL MOTORS CORP.

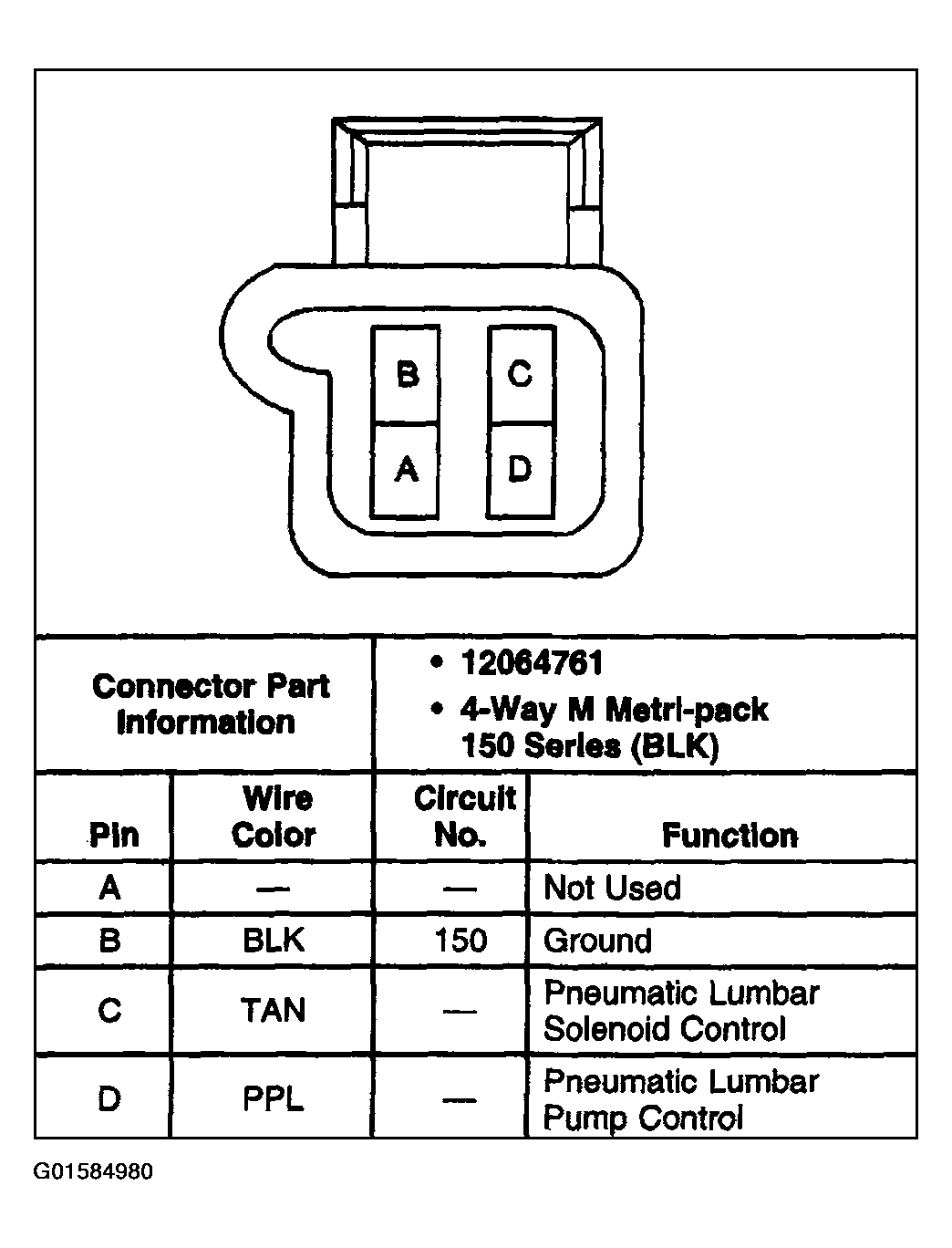

Fig 3: Seat Lumbar Motor - Driver W/Power Seats

Courtesy of GENERAL MOTORS CORP.

Fig 4: Seat Adjuster Switch - Driver (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

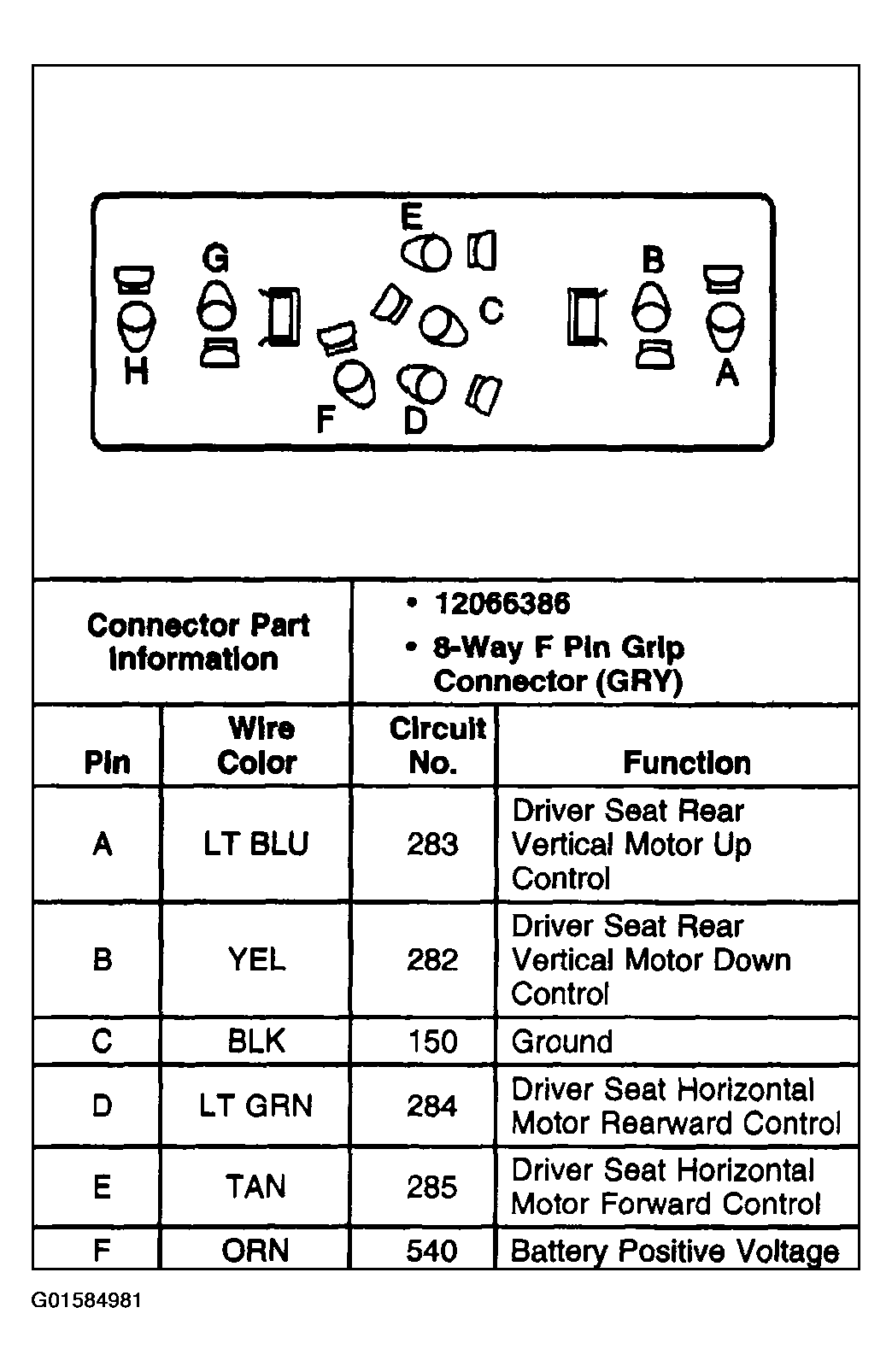

Fig 5: Seat Adjuster Switch - Driver (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

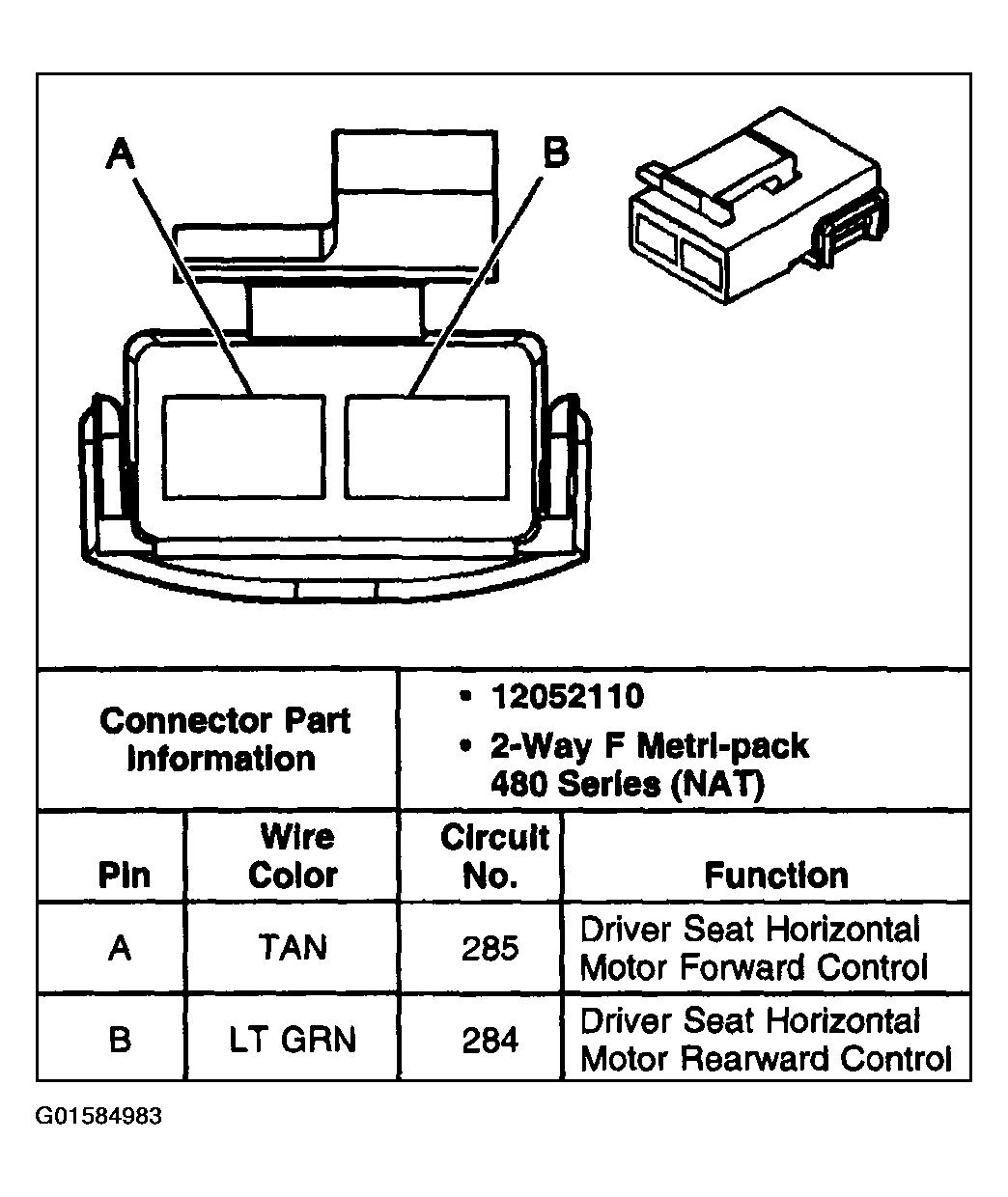

Fig 6: Seat Horizontal Motor - Driver

Courtesy of GENERAL MOTORS CORP.

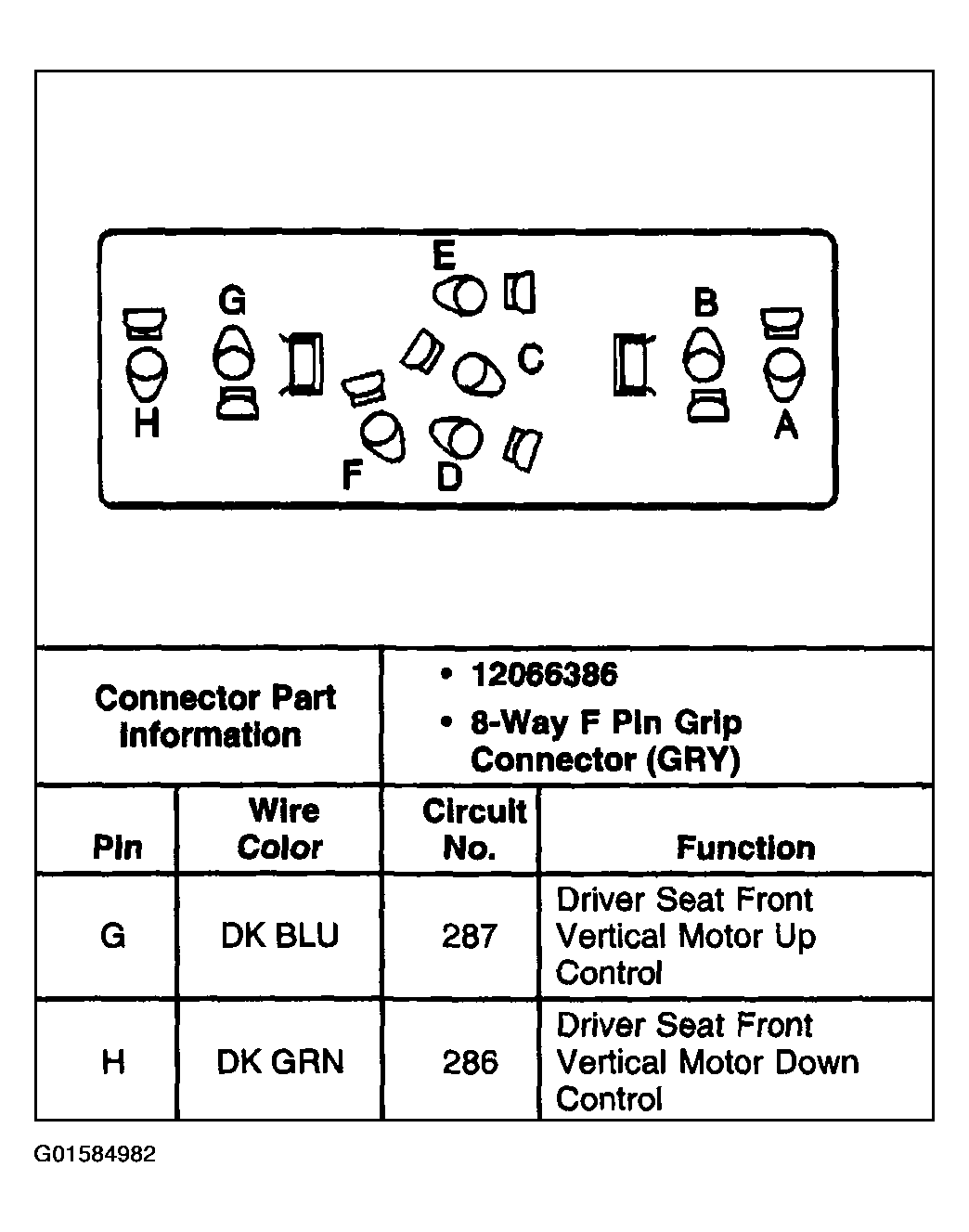

Fig 7: Seat Front Vertical Motor - Driver

Courtesy of GENERAL MOTORS CORP.

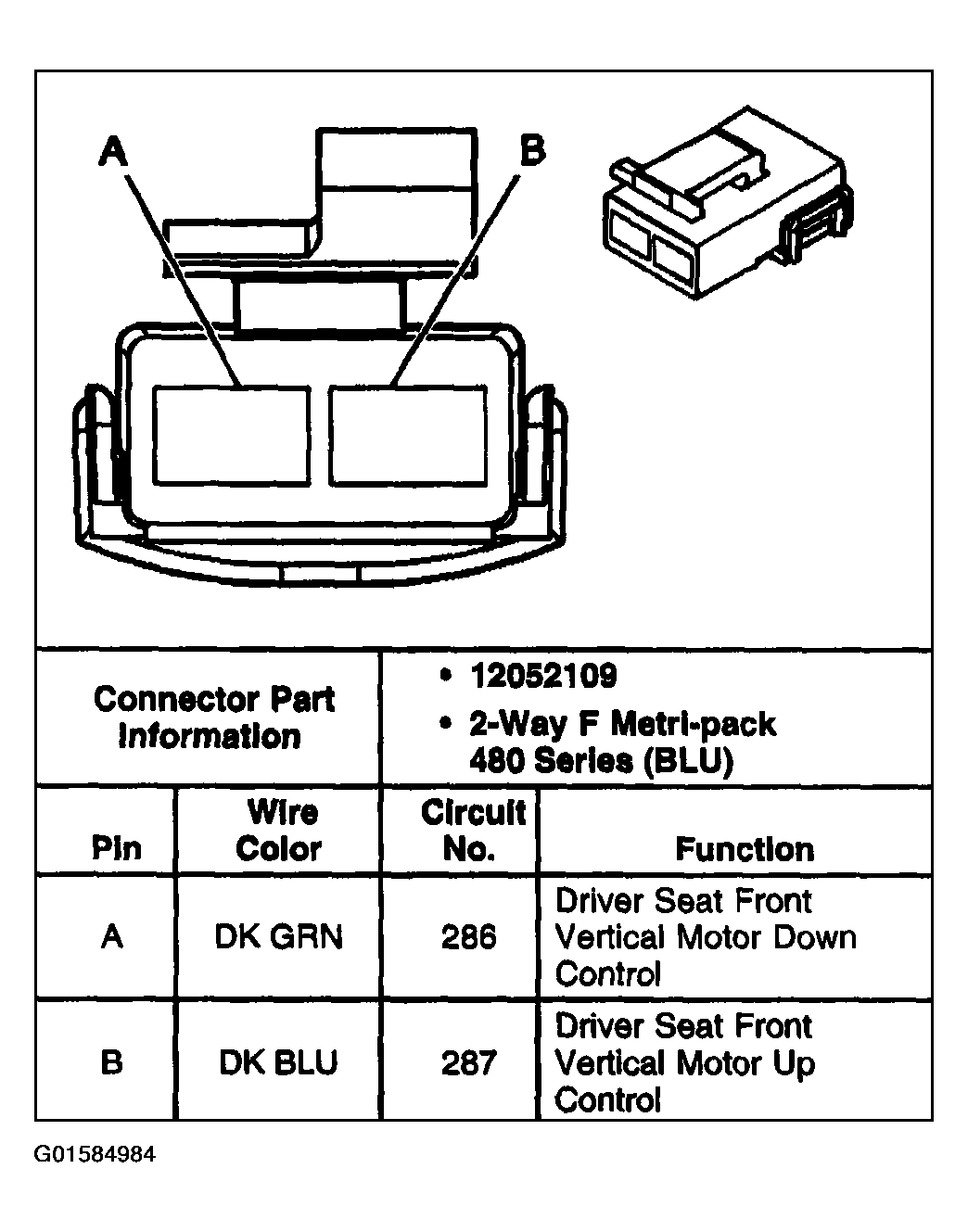

Fig 8: Seat Rear Vertical Motor - Driver

Courtesy of GENERAL MOTORS CORP.
