Removal Procedure

  1. Insert a small coin between the two halves of the transmitter case at the slot provided near the key ring hole.
  2. Twist the coin in order to open the case.
  3. Open the transmitter case.
    Fig 1: Opening Transmitter Case Using A Small Coin
    G01584665Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery (2).

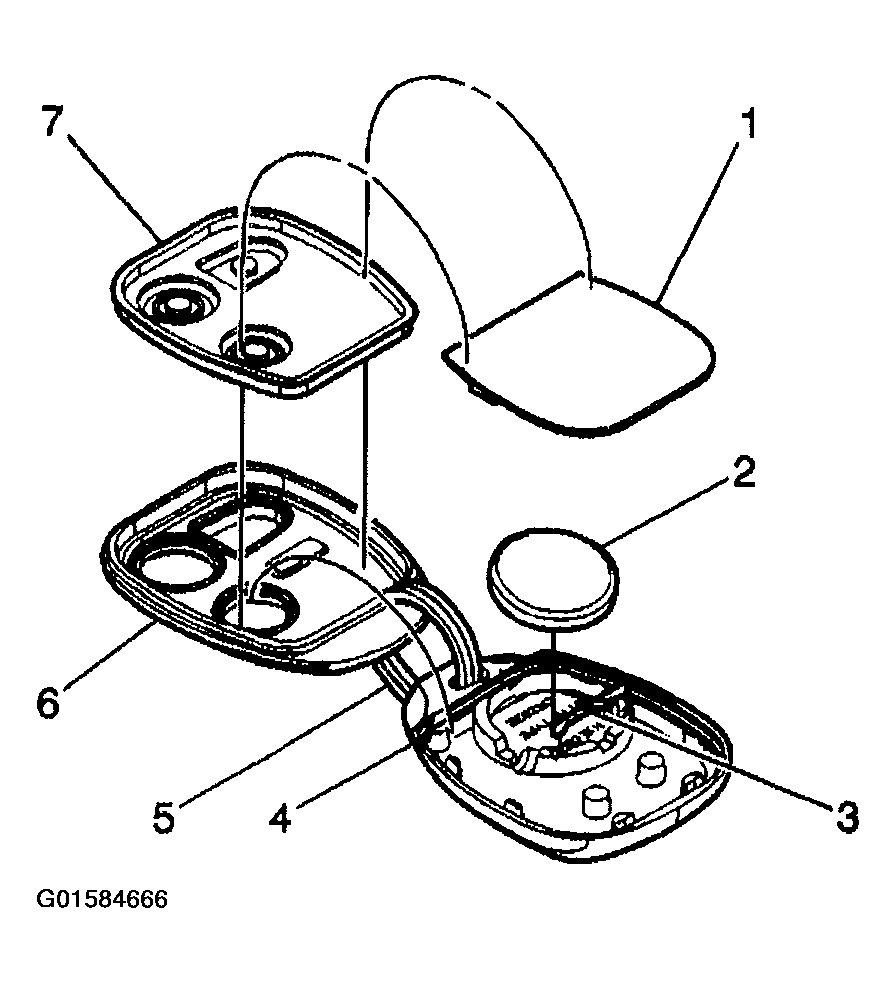

    Fig 2: Transmitter Battery
    G01584666Courtesy of GENERAL MOTORS CORP.
