Removal Procedure

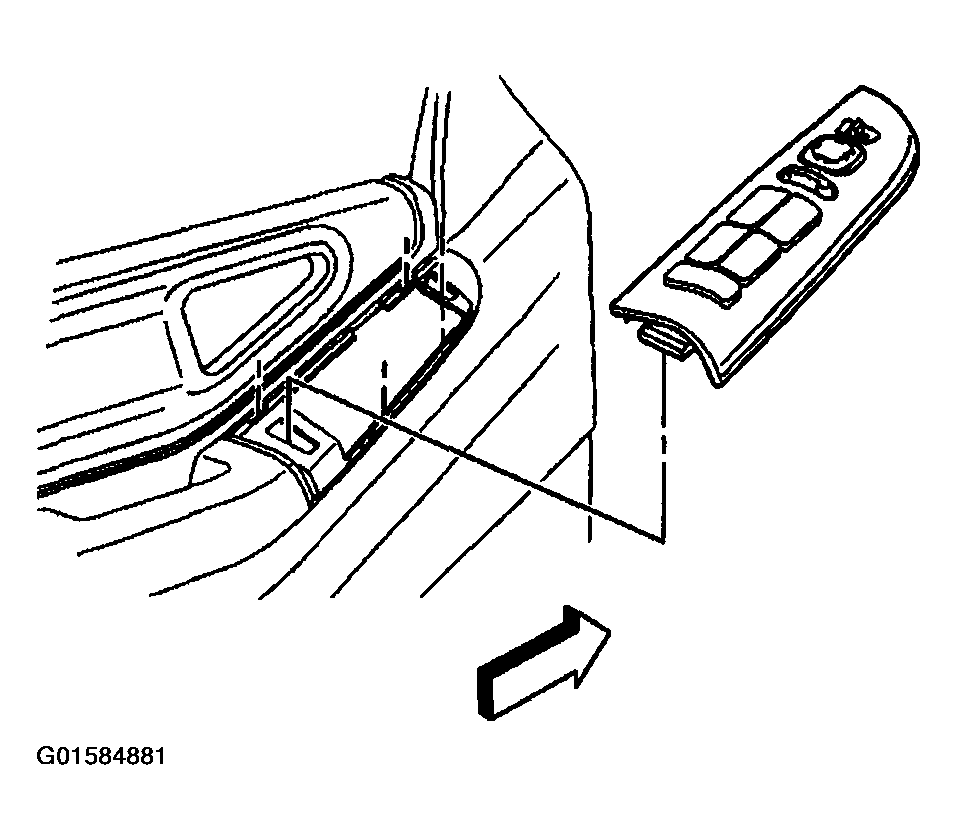

- Use a small flat blade tool in order to carefully pry the door accessory mounting panel from the door trim panel.
- Remove the switch mounting panel.
- Disconnect the power accessory electrical connectors from the switches and the speaker, as necessary.
- Use a flat blade tool in order to carefully pry the switches from the accessory mounting panel.
- Remove the switches.
- Carefully spread the speaker grill retainers, as necessary.
- Rotate the speaker counterclockwise, as necessary.
- Remove the speaker from the switch mounting panel.
Courtesy of GENERAL MOTORS CORP.
