Power Take-Off (PTO) Connector End Views

Fig 1: PTO Relay

Courtesy of GENERAL MOTORS CORP.

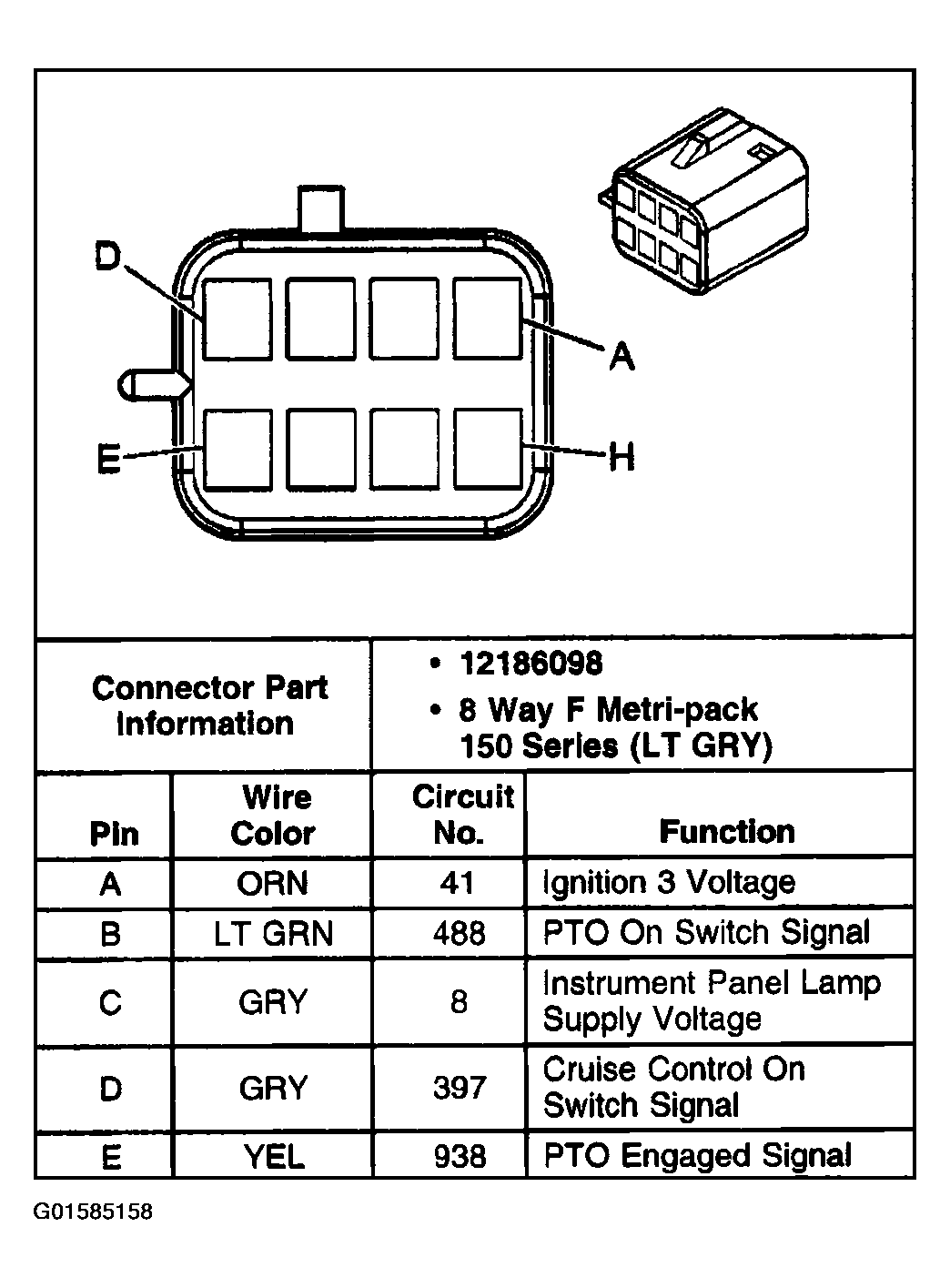

Fig 2: PTO Switch (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

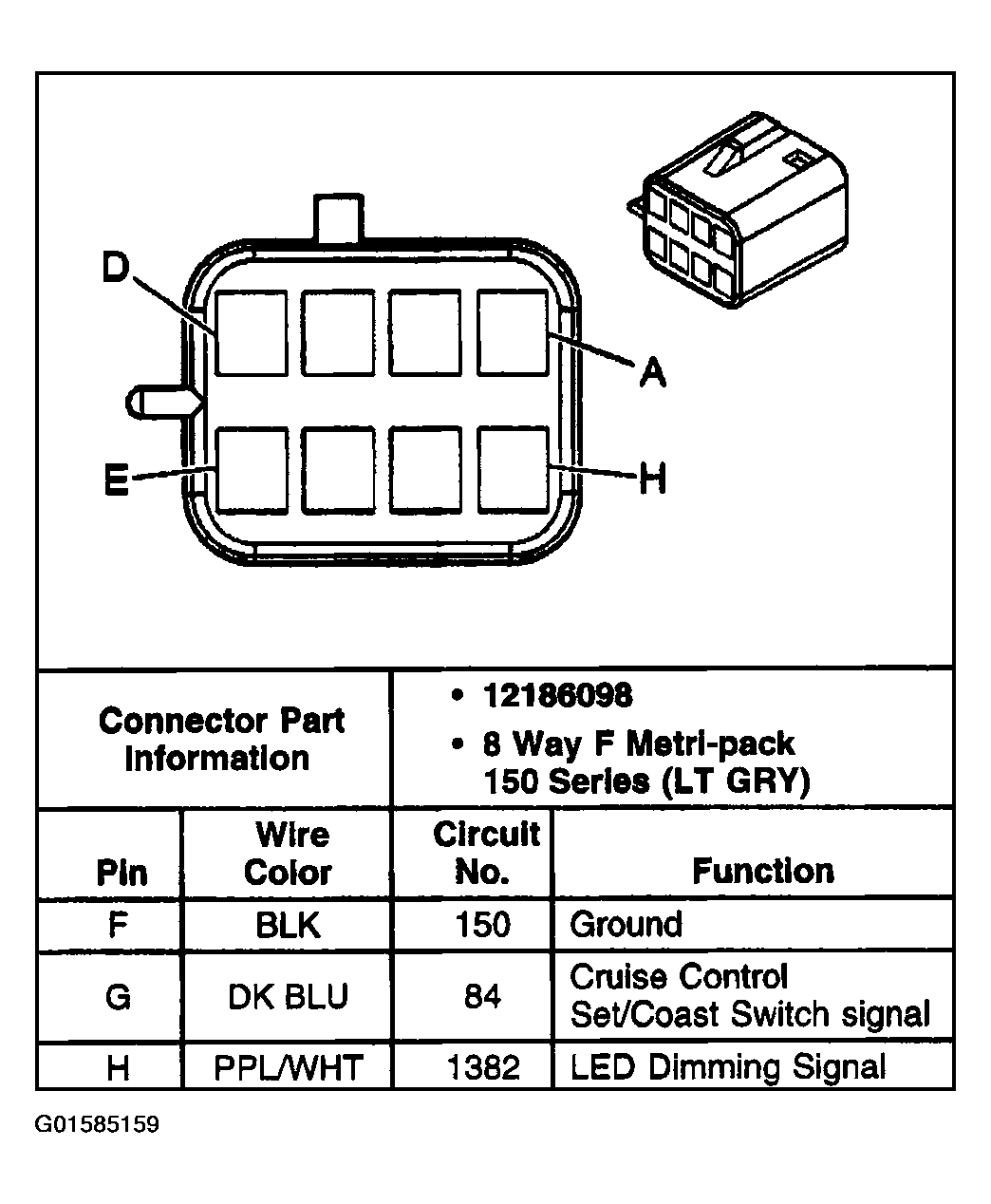

Fig 3: PTO Switch (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
