ABS Connector End Views

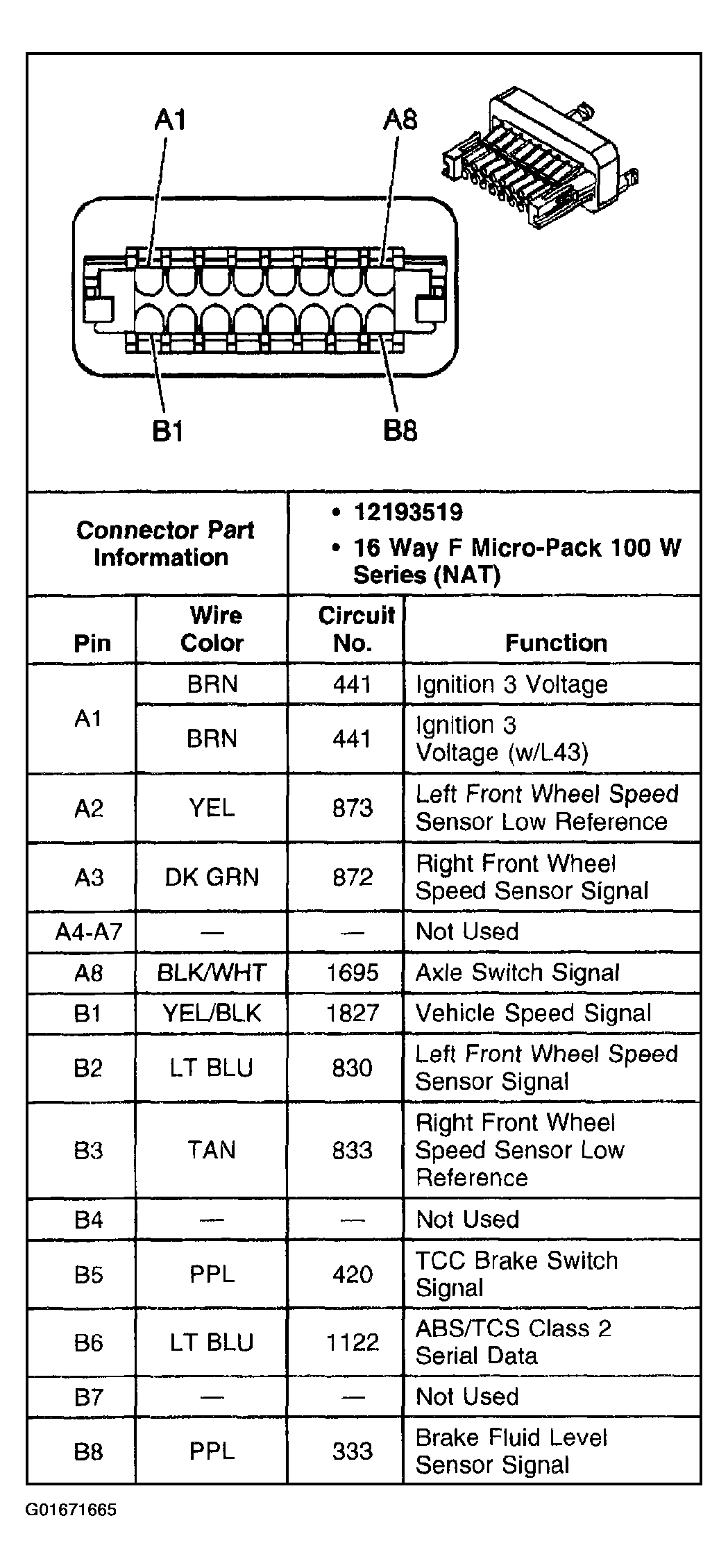

Fig 1: Electronic Brake Control Module (EBCM) Connector C1 End View
G01671665Courtesy of GENERAL MOTORS CORP.

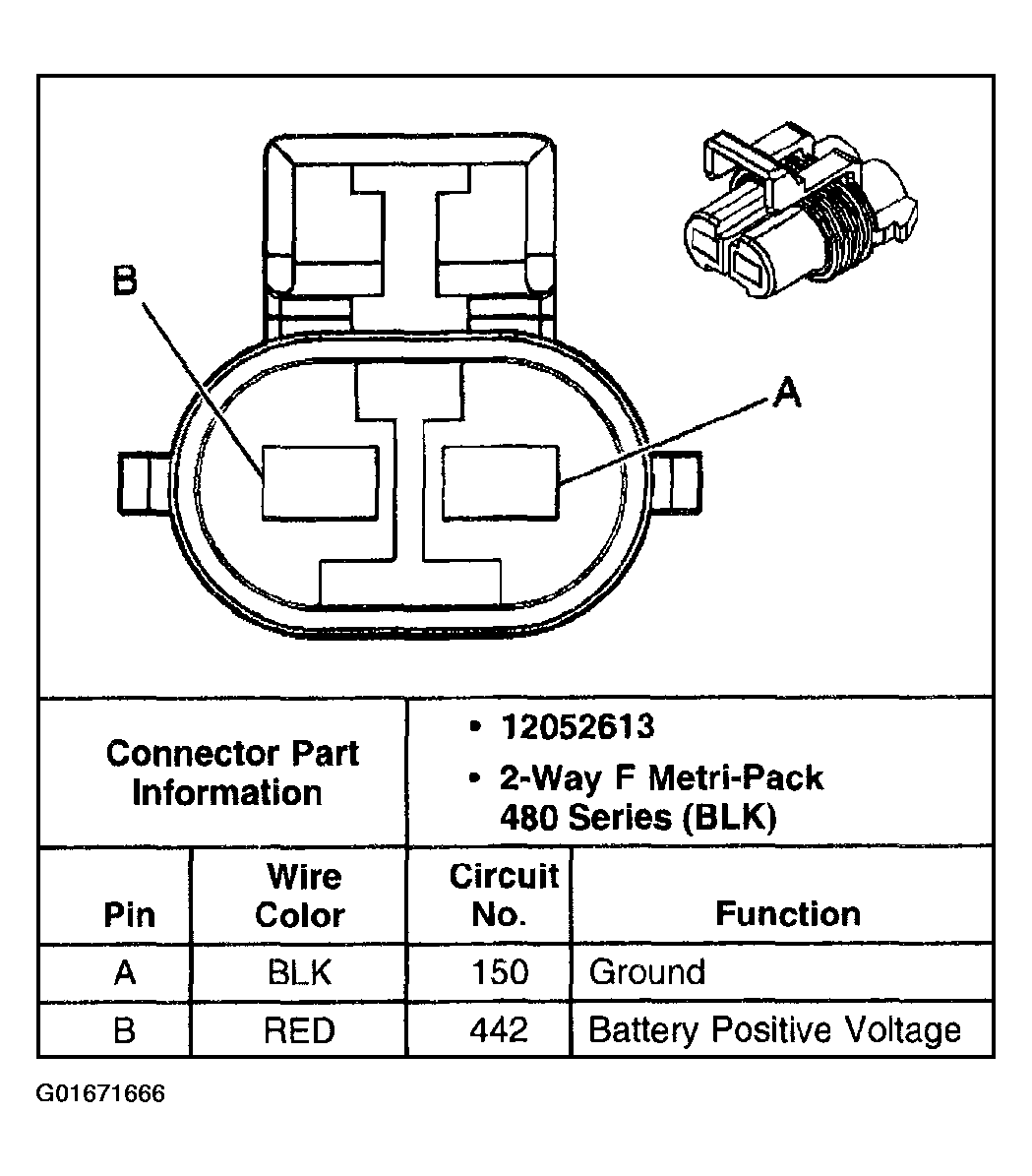

Fig 2: Electronic Brake Control Module (EBCM) Connector C2 End View
G01671666Courtesy of GENERAL MOTORS CORP.

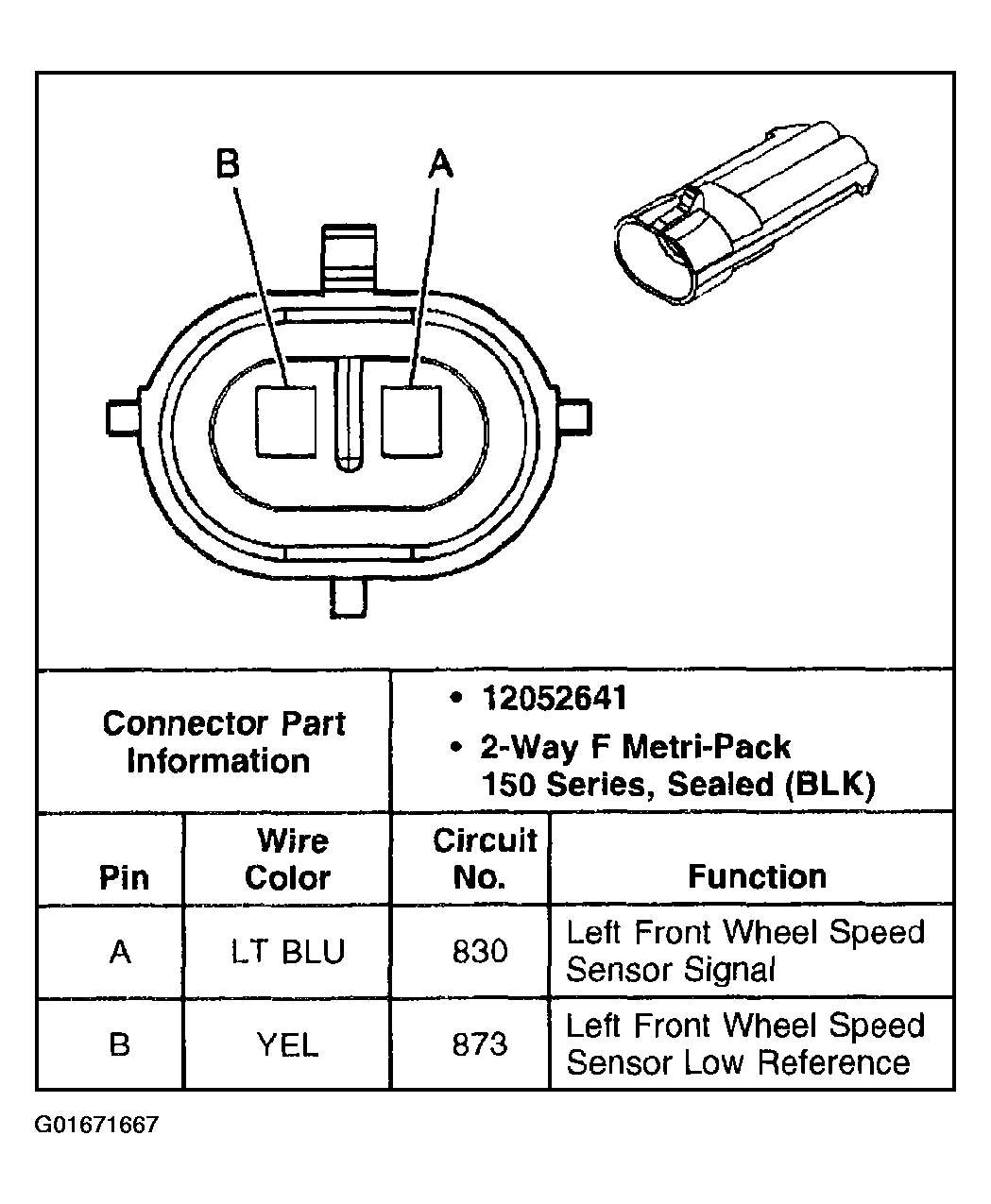

Fig 3: Wheel Speed Sensor (WSS) - LF Connector End View
G01671667Courtesy of GENERAL MOTORS CORP.

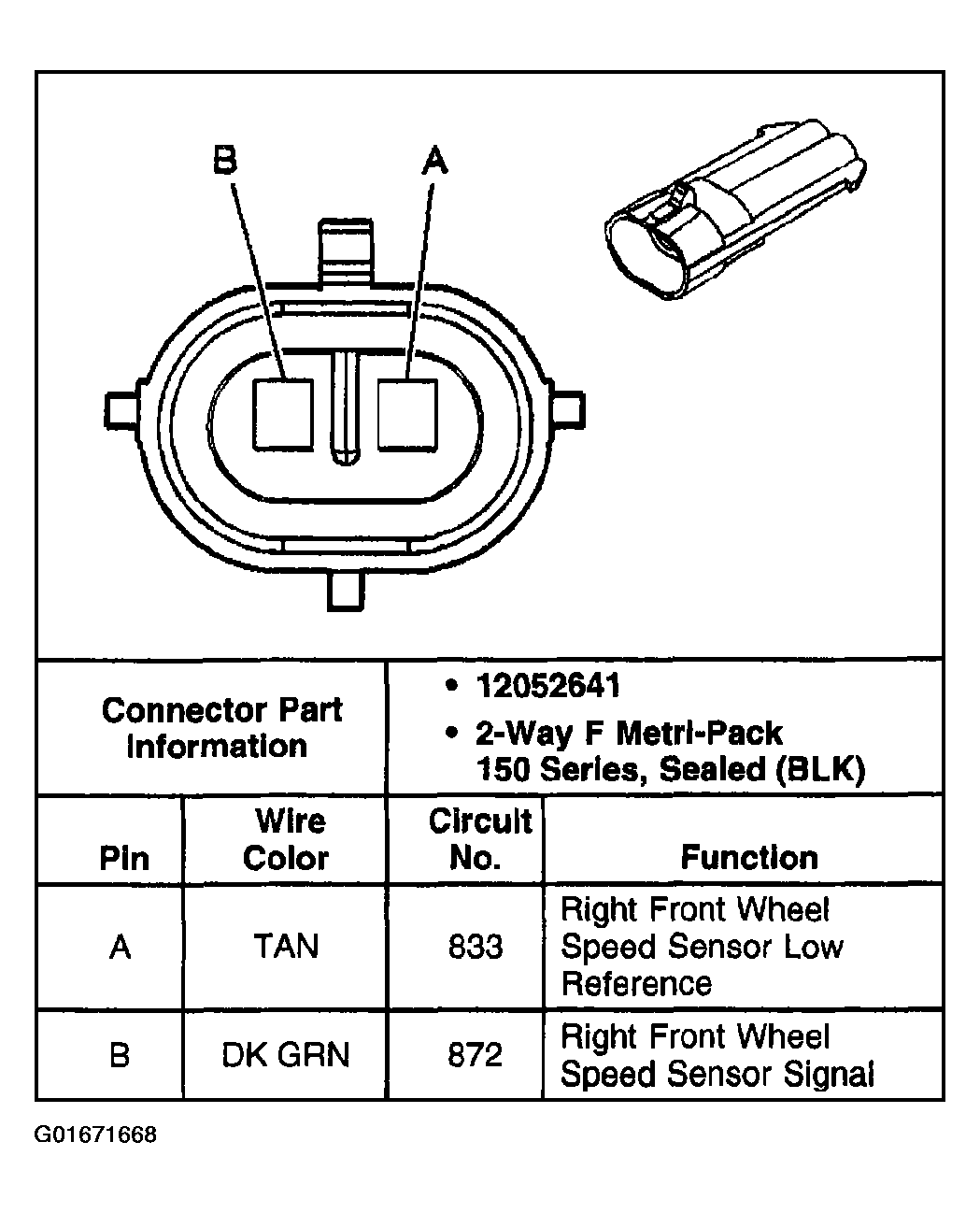

Fig 4: Wheel Speed Sensor (WSS) - RF Connector End View
G01671668Courtesy of GENERAL MOTORS CORP.
