Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Component Locator
>>
ABS Component Views
ABS Component Views

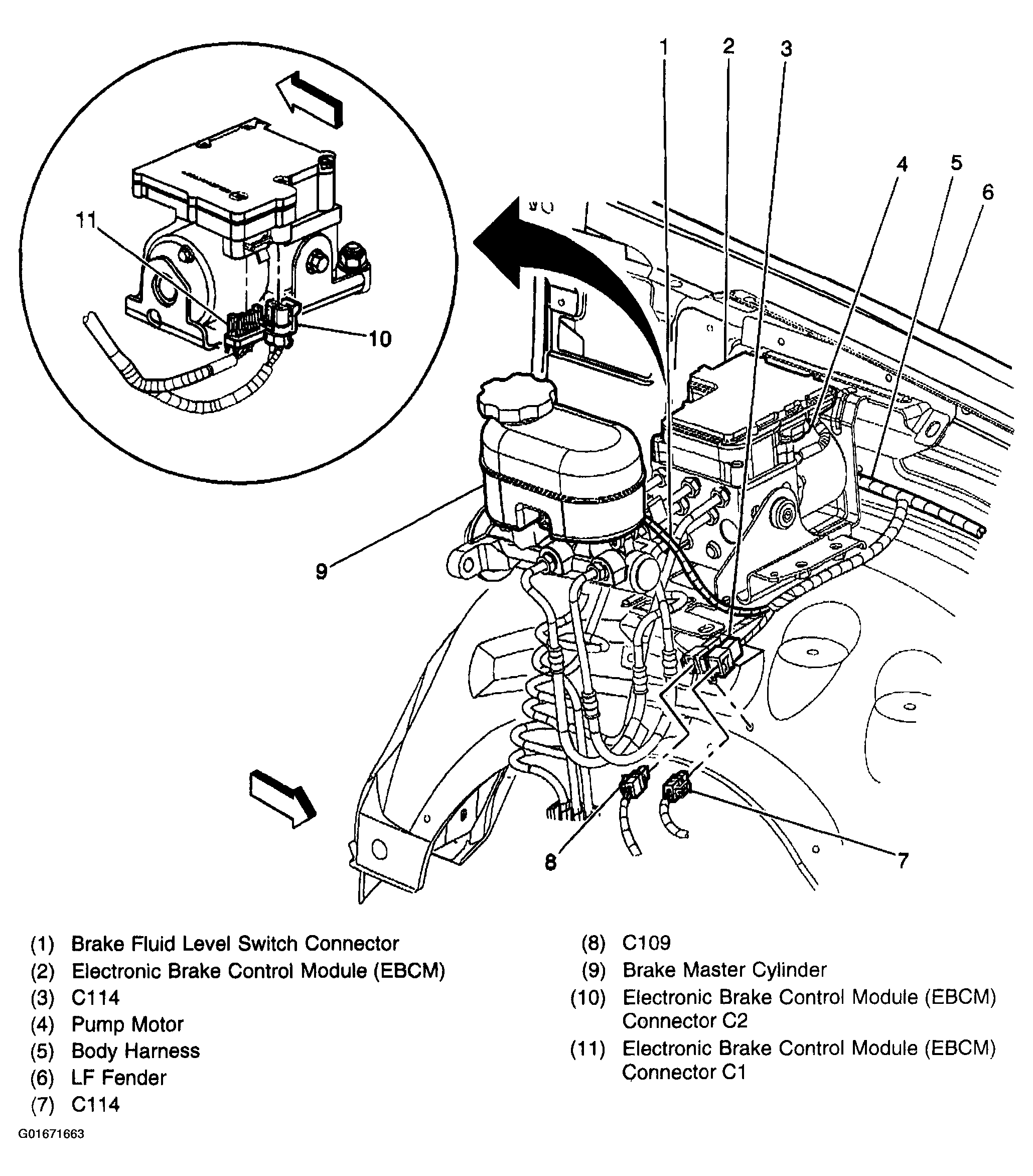

Fig 1: Electronic Brake Control Module (EBCM) Components
Courtesy of GENERAL MOTORS CORP.

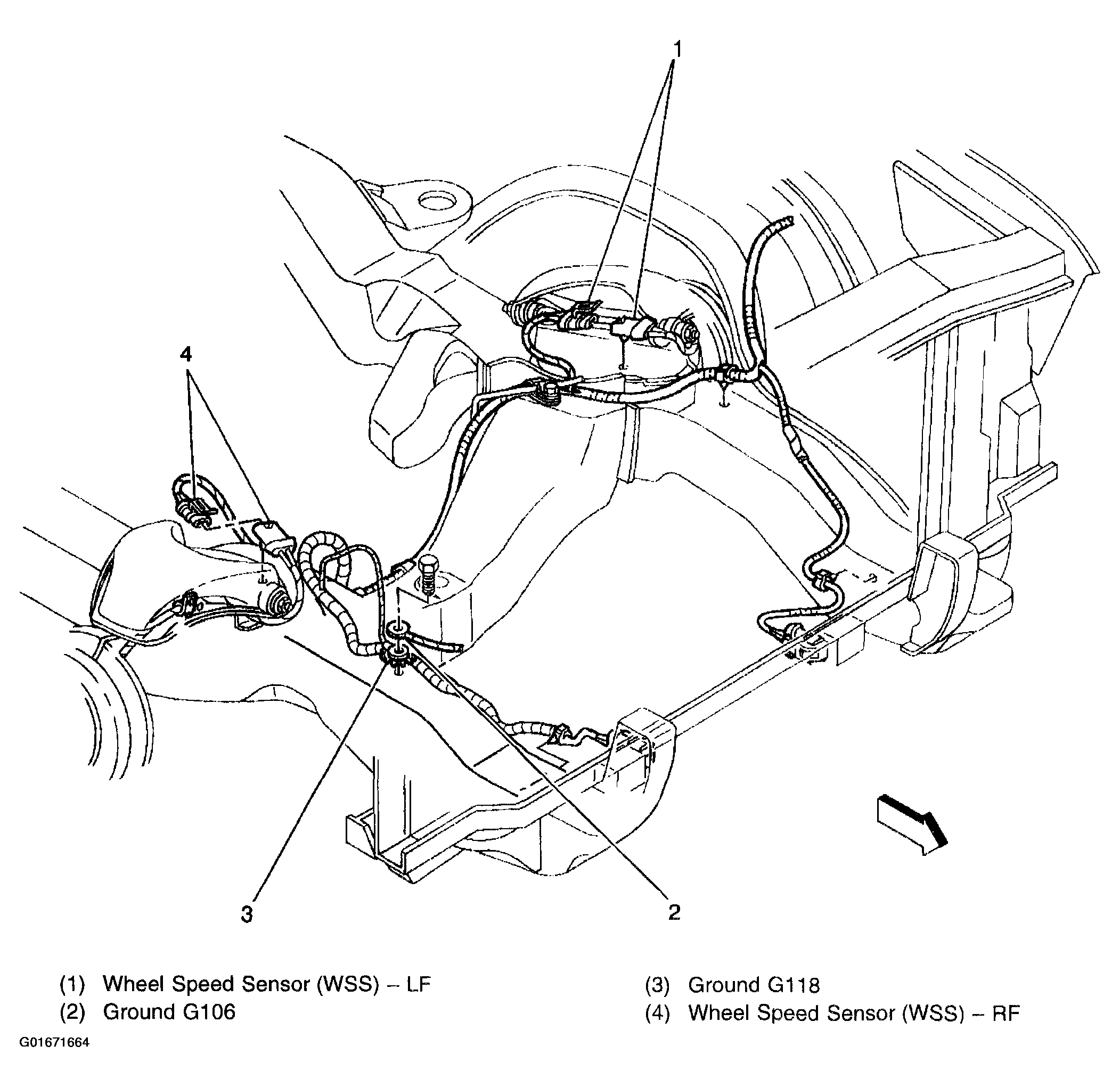

Fig 2: Forward Wiring Sensor Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
