Home >> Chevrolet >> 2002 >> Astro Van Cargo, RWD >> Repair and Diagnosis >> Steering >> Steering Wheel & Steering Column >> Component Locator >> Steering Column Disassembled View (Standard Column)

Steering Column Disassembled View (Standard Column)

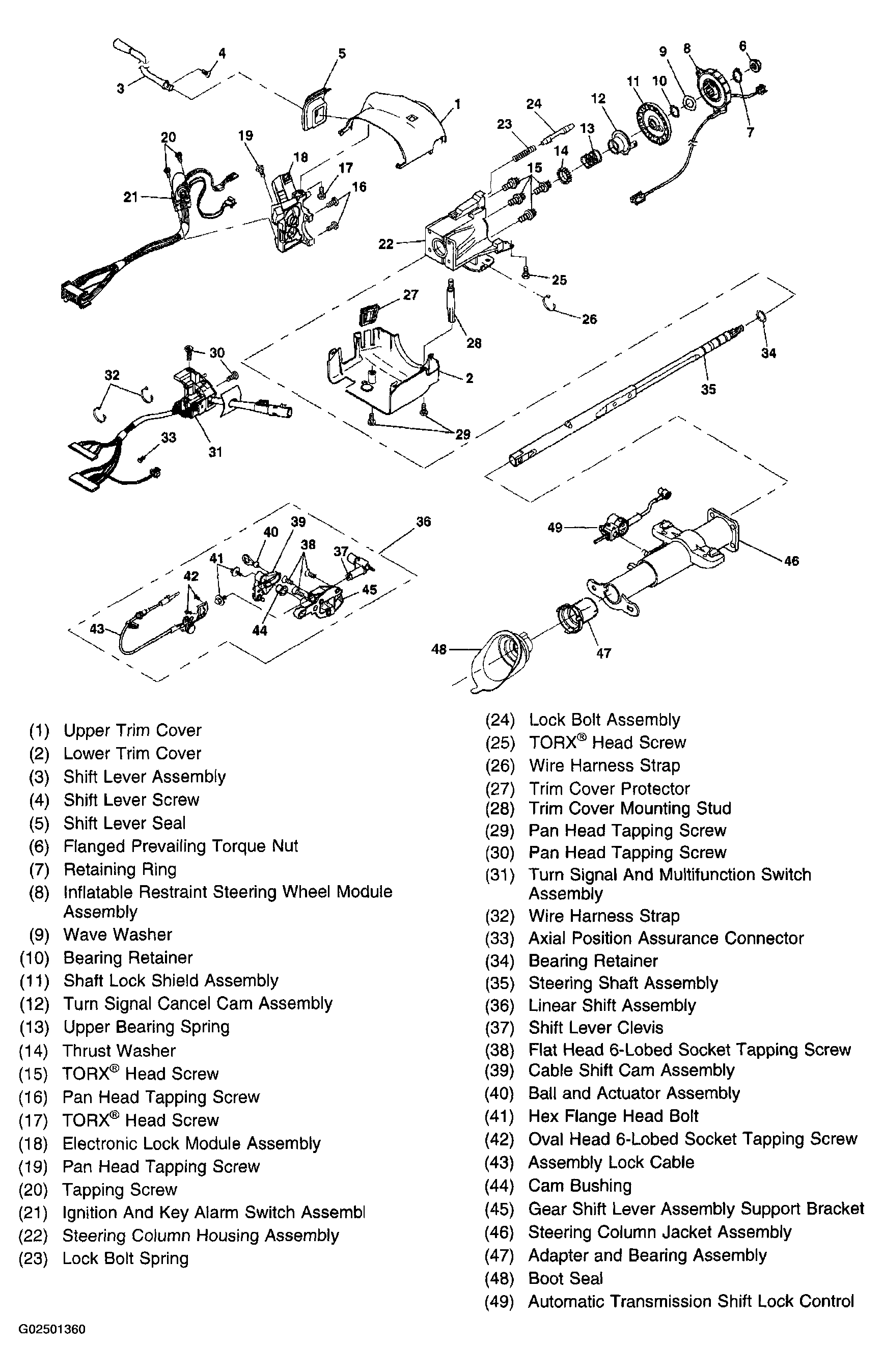

Fig 1: Exploded View Of Standard Steering Column

G02501360

Courtesy of GENERAL MOTORS CORP.
