Home >> Chevrolet >> 2002 >> Astro Van Cargo, RWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Convenience Center C5 Connector End View

Convenience Center C5 Connector End View

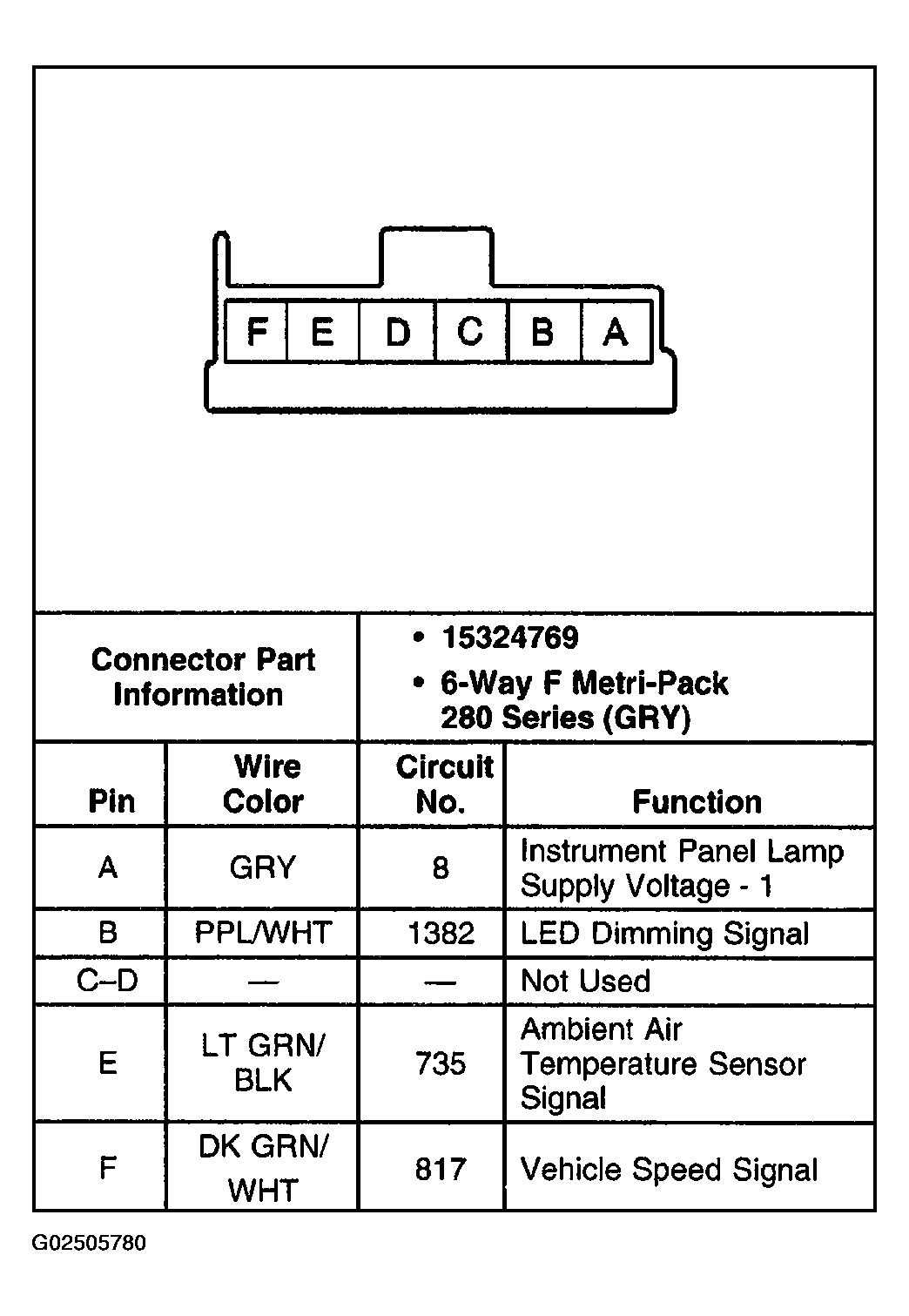

Fig 1: Convenience Center C5 Connector End View

G02505780

Courtesy of GENERAL MOTORS CORP.
